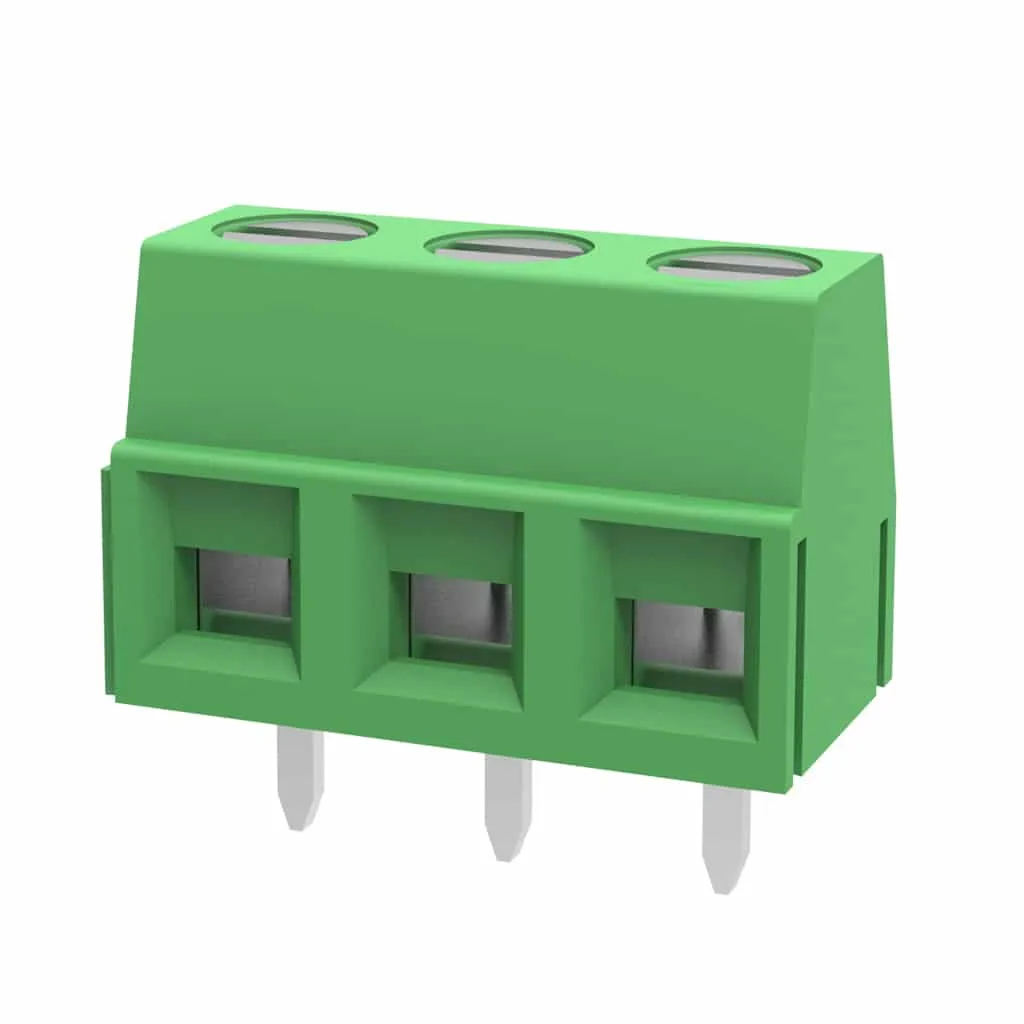

Rising Clamp , 5mm Pitch – DG127-5.0-xxP-1400AH
Product specs
| Height | 10.1mm |
|---|---|
| Pitch | 5mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG127-5.0 series is one of Degson most popular rising clamp terminal block ranges. Product is available in multiple poles and colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination. With a height of only 10.1mm it makes the product very compact for a 5mm pitch.
Dg127 series is both UL (E228872) & VDE (40022126) approved and with the highest V0 flammability rating.
- Pitch 5mm
- 10.1mm High – 8.1mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2.5 slotted
- Torque – 3.54 lb/In
- UL File number E228872 – 14-26 Awg – 12A @ 300v
- VDE File number 40022126 – 1.5mm2 – 15A @ 250v
- Interlocking device
- Colour Green as standard
