IDC Straight Box Header 2.54mm – DS1013 Series

SKU: DS1013 Categories: , Manufacturer:

Product specs

Pitch

2.54mm

Number of Pins

10, 14, 16, 20, 24, 26, 34, 40, 50

Number of Rows

2

Tray

60, 80, 100, 120, 140, 160, 180, 200, 260

Product Description

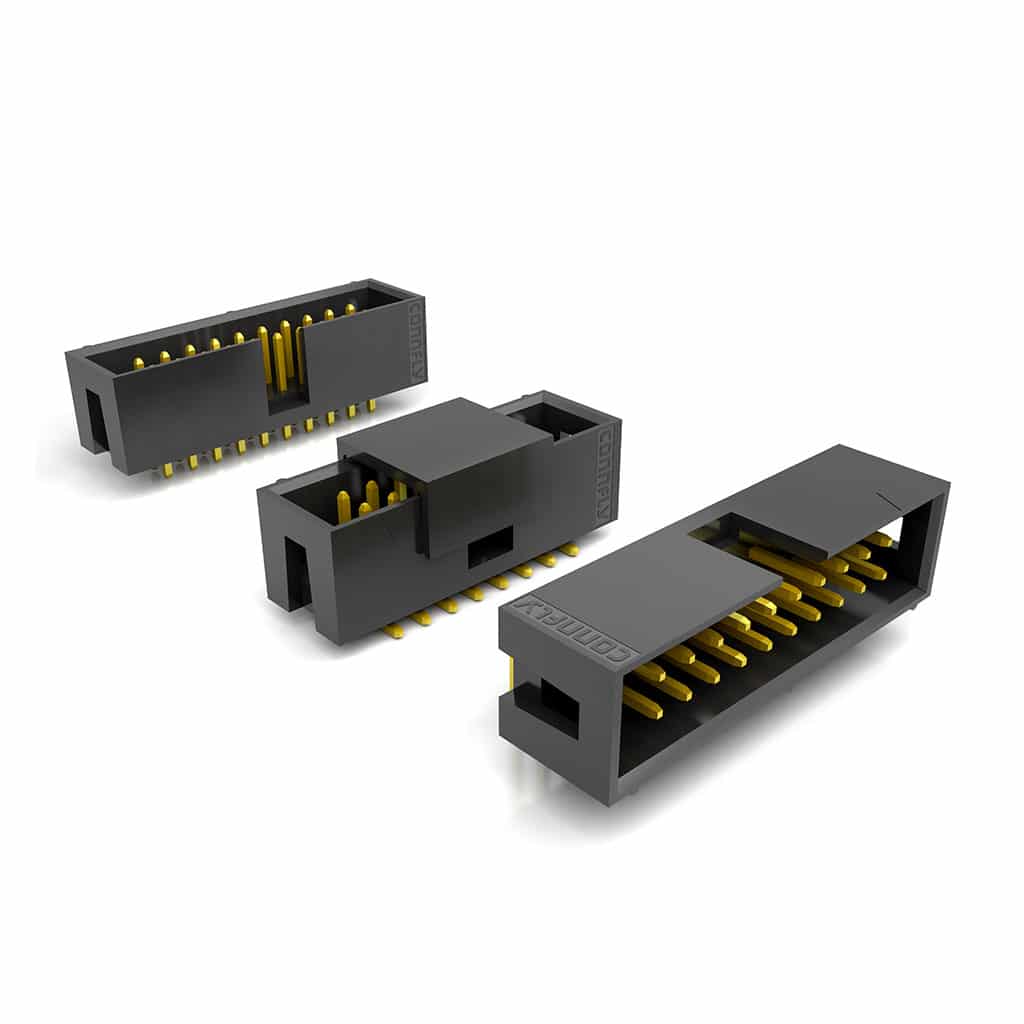

The DS1013 straight box header from Connfly is a dual row shrouded IDC header. Low profile polarised for the female socket. Available in 10, 14, 16, 20, 24, 26, 34, 40 and 50 way. The thermoplastic housing is UL 94V-0 rated.

  • IDC Pitch – 2.54mm
  • Contact/Plating – Copper Alloy / Full Gold Flash
  • Insulator – Thermoplastic (UL 94V-0)
  • Temperature Range – -40C + 105C
  • Contact Resistance – 20mΩ max
  • Insulation Resistance – 1000mΩ max
  • Dielectric Withstand Voltage – AC 500V 1 Minute
