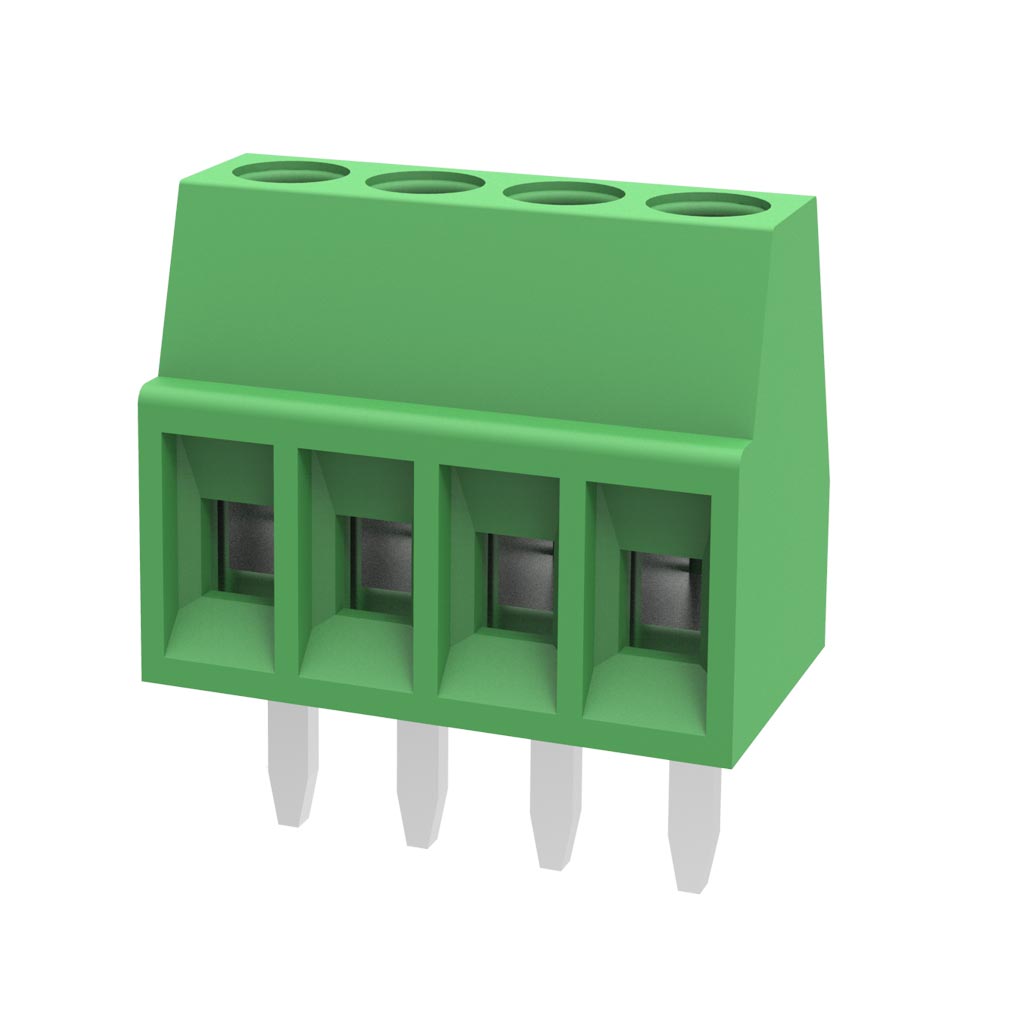

Rising Clamp , 2.54mm Pitch – DG308-2.54-xxP-1400AH
Product specs
| Height | 8.5mm |
|---|---|
| Pitch | 2.54mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG308-2.54 series is Degsons smallest pitch terminal block series with a pitch of only 2.54mm. Product is available in multiple poles and different colours upon request. Product is not interlocking or end-stackable.
DG308 series has both VDE (40022178) and UL (E228872)
- Pitch 2.54mm
- 8.5mm High – 6.3mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M1.6 slotted
- Torque – 1 lb/In
- UL File number E228872 – 18-26 Awg – 6A @ 150v
- VDE File number 40022178 – 2.5mm2 – 8A @ 130v
- Colour Green as standard
