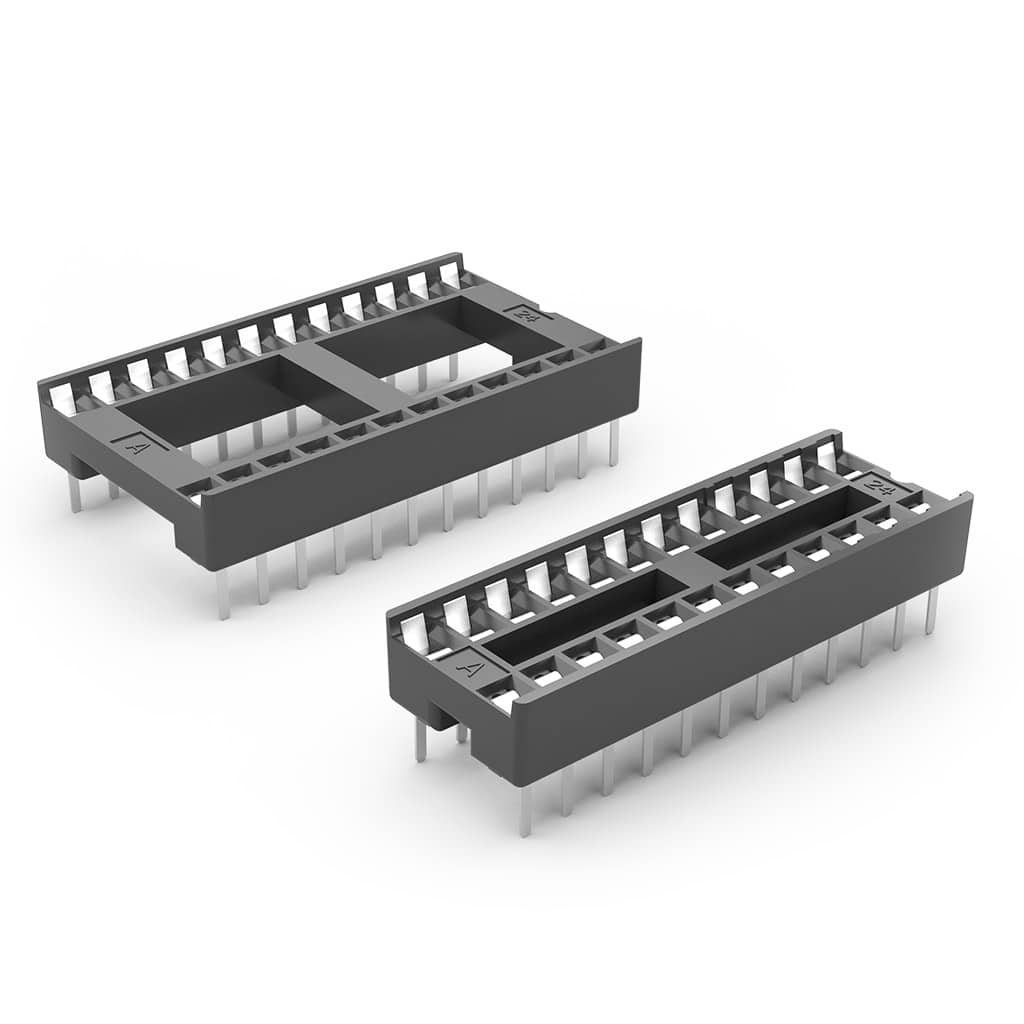

Stamped IC Socket – DS1009 – Series

SKU: DS1001-01--1 Category: Manufacturer:

Product specs

Number of Pins

6, 8, 14, 16, 18, 20, 24, 28, 32, 40

Row Width

7.62 (0.3), 15.24 (0.6)

Tube

12, 15, 17, 20, 24, 26, 30, 34, 60, 80

Product Description

The DS1009  is a stamped IC socket from Connfly. High quality and economic. Width pitches of 7.62mm (0.3′) and 15.24mm (0.6′). The thermoplastic UL 94V-0 rated.

  • Contact – Copper Alloy/Full Tin
  • Housing – Thermoplastic (UL 94V-0)
  • Temperature Range  -20C + 105C
  • Contact Resistance – 20mΩ max
  • Insulation Resistance – 1000mΩ max
  • Dielectric Withstanding Voltage – AC 500V 1 Minute
