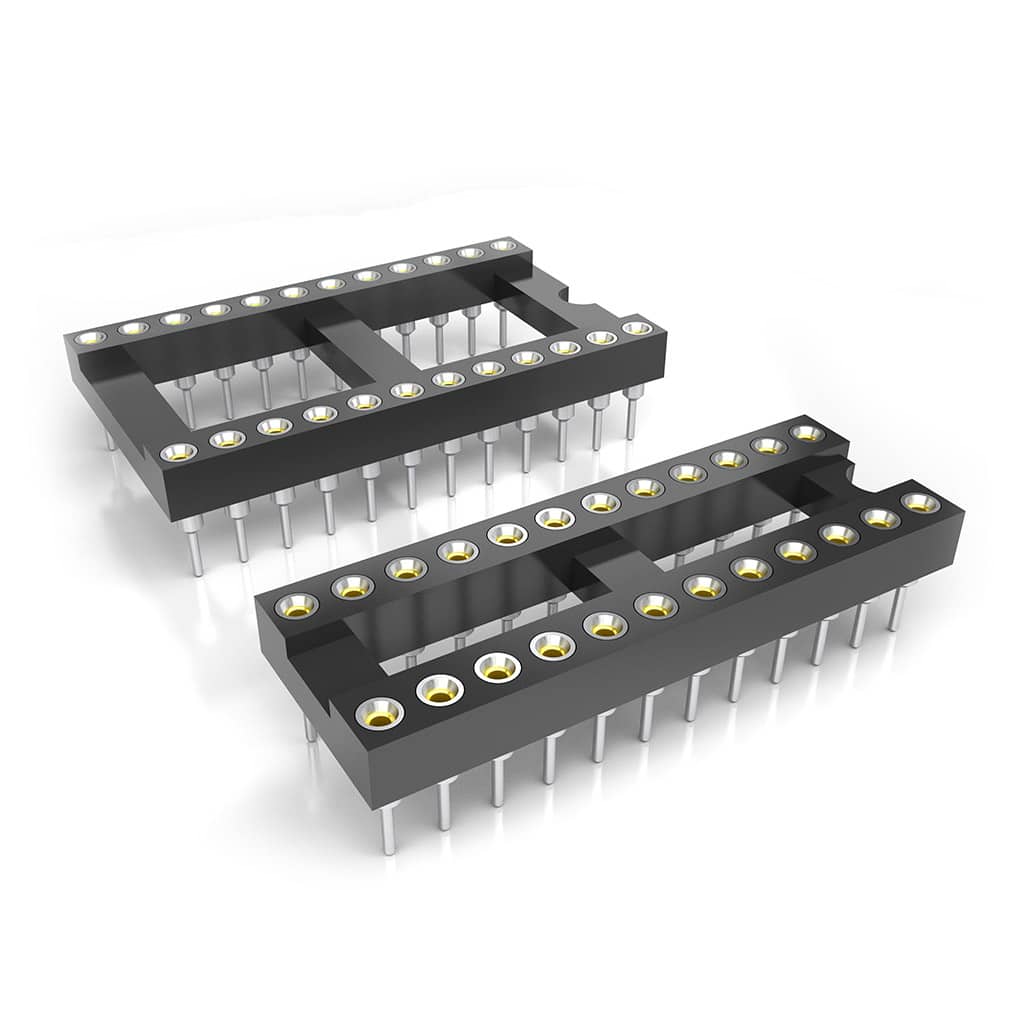

Turned Pin IC Socket – DS1001-01 Series
Product specs
| Number of Pins | 6, 8, 14, 16, 18, 20, 24, 28, 32, 40 |
|---|---|
| Row Width | 7.62 (0.3), 15.24 (0.6) |
| Tube | 12, 15, 17, 20, 24, 26, 30, 34, 60, 80 |
Product Description
The DS1001-01 is a turned pin IC socket from Connfly. Closed pins 3µ Gold plate. Width pitches of 7.62mm (0.3′) and 15.24mm (0.6′). The thermoplastic with Glass Fibre housing is UL 94V-0 rated.
- Contact – Copper Alloy/Full Tin
- Clip – 3µ Gold
- Housing – PBT Glass fibre (UL 94V-0)
- Temperature Range – -40C + 105C
- Contact Resistance – 20mΩ max
- Insulation Resistance – 1000mΩ max
- Current Rating – 3A per pin Max
