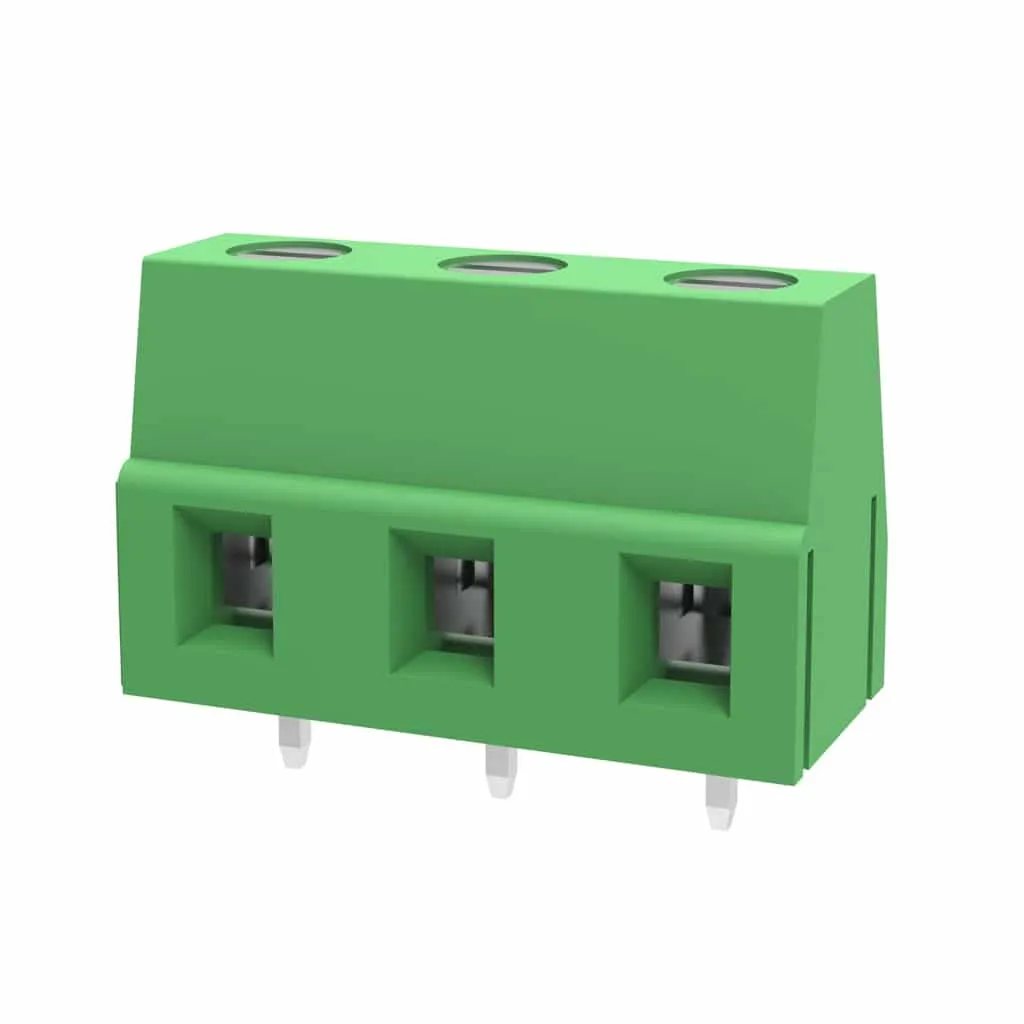

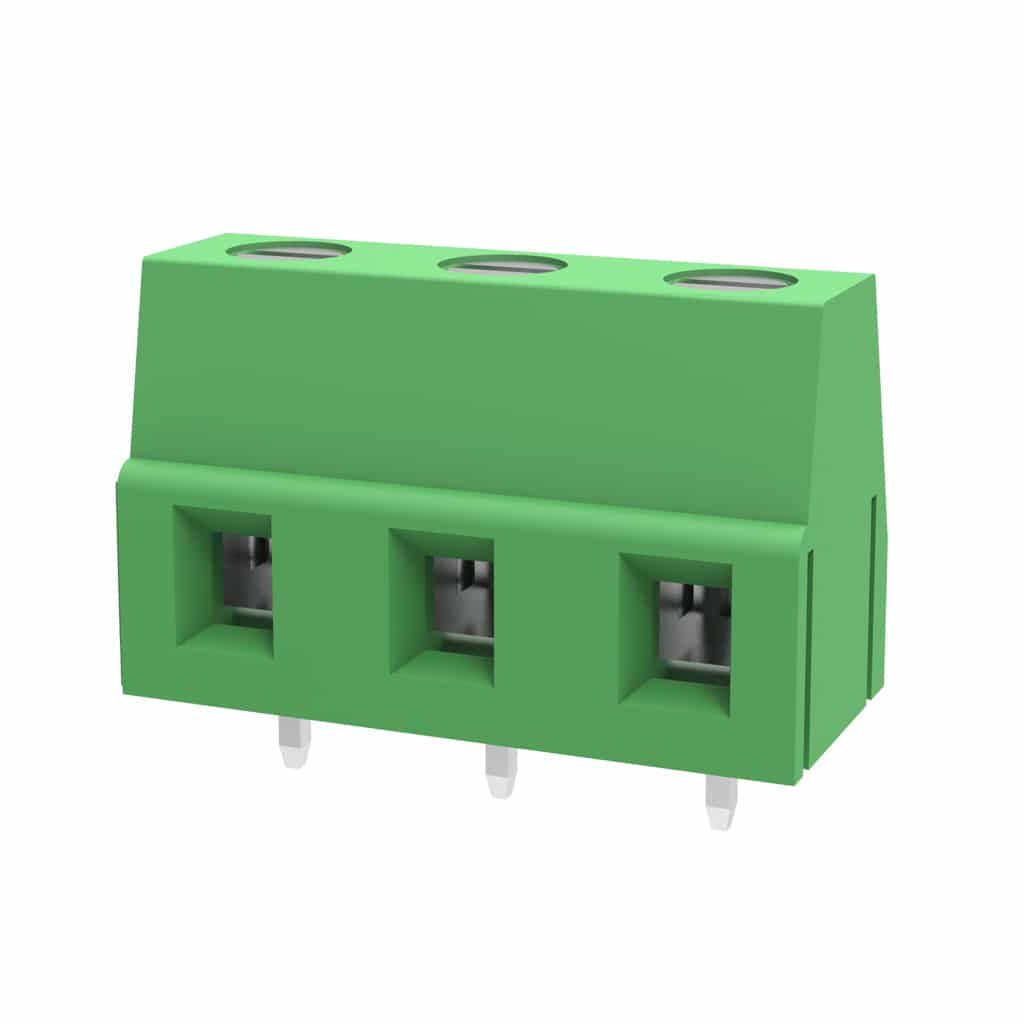

Rising Clamp , 7.5mm Pitch – DG128-7.5-xxP-1400AH

SKU: DG128-7.5-xxP-1400AH Categories: , , Manufacturer:

Product specs

Height

14.1mm

Pitch

7.5mm

Wire Orientation

Horizontal

Poles

2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

Clamp Type

Rising Clamp

Colour

Black, Green

Product Description

DG128-7.5 series is one of Degson most popular rising clamp terminal blocks on 7.5mm pitch. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.

Dg128 series is both UL (E228872) & VDE (40022088) approved and with the highest V0 flammability rating.







  • Pitch 7.5mm
  • 14.1mm High – 10.2mm Depth
  • Ambient Temperature – -40 + 105C
  • Housing – PA66
  • Screw – M2.5 slotted
  • Torque – 3.54 lb/In
  • UL File number E228872 – 12-30 Awg – 20A @ 300v
  • VDE File number 40033088 – 2.5mm2 – 18A @ 250v
  •  Interlocking device
  • Colour Green as standard
