D6F-A7D/AB71D

D6F-A7D/AB71D

SKU: D6F-A7D/AB71D Categories: , , Manufacturer:
Download PDF

Product specs

Weight 57.3 g
Dimensions N/A
Applicable Gas

Air
Flow Rate

0~10L/min, 0~20L/min, 0~50L/min, 0~70L/min
Power Supply (Vdc)

3.0~3.6 Vdc
Voltage Output Signal

Digital I2C Communication
Connect

Quick Joint P10, Quick Joint P14

Product Description

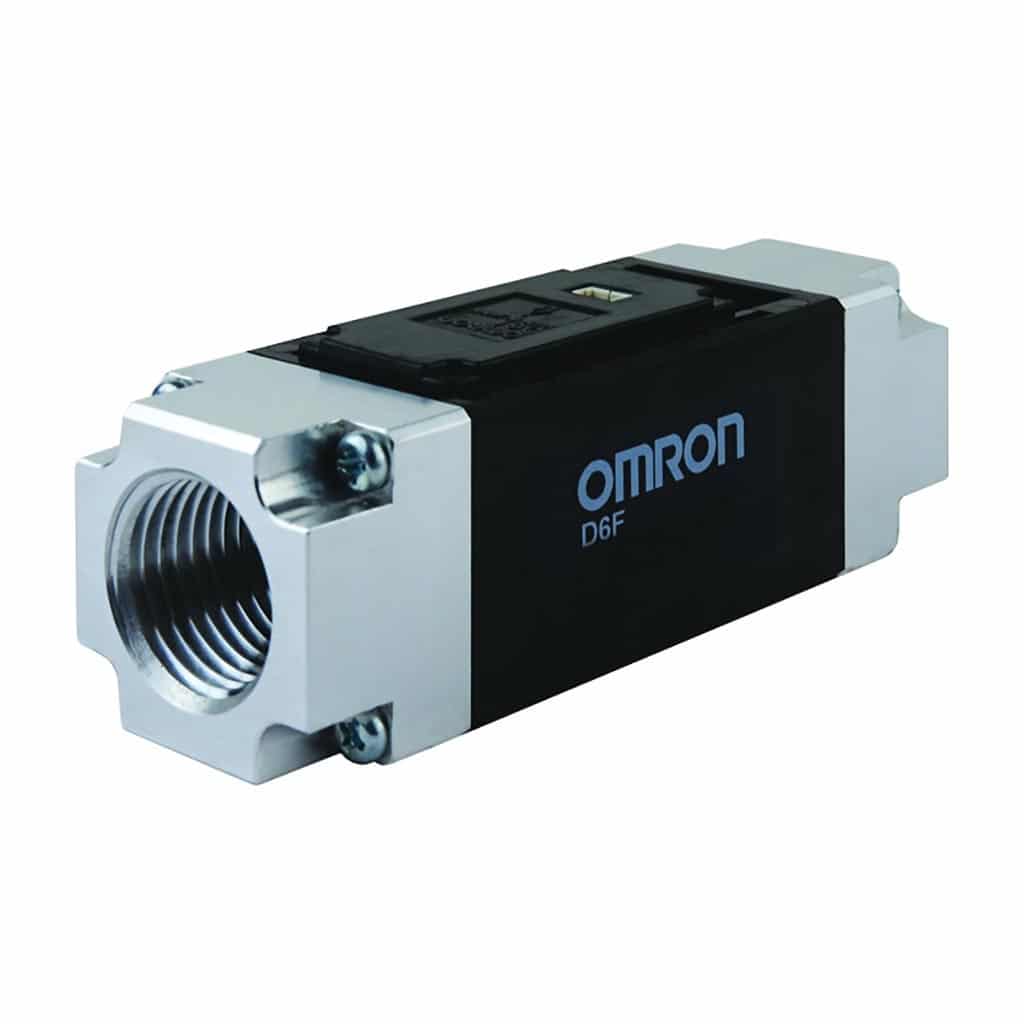

The D6F-A7D/AB71D MEMS flow sensor series from Omron a family of flow sensors that offer digital compensation for high accuracy. Their temperature compensation and linear compensation produce high accuracy (±3% RD (25% to 100% FS)).









  • Calibration Gas: Air
  • Flow Port Type: Quick Joint P10 or P14
  • Electrical Connection: 4 Pin Connector
  • Power Supply: 3.0 to 3.6 VDC
  • Current Consumption: 10mA (with no load)
  • Accuracy: ±3% FS
  • Case: PPS
  • Protection: IP40 (excluding tubing sections)
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -30°C to +80°C
  • Weight: 57.3g (except D6F-70AB7D1-000-0 which is 64.4g)
