D6F-V

SKU: D6F-V03A1 Categories: , , Manufacturer:
Download PDF

Product specs

Weight 5.3 g
Dimensions 24 × 14 × 8 mm
Applicable Gas

Air
Flow Rate Range

0~3 m/s

Product Description

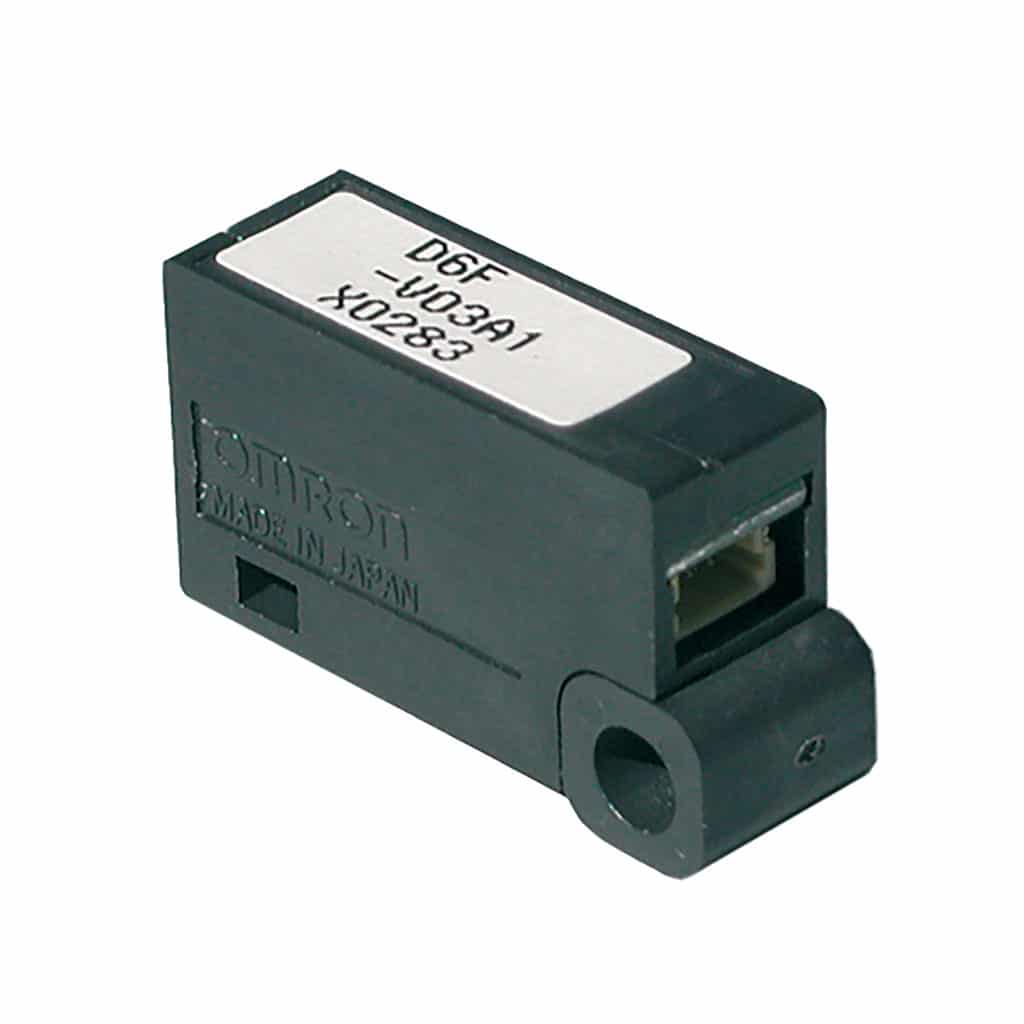

The D6F-V03A1 MEMS flow sensor from Omron with it’s anti-dust performance, which is enhanced by OMRON’s unique three-dimensional flow path structure allows for high performance flow rate measurement. It is an extremely compact sensor, measuring only 24.omm x 14.0mm x 8.0mm, and it has a flow rate range of 0 to 3/ms

  • Calibration Gas: Air
  • Electrical Connection: 3 Pin Connector
  • Power Supply: 3.15 to 3.45 VDC
  • Current Consumption: 15mA (with no load)
  • Accuracy: ±10% FS
  • Case: PBT
  • Protection: IP40 (excluding tubing sections)
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -40°C to +80°C
  • Weight: 5.3g
