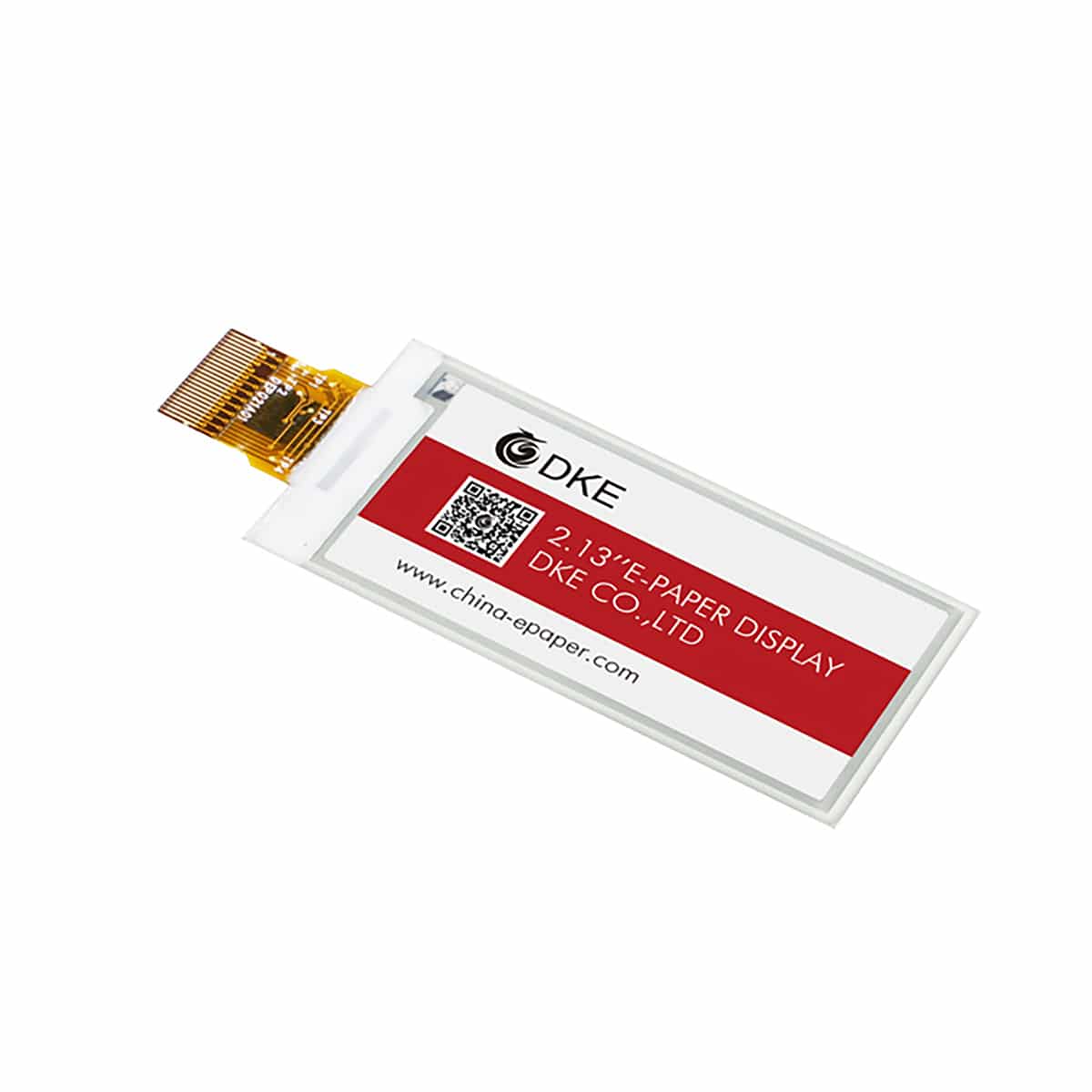

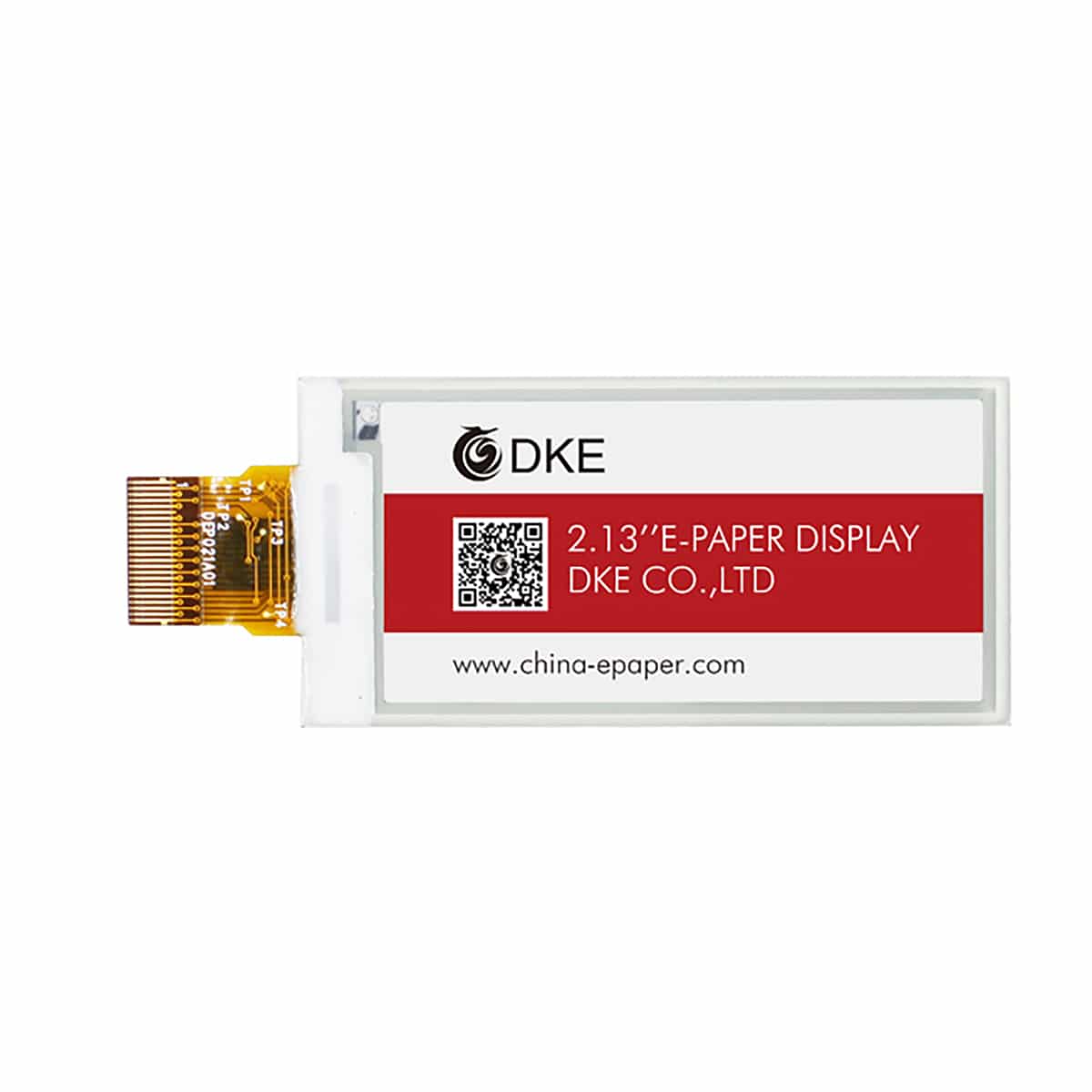

DEPG0213 series E-Paper (250×122) 2.13″

SKU: DEPG0213 Categories: , Manufacturer:

Product specs

Weight 3.2 g
Dimensions 29.2 × 59.2 mm
Pixels

250×122

Interface

MCU, SPI

Product Description

The DEPG0213 series is an Active Matrix Electrophoretic Display (AM EPD). The 2.13″ active area contains 250×122 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU & SPI interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.

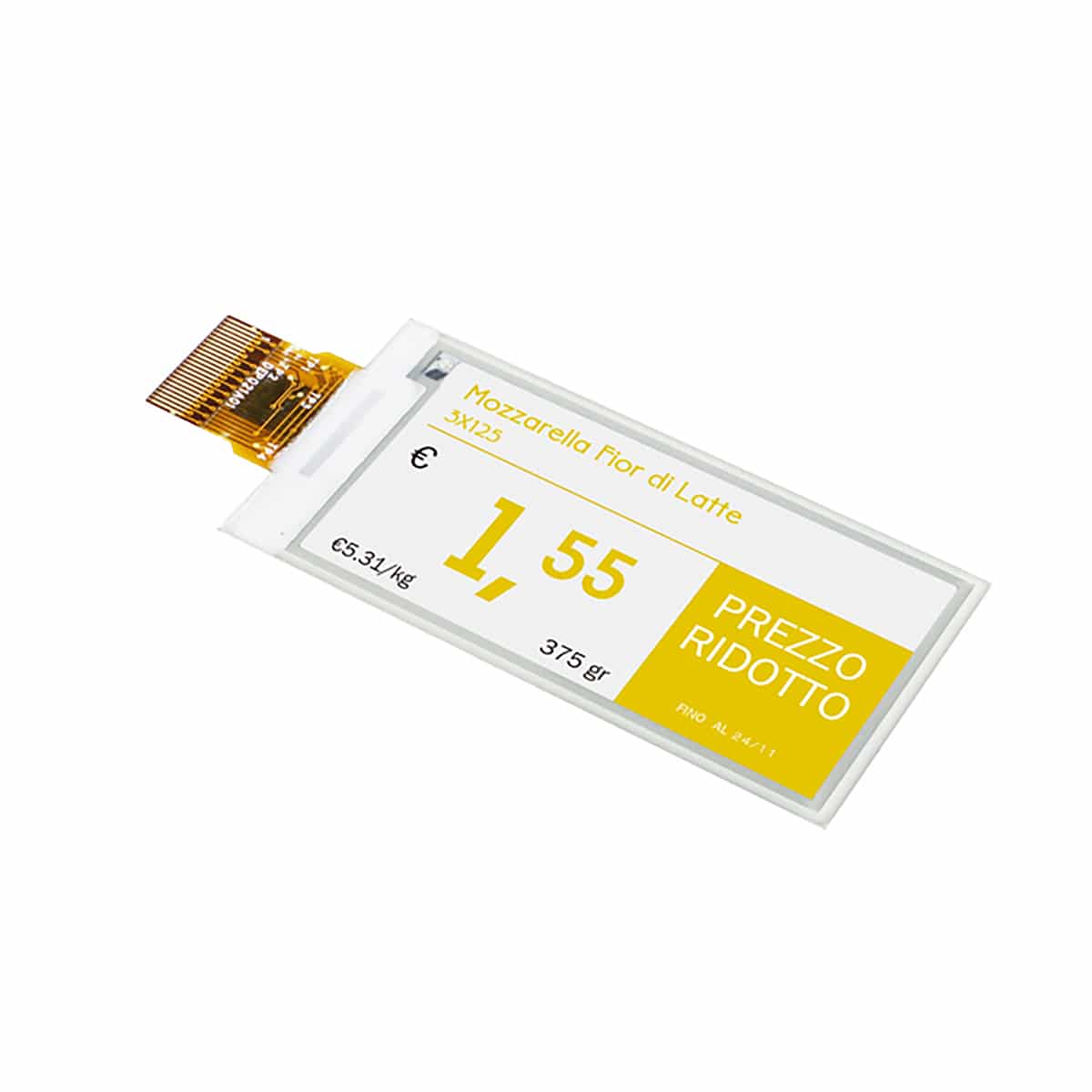

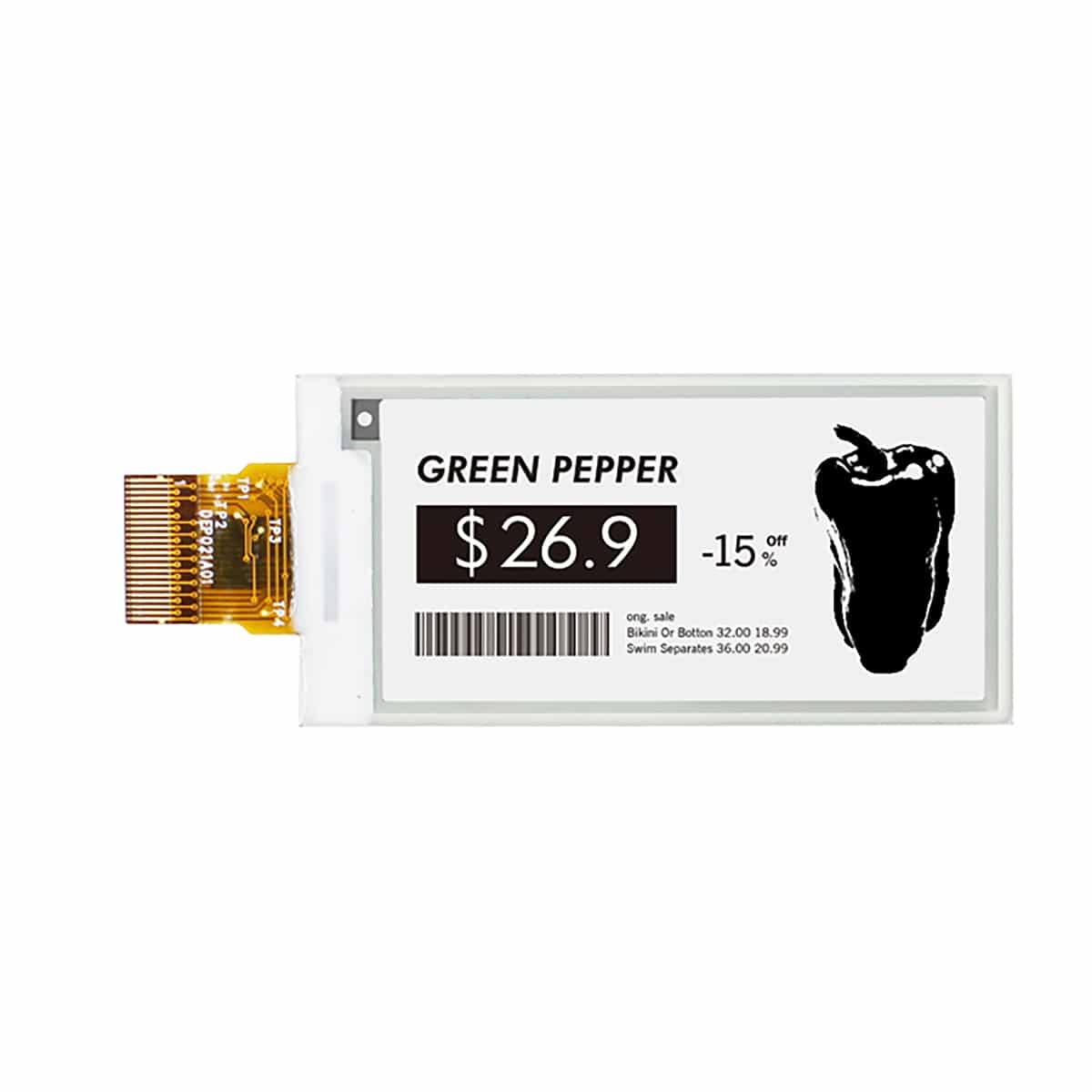

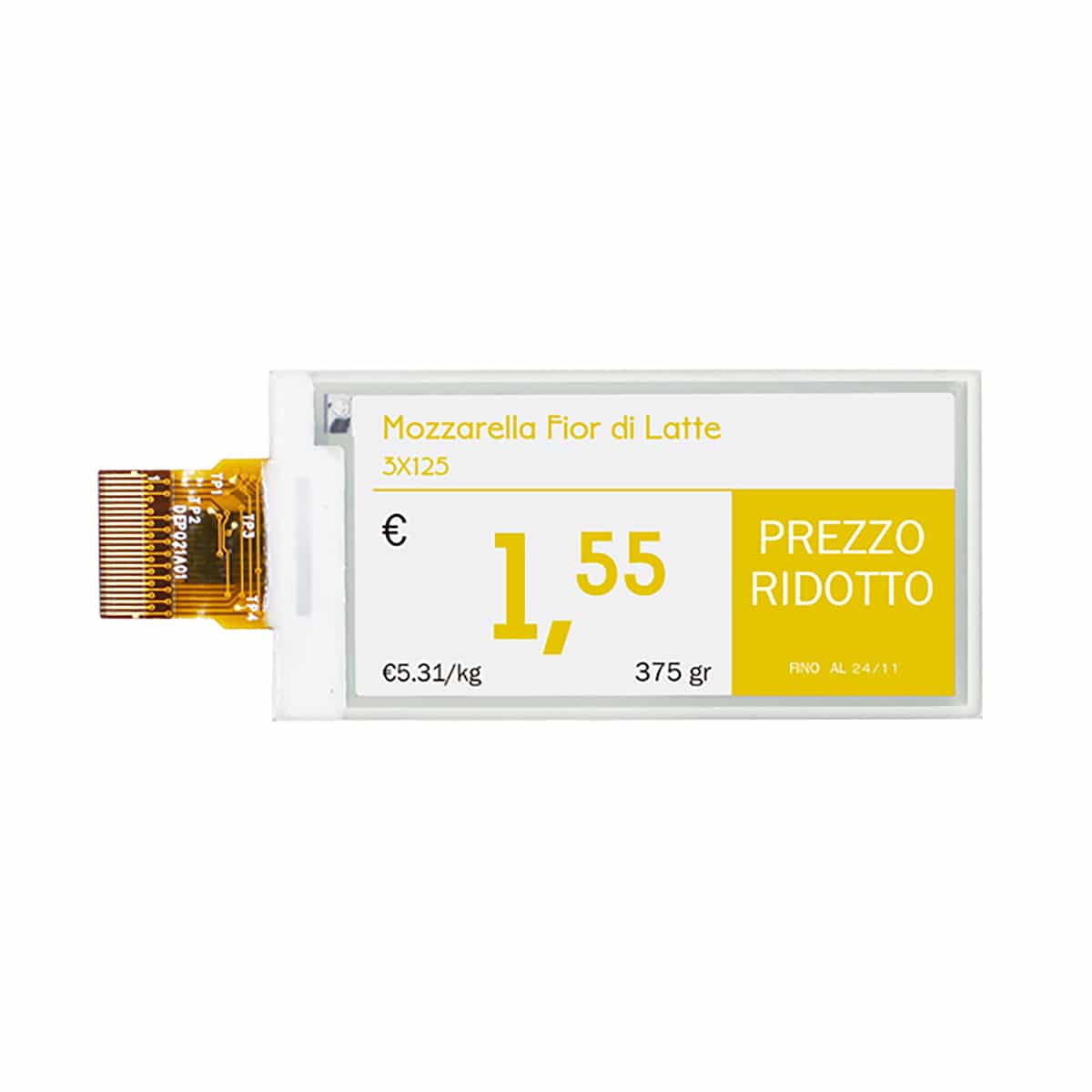

This device is available in three different options: Black & White (B/W), Black, White & Yellow (B/W/Y) and Black, White & Red (B/W/R)







  • 2.13″ E-Paper Display
  • 250×122 Resolution
  • Dimensions: 29.2mm x 59.2mm
  • Active Area: 23.71mm x 48.55mm
  • Pixel Size: 0.228mm x 0.229mm
  • 110 DPI
  • 175° Viewing Angles
  • Available as (B/W), (B/W/Y) & (B/W/R)
