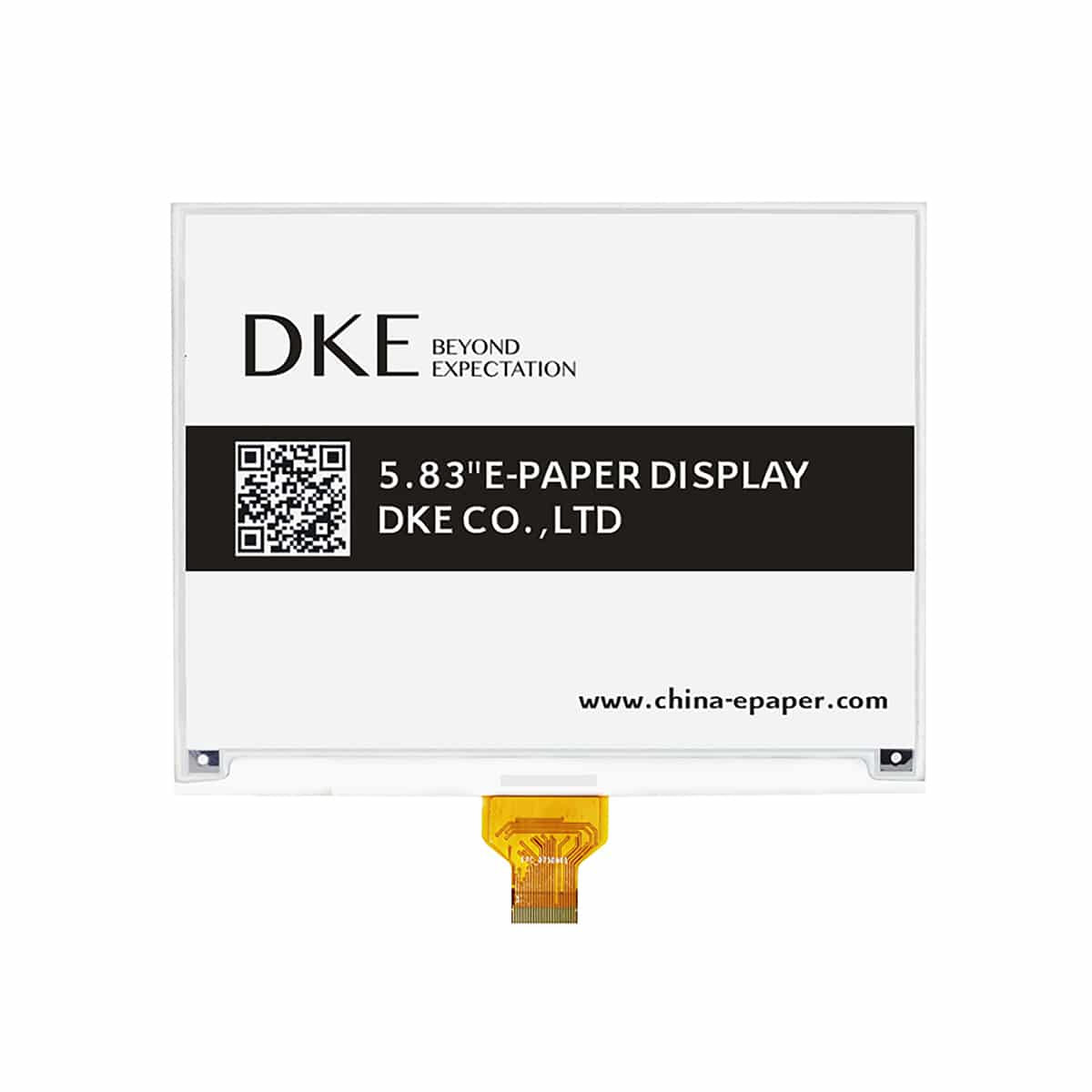

DEPG0583 series E-Paper (648x480) 5.83"

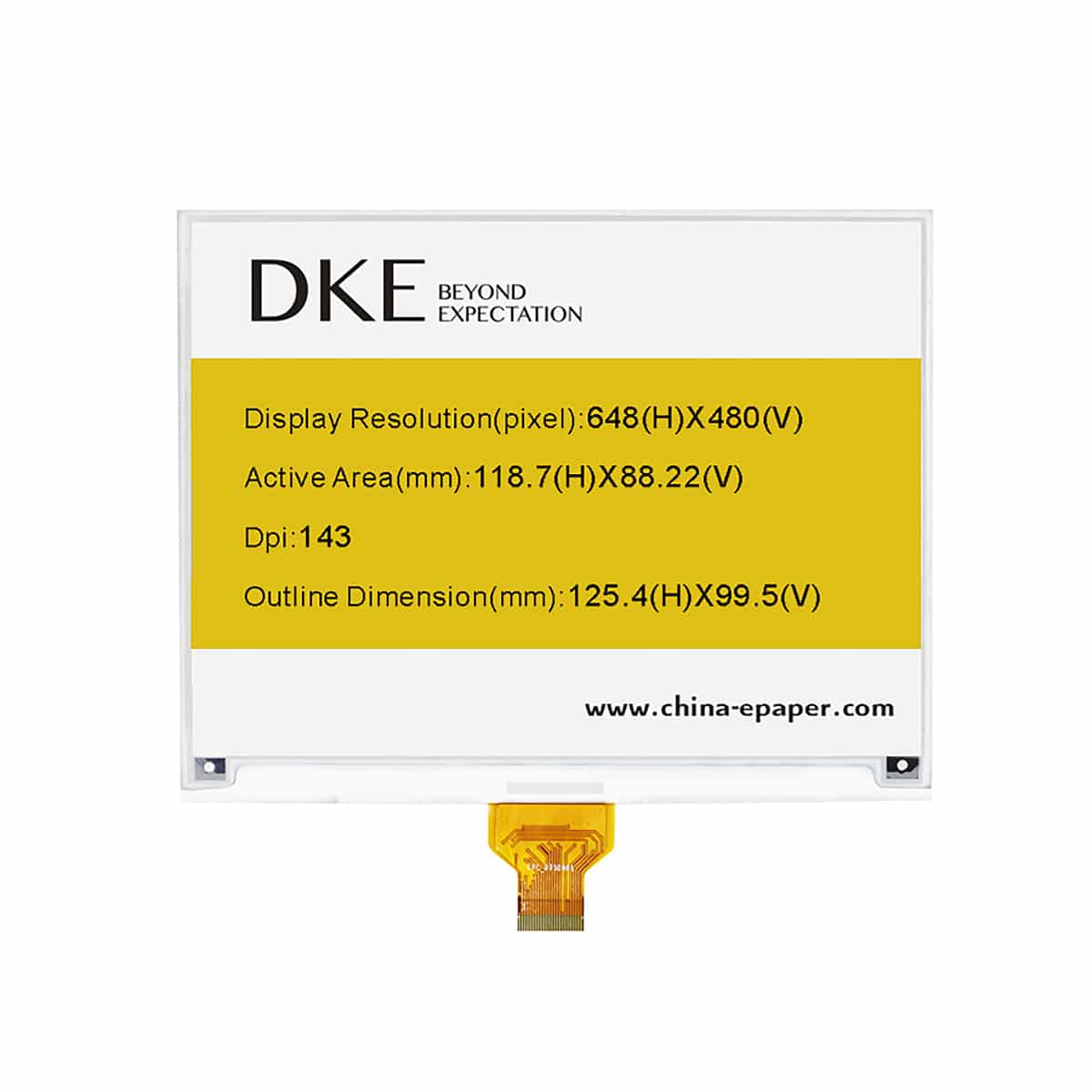

DEPG0583 series E-Paper (648x480) 5.83" - Image 2

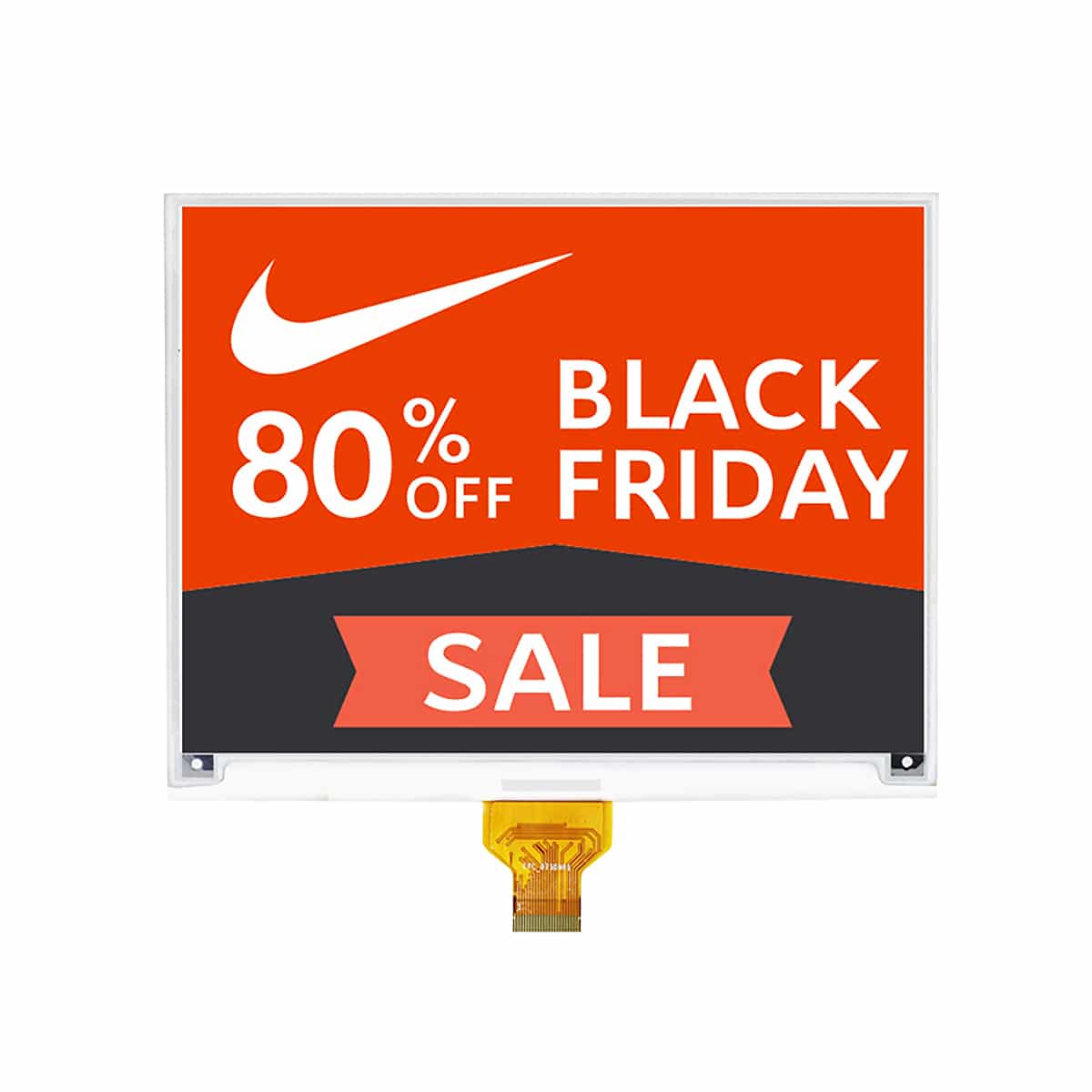

DEPG0583 series E-Paper (648x480) 5.83" - Image 3

DEPG0583 series E-Paper (648×480) 5.83″

SKU: DEPG0583 Categories: , Manufacturer:

Product specs

Weight 28.6 g
Dimensions 124.4 × 99.5 mm
Pixels

648×480
Interface

MCU, SPI

Product Description

The DEPG0583 series is an Active Matrix Electrophoretic Display (AM EPD). The 5.83″ active area contains 648(H)×480(V) pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU & SPI interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.

This device is available in three different options: Black & White (B/W), Black, White & Yellow (B/W/Y) and Black, White & Red (B/W/R)





  • 5.83″ E-Paper Display
  • 648×480 Resolution
  • Dimensions: 125.4mm x 99.5mm
  • Active Area: 118.78mm x 88.22mm
  • Pixel Size: 0.1833mm x 0.1833mm
  • 138 DPI
  • 175° Viewing Angles
  • Reflective
  • Available Options: (B/W), (B/W/Y) & (B/W/R)
