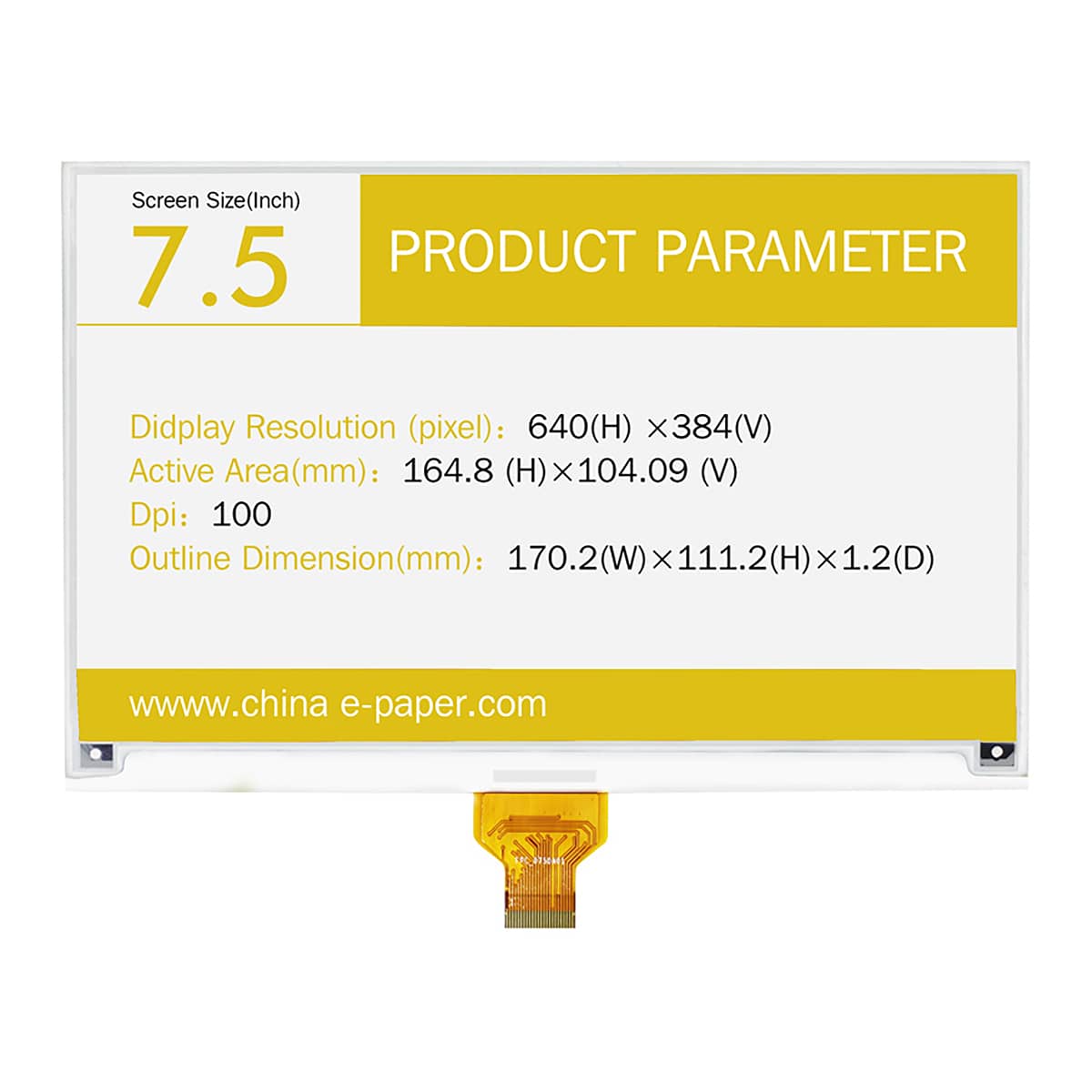

DEPG0750B series E-Paper (640×384) 7.5″
Product specs
| Weight | 42.5 g |
|---|---|
| Dimensions | 170.2 × 111.2 mm |
| Pixels | 640×384 |
| Interface | MCU, SPI |
Product Description
The DEPG0750B series is an Active Matrix Electrophoretic Display (AM EPD). The 7.5″ active area contains 640(H)×384(V) pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU & SPI interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM.

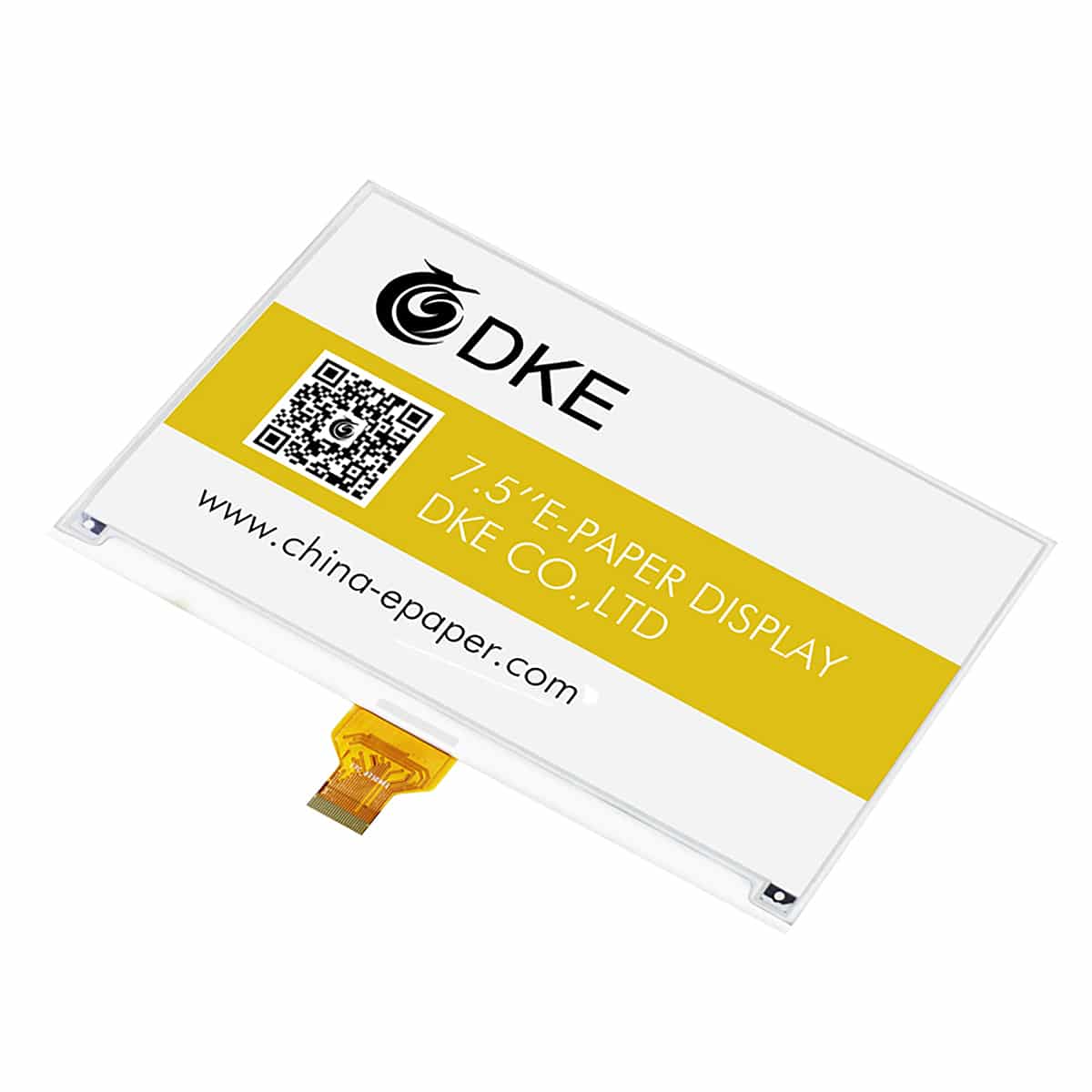

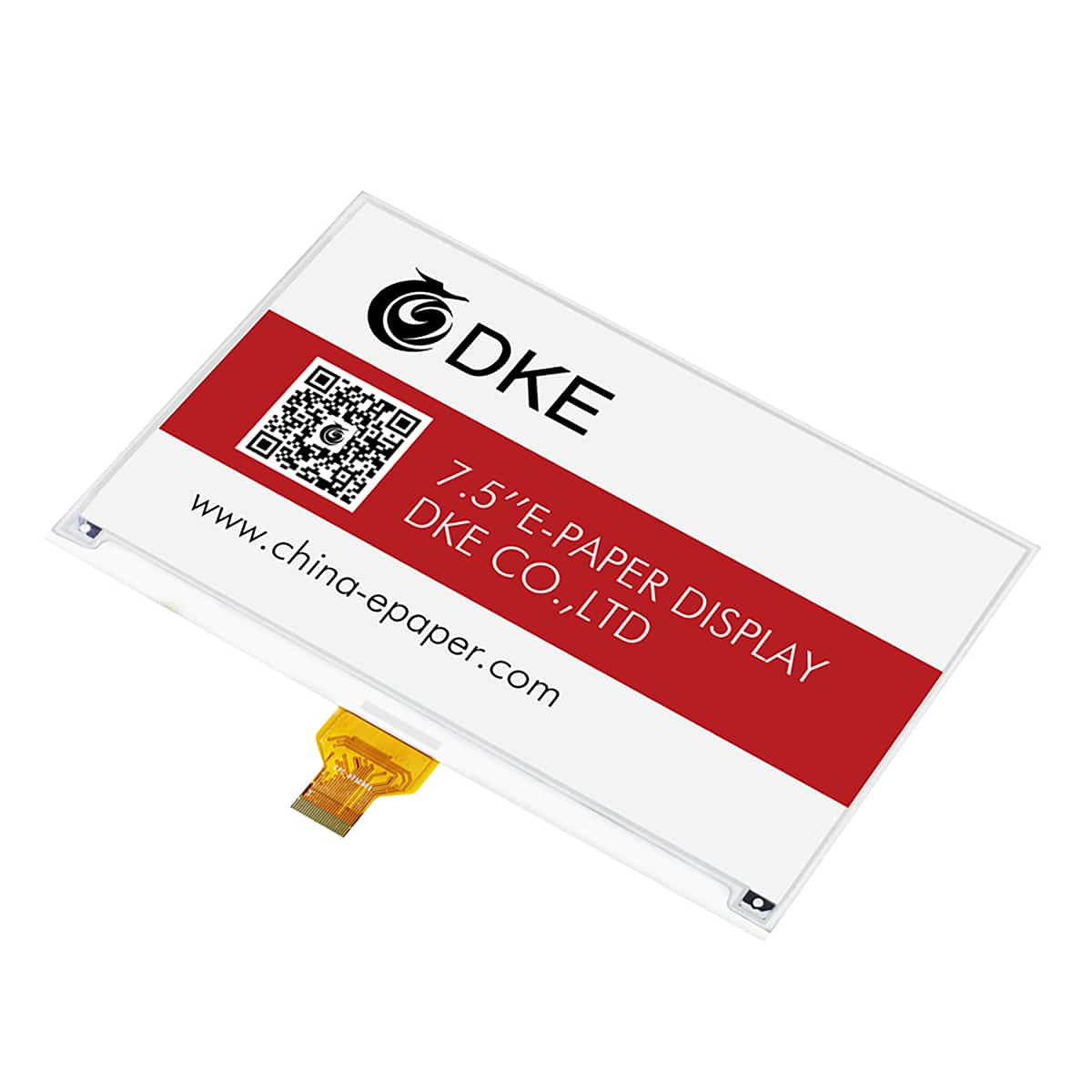

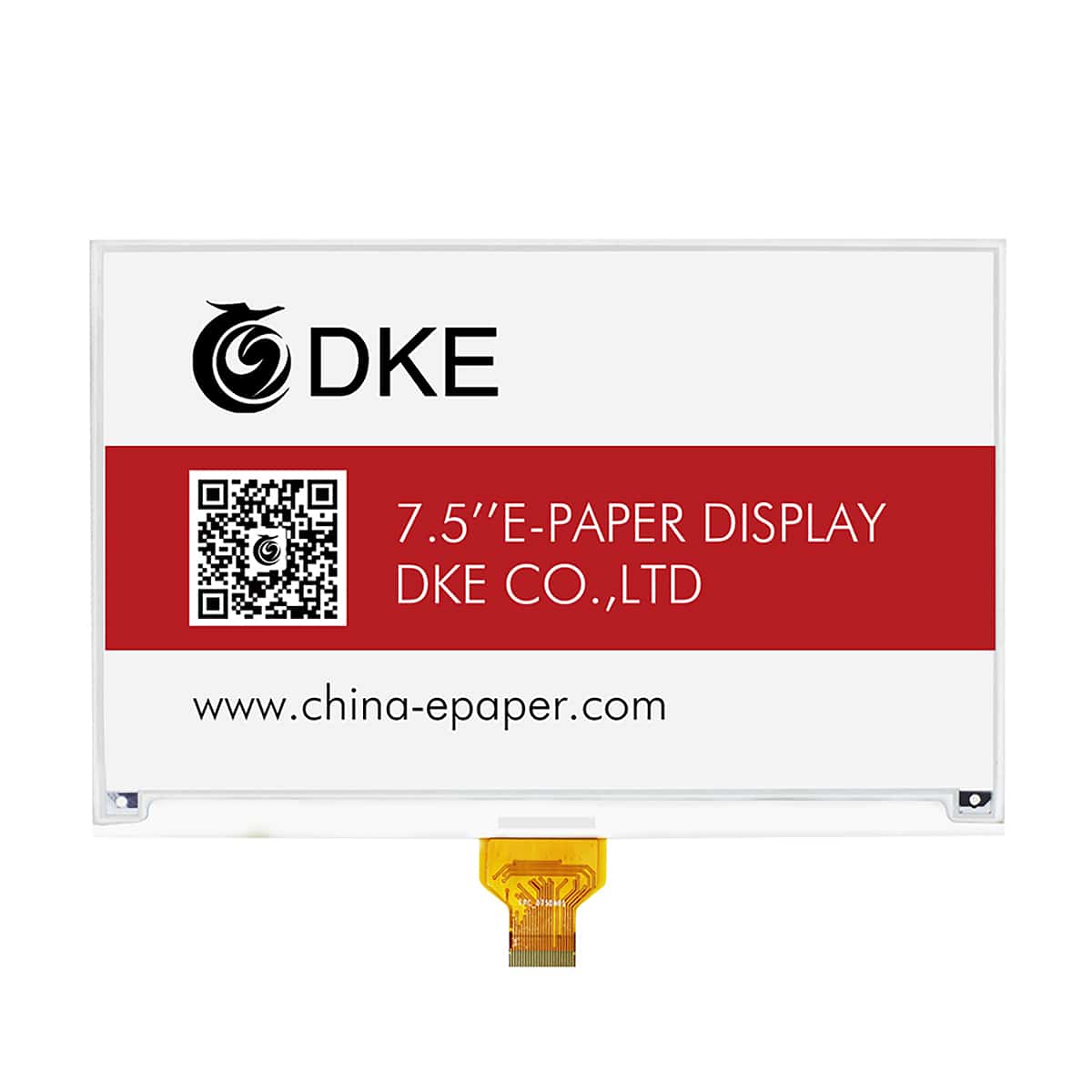

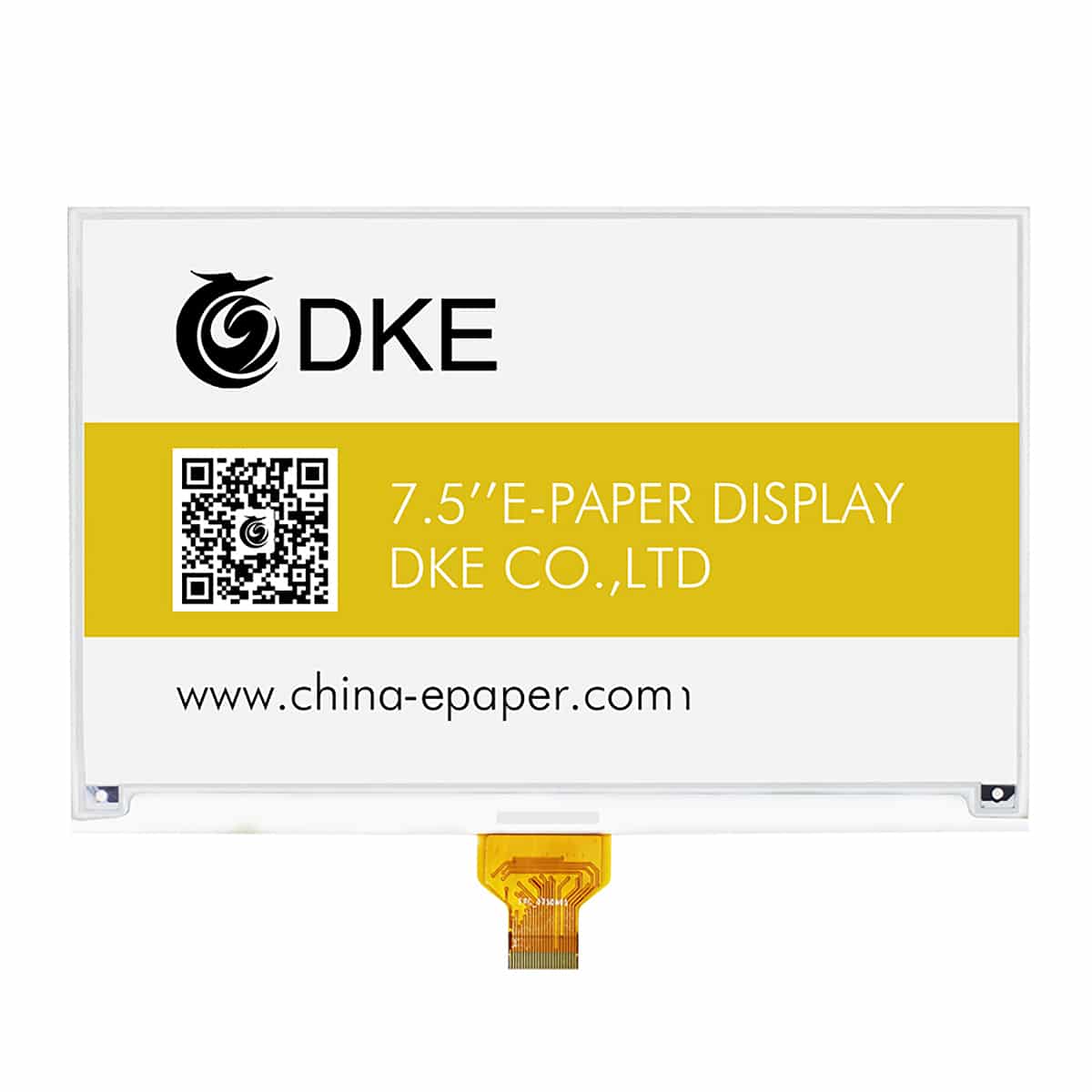

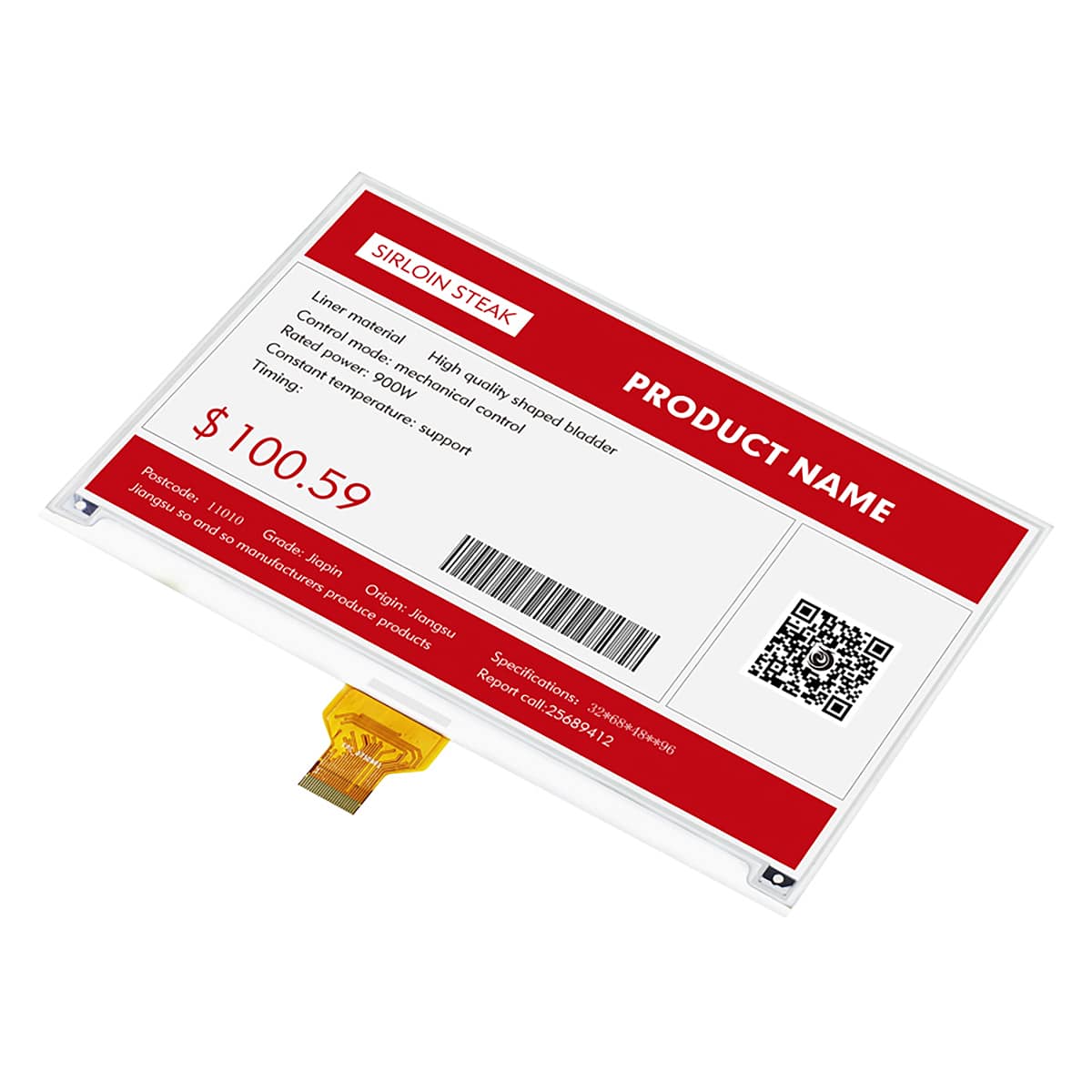

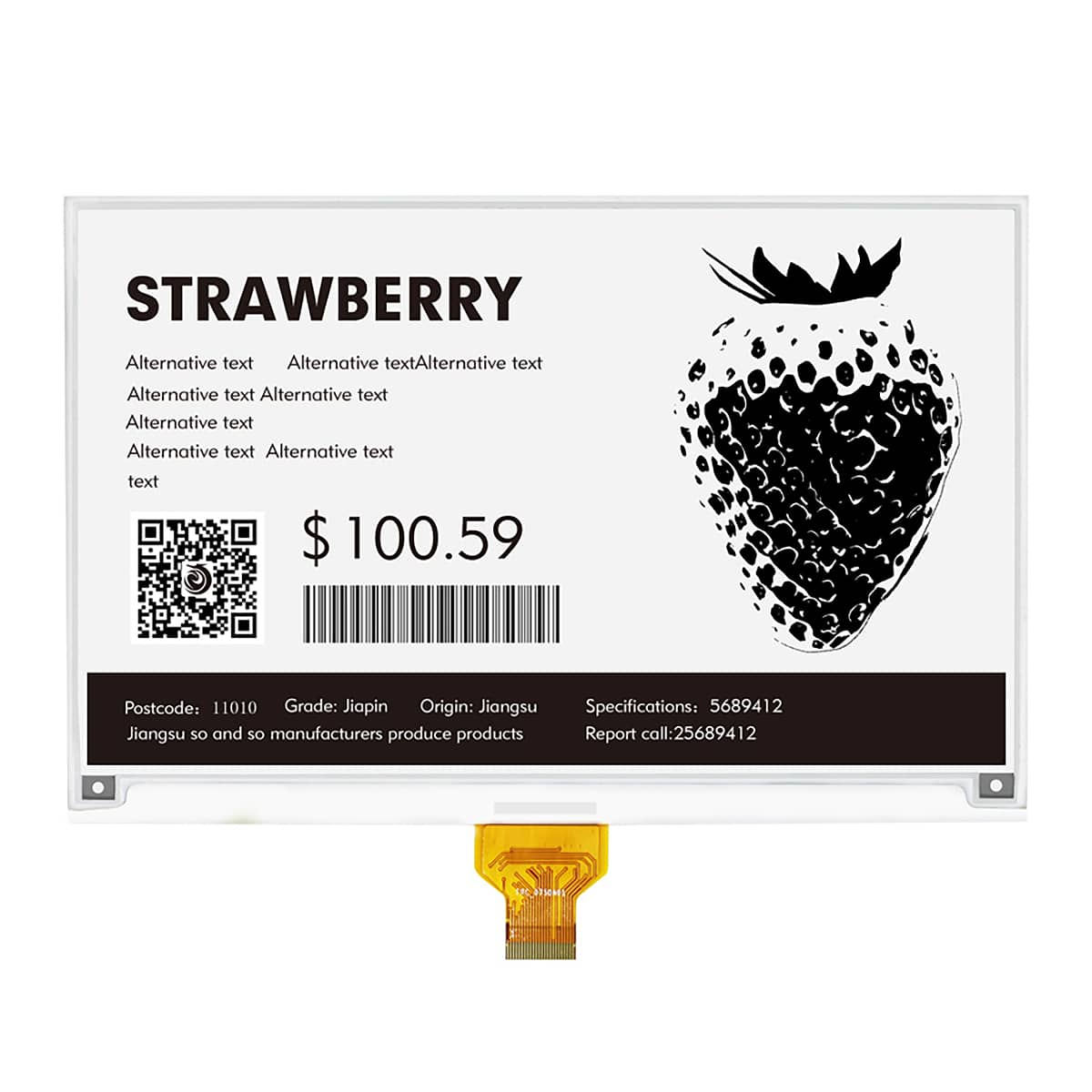

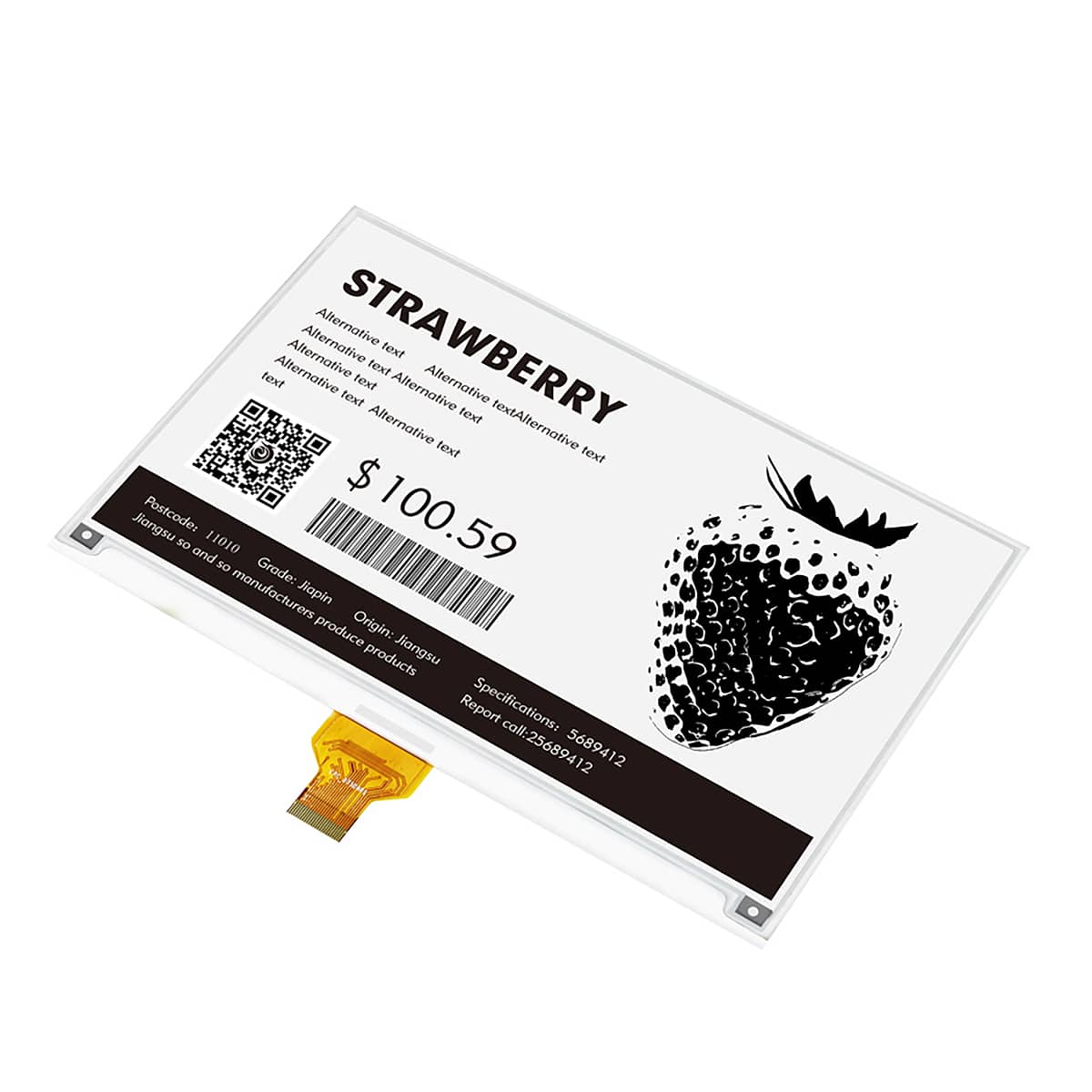

This device is available in three different options: Black & White (B/W), Black, White & Yellow (B/W/Y) and Black, White & Red (B/W/R)
- 7.5″ E-Paper Display
- 640×384 Resolution
- Dimensions: 170.2mm x 111.2mm
- Active Area: 163.2mm x 97.92mm
- Pixel Size: 0.255mm x 0.255mm
- 100 DPI
- 175° Viewing Angles
- Available as (B/W), (B/W/Y) & (B/W/R)
