EE-SX1042

EE-SX1042

SKU: EE-SX1042 Categories: , Manufacturer:
Download PDF

Product specs

Emitter: Forward Current

50mA
Emitter: Pulse Forward Current

1A
Emitter: Reverse Voltage

4V
Detector: Collector-Emitter-Voltage

30V
Detector: Collector Current

20mA
Detector: Collector Dissipation

100mW
Temperature Range

-25°C to +85°C

Product Description

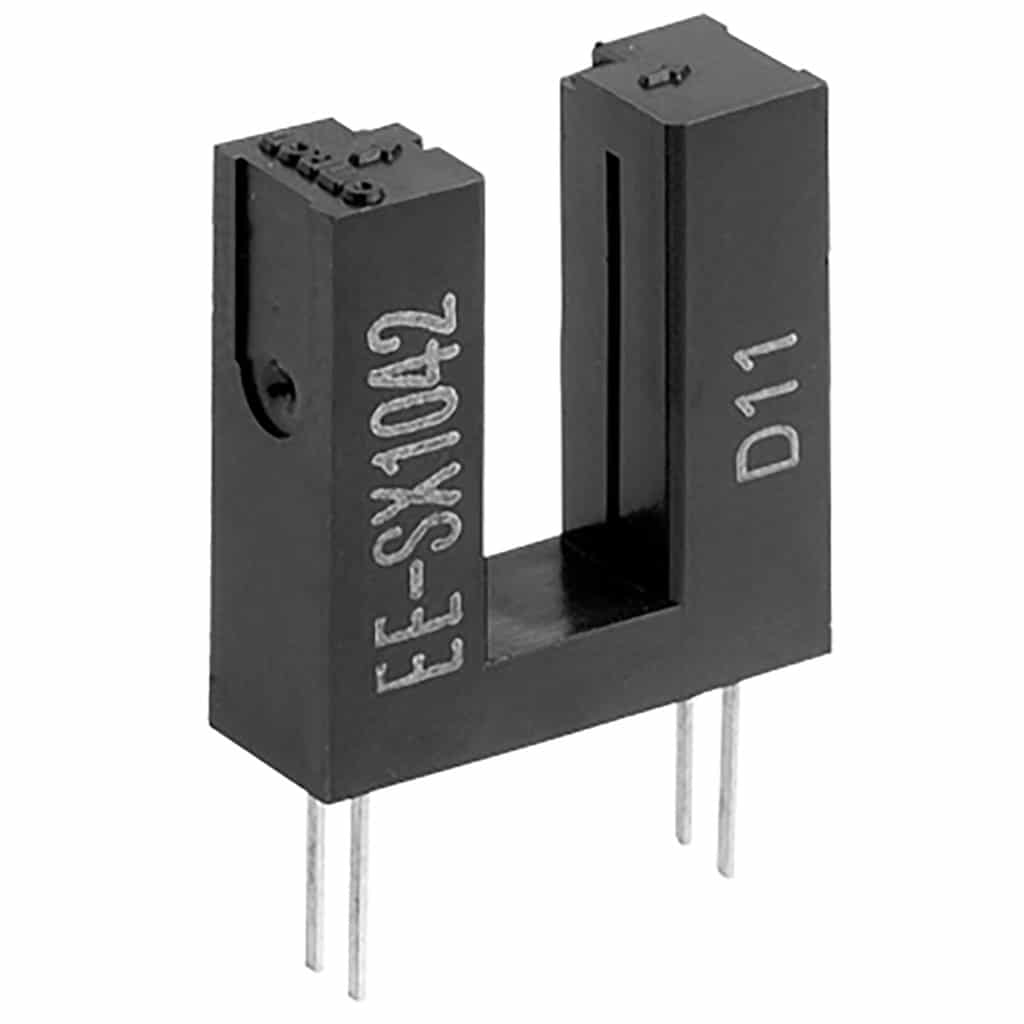

The EE-SX1042 is a 14.5mm tall Photomicrosensor with a deep slot, it is a PCB mounting type and is high resolution with a 0.5mm wide aperture

  • 14.5mm Tall with a deep slot
  • 0.5mm Wide Aperture
  • PCB Mount Type
  • Emitter Forward Current: 50mA
  • Emitter Pulse Forward Current: 1A
  • Emitter Reverse Voltage: 4V
  • Detector Collector-Emitter Voltage: 30V
  • Detector Collector Current: 20mA
  • Detector Collector Dissipation: 100mW
  • Operating Temperature: -25C to +85C
  • Storage Temperature: -30C to +100C
  • Soldering Temperature: +260C
