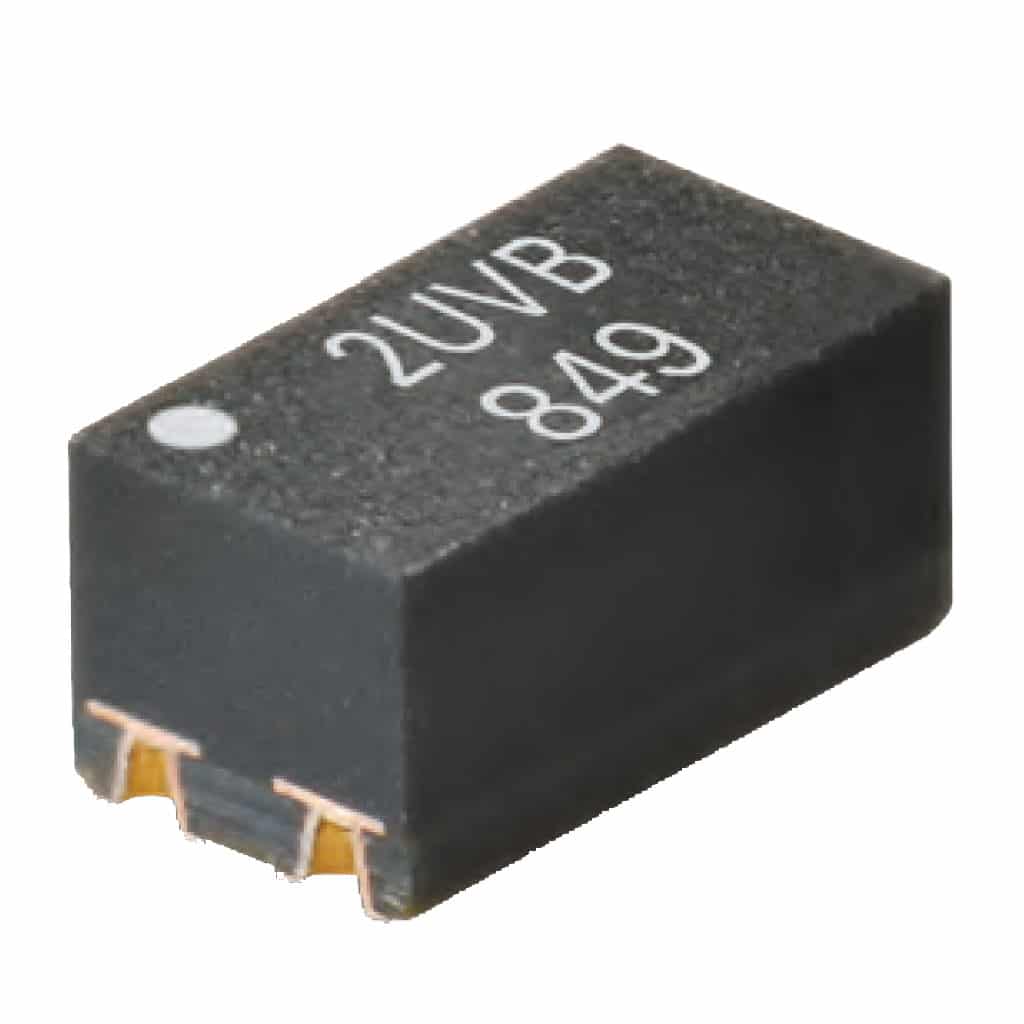

G3VM Mosfet Relays VSON Package , 60v/80v/100v High Load Voltage
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Package | VSON |
| Contact Arrangement | SPST (1NO)- 1 Form A |
| Load Voltage (V) Max | 100V, 80V, 60V |
| Continuous load curr (mA)Max | 100, 120, 400 |
| Dielec strength between I/O(Vrms) | 500 Vrms |
| Cap between terminals (pF) | 0.7pf, 5pf, 6pf, 20pf |
| Max res with output ON Typ | 1Ω, 10Ω, 7Ω, 8Ω |
Product Description
OMRON’s MOS FET Relays lead the industry in optical semiconductor technology, utilizing an input LED, Photodiode
Dome Array (PDA) used as photocoupler and MOS FET chip in the load switching current.
In addition to being maintenance free, the MOS FET relay features high-speed operation and compact size, further
promoting the replacement of mechanical relays.
• Load voltage: 60 V, 80 V, or 100 V
• G3VM-61UR1: Low C × R = 7 pF·Ω, COFF (standard) = 0.7 pF,
RON (standard) = 10 Ω
• High Ambient operating temperature: -40°C to +110°C
