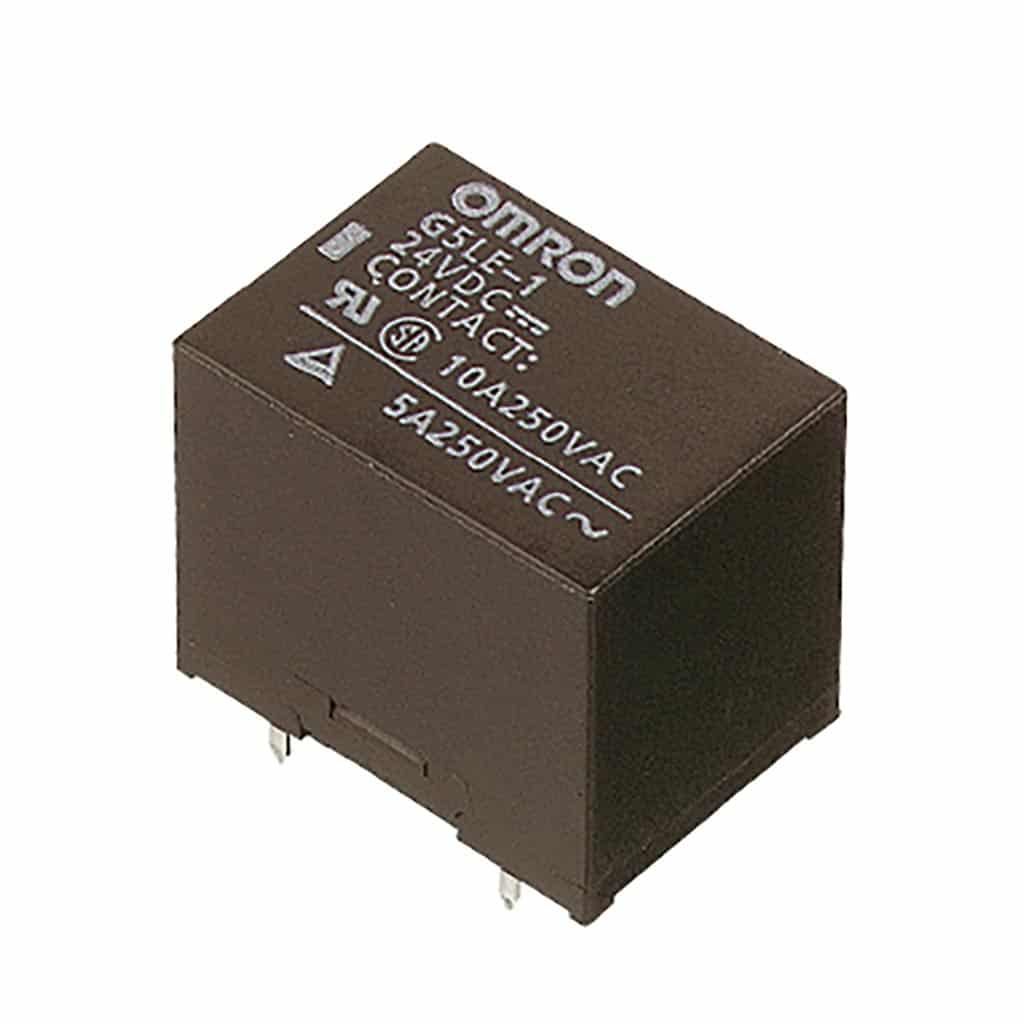

G5L Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 12Vdc, 24Vdc |
| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 10A, 16A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | Ag Alloy |
| Coil Resistance (Ohm) | 63Ω, 360Ω, 1440Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
The G5LE is a well established relay otherwise known as the “sugar-cube” relay, available in 10a & 16amps either flux proof or fully sealed.
- Ideal for a wide variety of applications such as home appliances, OA
equipments, vending machines, etc. - Ambient Operating Temperature 85°C
- UL class-B coil insulation for standard model.
- UL, CSA, EN standards approved and conforms to Electrical
Appliance and Material Safety Law (300 V max.).
