G6D Slim 5a Power Relay

SKU: G6D Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 12Vdc, 24Vdc
Contact Arrangement

SPST (1NO)- 1 Form A
Coil Type

Non Latching
Contact Rating (Amps)

5A
Sealing

Fully Sealed
Contact Material

Ag Alloy, Au Alloy + Ag
Coil Resistance (Ohm)

125Ω, 720Ω, 2880Ω
Mounting

PCB
Type

Power Relay

Product Description

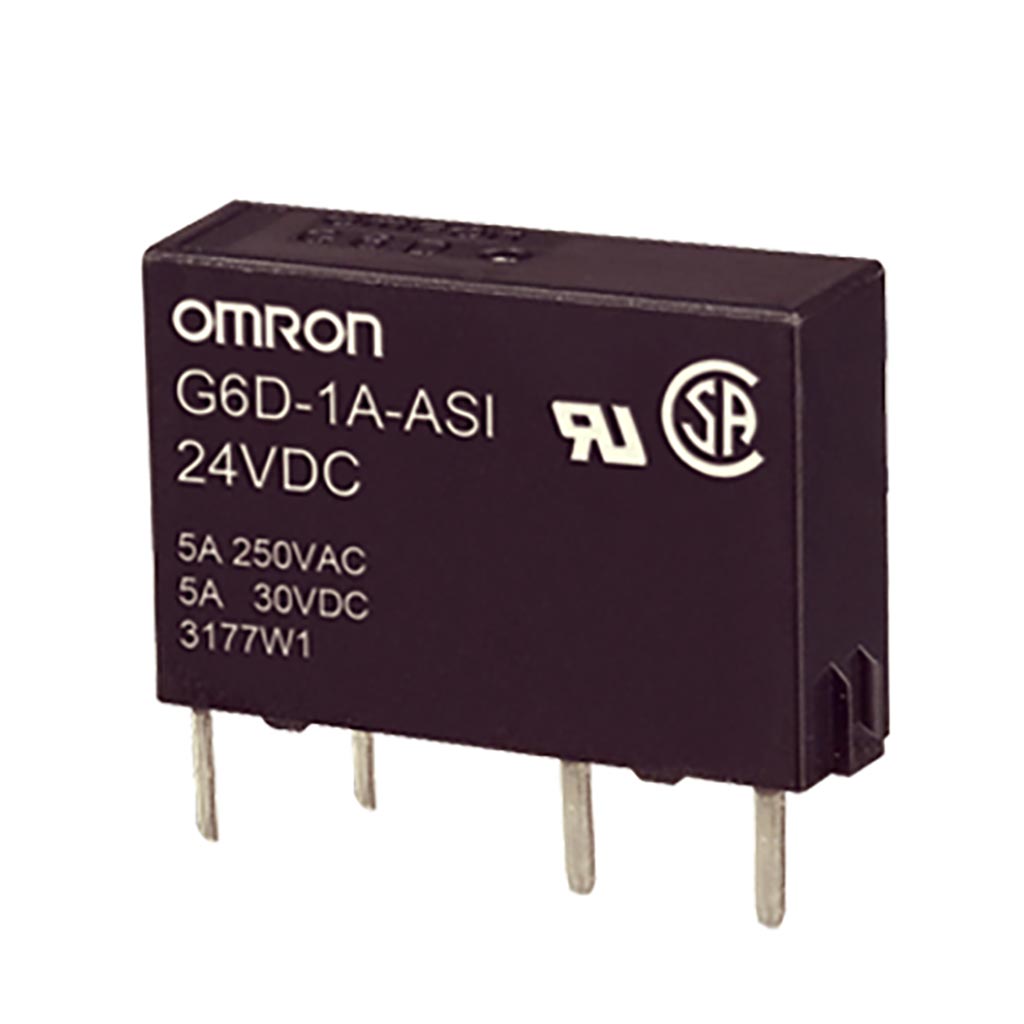

The G6D relay from Omron is 6.5mm wide offering high density mounting.

PCB socket also available on request.

  • Reduced board space, ideal for high-density mounting (45%.
    (6.5 mm (W) × 17.5 mm (L) × 12.5 mm (H))
  • Small, yet switches 5 A at 250 VAC/30 VDC.
  • Allows 300,000 operations with a 2A load at 250 VAC or
    30 VDC.
