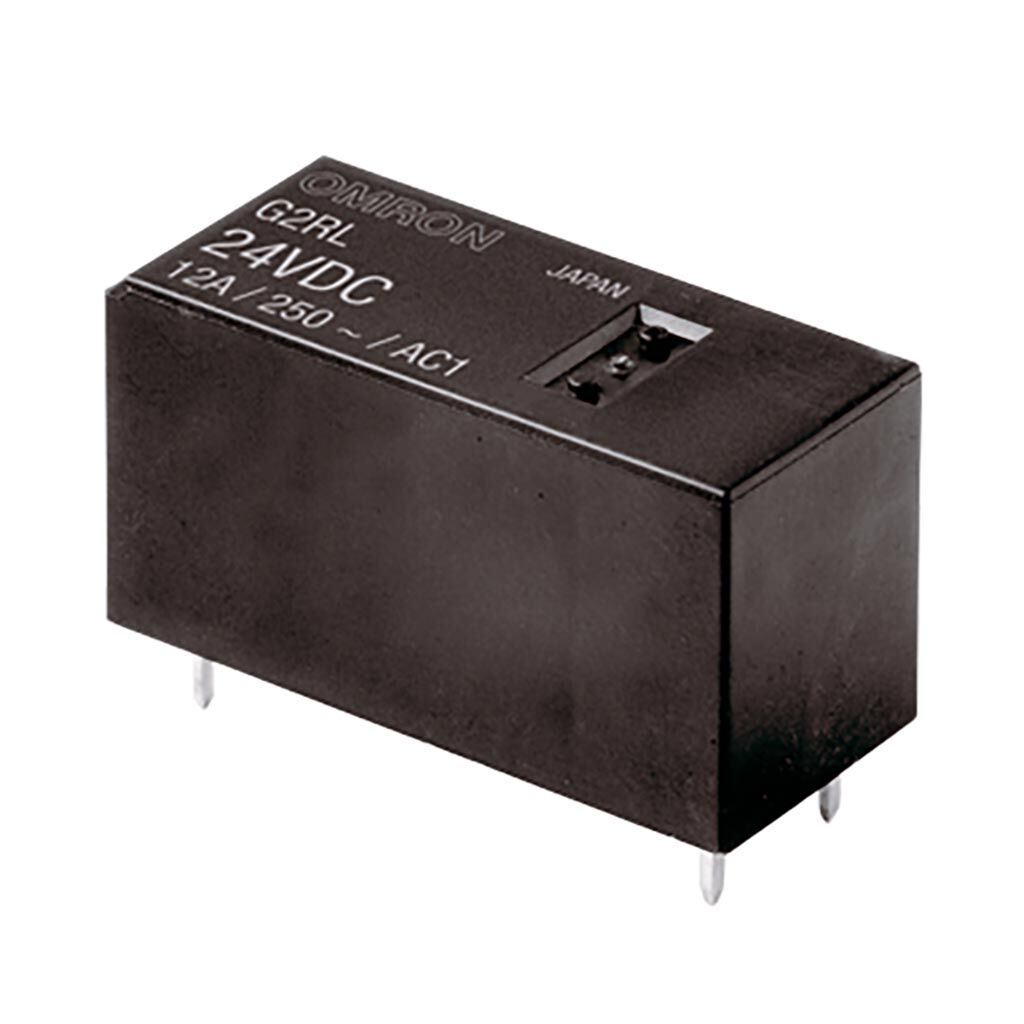

G2RL – Power Relay

SKU: G2RL Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 12Vdc, 24Vdc, 48Vdc
Contact Arrangement

DPST (2NO) -2 Form A, DPDT (2CO) -2 Form C, SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

8A, 10A, 12A, 16A
Sealing

Flux Proof, Fully Sealed
Contact Material

Ag Alloy
Coil Resistance (Ohm)

5358Ω, 62.5Ω, 96Ω, 360Ω, 576Ω, 1440Ω, 2304Ω
Mounting

PCB
Type

Power Relay

Product Description

Easby Electronics offer the Omron G2RL series with 8a, 10a & 16a contacts on single pole and double pole contacts.  Available with flux protection of fully sealed protection.

  • A wide variety of single pole, double pole, high-capacity (16 A)
    type and high-sensitivity type (250 mW) Relays are available.
  • Low profile; 15.7 mm max. in height.
  • Conforms to VDE (EN61810-1), UL508 and CSA22.2.
  • IEC/EN 60335-1 conformed. (-HA Model)
  • Satisfies ambient operating temperature requirement of 85°C
    and 105°C (-CV Model).
  • Clearance and creepage distance: 8 mm / 8 mm min.
  • Coil insulation system: Class F (UL1446).
  • G2RL-1(A)-E-ASI: TV3 Rating models available.
  • IEC/EN 60079-15 conformed
    (Except G2RL-1(A)-H, G2RL-1A-E-CV(-HA) Models).
