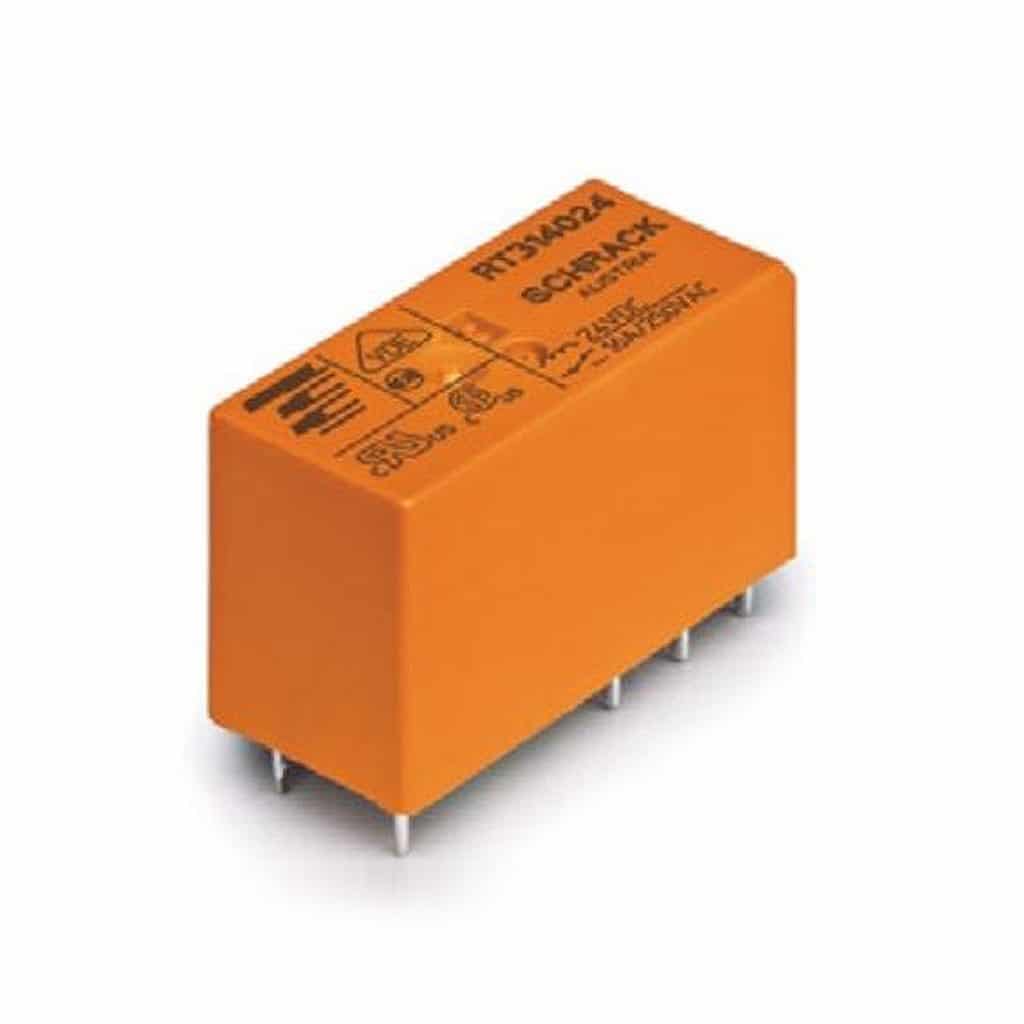

RT1 – Single Pole 12a & 16a Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vac, 24Vdc, 48Vdc, 60Vdc, 110Vdc, 20Vdc, 48Vac, 115Vac, 120Vac, 200Vac, 230Vac |
| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 12A, 16A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi 90/10, AgNi 90/10+Au Plated |
| Coil Resistance (Ohm) | 1420Ω, 200Ω, 24350Ω, 28800Ω, 5520Ω, 770Ω, 8570Ω, 8800Ω, 952Ω, 62Ω, 90Ω, 350Ω, 360Ω, 1440Ω, 8100Ω, 32500Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
Easby Electronics offer many variants of the popular RT relays from TE. This RT1 series is a single pole relay in DC and AC variants.
Double pole variants available under RT2 series.
- 1 pole 12A/16A, 1 form C (CO) or 1 form A (NO) contact
- DC or AC coil
- 5kV/10mm coil-contact, reinforced insulation
- Ambient temperature 85°C (DC coil)
- WG version: product in accordance to IEC 60335-1
- Reflow version: for THR (Through-Hole Reflow) soldering process
