RE – SPNO 6a Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc |

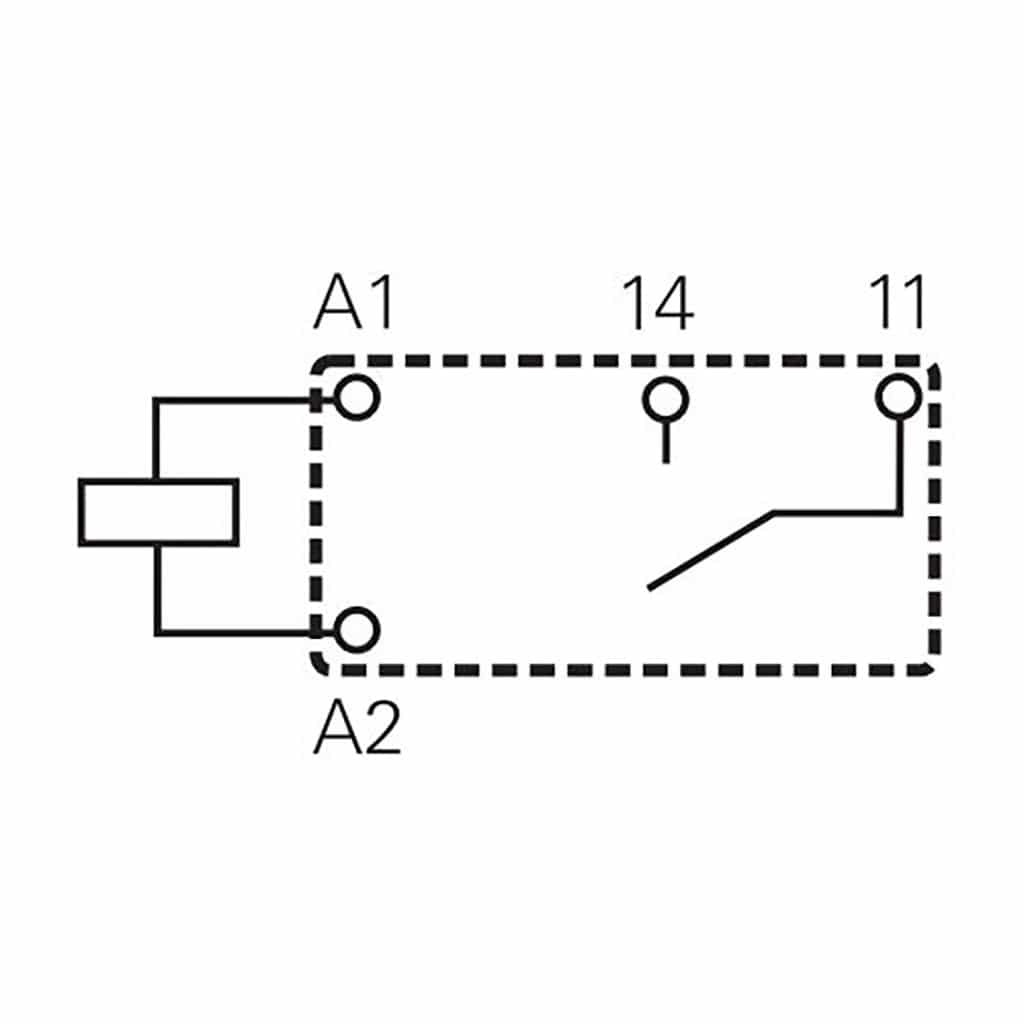

| Contact Arrangement | SPST (1NO)- 1 Form A |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 6A |
| Sealing | Fully Sealed |
| Contact Material | AgCdO, AgNi 0.15, AgNi 0.15+Au Plated, AgNi 90/10, AgNi 90/10+Au Plated |
| Coil Resistance (Ohm) | 1620Ω, 125Ω, 180Ω, 405Ω, 720Ω, 2880Ω, 11520Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description

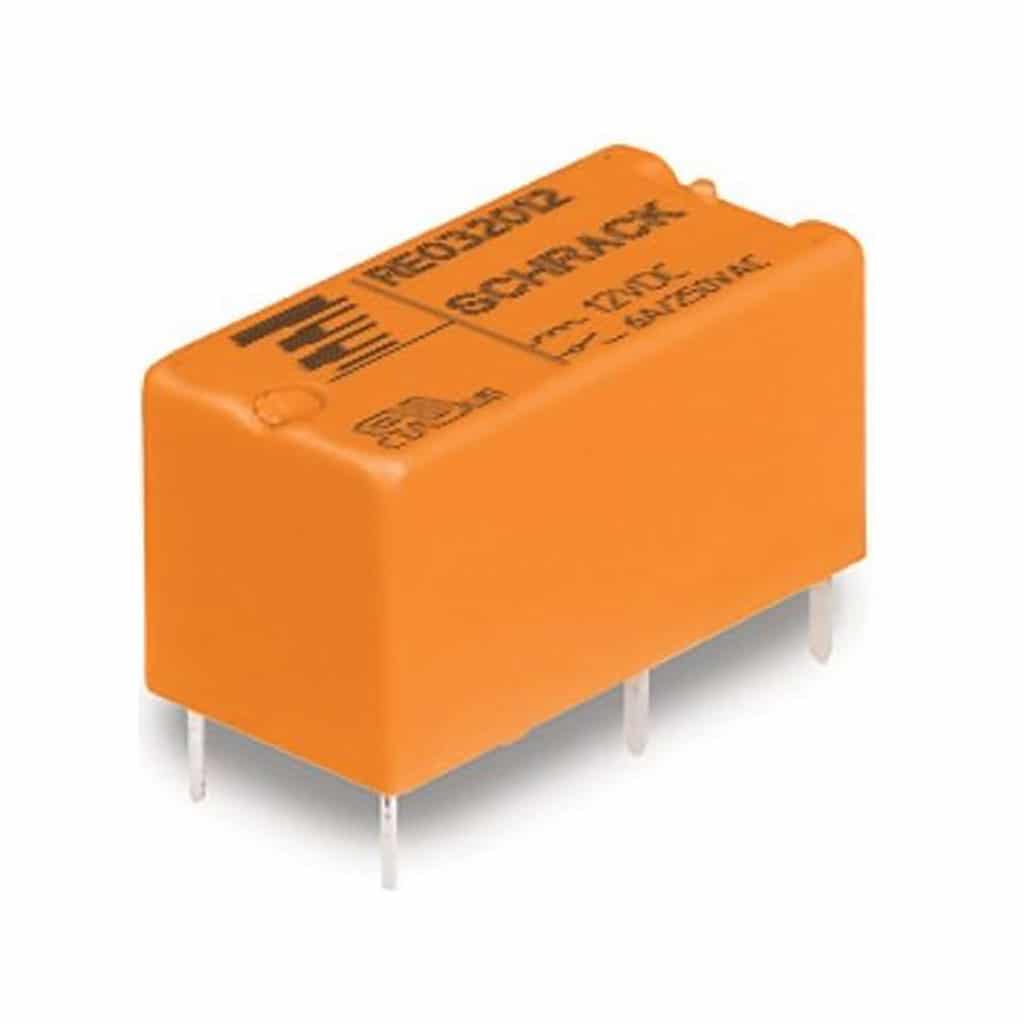

RE is a very compact relay from TE covering a 200mw sensitive coil with a height of only 10.6mm.
Comes fully sealed as standard and available from 5v to 24vdc.
Please note AgCdO contacts are now obsolete and not for new designs.
- 1 pole 6 A, 1 form A (NO) contact
- Sensitive coil 200 mW
- 4 kV coil-contact
- Optimized height 10.6mm
- PCB area 200mm2
- Wash tight
- Product in accordance to IEC 60335-1 (domestic appliances)
