RT1 Sensitive Coil Single Pole Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc, 60Vdc |
| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 10A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi 90/10 |
| Coil Resistance (Ohm) | 312Ω, 100Ω, 144Ω, 576Ω, 2304Ω, 9216Ω, 12857Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
This RT1 type is a 250mw coil variant offering low power consumption. The relay has a height of 15.7mm and offers a 10mm creepage clearance.

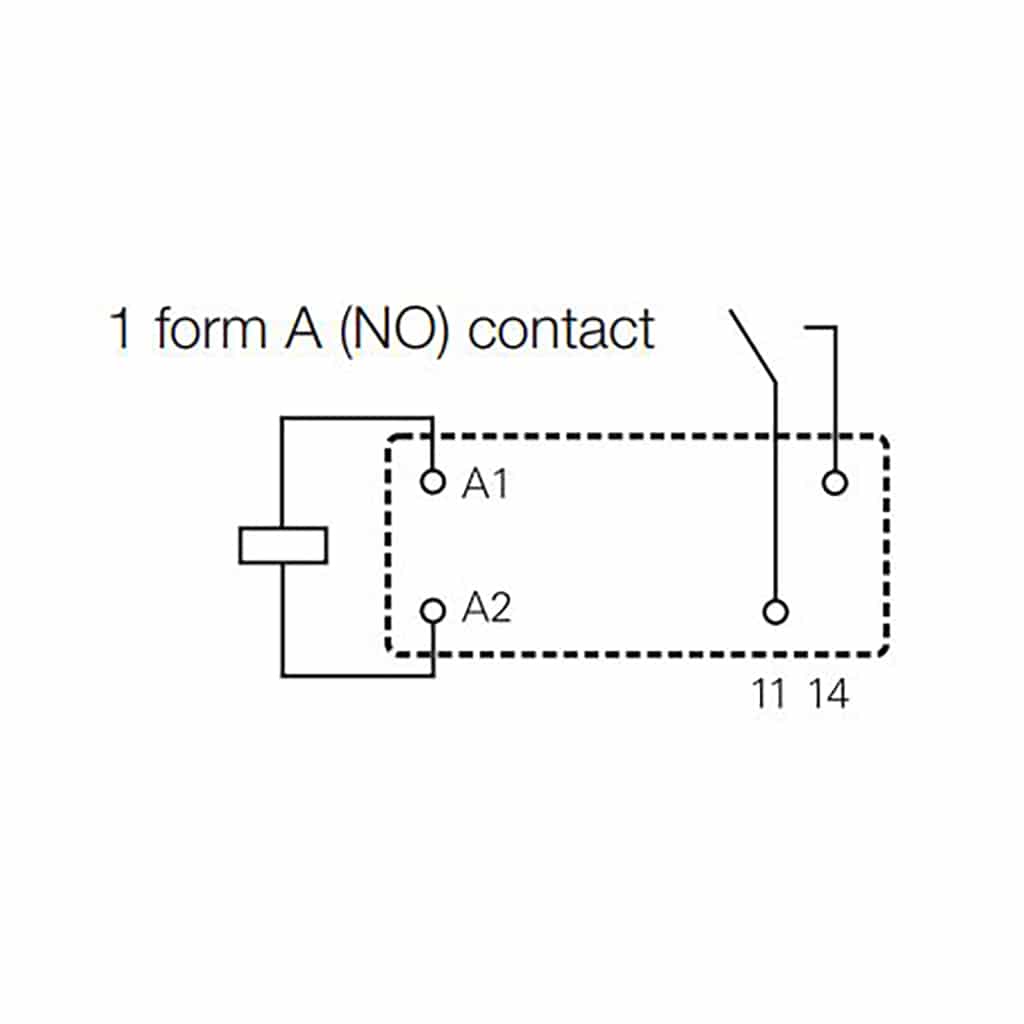

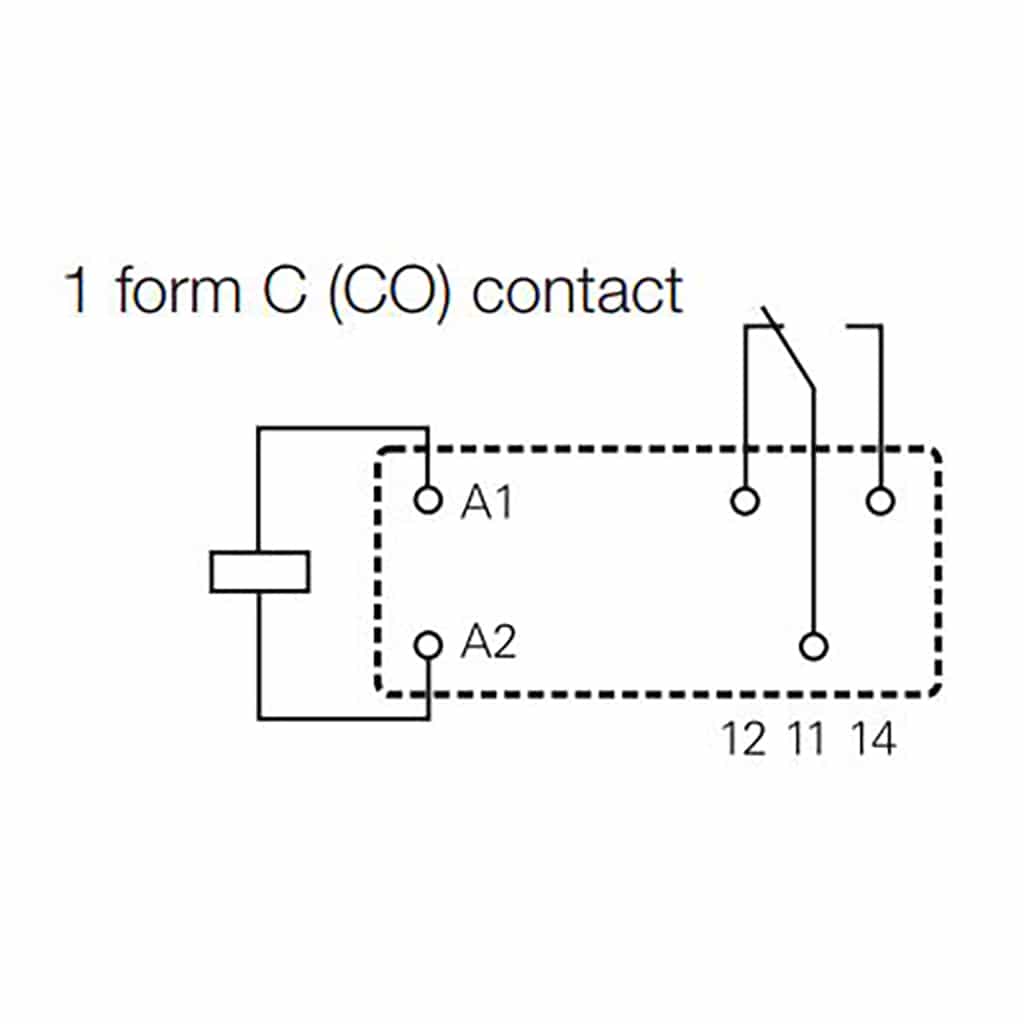

- 1 pole 10A, 1 form C (CO) or 1 form A (NO) contact
- Highly sensitive version, coil power 250mW
- 5kV/10mm coil-contact
- Reinforced insulation
- Ambient temperature 85°C
