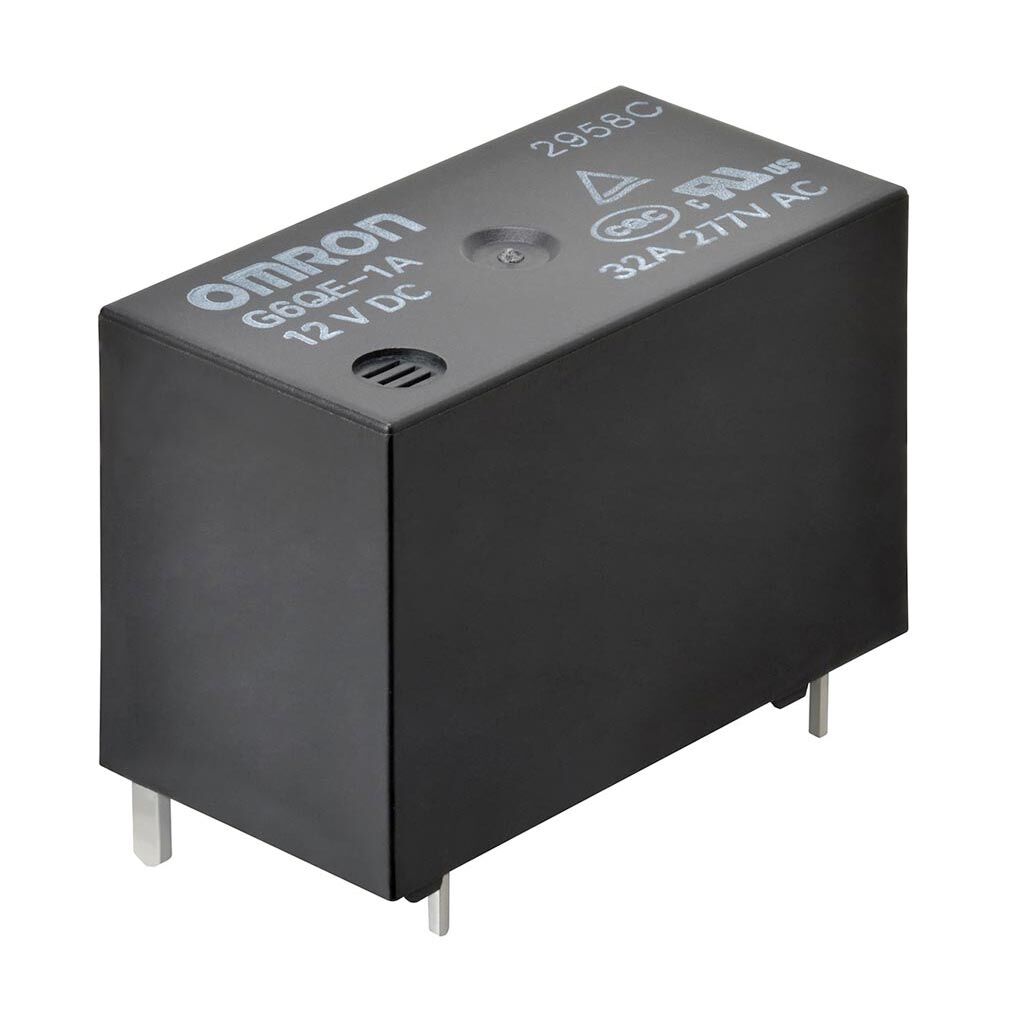

G6QE 36a Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 12Vdc, 24Vdc |
| Contact Arrangement | SPST (1NO)- 1 Form A |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 36A |
| Sealing | Flux Proof |
| Contact Material | Ag Alloy |
| Coil Resistance (Ohm) | 102.9Ω, 17.9Ω, 411.4Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
The G6QE is a new series from Omron offering upto 36a switching current @ 250vac with 10,000 operations.
Available in 5, 12 and 24vdc.
- High switching current of 36A @ 250vac and 10,000 operations, 30A @ 250vac and 100,000 operations in a miniature package.
- Achieved 10-kv impulse withstand voltage (between coil and cntacts)
- Power consumption reduced to 12% compared with rated coil consumption by lowering the applied voltage to the coil after applying nominal voltage for 100 ms relay operation ( Reduced to 35% from rated coil voltage)
- Conforms to cULus, EN and CQC
