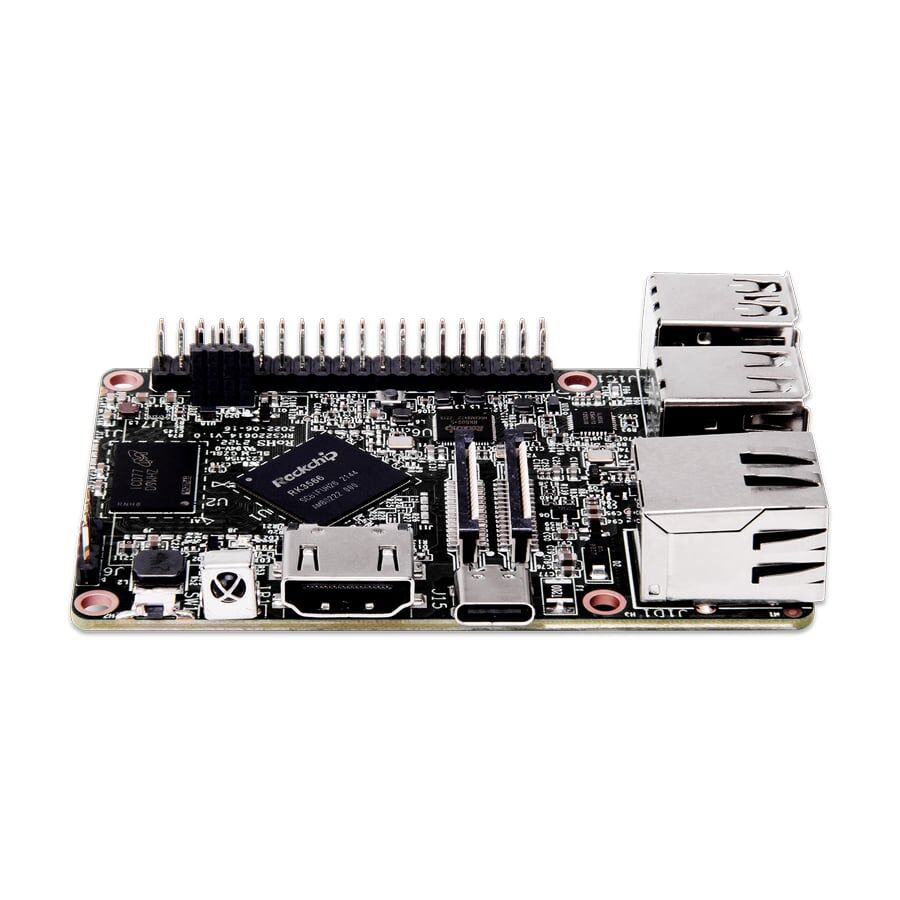

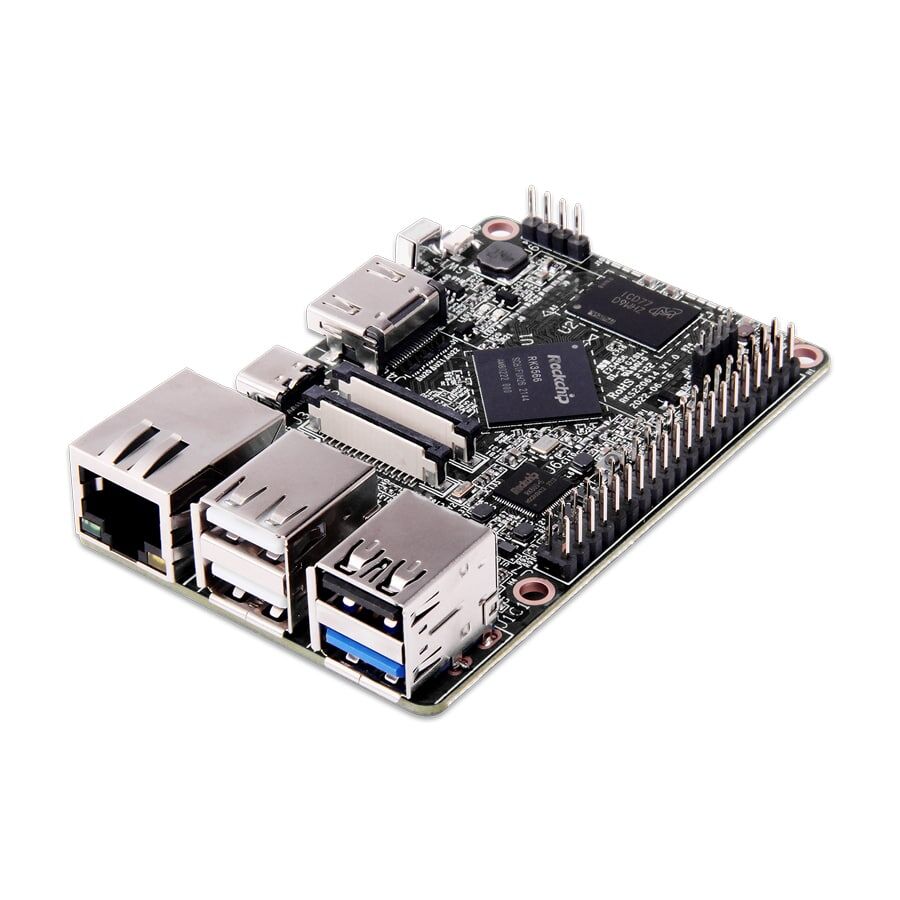

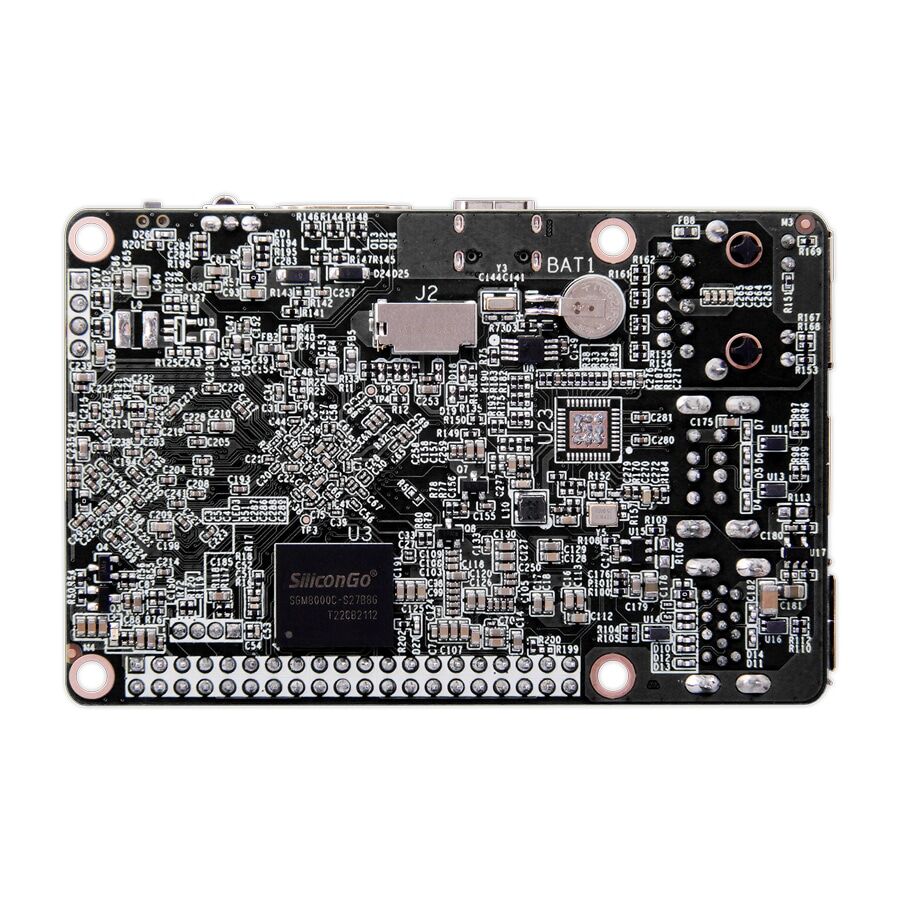

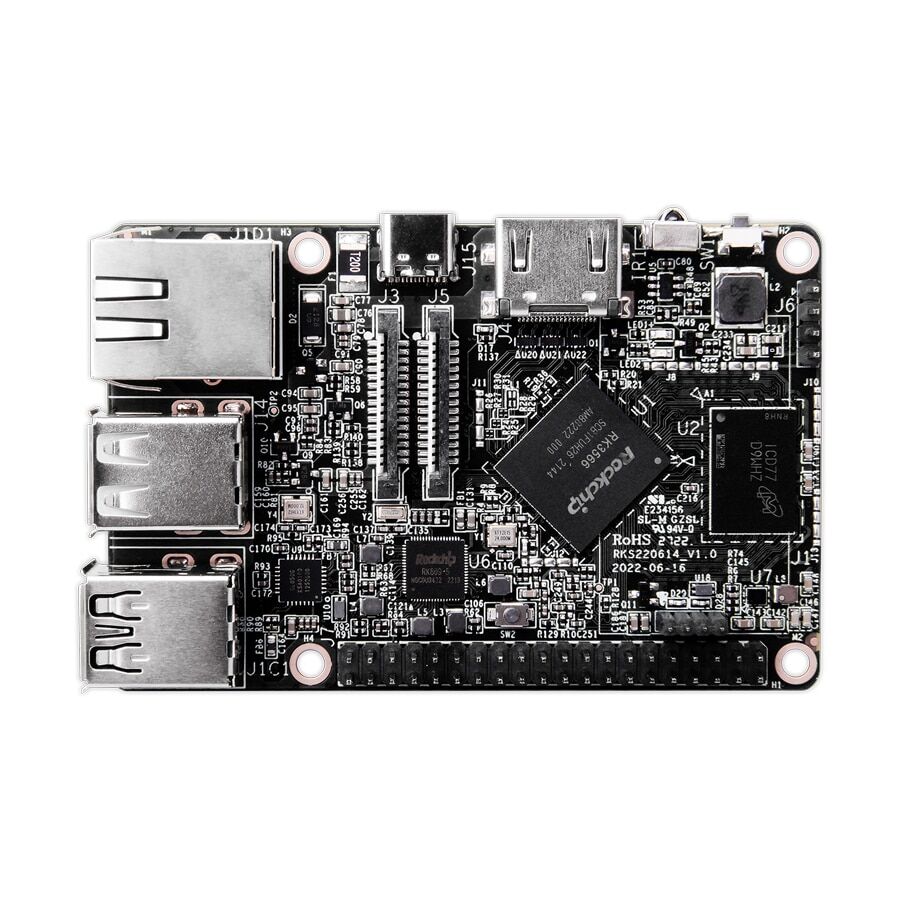

Geniatech XPI-3566 Single-Board Computer
Product Description
Rockchip RK3566 with Quad-core Cortex-A55 up to 1.8GHz
The Geniatech XPI-3566 is a high-performance single-board computer that is similar to the Raspberry Pi. With an RK3566 processor, built-in 0.8T NPU, and up to 8GB of LPDDR4 RAM, it can run Linux Debian10, Android 11, or Raspbian OS emulator systems while supporting seamless migration from Raspberry Pi and its accessories. The XPI-3566 is compatible with Raspberry Pi’s 40P GPIO extension interface and can display 4K HDMI, MIPI-DSI, and MIPI-CSI. It also offers WiFi and wired network connections, making it ideal for AI, machine learning, and multimedia applications.
The Geniatech XPI-3566 is a high-performance single-board computer that is similar to the Raspberry Pi. With an RK3566 processor, built-in 0.8T NPU, and up to 8GB of LPDDR4 RAM, it can run Linux Debian10, Android 11, or Raspbian OS emulator systems while supporting seamless migration from Raspberry Pi and its accessories. The XPI-3566 is compatible with Raspberry Pi’s 40P GPIO extension interface and can display 4K HDMI, MIPI-DSI, and MIPI-CSI. It also offers WiFi and wired network connections, making it ideal for AI, machine learning, and multimedia applications.
- Supports Rasberry Pi OS emulater, Debian, Android operating systems, supports Raspberry PI system development applications
- Adopts with RK3566 processor, integrated 0.8 Tops NPU, supports 4K@60fps HD video decoding
- Supports up to 8 GB memory, 8 GB to 128 GB eMMC, multiple storage configurations are optional
- Supports HDMI 4K output display, MIPI-DSI, MIPI-CSI video input and output
- Supports 40P GPIO and can be configured as rich expansion interfaces such as RS232, GPIO, SPI, I2C, and PWM
- Built-in 1000M Ethernet port, supports Wi-Fi/BT wireless network connection
- Using the original Raspberry PI development tools and the same API interfaces
- Open system architecture design, can provide complete system software customization services
