SNYPER-LTEM (GL) High performance LTE Cat M Network Signal Analyser

SKU: SNYPER-LTEM (GL) Categories: , Manufacturer:

Product specs

Weight 200 g
Dimensions 141 × 76 × 36 mm

Product Description

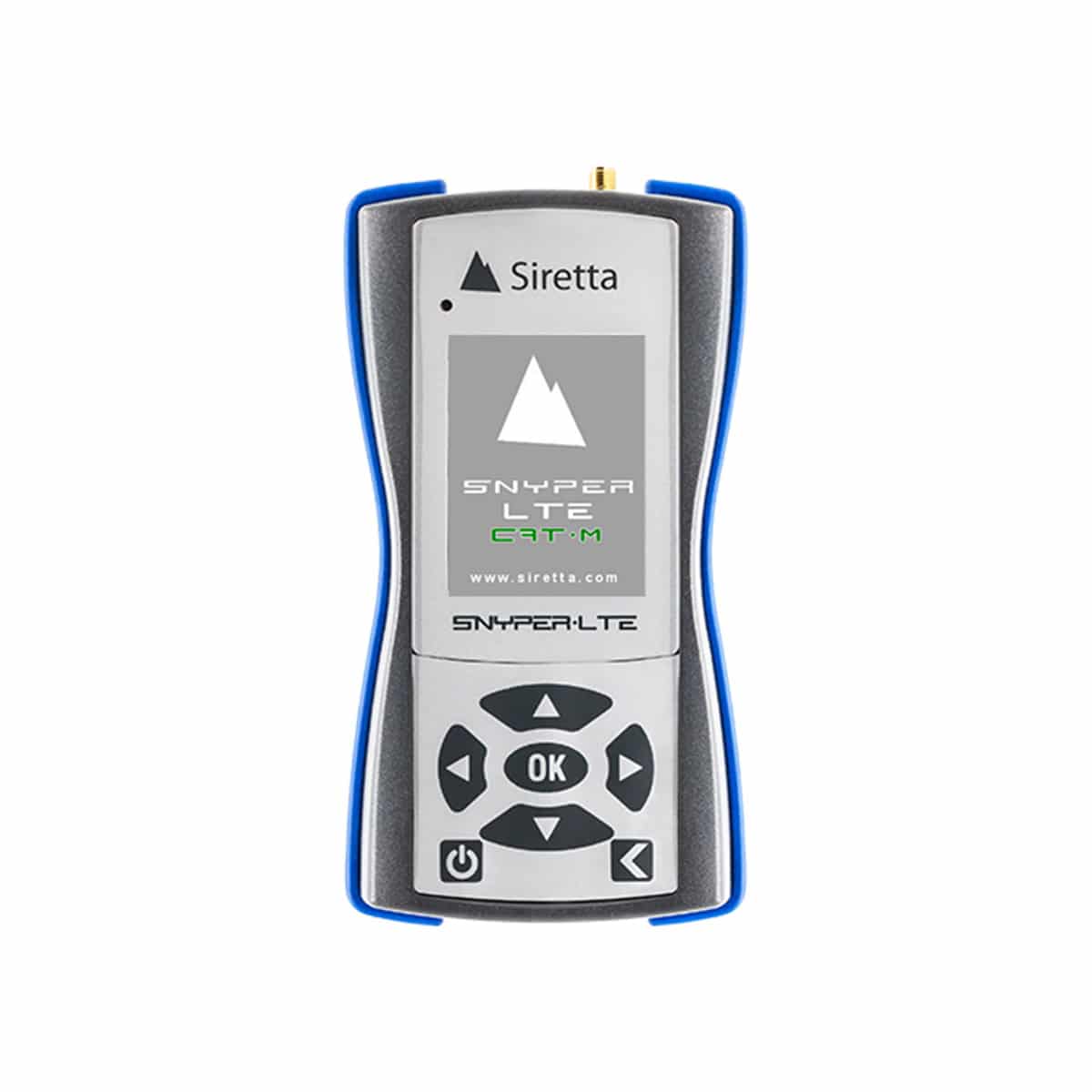

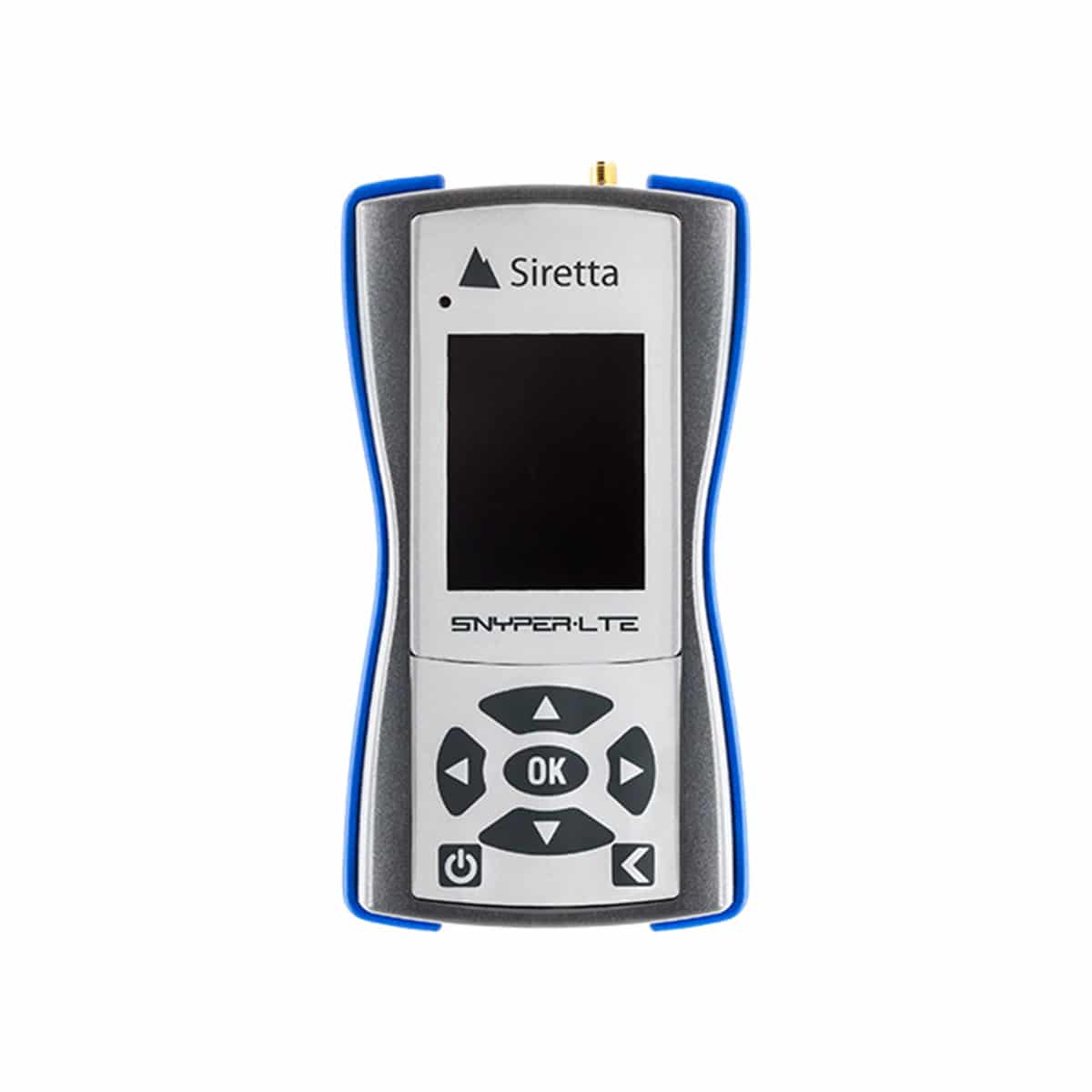

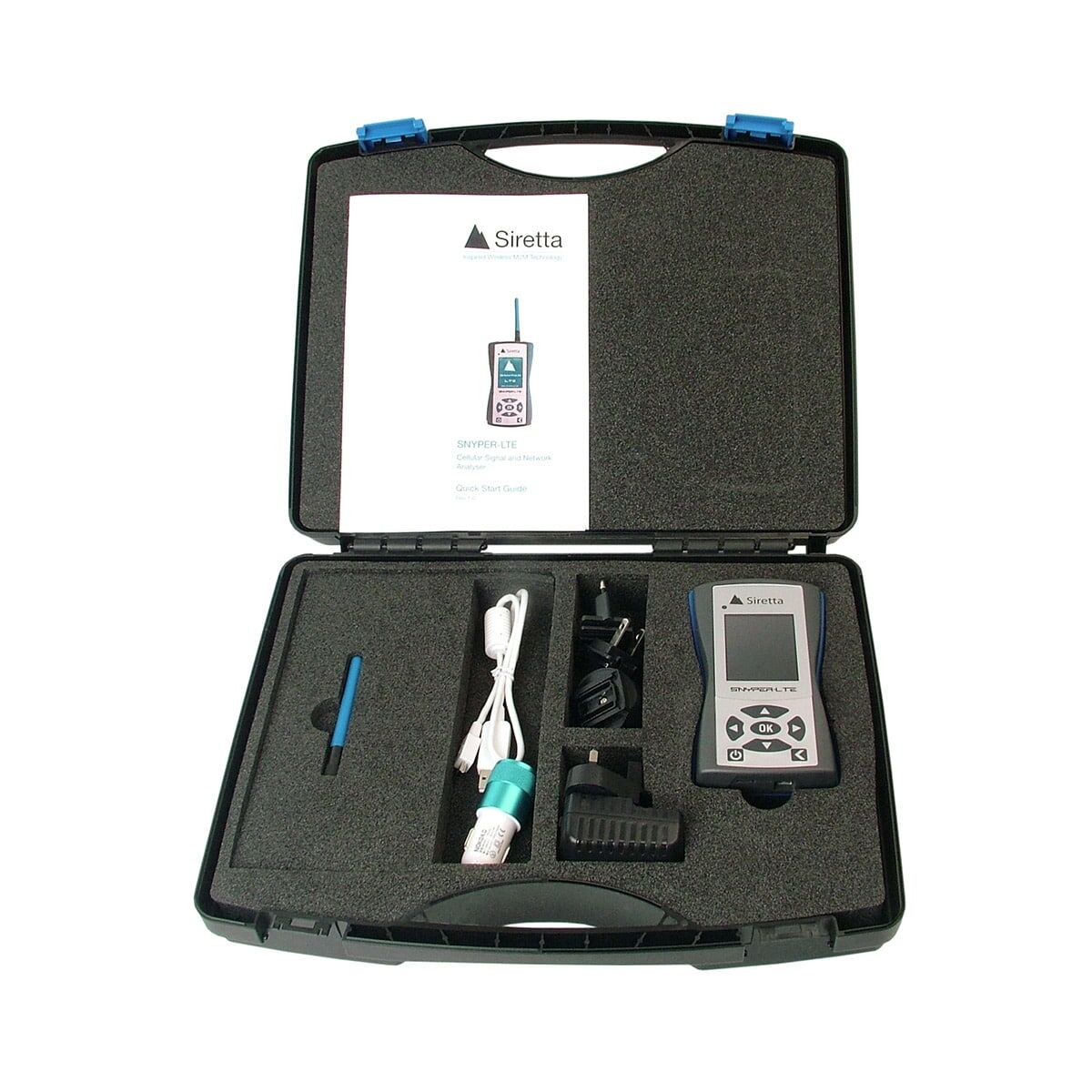

The SNYPER-LTEM (GL) is a high performance, multi-language network signal analyser, dedicated to surveying the 4G/LTE Cat M (GL), LTE NB IoT* & 2G/GSM networks**. Signal strength and cell parameters can be detected on LTE Cat M and on 2G/GSM*. The SNYPER-LTEM (GL) comes in a robust carry case with an antenna, a USB cable, a USB car charger and power accessories.

SNYPER-LTEM (GL) can save one survey. Results can be downloaded to a PC and displayed in CSV format or HTML graphical format, allowing users to analyse the data and make informed decisions. The powerful SNYPER-LTEM (GL) summary page displays percentage thresholds to determine most suitable mobile network operator available and the performance of a “preferred” MNO can be evaluated against the other networks. The SNYPER-LTEM (GL) can also be used to help establish optimum antenna placement and perform local site surveys.

*LTE NB IoT networks do not currently provide signal strength levels for cell sites.
**SNYPER-LTEM (GL) does not require a SIM in order to function.

To discuss your next IoT project, call the office on 01748 850 555

  • 13 Supported Bands LTE (MHz):
    B1 (2100) / B2 (1900) / B3(1800) / B4 (AWS 1700) /
    B5 (850) / B8 (900) / B12 (700) / B13 (700) / B18 (800)/
    B19 (800) / B20 (800) / B26 (850) / B28 (700)
  • 4 Supported Bands GSM / GPRS (MHz):
    B2 (1900) / B3 (1800) / B5 (850) / B8 (900) MHz
  • View LTE Cat M and 2G/GSM signal strength and cell parameters
  • View NB IoT cell parameters
  • Blue antenna for 700MHz to 2300MHz
  • Large easy to read LCD display
  • Logical menus and operation
  • Long life rechargeable battery
  • USB car charger included
  • USB cable for PC connection and power/charging
  • USB download of device results to PC
  • Rugged and durable construction
  • Supplied in a hard carrycase
  • Multiple language support
    (English/French/German/Italian/Spanish)
  • 3 result modes:
    Standard/Advanced/Engineer
