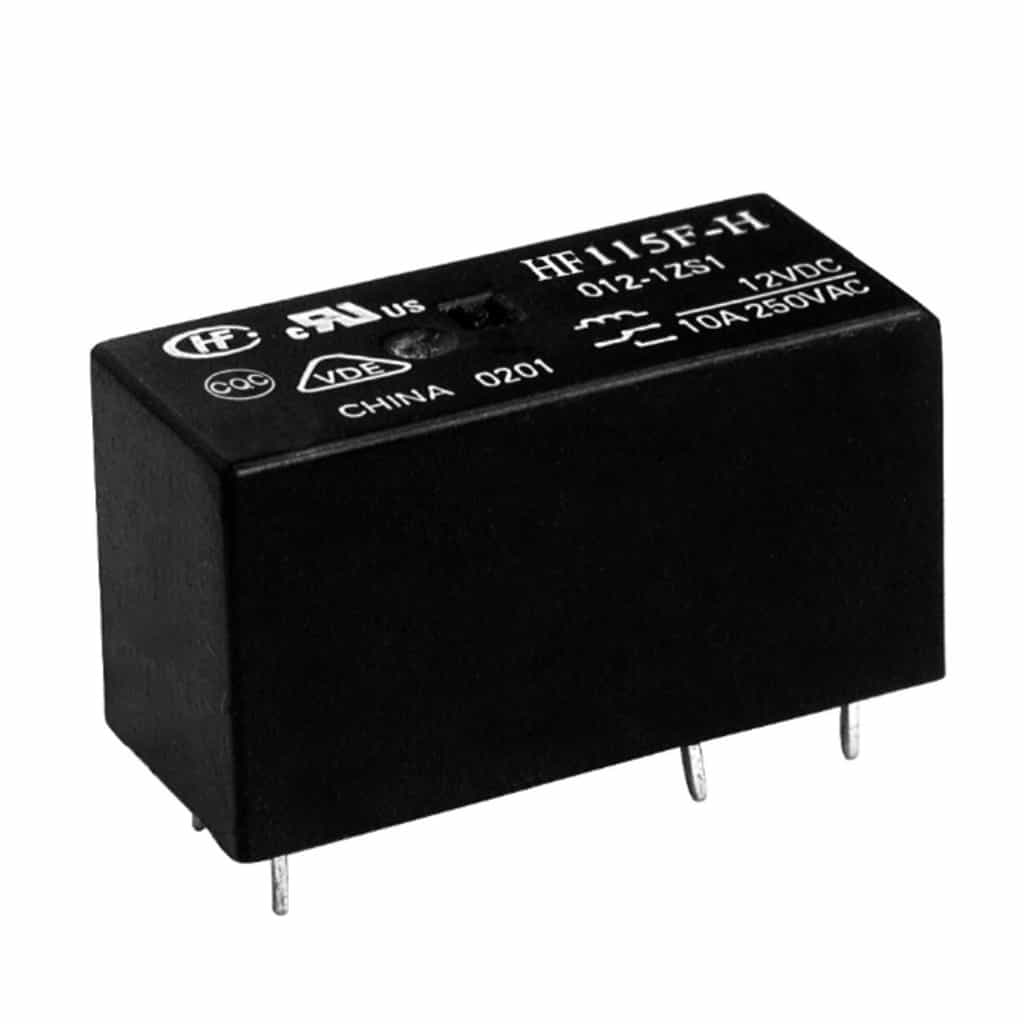

HF115F-H – Sensitive Coil Single Pole Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc |

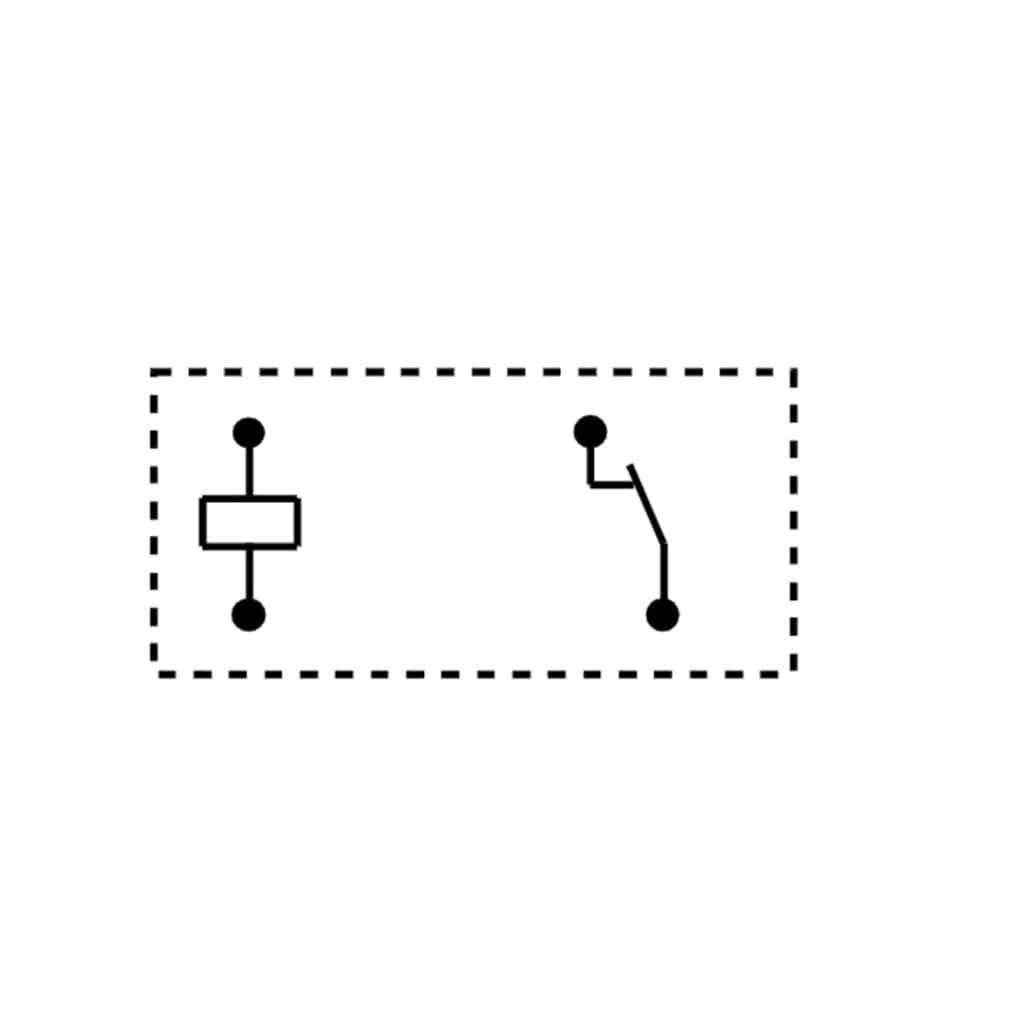

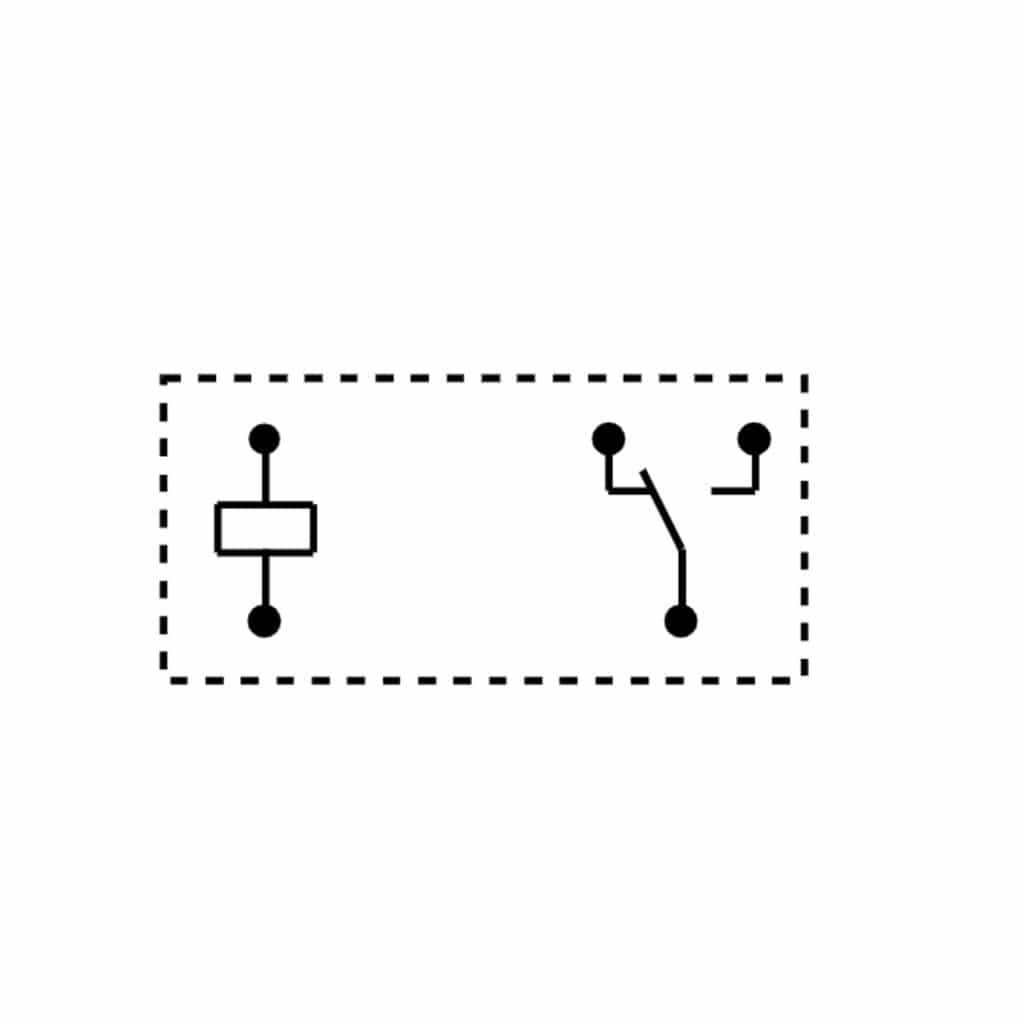

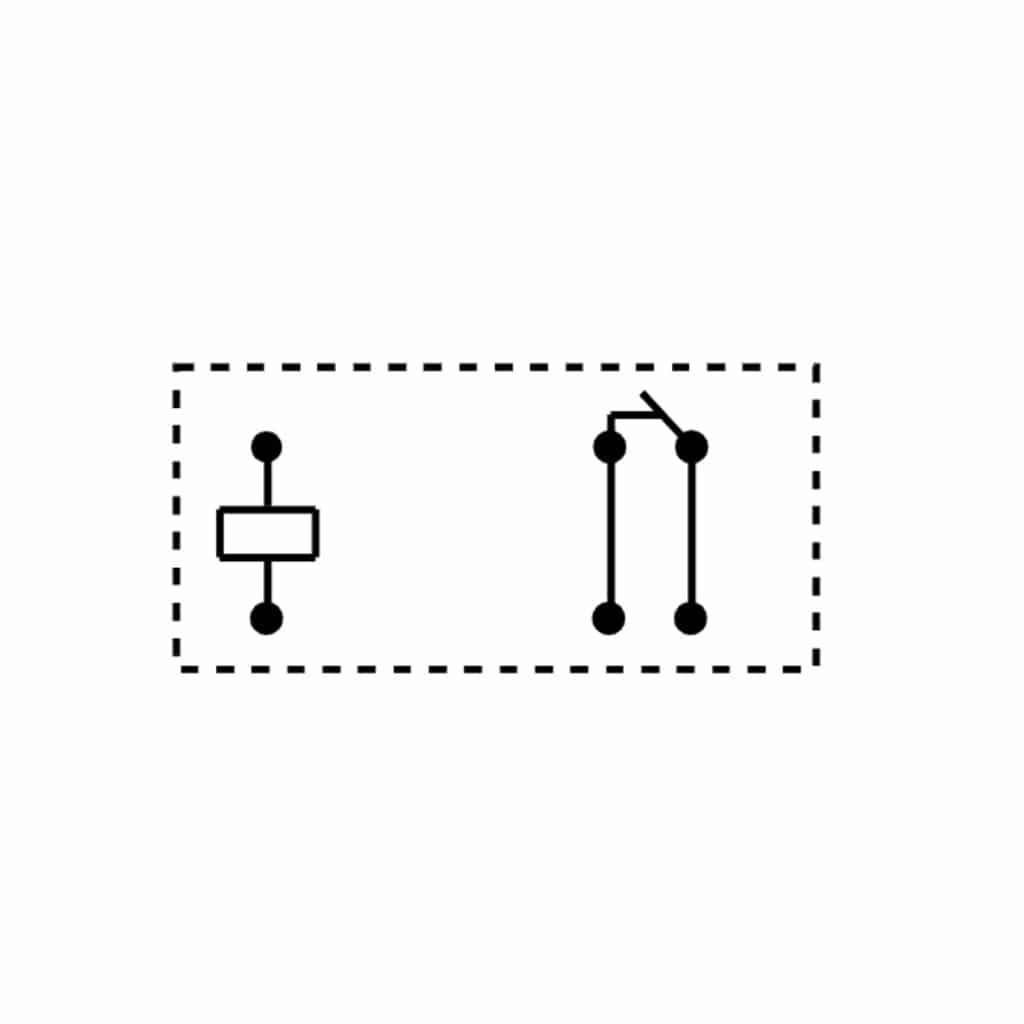

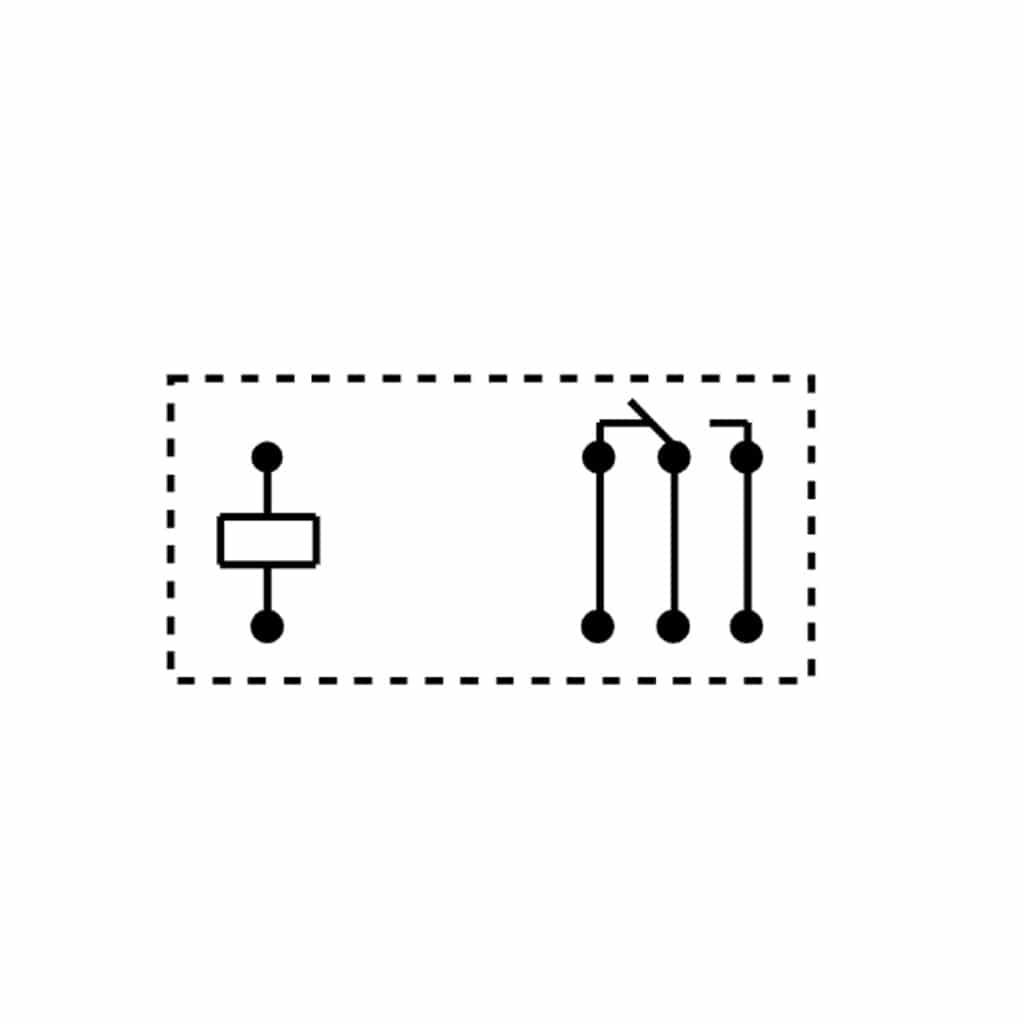

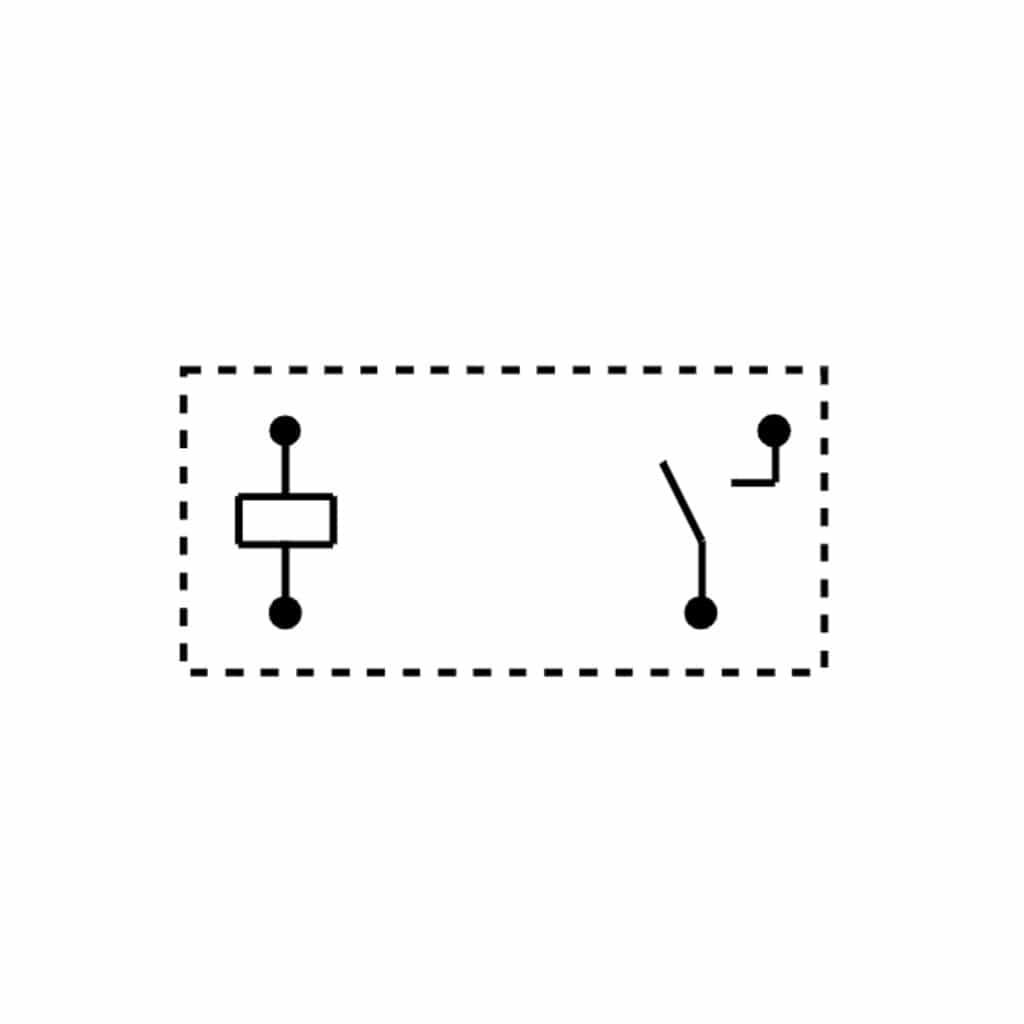

| Contact Arrangement | SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 10A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgCdO, AgNi, AgSnO2 |
| Coil Resistance (Ohm) | 100Ω, 144Ω, 324Ω, 576Ω, 1296Ω, 2304Ω, 9216Ω, 12857Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
Easby Electronics are able to offer several different variants of the popular HF115f series from HongFa. This HF115F-H is a 250mw coil variant offering low power consumption. The relay has a height of 15.7mm and offers a 10mm creepage clearance.
Other HF115 series cover DC Coils, Ac Coils, 105c temperature, High-Inrush, 125C temperature and Latching.
- High sensitive: 0.25W
- Low height: 15.7 mm
- 5kV dielectric strength (between coil and contacts)
- Creepage distance: 10mm
- Meeting VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- Plastic sealed and flux proofed types available
