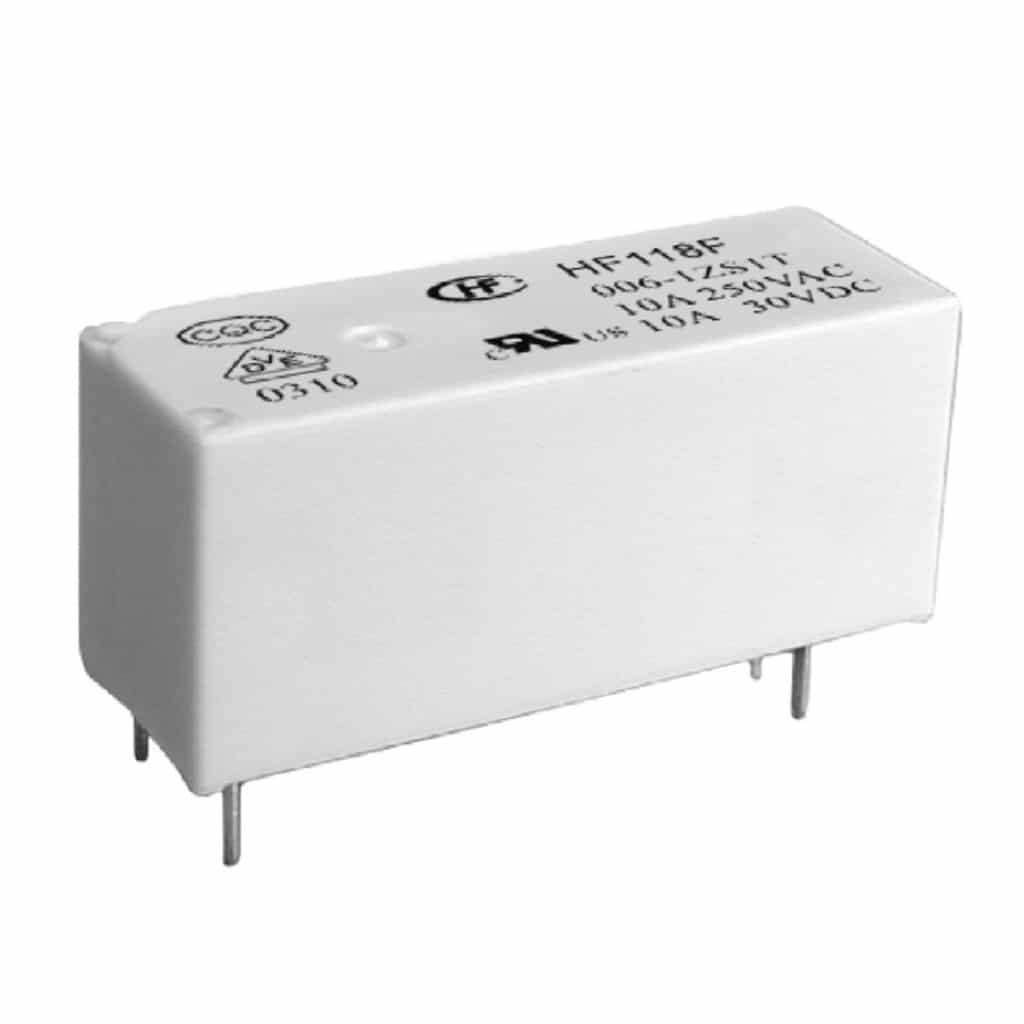

HF118F – 10A Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc, 60Vdc |

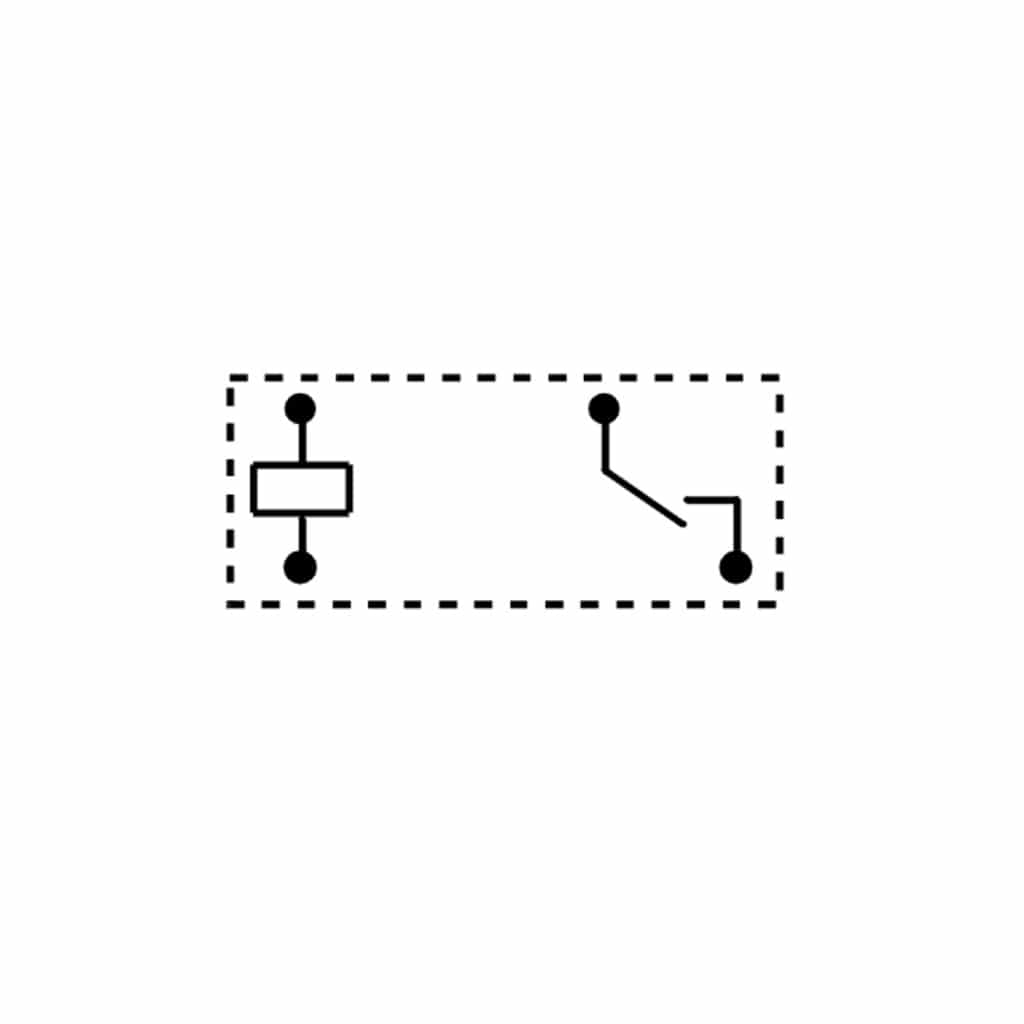

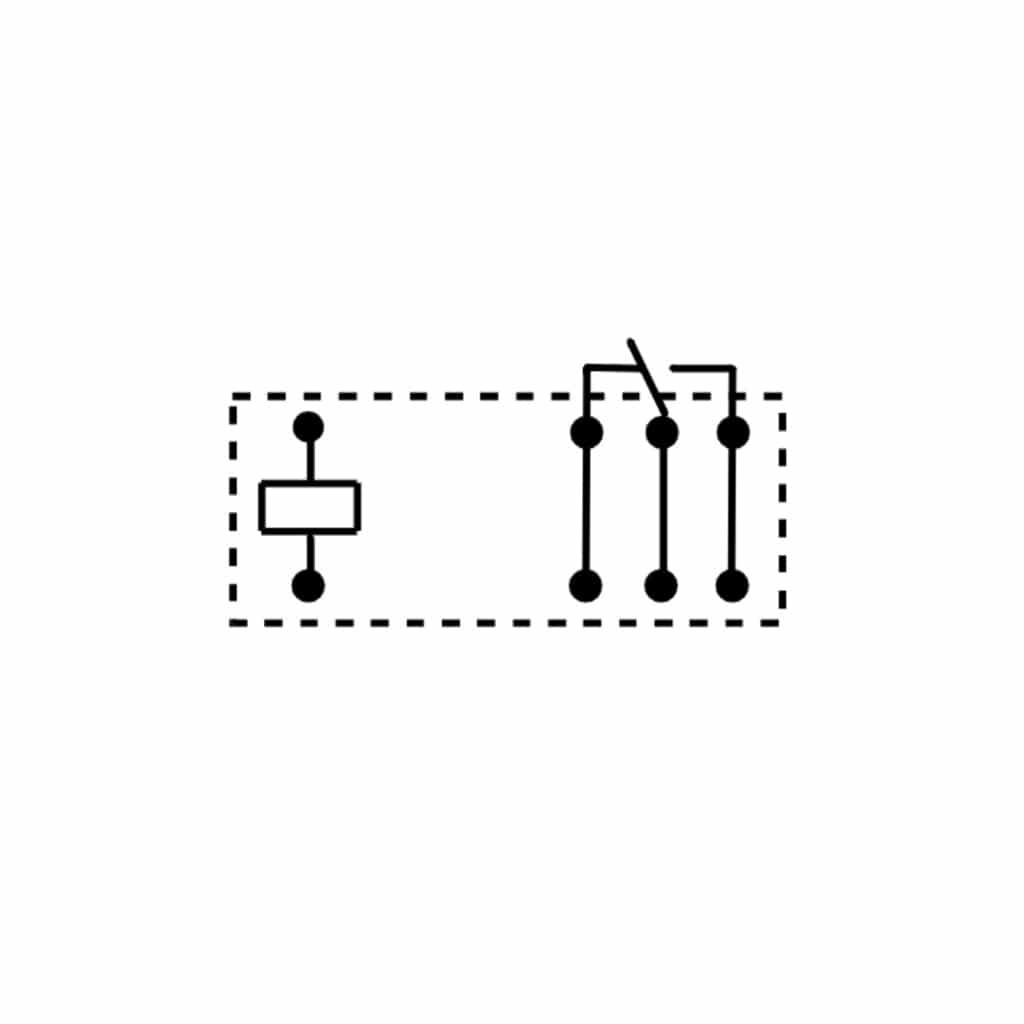

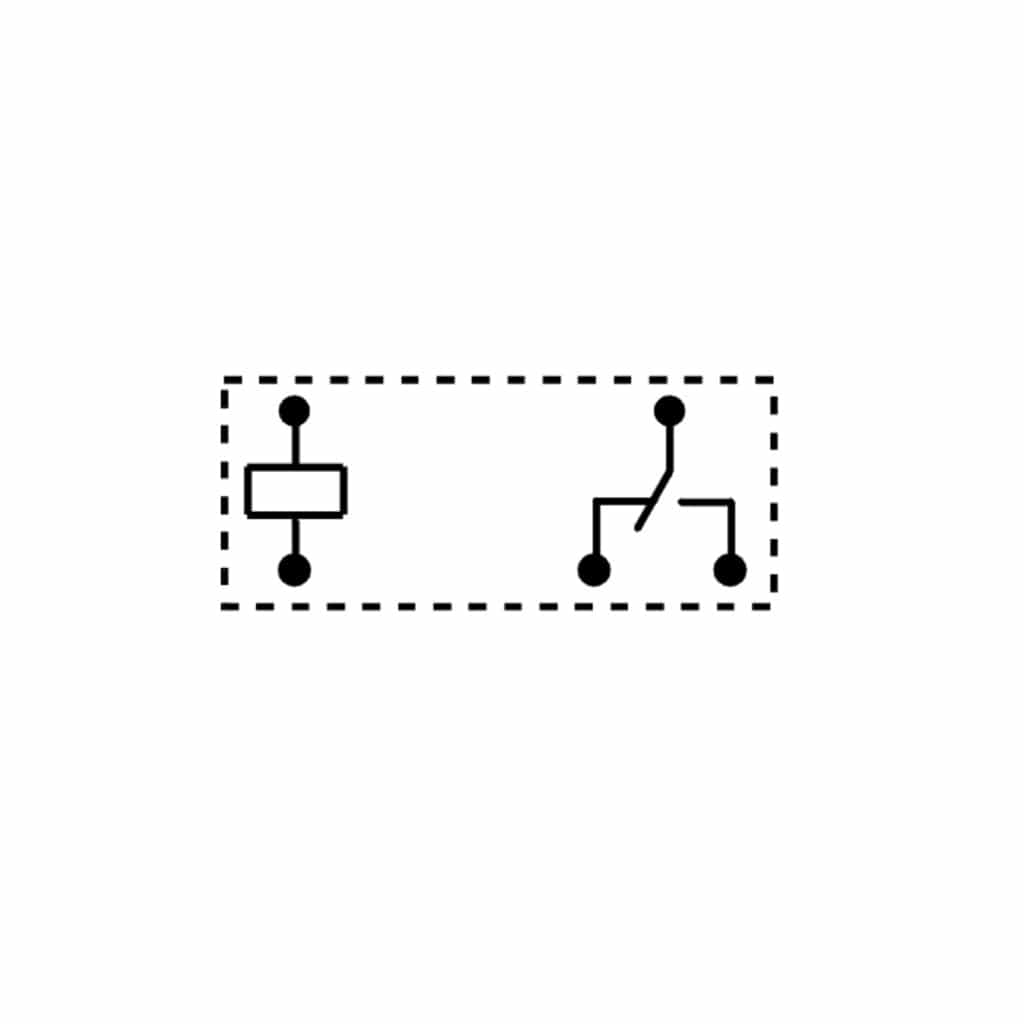

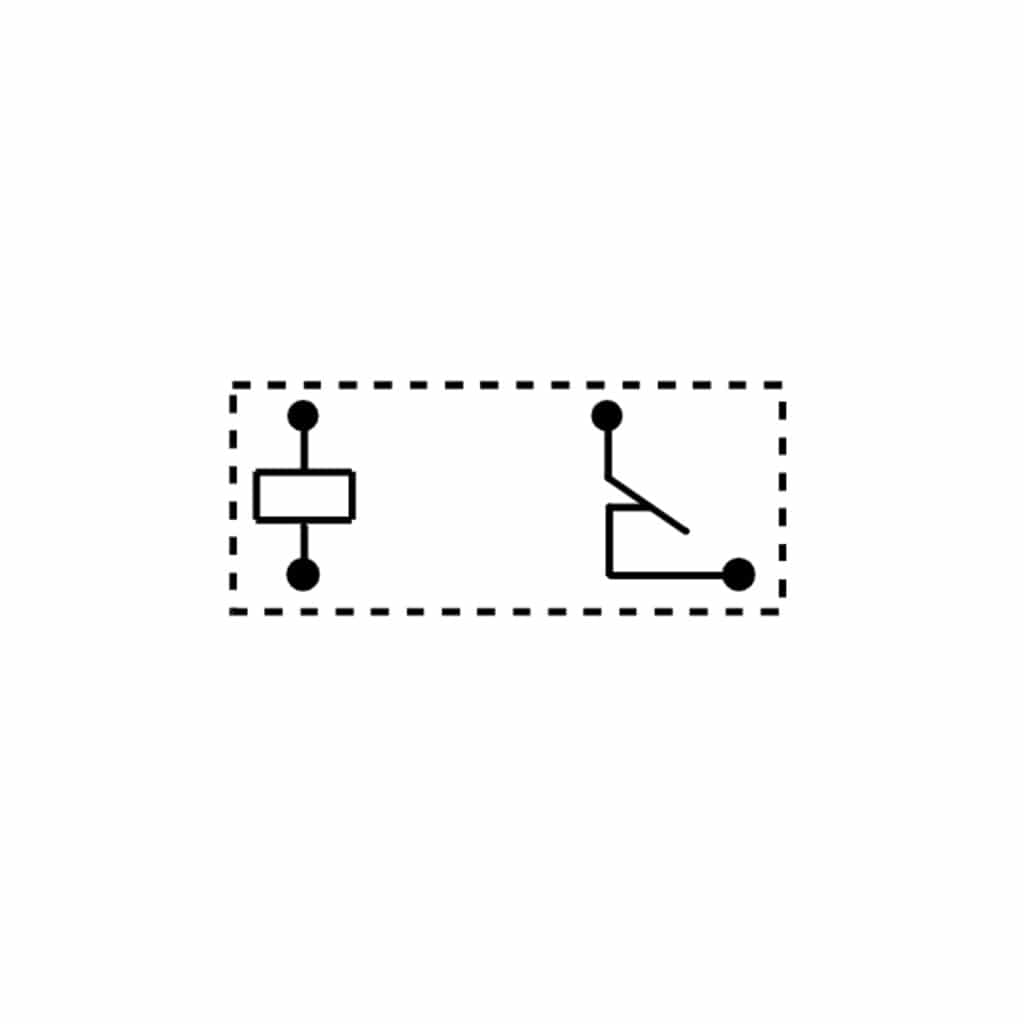

| Contact Arrangement | SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 10A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi, AgNi+Au Plated, AgSnO2, AgSnO2+Au Plated |
| Coil Resistance (Ohm) | 113Ω, 360Ω, 164Ω, 620Ω, 1295Ω, 2350Ω, 8000Ω, 12500Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
HF118F is a very popular relay with a height of only 12.5mm and 10amp switching capabilities. Available in SPNO, SPNO an SPNC configurations.
- 10A switching capability
- 5kV dielectric strength (between coil and contacts)
- Creepage distance >8mm
- Meeting VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- Plastic sealed and flux proofed types available
- UL insulation system: Class F
