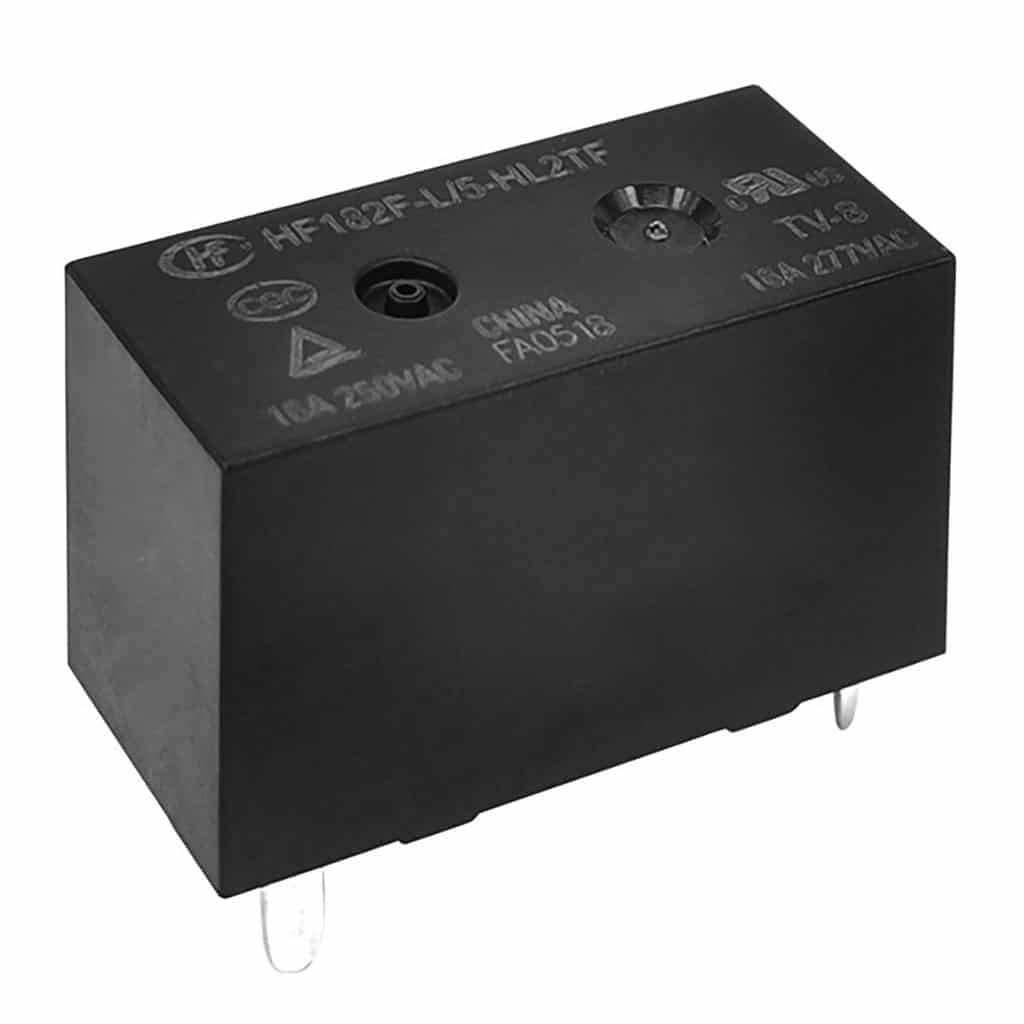

HF182F-L – High Inrush Latching Single Pole Relay

SKU: HF182F-L Category: Manufacturer:

Product specs

Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc

Contact Arrangement

SPST (1NO)- 1 Form A

Coil Type

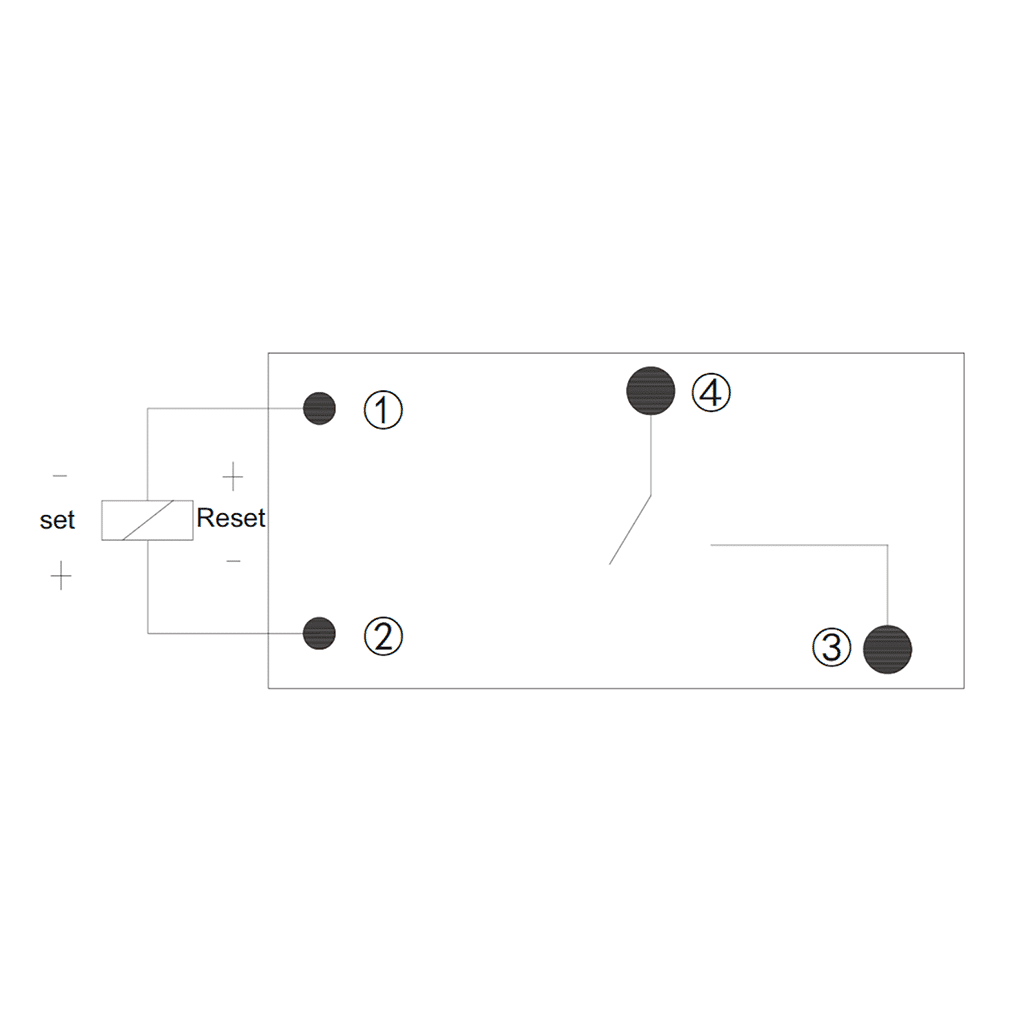

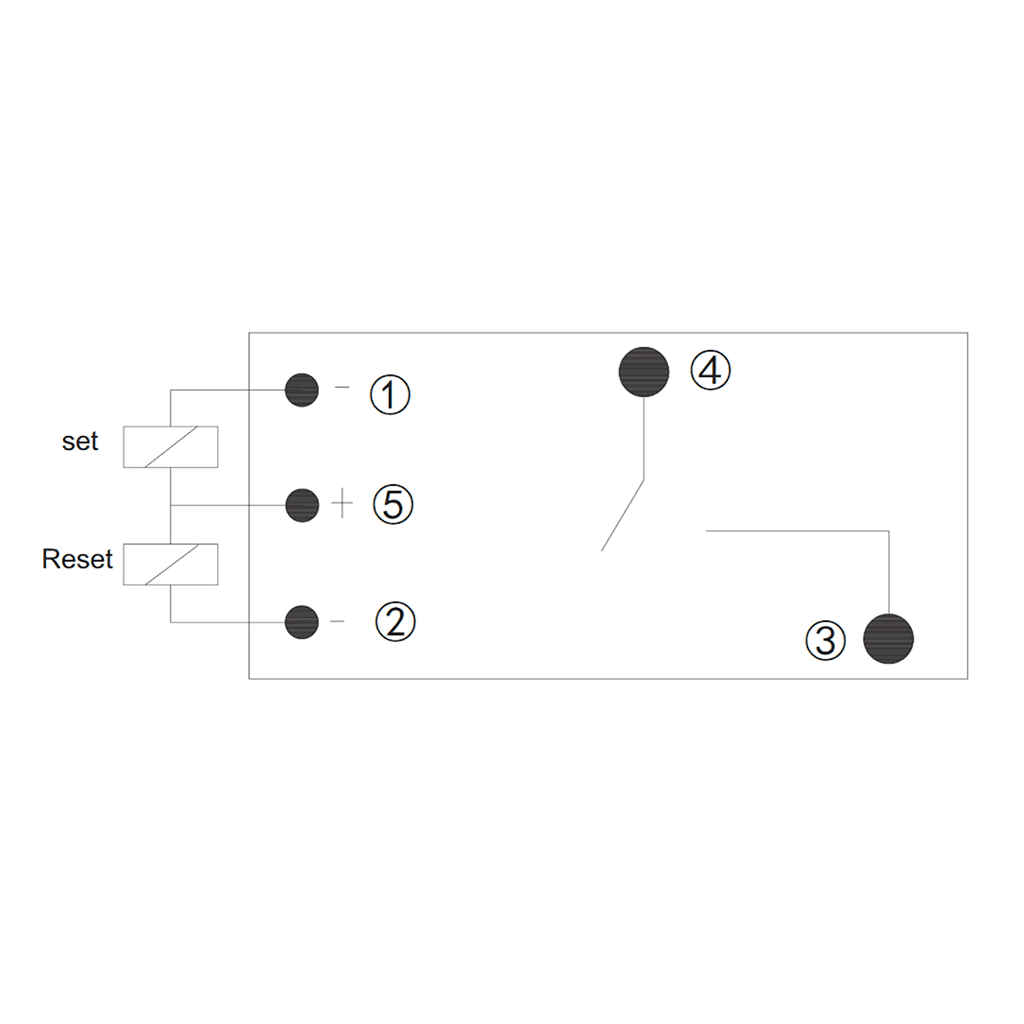

1 Coil Latching, 2 Coil Latching

Contact Rating (Amps)

16A

Sealing

Flux Proof, Fully Sealed

Contact Material

AgSnO2

Coil Resistance (Ohm)

11.25Ω, 101.5Ω, 1086.8Ω, 152.8Ω, 17Ω, 271.7Ω, 31.5Ω, 47Ω, 68Ω, 180Ω, 720Ω

Mounting

PCB

Type

Power Relay

Product Description

HF182F-L is a SPNO relay with a high surge current of 258amps.

Product is single or double coil latching with a 105C temperature rating.

  • Latching relay
  • High load capacity:16A 277VAC
  • High surge current 258A
  • Small size 22mm x 10mm x 14mm
  • Meeting reinforce insulation
  • Dielectric strength:Between coil & contacts  ≥5000VAC
  • High temperature resistance 105C
