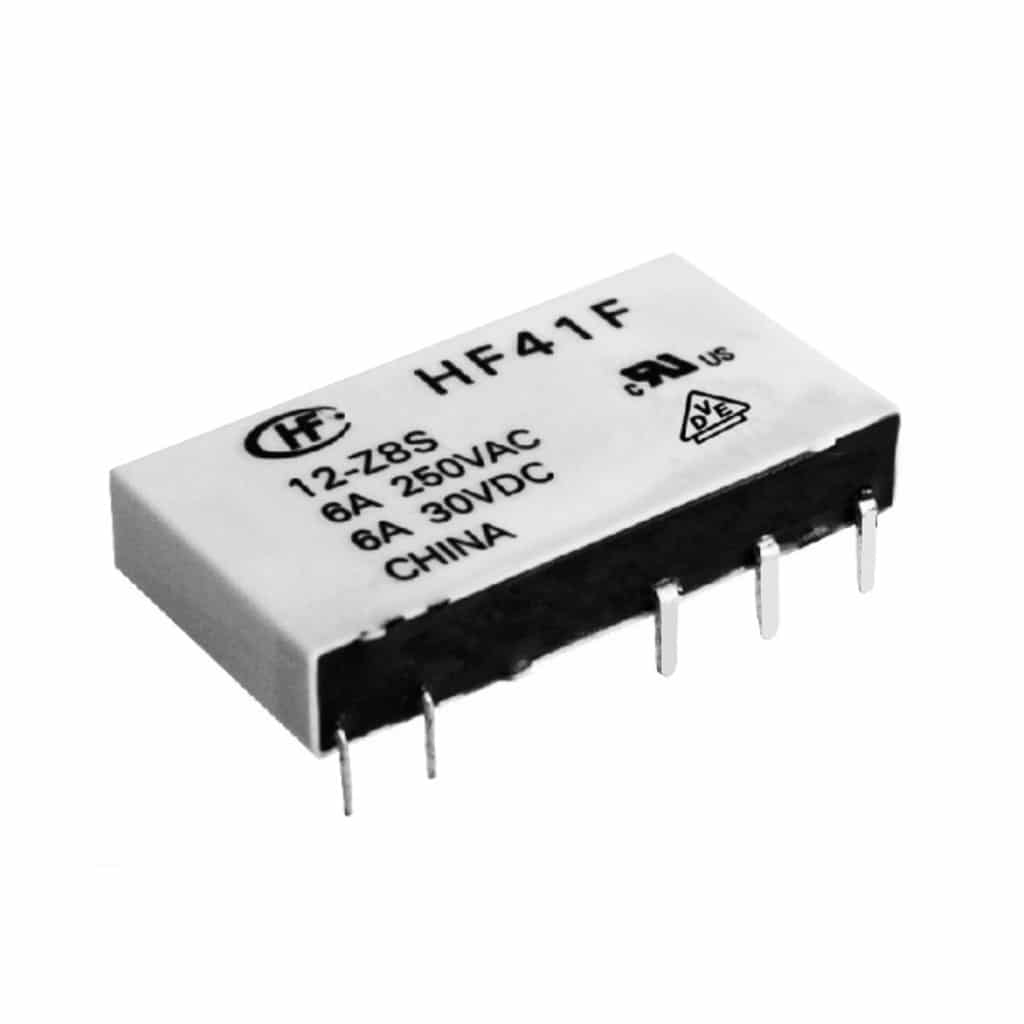

HF41F – 6A Slim Relay
Product specs
| Dimensions | N/A |
|---|---|
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 18Vdc, 24Vdc, 48Vdc, 60Vdc |

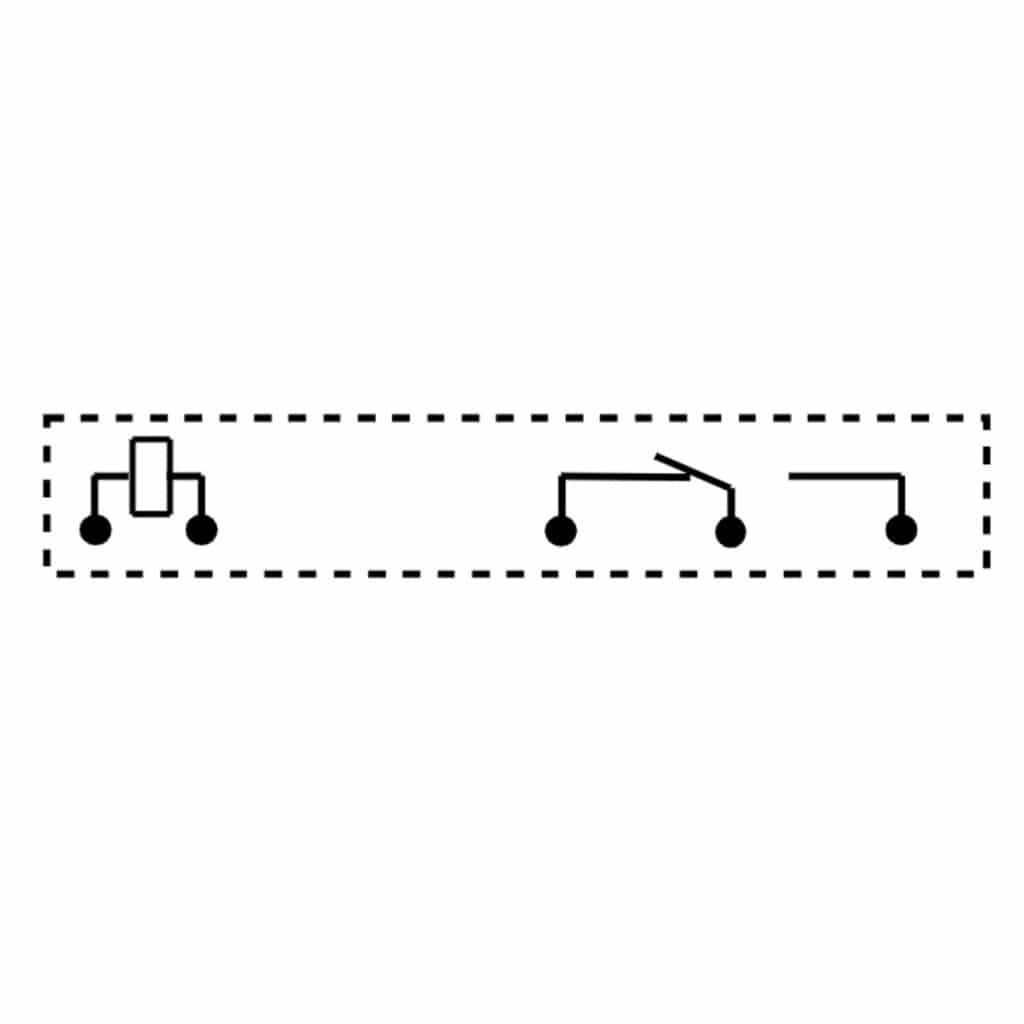

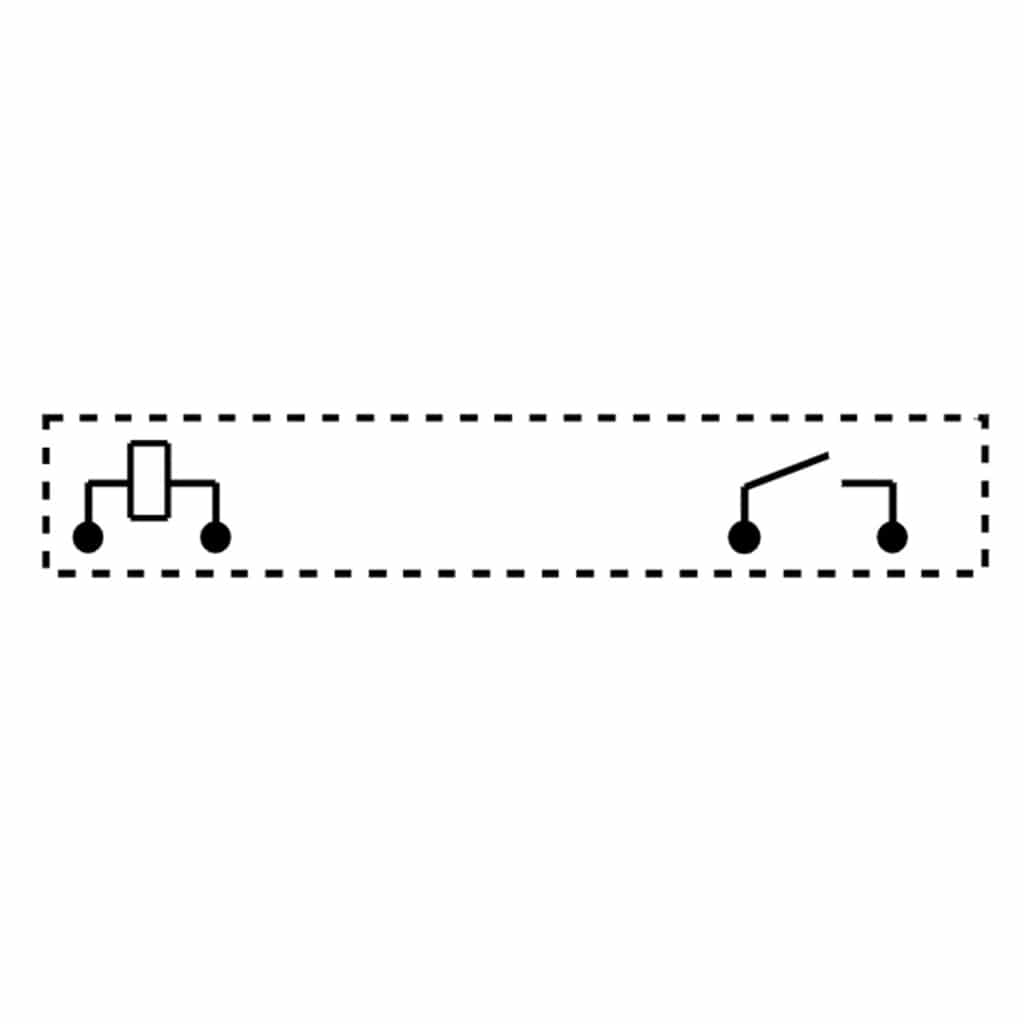

| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 6A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi, AgSnO2 |
| Coil Resistance (Ohm) | 147Ω, 212Ω, 476Ω, 848Ω, 1906Ω, 10600Ω, 16600Ω, 3390Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
HF41F is a super slim relay with a width of only 5mm. Available in vertical and horizontal mount making it in ideal relay where space or height is an issue.
- Slim size (width 5mm)
- High breakdowm voltage 4kV (between coil and contacts)
- Surge voltage up to 6kV (between coil and contacts)
- Meeting VDE 0700, 0631 reinforce insulation
- High sensitive: Approx.170mW
- Sockets available
- 1 Form A and 1 Form C configurations
- Outline Dimensions: (28.0 x 5.0 x 15.0) mm
