HFD2 – Non Latching or Latching Relay – 3amp
Product specs
| Coil Voltage | 3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc |
|---|---|
| Contact Arrangement | DPDT (2CO) -2 Form C |

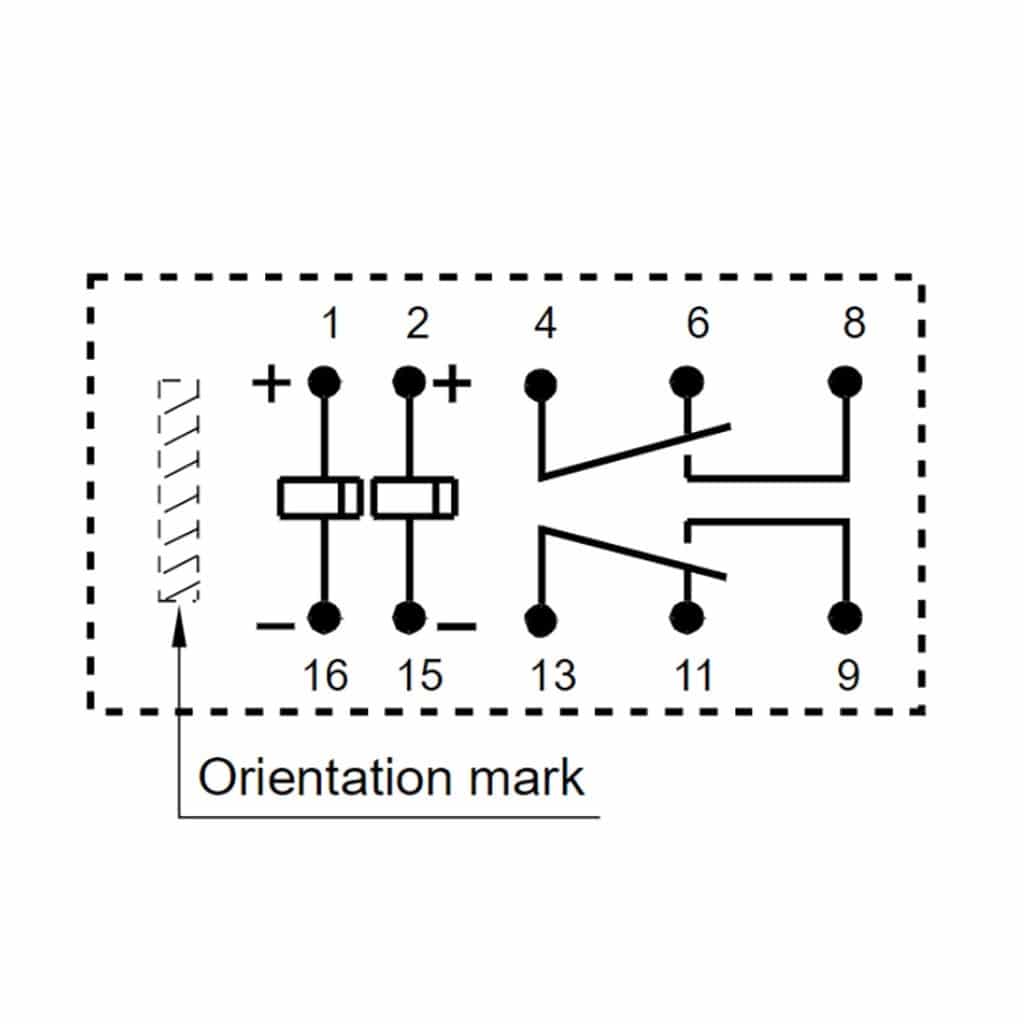

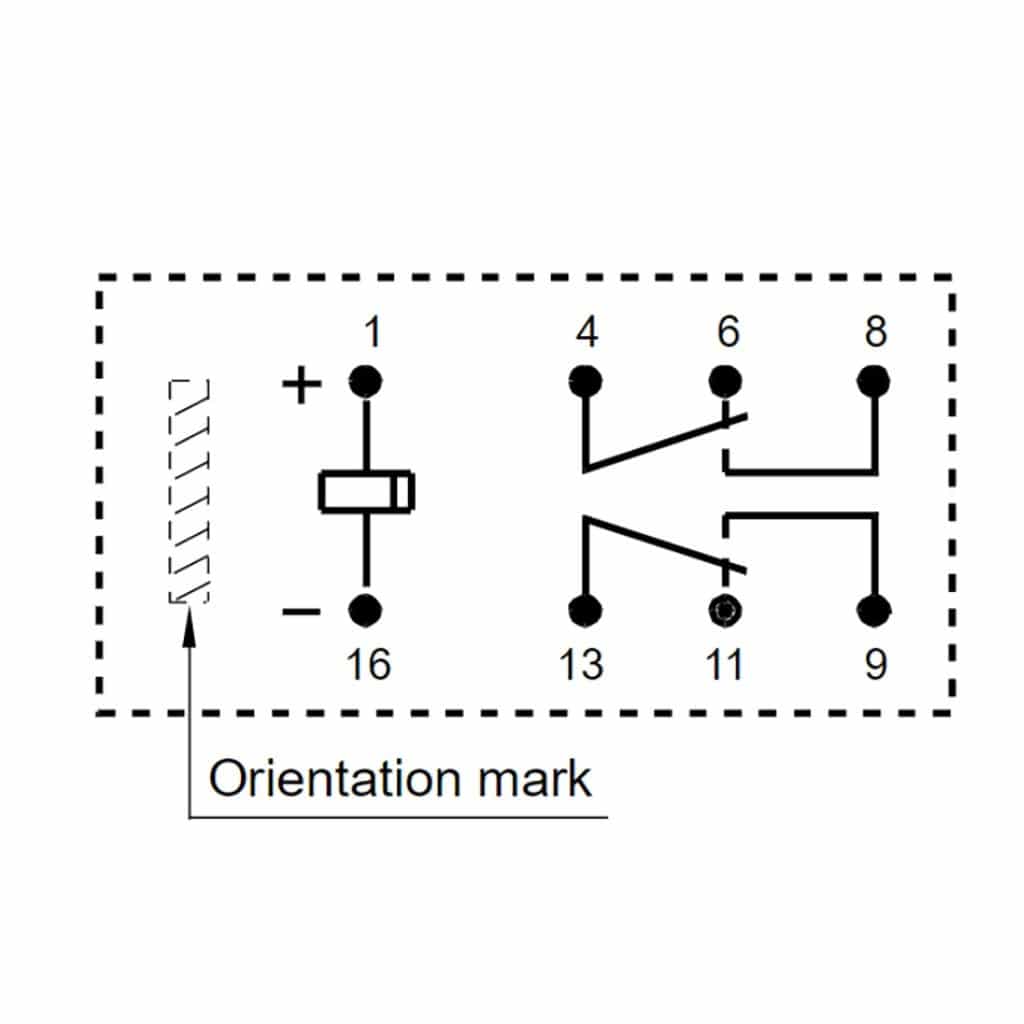

| Coil Type | Non Latching, 1 Coil Latching, 2 Coil Latching |
| Contact Rating (Amps) | 3A |
| Sealing | Fully Sealed |
| Contact Material | Ag+Gold plated/Ag+Gold plated, AgPd/Ag+Gold plated, AgPd/AgPd+Gold plated |
| Mounting | PCB |
| Type | Signal Relay |
Product Description
HFD2 is a high sensitive 2 pole relay from HongFa that is available single side stable, 1 coil latching and 2 coil latching.
Available from 3vdc – 48vdc depending on the configuration.
- High sensitive: 150mW
- Matching standard 16 pin IC socket
- High switching capacity: 125VA / 90W
- Bifurcated contacts
- Epoxy sealed for automatic wave soldering and cleaning
- Single side stable and latching type available
