V23079 – P2 – PCB and SMD Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 2Vdc, 2.4Vdc, 3Vdc, 4Vdc, 5Vdc, 4.5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc |
| Contact Arrangement | DPDT (2CO) -2 Form C |

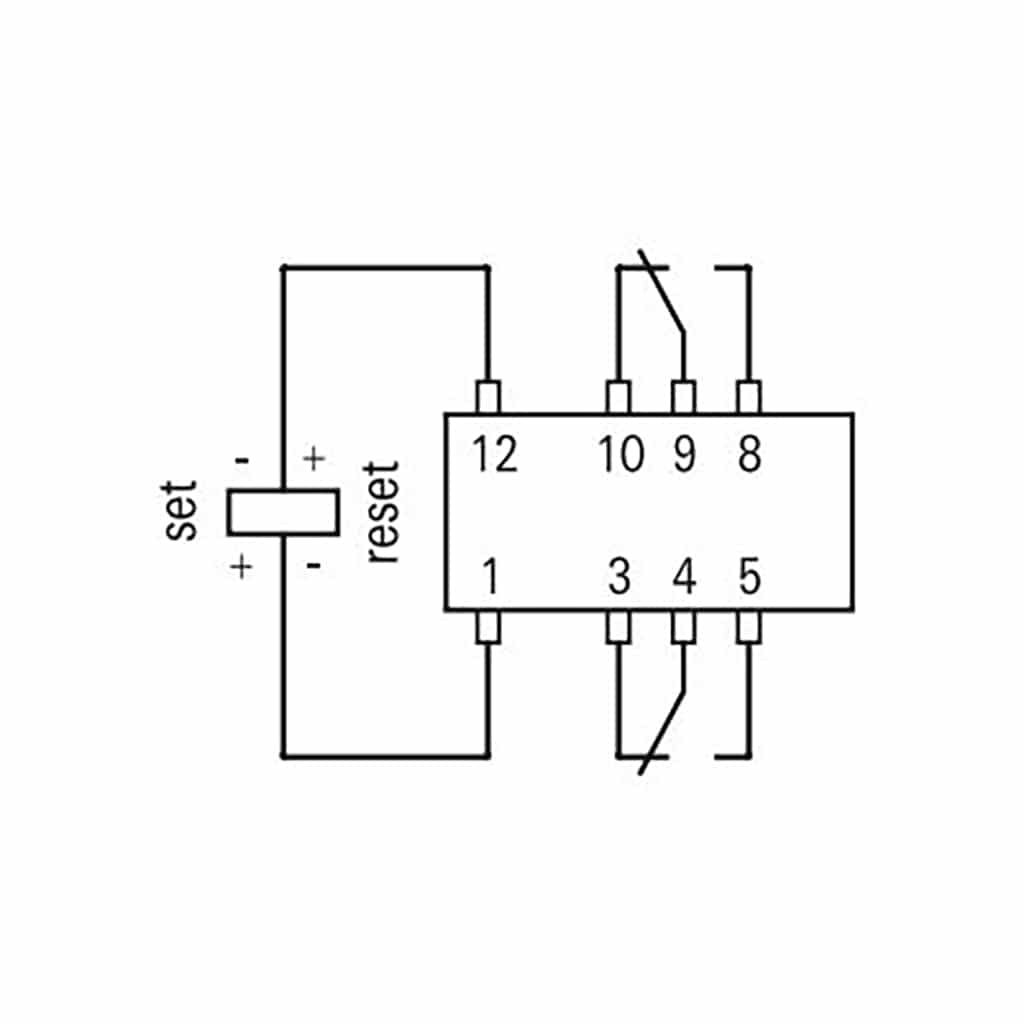

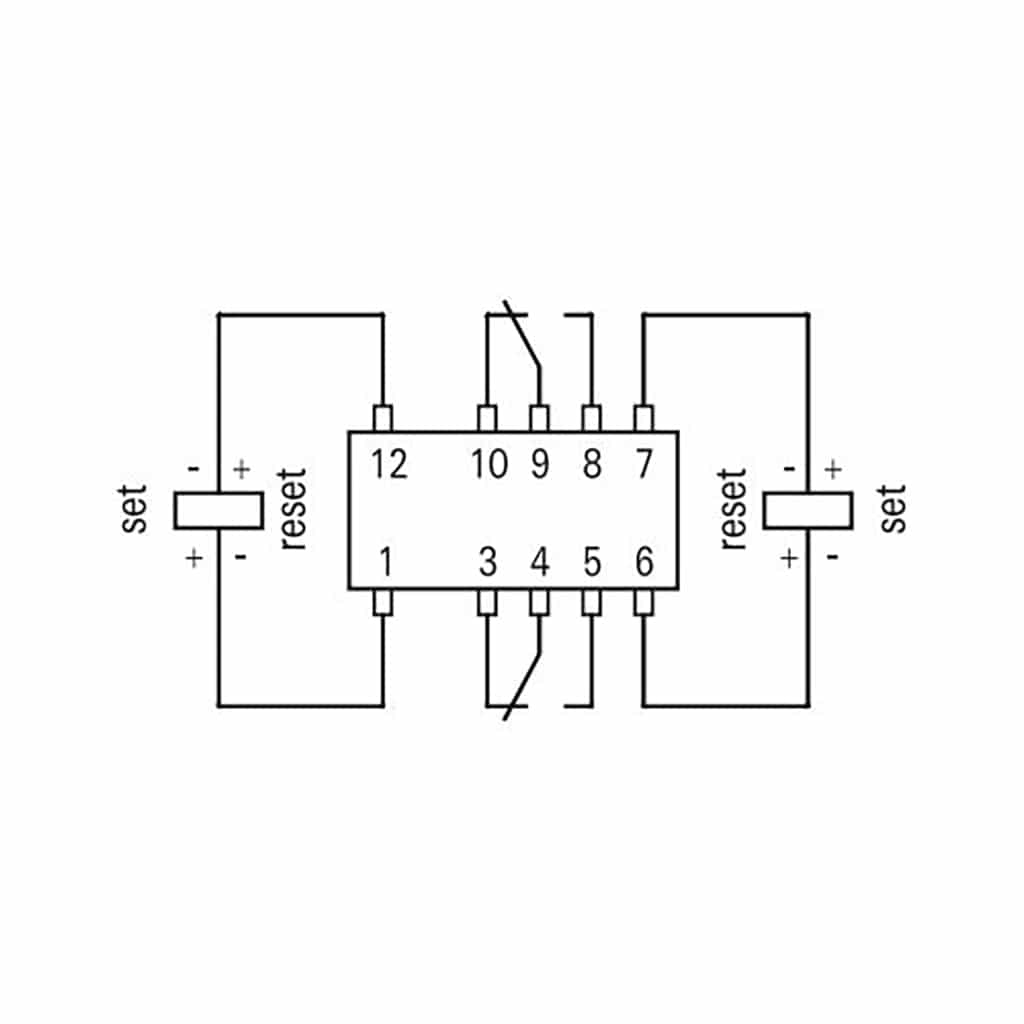

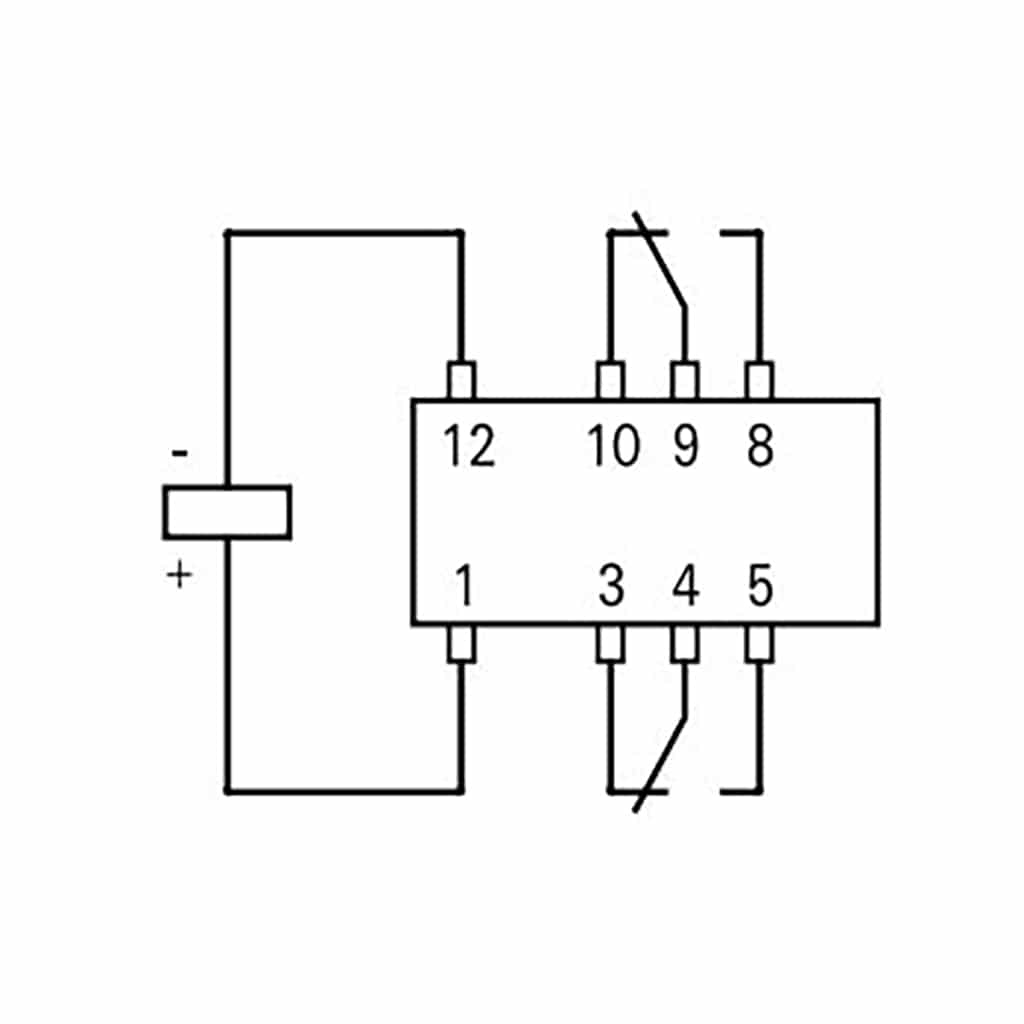

| Coil Type | Non Latching, 1 Coil Latching, 2 Coil Latching |
| Contact Rating (Amps) | 2A |
| Sealing | Fully Sealed |
| Contact Material | AgNi+Au Plated |
| Coil Resistance (Ohm) | 114Ω, 1029Ω, 1157Ω, 128Ω, 145Ω, 178Ω, 2057Ω, 257Ω, 289Ω, 28Ω, 357Ω, 4114Ω, 41Ω, 514Ω, 578Ω, 64Ω, 8228Ω |
| Mounting | PCB, SMD |
| Type | Signal Relay |
Product Description

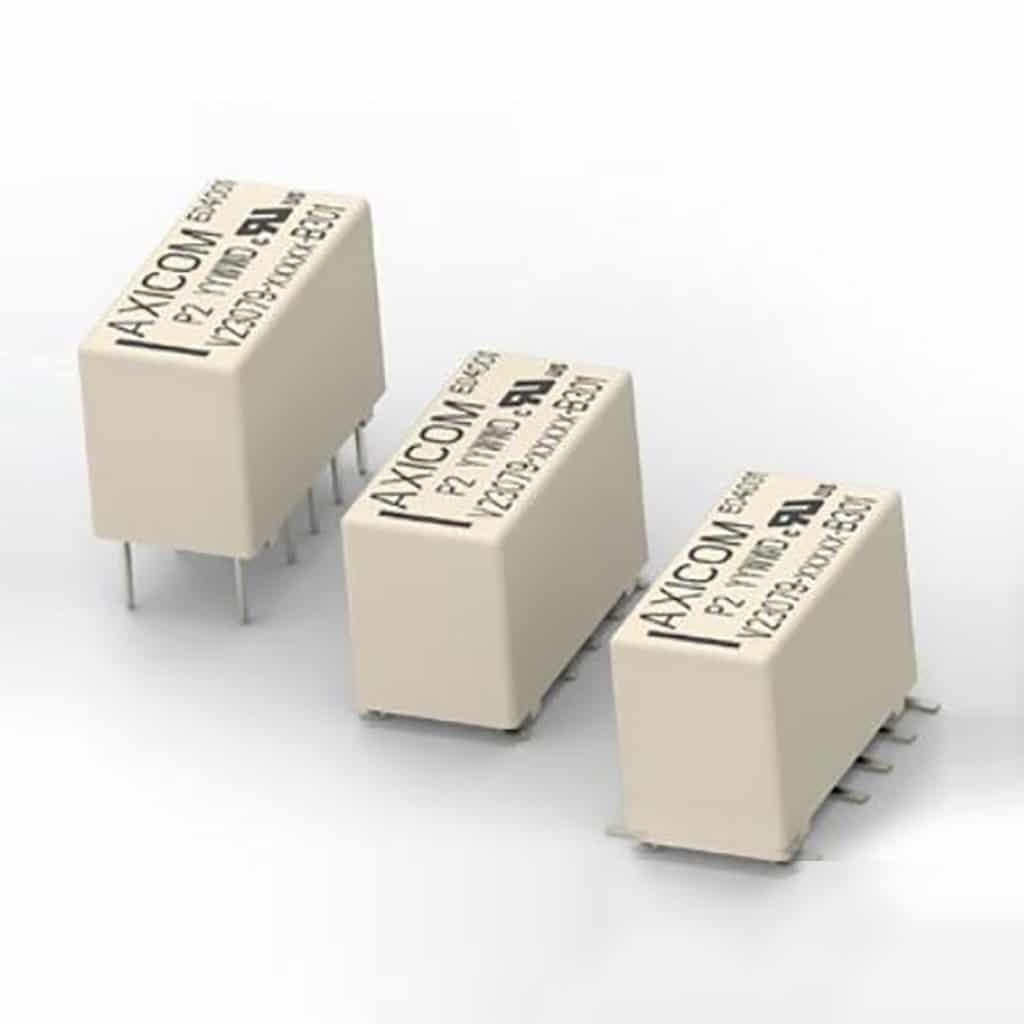

V23079 is a miniature 2 pole relay available from TE Connectivity. Maximum footprint is only 14.6mm x 7.2mm and is available in PCB and surface mount configurations.
Also available latching and covering voltages from 2-24vdc.
- Standard telecom relay (ringing and test access)
- Slim line 15×7.5mm (.590x.295”)
- Max. switching current 5A
- 2 form C bifurcated contacts (2 changeover contacts, 2 CO)
- Immersion cleanable
- High sensitivity for low power consumption 140mW/ 70mW
- Single coil version with surge voltage resistance between contact
and coil: 2.5kV (2/10μs) meets the Telcordia Requirement GR-1089,
1.5kV (10/160μs) meets FCC Part 68
