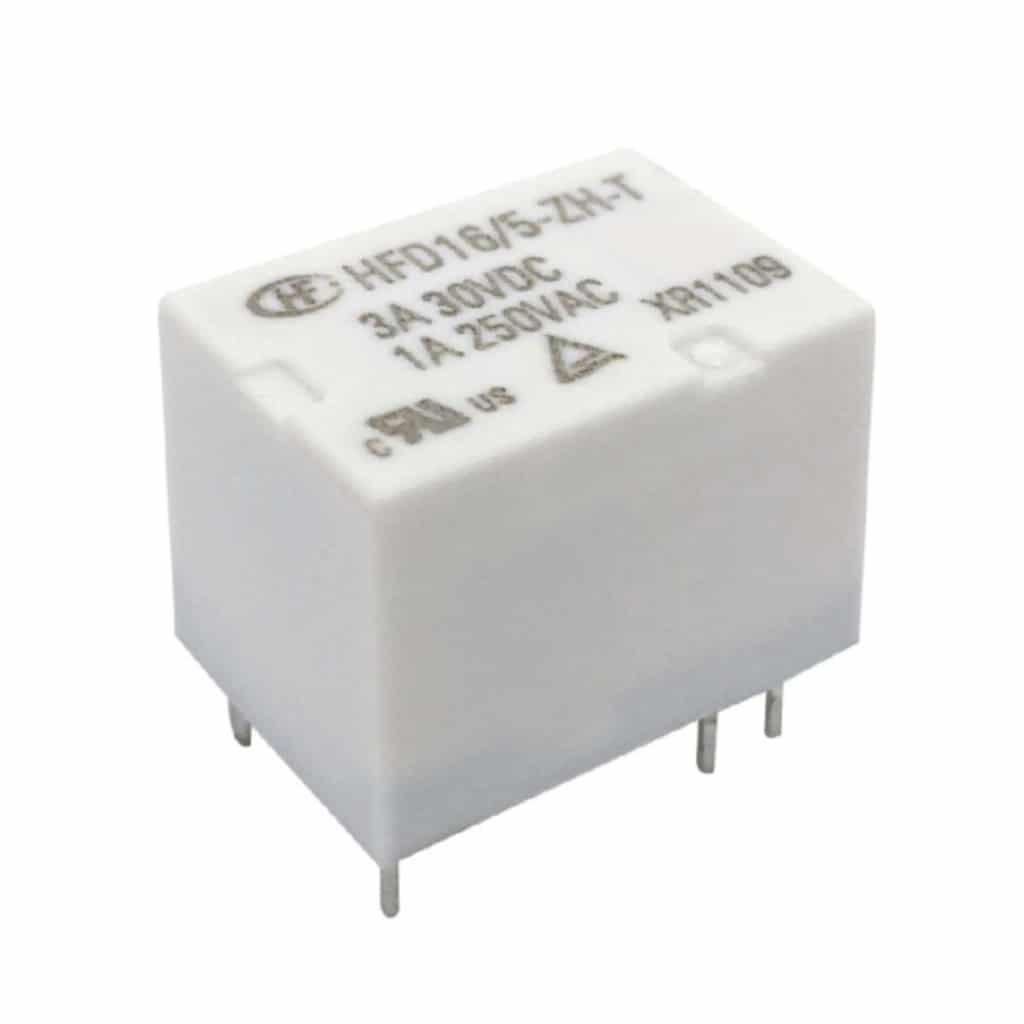

HFD16 - 3A Miniature Relay
HFD16 - 3A Miniature Relay - Image 2

HFD16 – 3A Miniature Relay

SKU: HFD16 Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

2.4Vdc, 3Vdc, 5Vdc, 4.5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc
Contact Arrangement

SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

3A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgNi, AgSnO2
Coil Resistance (Ohm)

101.3Ω, 120Ω, 1620Ω, 28.8Ω, 2800Ω, 700Ω, 45Ω, 400Ω, 180Ω
Mounting

PCB
Type

Signal Relay

Product Description

HFD16 is a common compact relay with a sensitive coil at 200mw. Available in Agni and AgSnO2 contact material.

Available from 2.4v upto 24vdc.



  • 8A switching capability
  • UL insulation system: Class F available
  • Plastic sealed and flux proofed types available
  • Standard PCB layout
  • Product in accordance to IEC 60335-1 available
