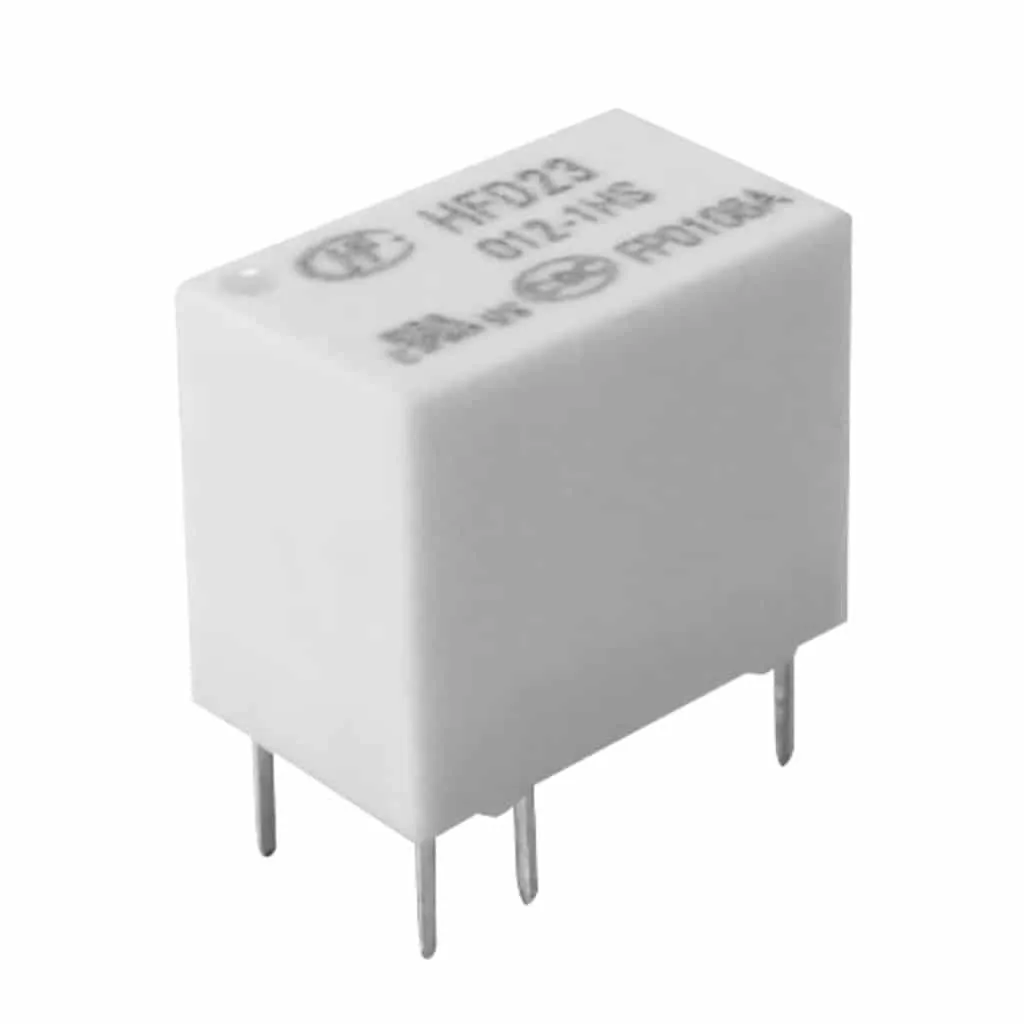

HFD23 – 2A Miniature Relay

SKU: HFD23 Category: Manufacturer:

Product specs

Dimensions N/A
Coil Voltage

1.5Vdc, 2.4Vdc, 3Vdc, 5Vdc, 4.5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc

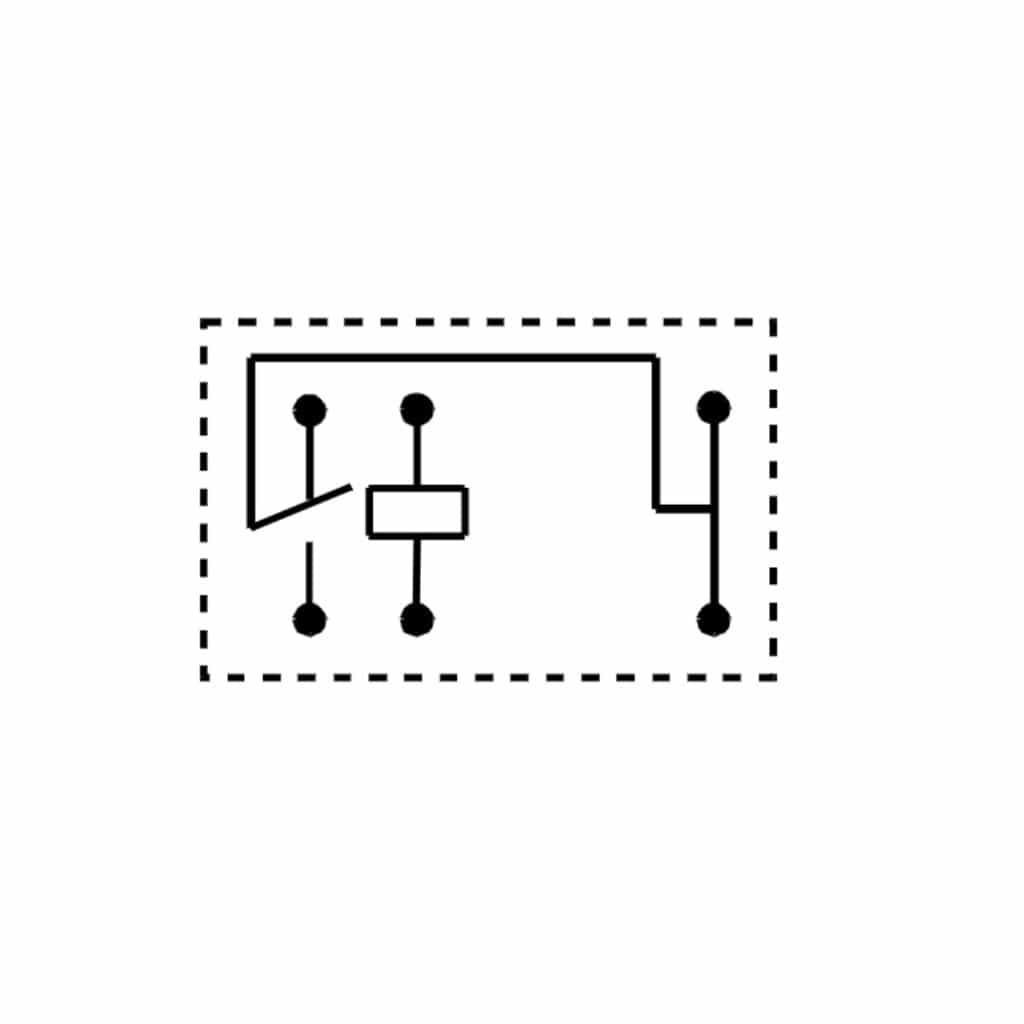

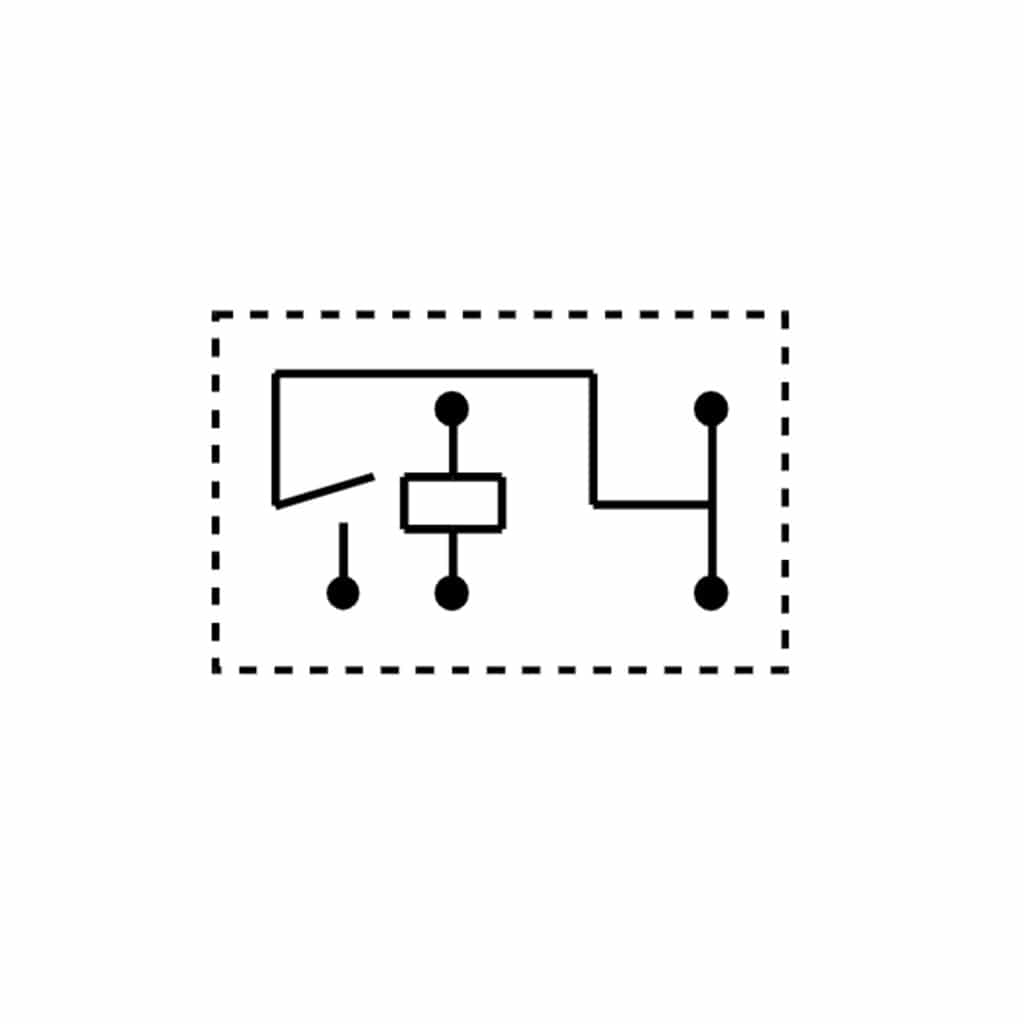

Contact Arrangement

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C

Coil Type

Non Latching

Contact Rating (Amps)

2A, 4A

Sealing

Fully Sealed

Contact Material

AgNi+Au Plated

Coil Resistance (Ohm)

135Ω, 15Ω, 167, 240Ω, 38.4Ω, 3840Ω, 540Ω, 60Ω, 960Ω

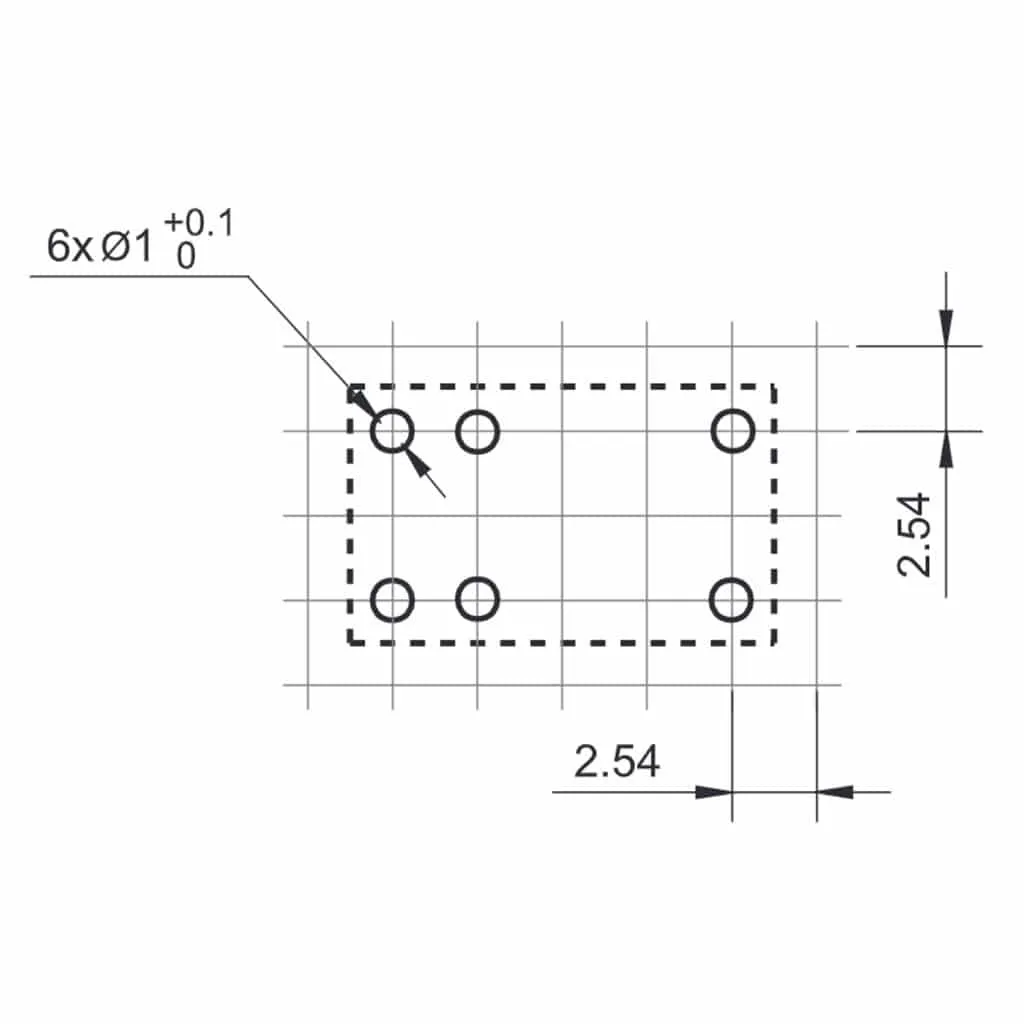

Mounting

PCB

Type

Signal Relay

Product Description

HFD23 is a very compact relay with a high sensitivity coil at 150mw. Available in single pole normally open and change over contact.

Available from 1.5v upto 24vdc.



  • Max 4A switching capability
  • High sensitive: 150mW coil
  • Available in 150mw & 200mw coils
