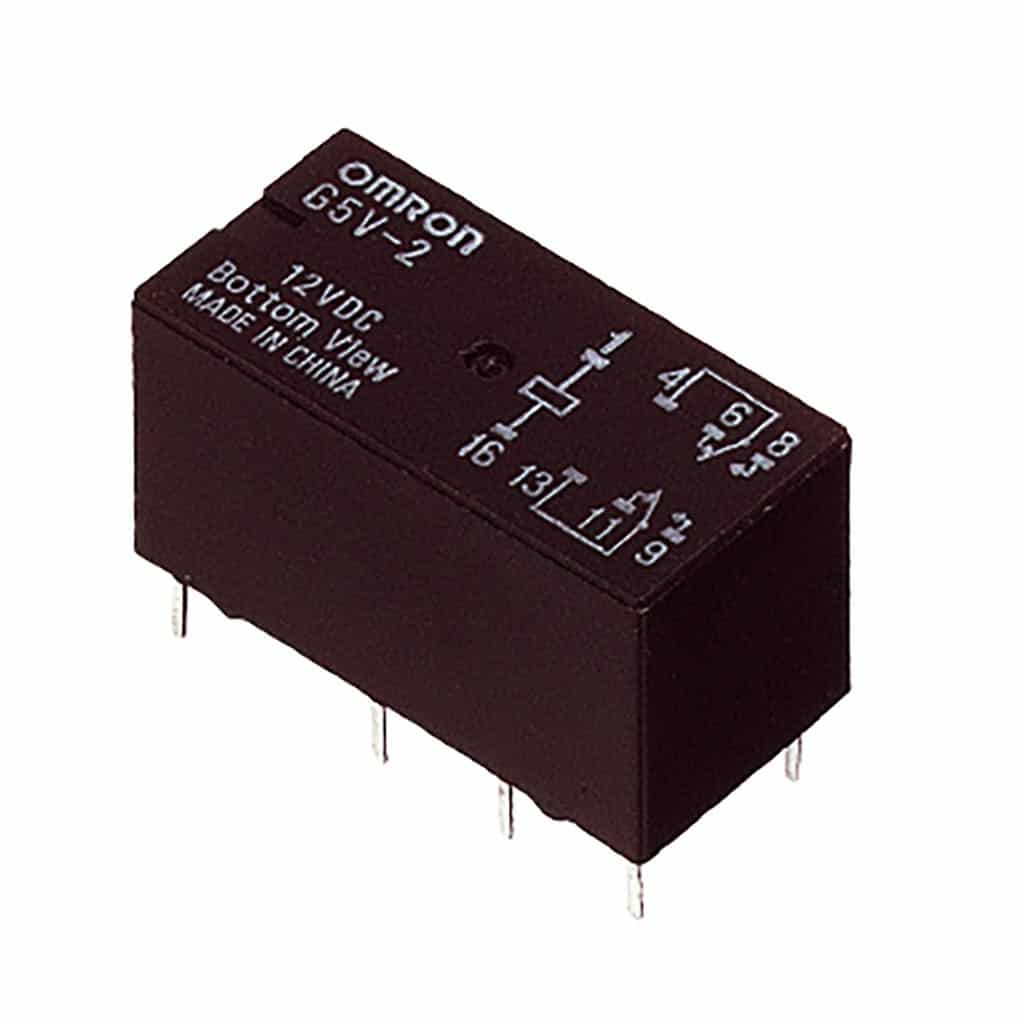

G5V-2 Signal Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc |
| Contact Arrangement | DPDT (2CO) -2 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 2A |
| Sealing | Fully Sealed |
| Contact Material | Ag + Au Alloy |
| Coil Resistance (Ohm) | 1152Ω, 162Ω, 166.7Ω, 18Ω, 240Ω, 288Ω, 4000Ω, 50Ω, 540Ω, 60Ω, 72Ω, 7680Ω, 960Ω, 2880Ω |
| Mounting | PCB |
| Type | Signal Relay |
Product Description
G5v-2 is a very common 2 pole signal relay available in standard and high sensitivity types.
Available from 3v upto 48vdc.
- Ultra-miniature at 12.5 × 7.5 × 10 mm (L × W × H).
- Wide switching power of 1 mA to 1 A.
- High sensitivity: 150 mW nominal coil power consumption.
- Fully-sealed construction offering environment resistance.
- Conforms to FCC Part 68 requirements for coil to contacts.
(1,500 V, 10 × 160 μs) - Models for ambient temperatures up to 90°C added to series.
