G6K - PCB and SMD Relay 2amp

G6K – PCB and SMD Relay 2amp

SKU: G6K Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 4.5Vdc, 12Vdc, 24Vdc
Contact Arrangement

DPDT (2CO) -2 Form C
Coil Type

Non Latching, 1 Coil Latching
Contact Rating (Amps)

2A
Sealing

Fully Sealed
Contact Material

Au Alloy + Ag
Coil Resistance (Ohm)

1315Ω, 194Ω, 237Ω, 5220Ω, 91Ω
Mounting

PCB, SMD
Type

Signal Relay

Product Description

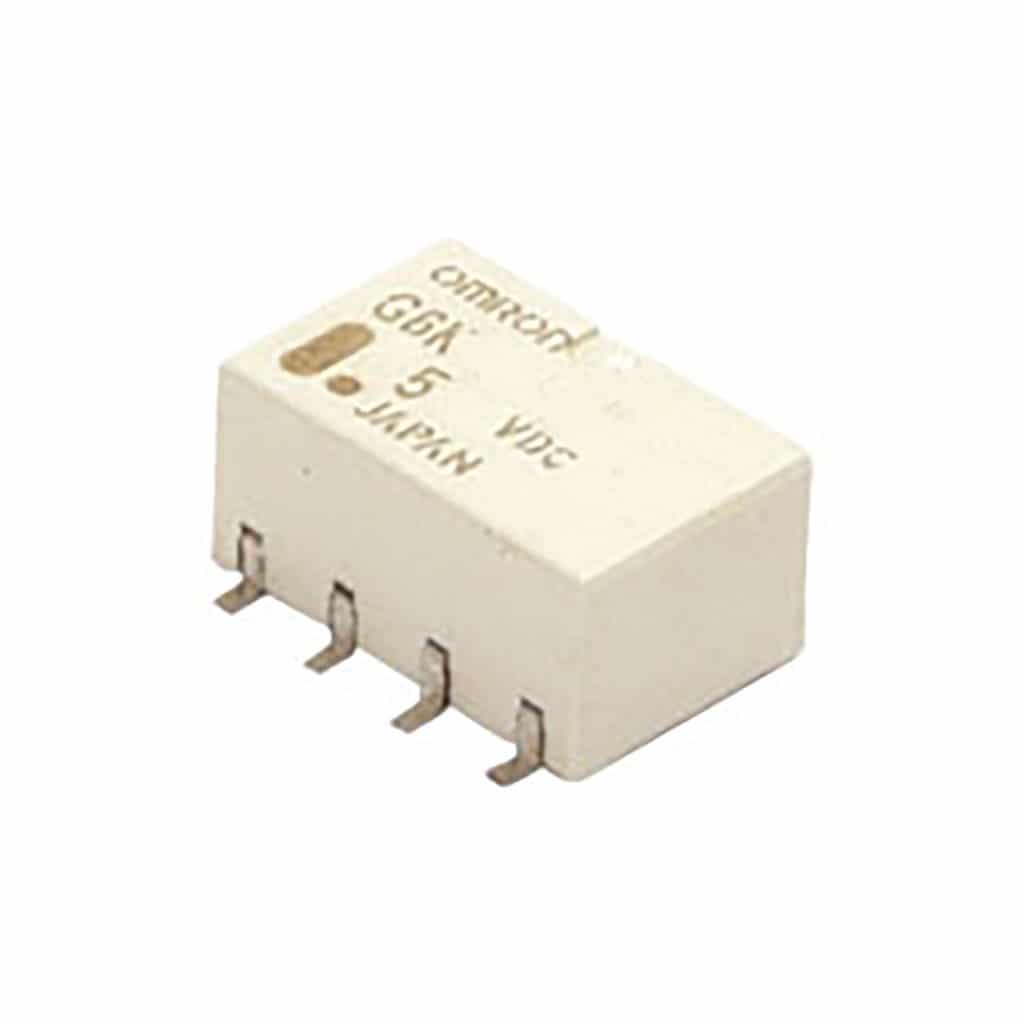

G6K is a miniature 2 pole relay available from Omron. Available with DPDT configuration in non and single latching variants.

Available in PCB and inside and outside SMD options.

  • Subminiature model as small as 5.2 (H) × 6.5 (W) × 10 (L) mm is ideal for
    high-density mounting (G6K(U)-2F(-Y)).
  • Low profile of 5.2 mm improves mounting efficiency (G6K(U)-2F(-Y)).
  • Light weight of 0.7 g contributes to higher speed mounting.
  • Surface mounting terminal models incorporate a unique terminal structure with
    high infrared irradiation efficiency which allows the terminal temperature to rise
    easily when mounting the IRS, thus ensuring excellent soldering.
  • Ensures a dielectric strength of 1,500 VAC and conforms to FCC Part 68 (i.e.,
    withstanding an impulse withstand voltage of 1,500 V for 10 × 160 μs).
  • Y models offer an impulse withstand voltage of 2,500 V for 2 × 10 μs (conforms
    to Telcordia specifications) by optimizing the distance between coil and contacts.
  • Standard model conforms to UL/CSA standards, certified by BSI (EN62368-1).
  • Models available with a 2.54 mm terminal pitch.
