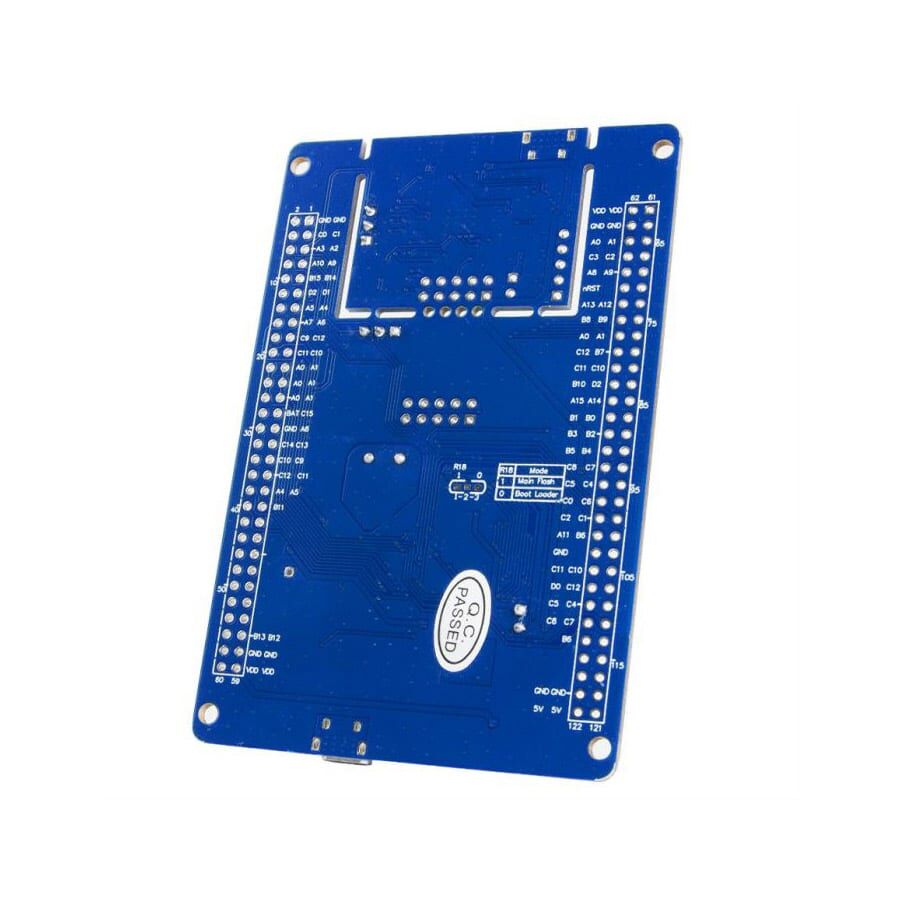

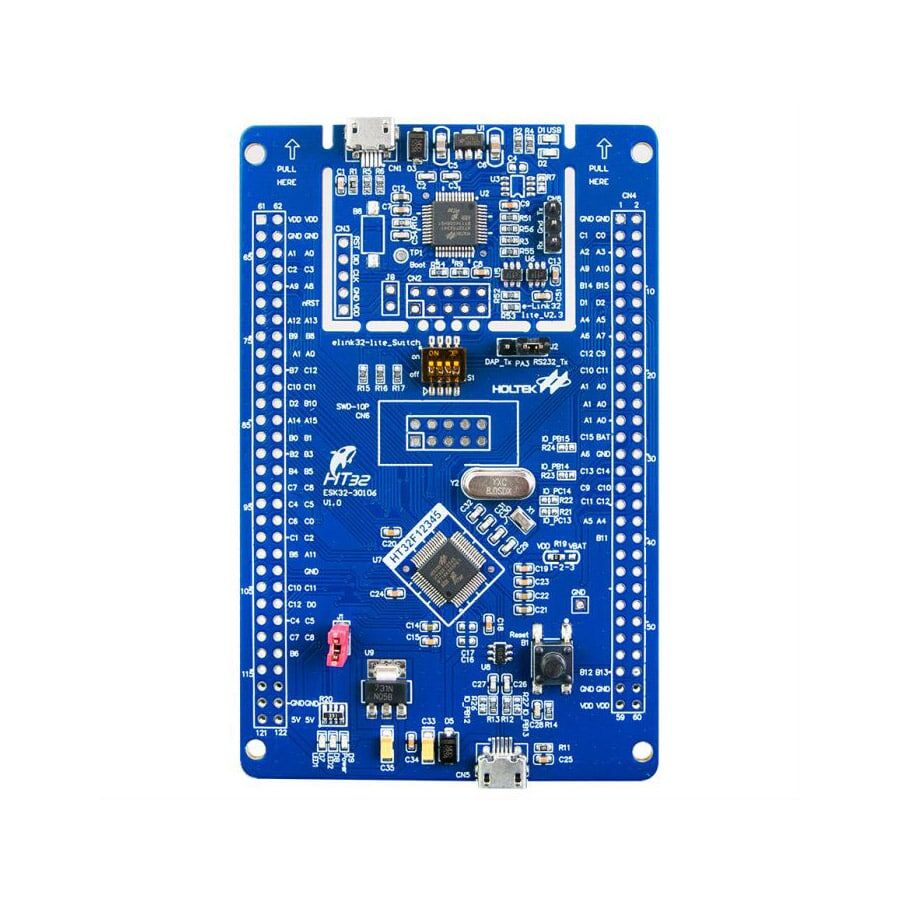

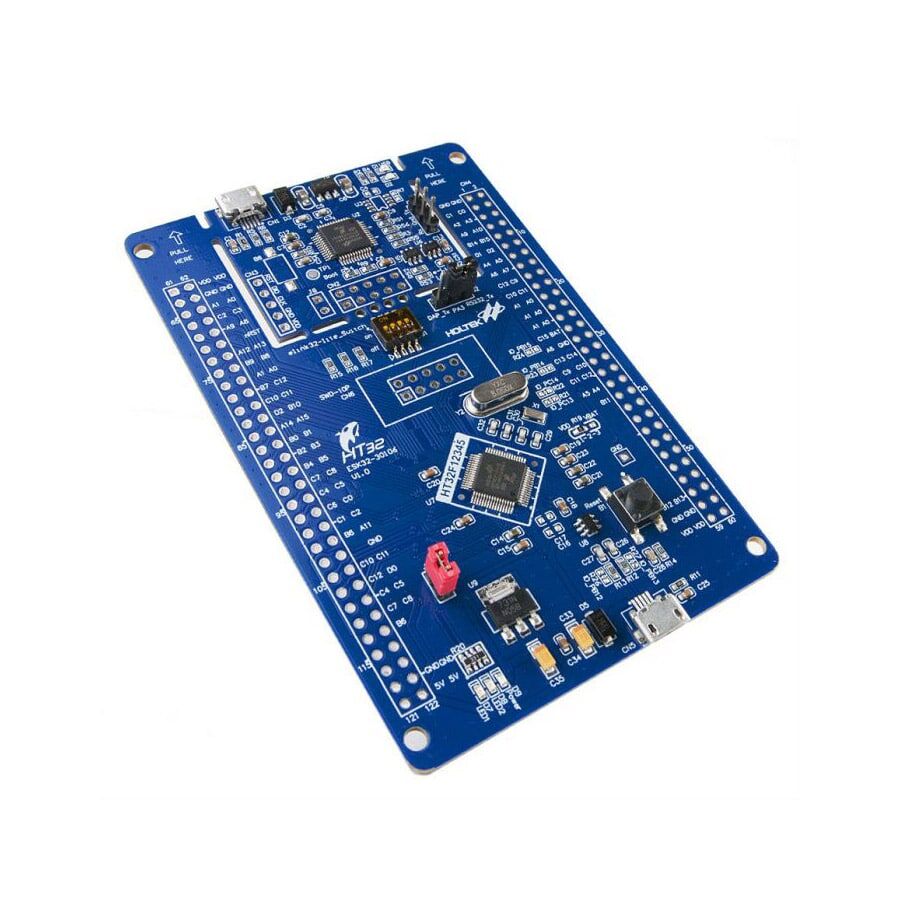

HT32F12345 Starter Kit ESK32-30106

SKU: ESK32-30106 Categories: , , Manufacturer:

Product specs

Dimension:

100mm x 65mm x 9mm

Weight:

50.0g

Packing List:

ESK32-30106 HT32F12345 Starter Kit x 1

Product Description

The HT32F12345 Starter Kit uses the 32-bit Arm® Cortex®-M3 high performance, low-power microcontroller, and is designed to help new users get up and running and using this Holtek device in the shortest possible time frame. It provides a low-cost platform which together with the software development platform, also provides a complete solution from evaluation, programming to production.

Characteristics

  1. Designed to get users started with the Cortex®-M3, by providing a low-cost platform. Together with the convenience of its software development platform, it provides a complete solution from evaluation to production
  2. Using HT32F12345 high performance, low-power microcontroller
    1. Up to 96MHz operating frequency
    2. 64KB Flash、16KB SRAM
    3. Integrated multiple Timers, 2 I2C functions, 2 SPI functions, 2 USART functions, 2 UART functions, single 12-bit A/D converter, USB, I2S, EBI, SDIO function. Can be used for the testing and development of many external devices
    4. 64LQFP package
    5. 8.000 MHz External Crystal Clock
    6. 51 programmable general purpose I/O pins
  3. Comprises Target Board and Serial-Wire Debugger
  4. Can use the Target Board external power supply or be powered by the e-Link32 Pro USB supply



Development Environment

  1. Provides a standard C language program development environment
  2. Provides a comprehensive functional library avoiding much complicated lower level functional development
  3. Integrated hardware debug interface, SWD, connects to the IDE using a USB. The system will download the programs and debug immediately
  4. Provides a standard development environment, including Keil uVision and IAR EWARM
