RET025664B - PCB series 256x64 COF OLED on PCB

RET025664B-PCB series 256×64 COF OLED on PCB(3.12″)

SKU: RET025664B-PCB Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 89.2 × 44.0 mm
Pixels

256×64
Interface

6800, 8080, SPI
Construction

COF

Product Description

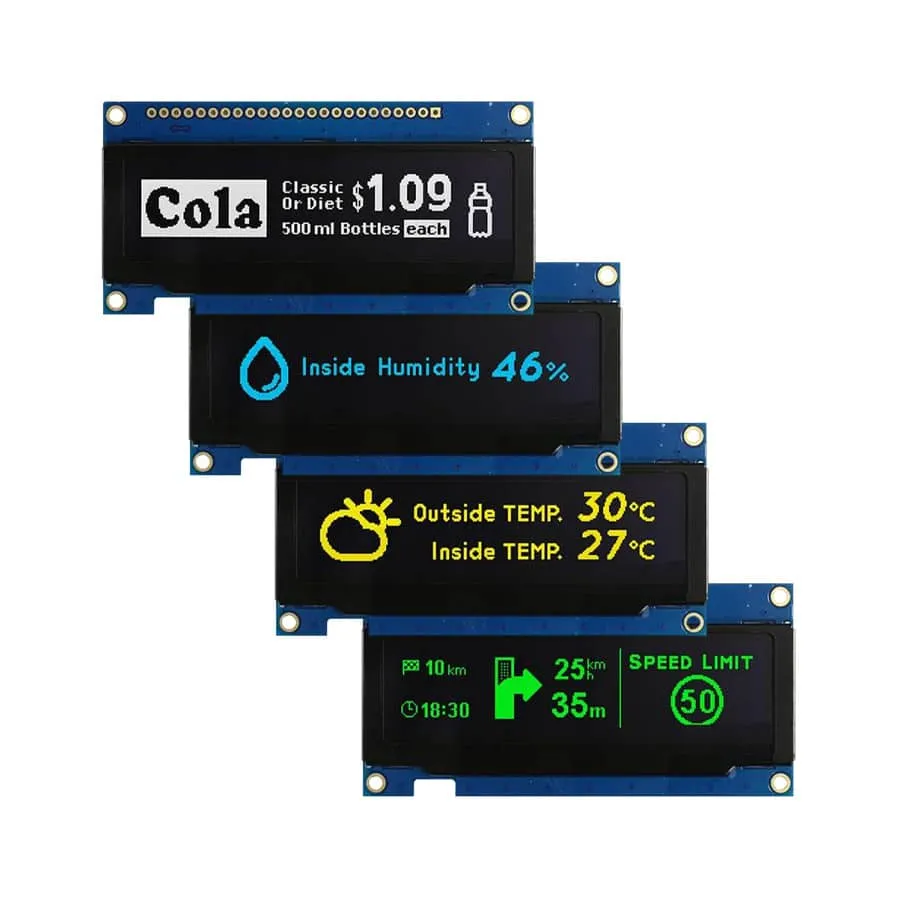

The RET025664B-PCB series is the popular 3.12″ Chip-On-Flex OLED  offering 256×64 pixels within a 78.78mm x 21.18mm viewable area, mounted onto a PCB with a frame. It comes with an integrated SSD1322UR1 IC that supports grey scaling, and is available in either Blue, Green, White or Yellow.

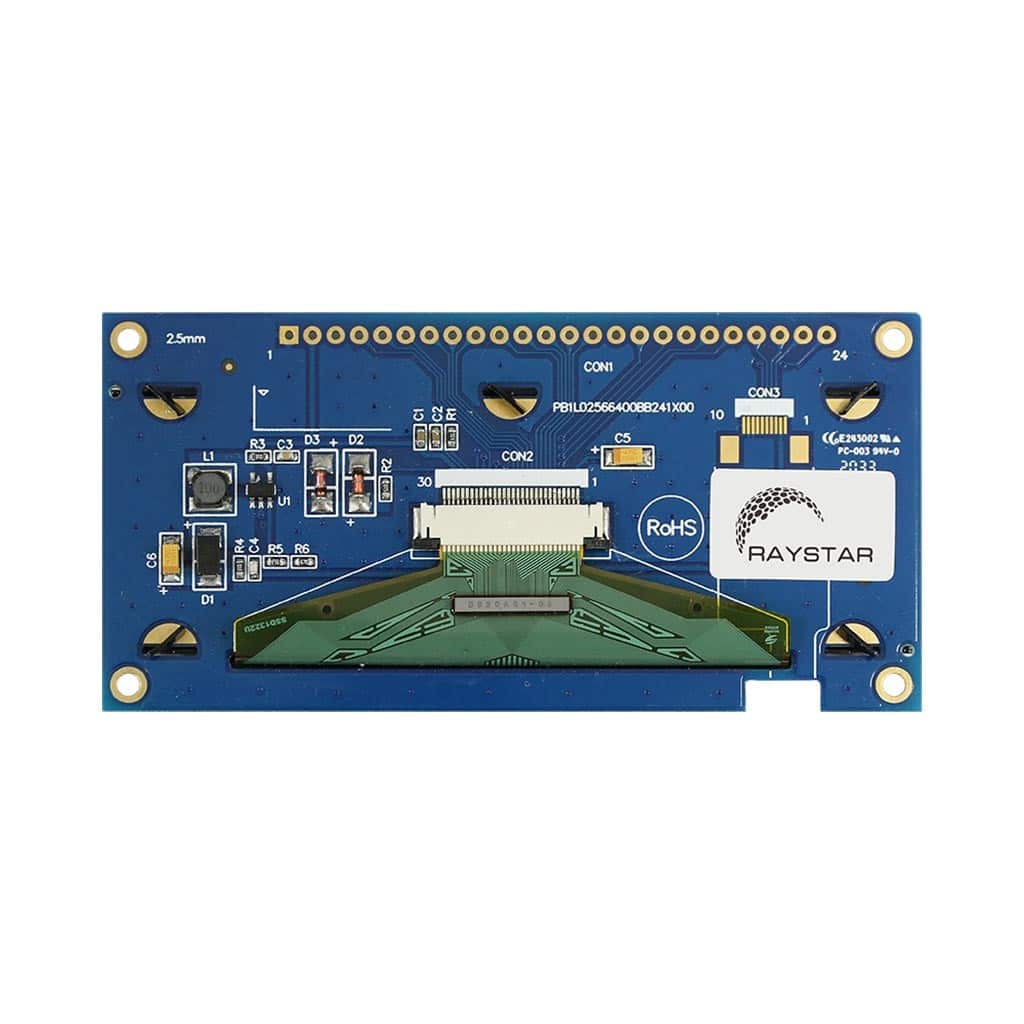

The PCB allows for ease of interface and mounting, if required.













  • 256×64 Graphic COF OLED on PCB with Frame
  • Size: 3.12″

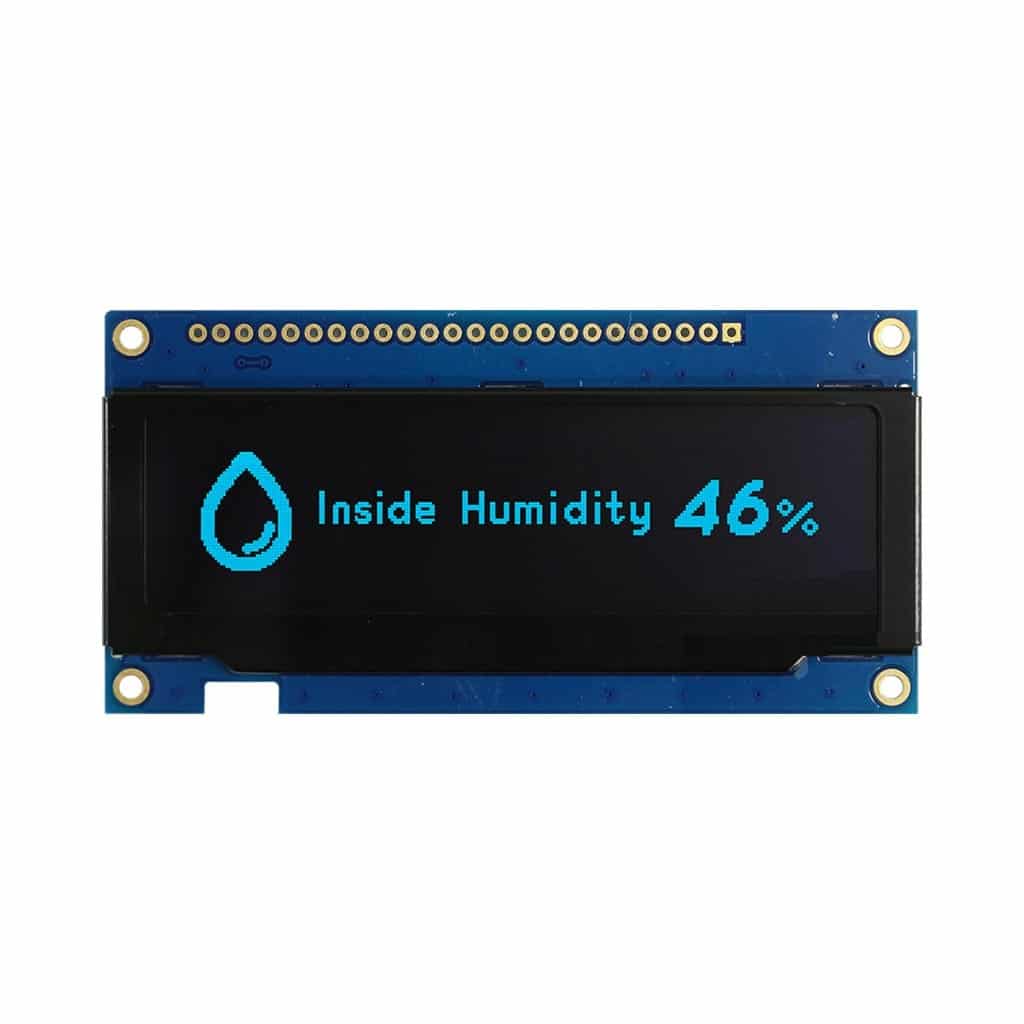

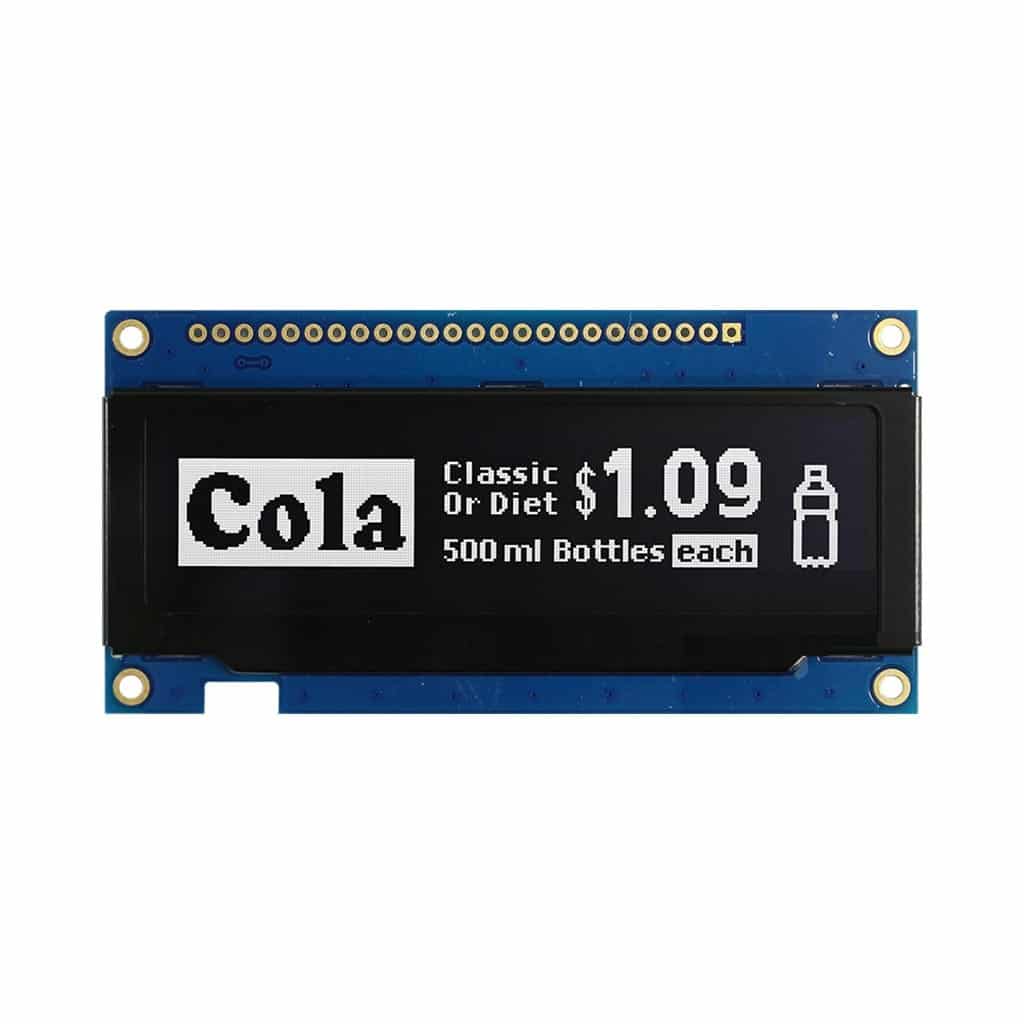

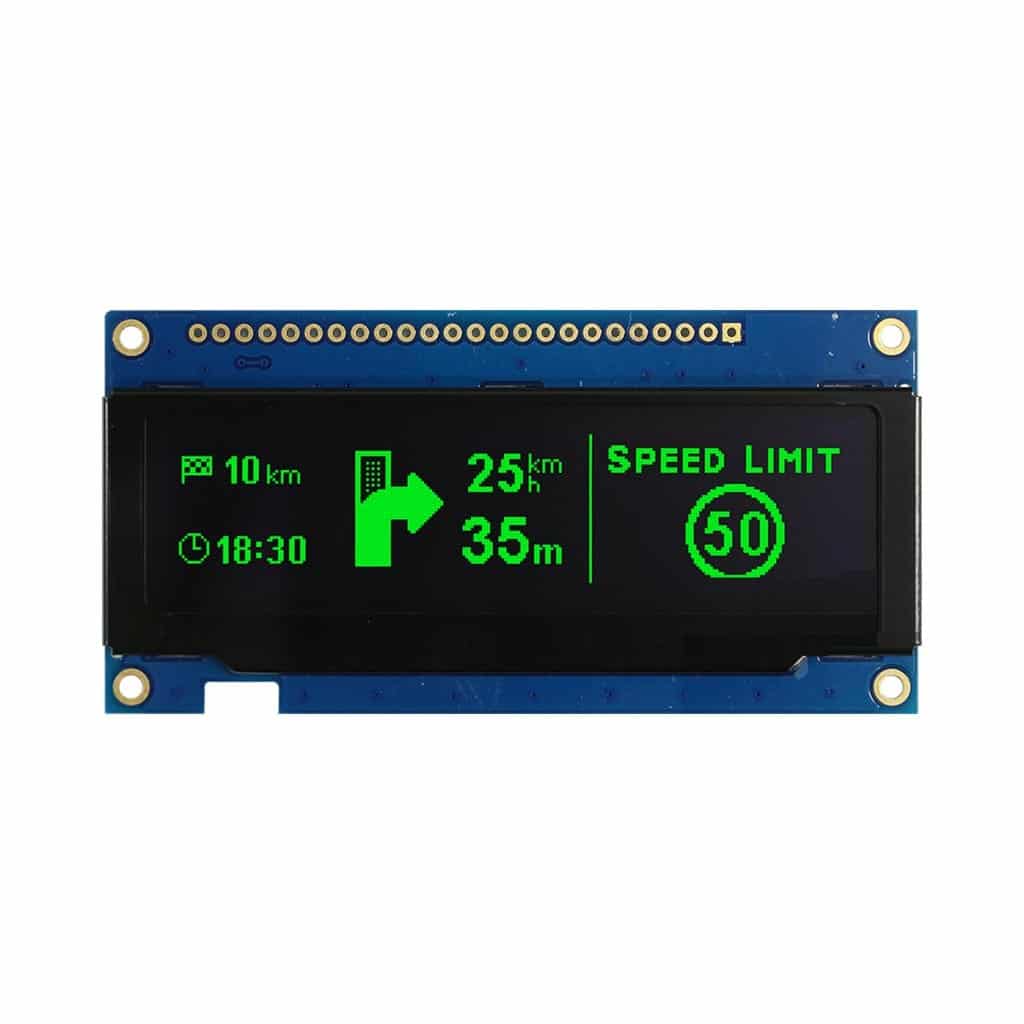

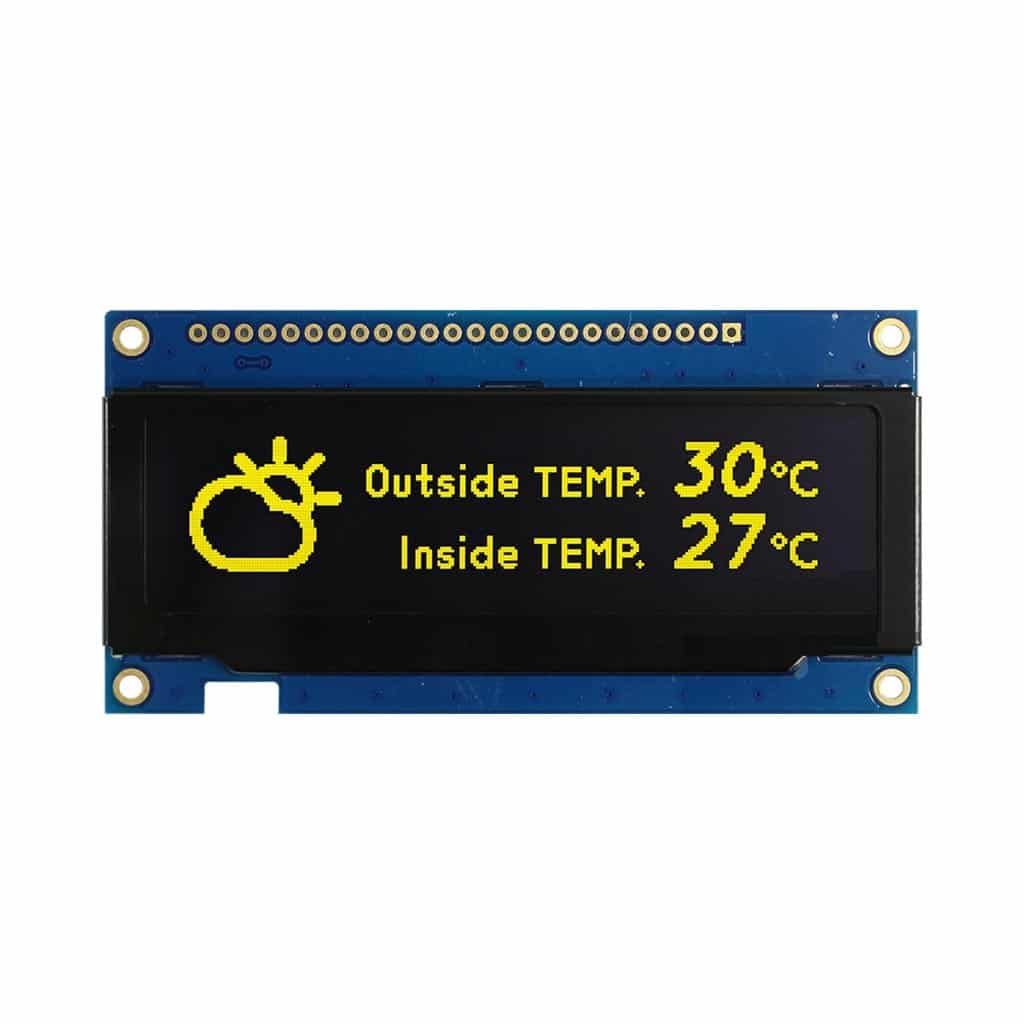

  • Available in Blue, Green, White or Yellow
  • Dimensions: 89.2mm x 44.0mm x 3.3mm
  • Viewing Area: 78.0mm x 78.0mm
  • Active Area: 76.778mm x 19.178mm
  • Dot Size: 0.278mm x 0.278mm
  • Dot Pitch: 0.3mm x 0.3mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3V
  • Duty: 1/64
  • Grey Scale: 4 Bits
  • IC: SSD1322UR1 which supports greyscaling
  • Standard Operating Temperature of -40°C to +80°C
