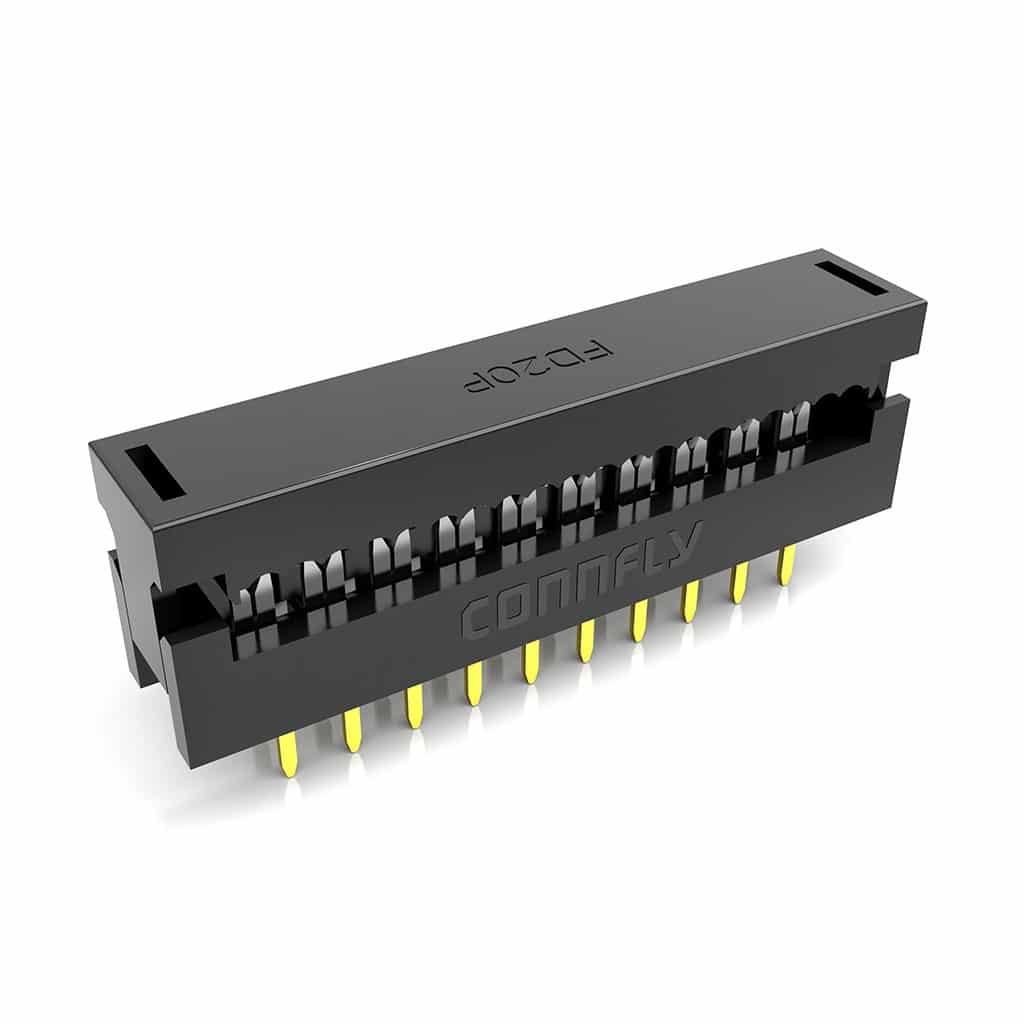

IDC DIP Plug 2.54mm – DS1018 Series
Product specs
| Pitch | 2.54mm |
|---|---|
| Number of Pins | 10, 14, 16, 20, 24, 26, 34, 40, 50 |
| Number of Rows | 2 |
| Tray | 40, 50, 60, 70, 80, 90, 110, 130, 160 |
Product Description
The DS1018 female DIP socket from Connfly is a dual row IDC socket. For quick and permanent direct to PCB termination of ribbon cable. Available in 10, 14, 16, 20, 24, 26, 34, 40 and 50 way. The thermoplastic housing is UL 94V-0 rated. For use with our DS1057 Ribbon cable.
- IDC Pitch – 2.54mm
- Contact/Plating – Copper Alloy / Nickel Full Gold Flash
- Insulator – Thermoplastic (UL 94V-0)
- Temperature Range – -40C + 105C
- Contact Resistance – 20mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstand Voltage – AC 500V 1 Minute
