PE Single Pole 5A Miniature Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc |

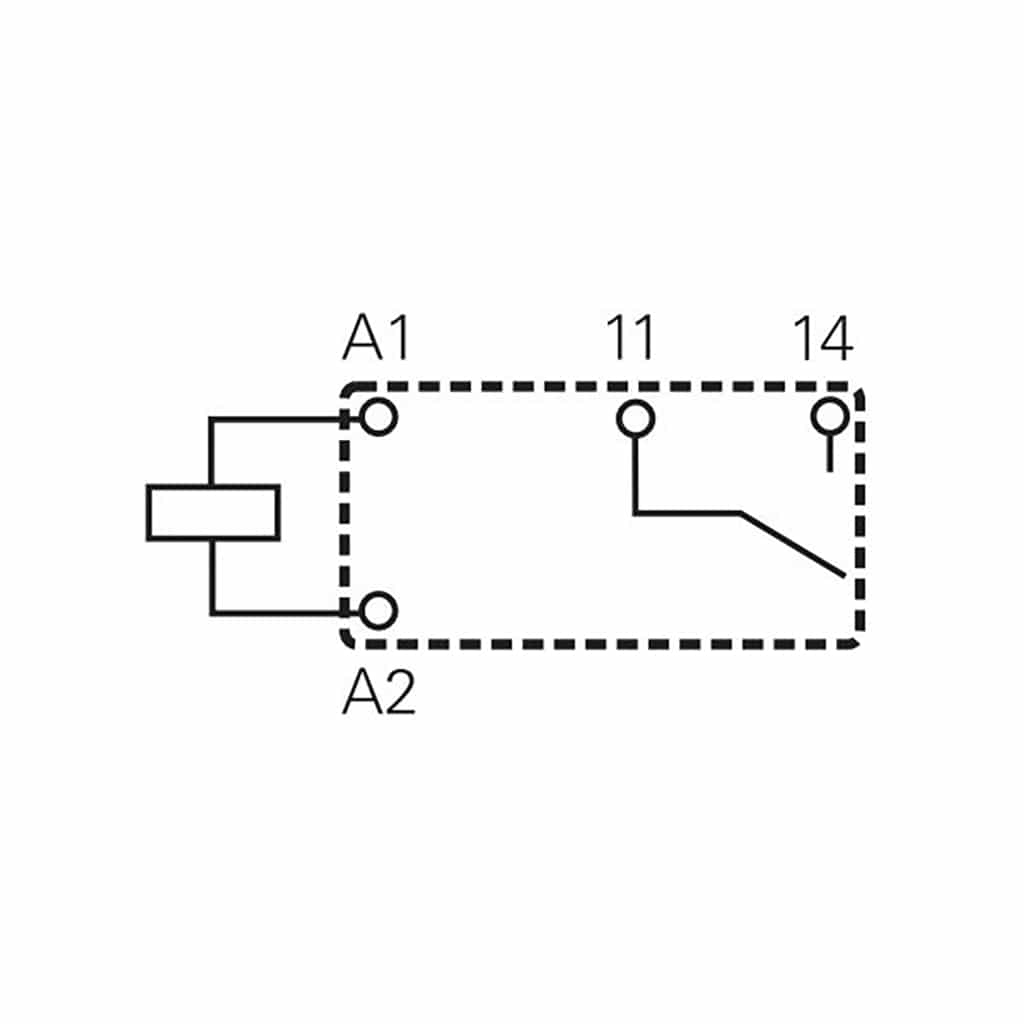

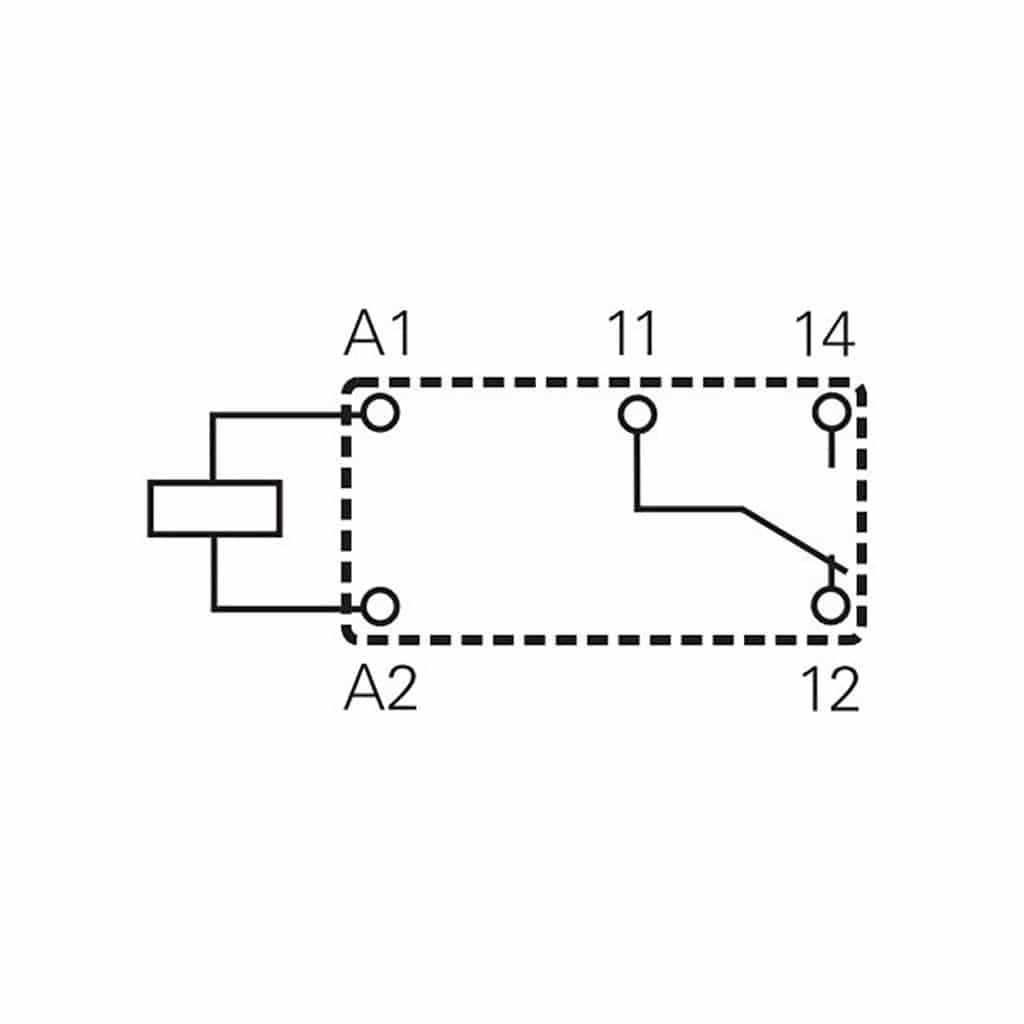

| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 5A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi 90/10, AgNi 90/10+Au Plated, AgSnO2 |
| Coil Resistance (Ohm) | 10970Ω, 172Ω, 2725Ω, 685Ω, 45Ω, 125Ω, 405Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description

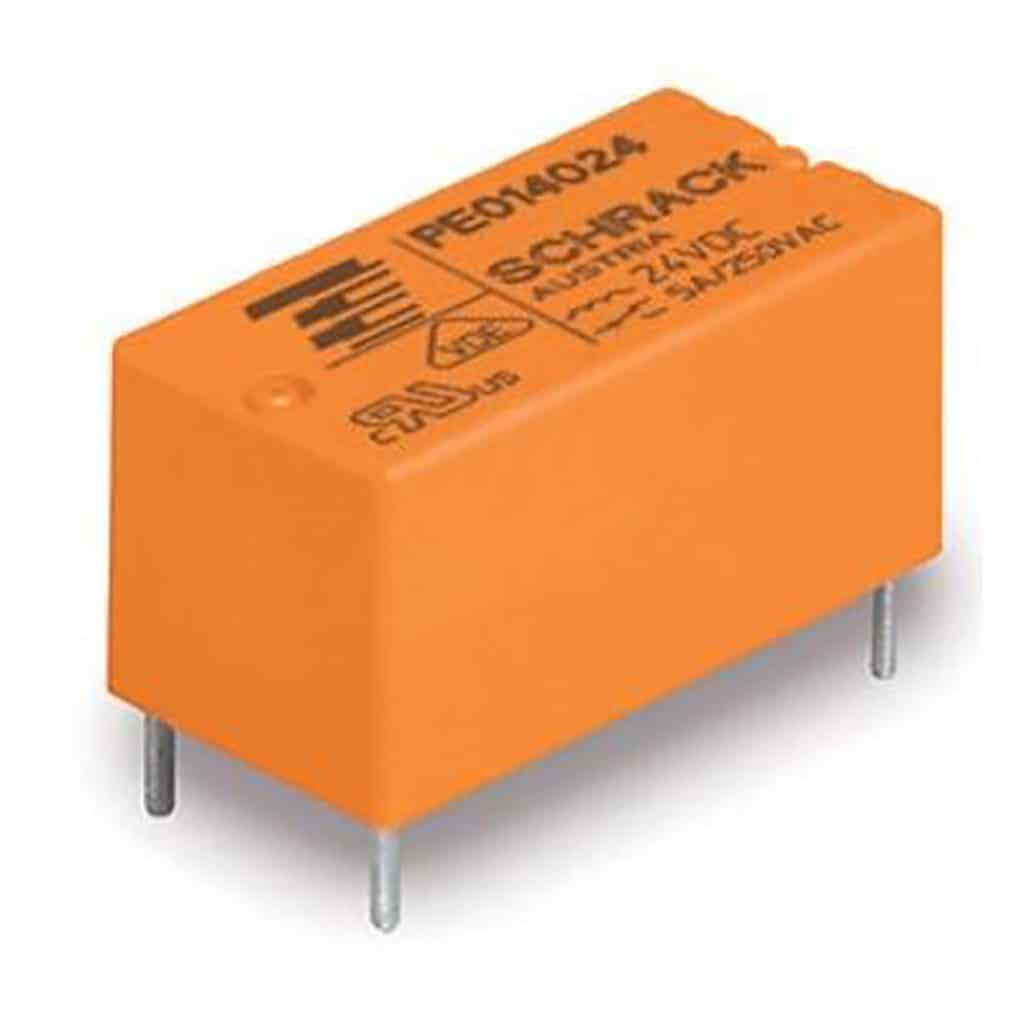

Easby Electronics offer the PE as a miniature relay with a footprint of only 20x10mm.
Features a height of only 10mm and a 200mw power consumption.
- 1 pole 5 A, 1 form C (CO) or 6A, 1 form A (NO) contact
- Cadmium-free contacts
- Sensitive coil 200mW
- Ambient temperature 85°C
- Low height 10.0mm
- Plastic materials according to IEC 60335-1 (domestic appliances)
