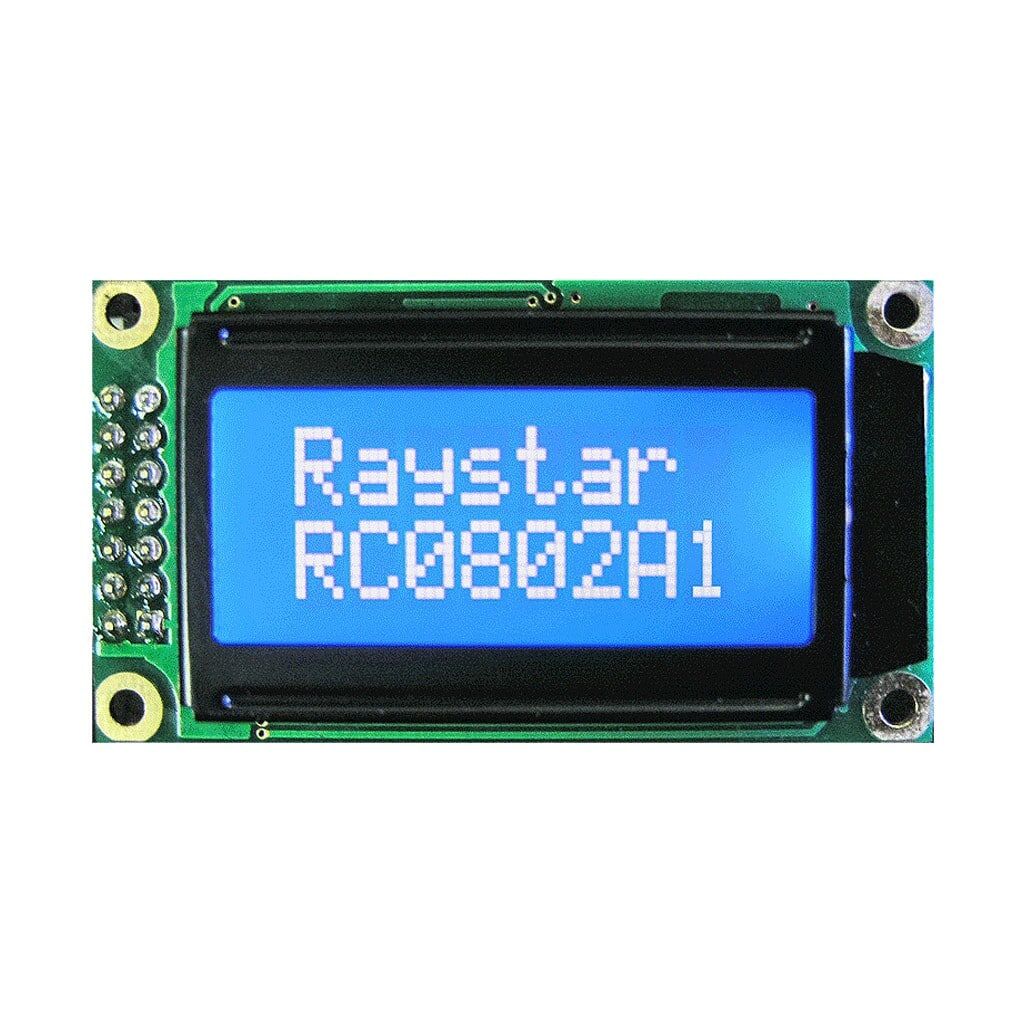

RC0802A1 8×2 Character LCD (58.0mm x 32.0mm)
Product specs
| Weight | 10 g |
|---|---|
| Dimensions | 58.0 × 32.0 mm |
| Characters | 8×2 |
| Interface | 6800, I2C, SPI |
| Technology | Blue-STN, FSTN, STN |
| Construction | COB |
| Font | Cyrillic, English, European |
Product Description
The RC0802A1 series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic
- 8×2 Character Liquid Crystal Display
- Dimensions: 58.0mm x 32.0mm
- Viewing Area: 38.0mm x 16.0mm
- Available in either STN or FSTN Technology
- Available in Reflective or Transflective Mode, with a choice of backlight colours
- Standard Operating Temperature of -20°C to +70°C
