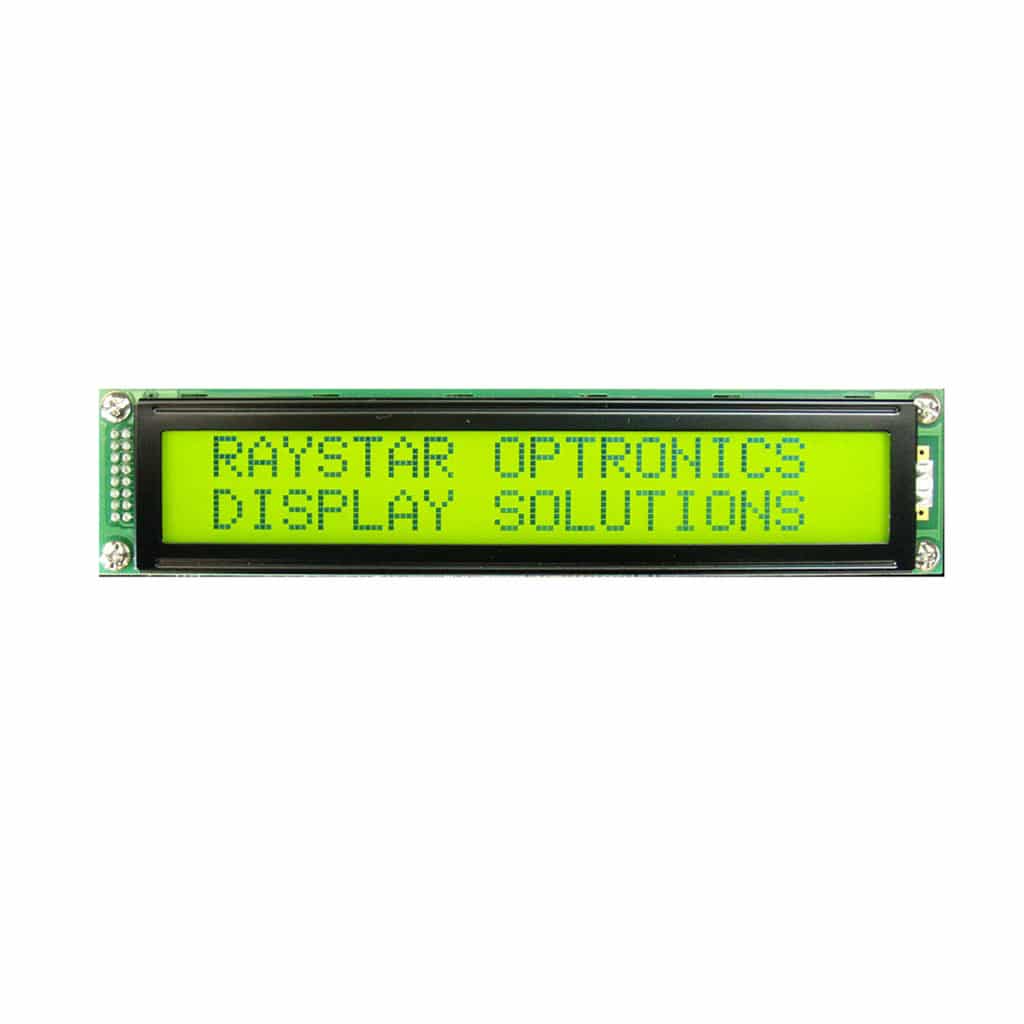

RC2002C 20×2 Character LCD (180.0mm x 40.0mm)

This product is currently out of stock and unavailable.

SKU: RC2002C Categories: , , Manufacturer:

Product specs

Dimensions 180 × 40 mm
Characters

20×2

Interface

6800, I2C, SPI

Technology

Blue-STN, FSTN, STN

Construction

COB

Font

Cyrillic, English, European

Product Description

The RC2002C series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic



  • 20×2 Character Liquid Crystal Display
  • Dimensions: 180.0mm x 40.0mm
  • Viewing Area: 149.0mm x 23.0mm
  • Available in either STN or FSTN Technology
  • Availableh in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
