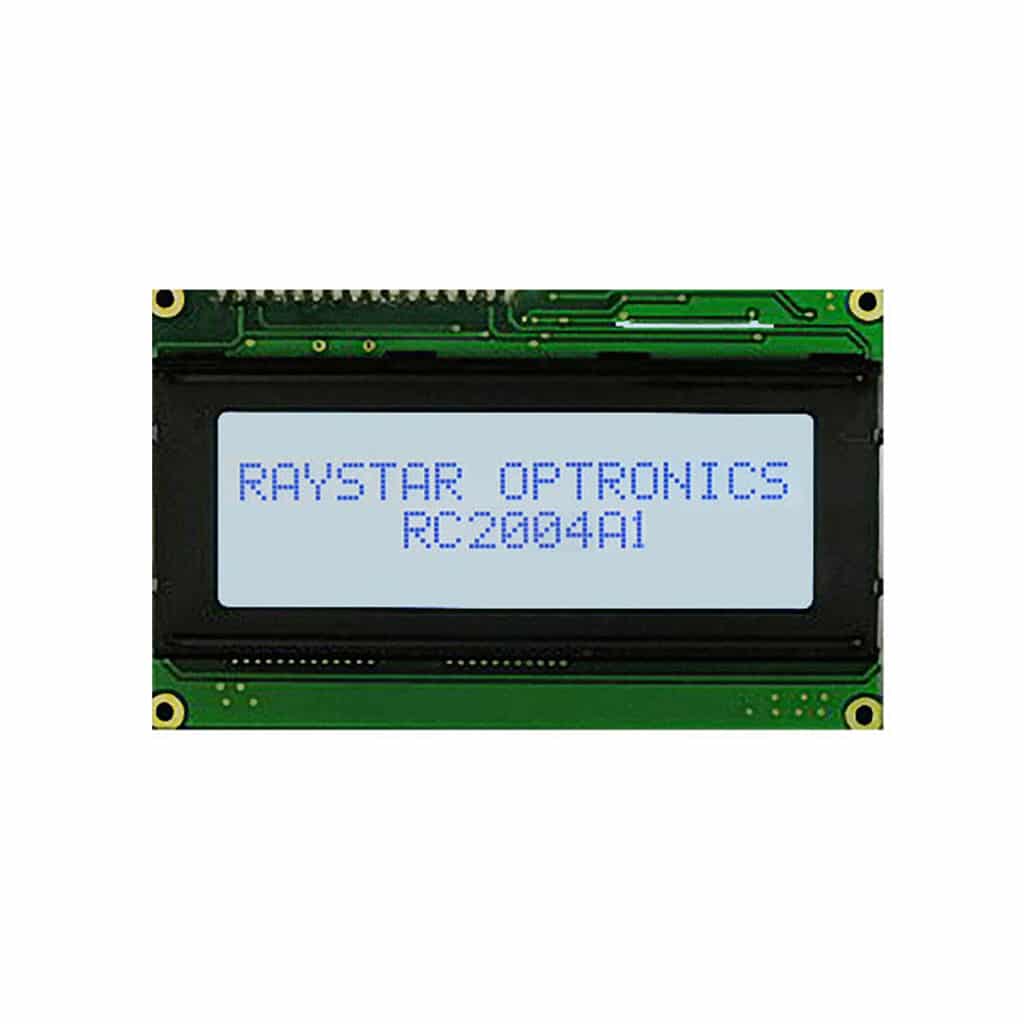

RC2004A/A1 20×4 Character LCD (98.0mm x 60.0mm)

This product is currently out of stock and unavailable.

SKU: RC2004A Categories: , , Manufacturer:

Product specs

Dimensions 98 × 60 mm
Characters

20×4

Interface

6800, I2C, SPI

Technology

Blue-STN, FSTN, STN

Construction

COB

Font

Cyrillic, English, European

Product Description

The RC2004A / A1 series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic

RC2004A is with traditional pin header connection

RC2004A1 is with an FFC



  • 20×4 Character Liquid Crystal Display
  • Dimensions: 98.0mm x 60.0mm
  • Viewing Area: 77.0mm x 25.2mm
  • Available in either STN or FSTN Technology
  • Available  in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
