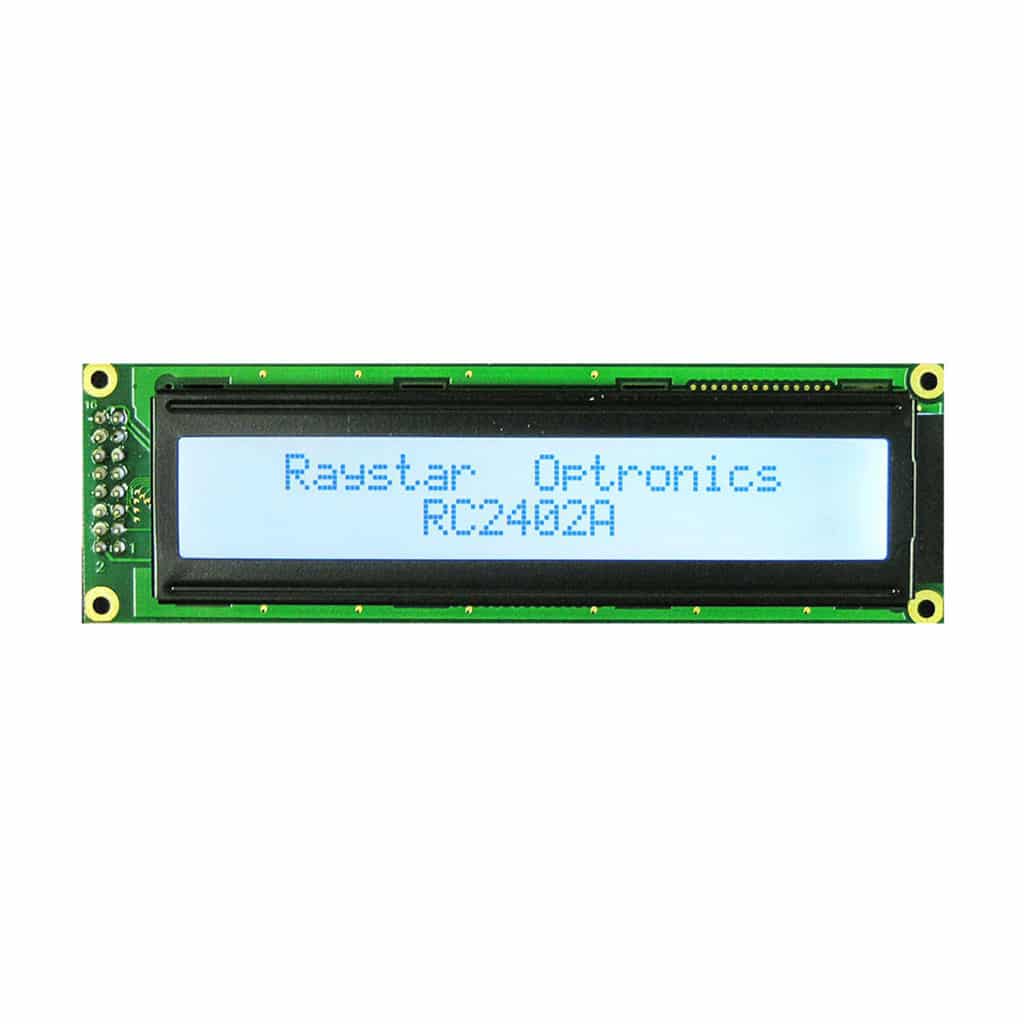

RC2402A 24x2 Character LCD (118.0mm x 36.0mm)

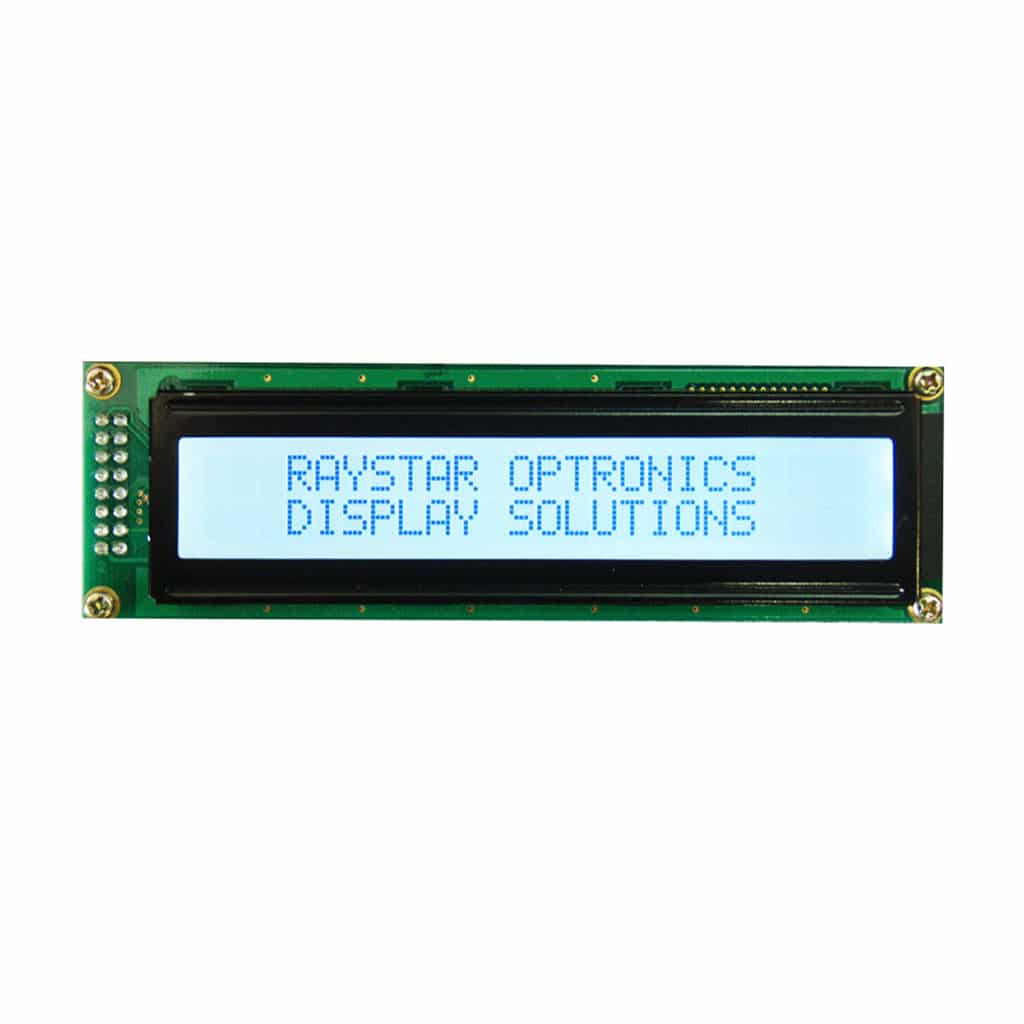

RC2402A 24x2 Character LCD (118.0mm x 36.0mm) - Image 2

RC2402A 24×2 Character LCD (118.0mm x 36.0mm)

This product is currently out of stock and unavailable.

SKU: RC2402A Categories: , , Manufacturer:
Download PDF

Product specs

Weight 10 g
Dimensions 118.0 × 36.0 mm
Characters

24×2
Interface

6800, I2C, SPI
Technology

Blue-STN, FSTN, STN
Construction

COB
Font

Cyrillic, English, European

Product Description

The RC2402A series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic



  • 24×2 Character Liquid Crystal Display
  • Dimensions: 118.0mm x 36.0mm
  • Viewing Area: 94.5mm x 16.0mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
