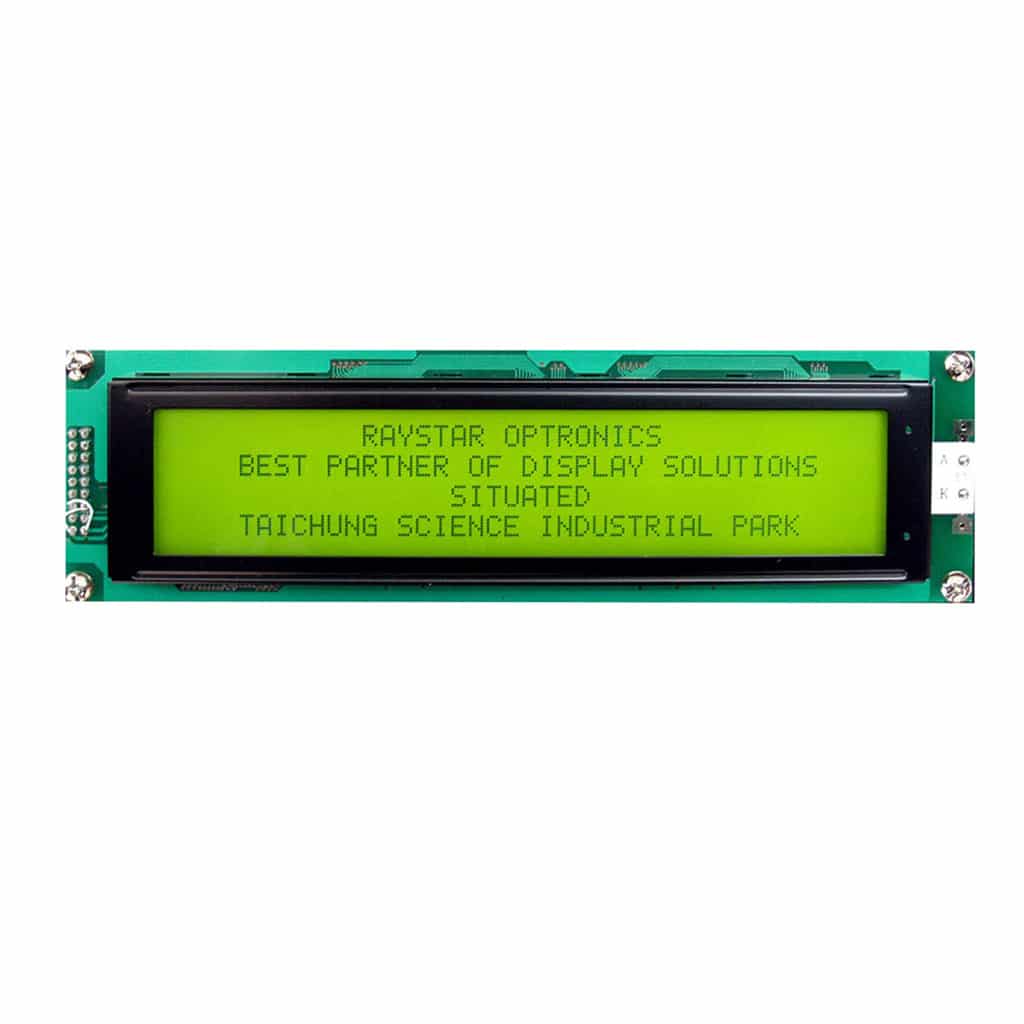

RC4004A 40×4 Character LCD (190.0mm x 54.0mm)
Product specs
| Weight | 10 g |
|---|---|
| Dimensions | 190 × 54 mm |
| Characters | 40×4 |
| Interface | 6800, I2C, SPI |
| Technology | Blue-STN, FSTN, STN |
| Construction | COB |
| Font | Cyrillic, English, European |
Product Description
The RC4004A series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7066 controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic
40×4 Character Liquid Crystal Display
Dimensions: 190.0mm x 54.0mm
Viewing Area: 147.0mm x 29.5mm
Available in either STN or FSTN Technology
Available in Reflective or Transflective Mode, with a choice of backlight colours
Standard Operating Temperature of -20°C to +70°C
