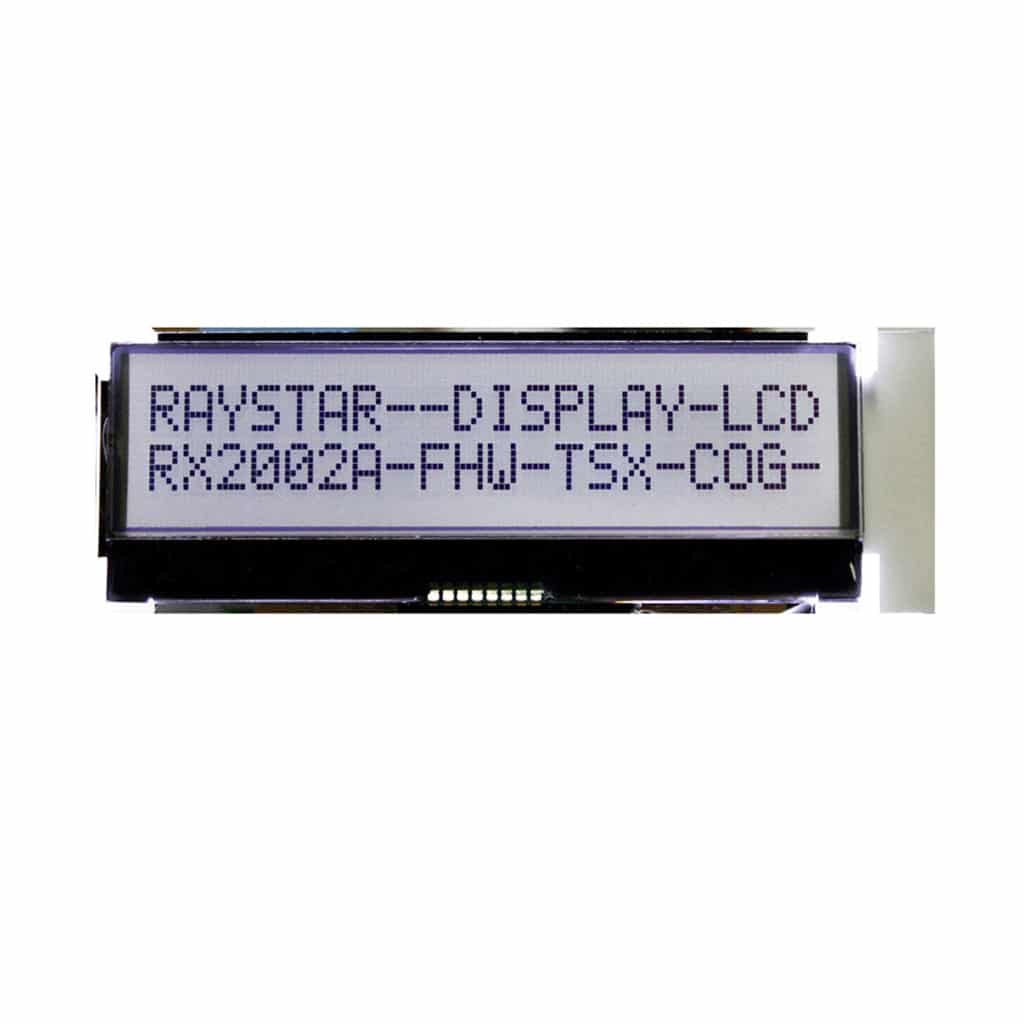

RX2002A 20×2 COG Character LCD (74.2mm x 25.2mm)

This product is currently out of stock and unavailable.

SKU: RX2002A Categories: , , Manufacturer:

Product specs

Weight 10 g
Dimensions 74.2 × 25.2 mm
Characters

20×2

Interface

I2C

Technology

Blue-STN, FSTN, STN

Construction

COG

Font

Cyrillic, English, European

Product Description

The RX2002A Chip-On-Glass series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7032i controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic



  • 20×2 Character Liquid Crystal Display
  • Chip On Glass (COG)
  • Dimensions: 74.2mm x 25.2mm
  • Viewing Area: 61.0mm x 15.1mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
