REC000802A series 8×2 Character OLED (58.0mm x 32.0mm)
Product specs
| Dimensions | 58 × 32 mm |
|---|---|
| Characters | 8×2 |
| Emitting Colour | Blue, Green, White, Yellow |
| Interface | 6800, 8080, SPI |
| Construction | COB |
Product Description

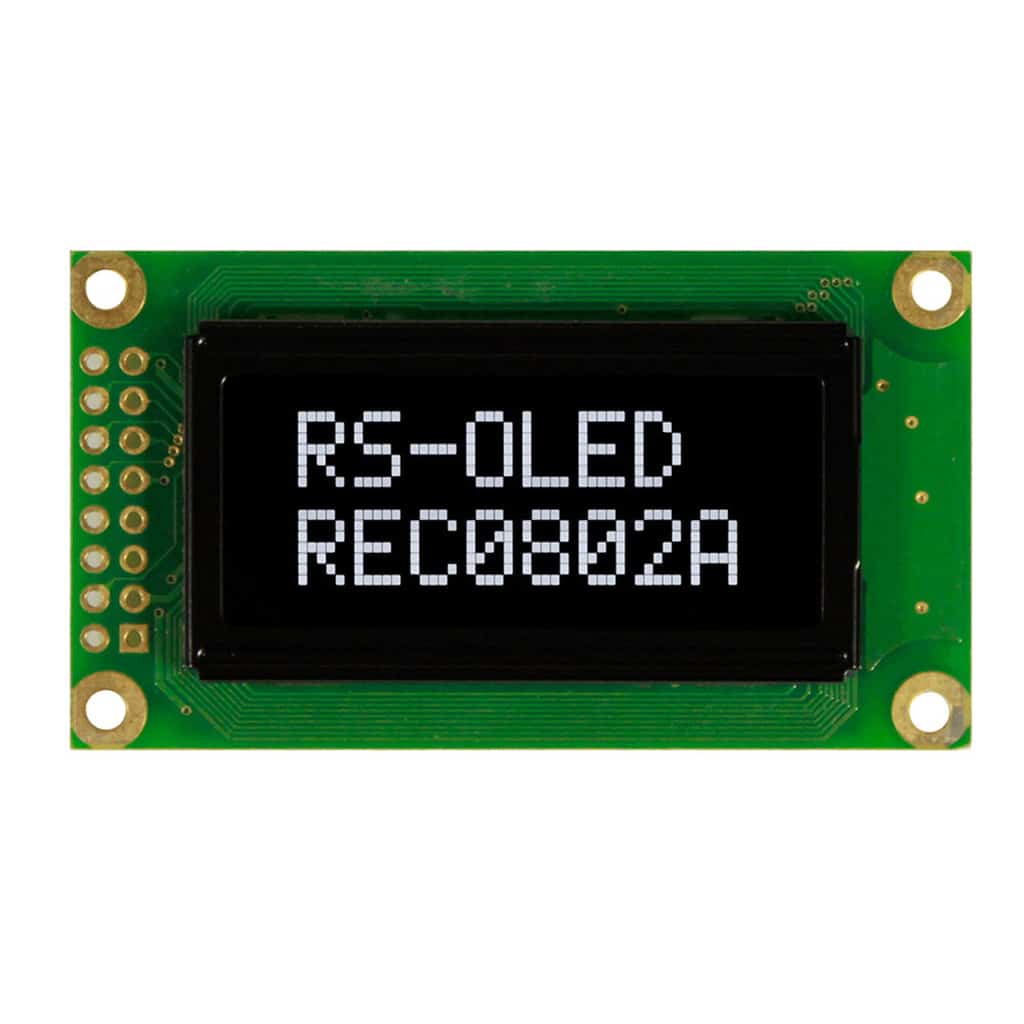

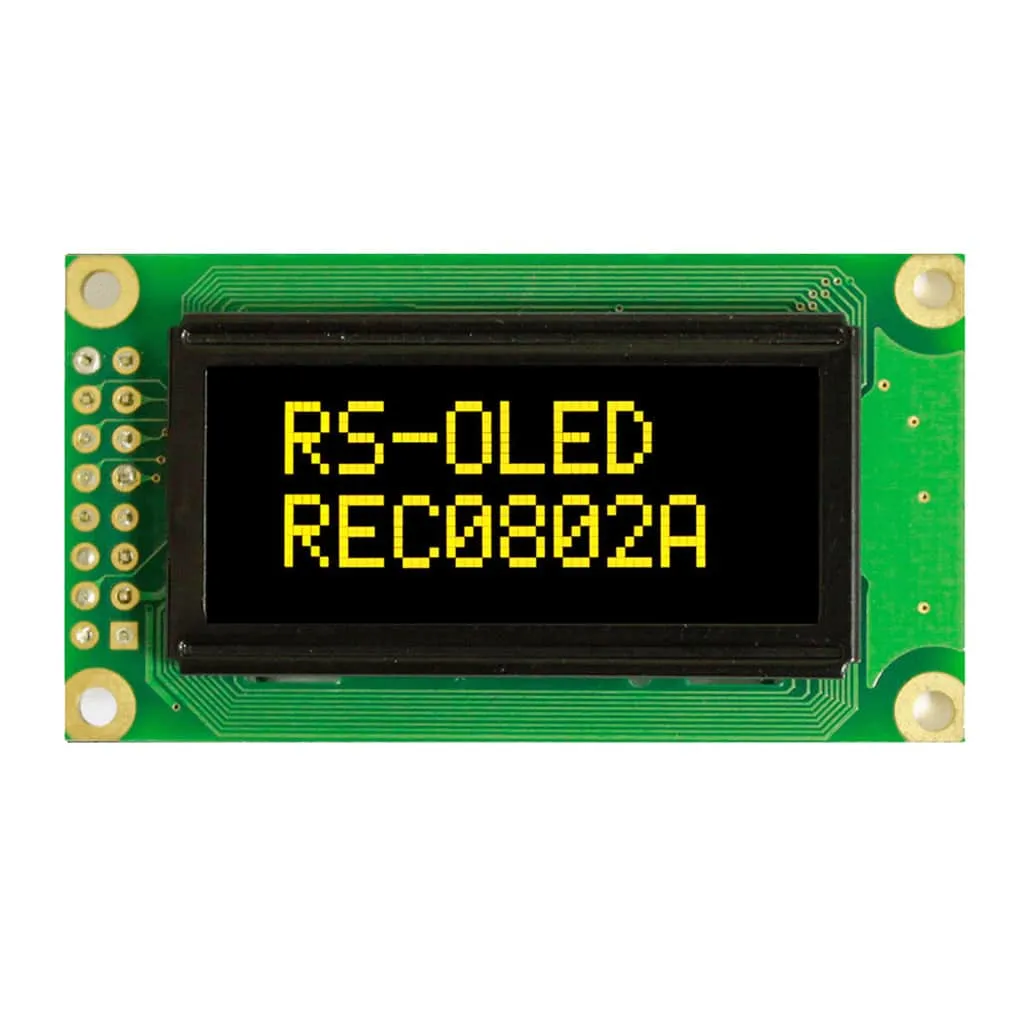

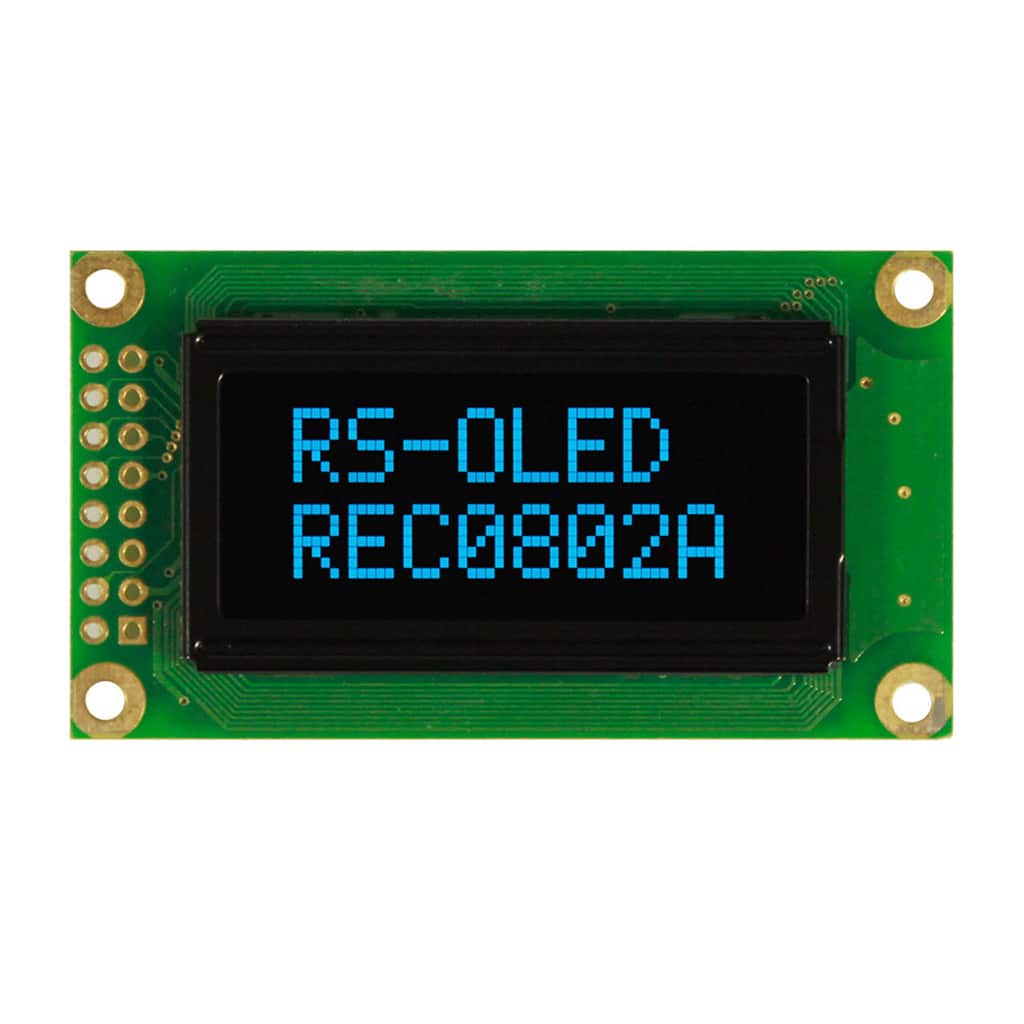

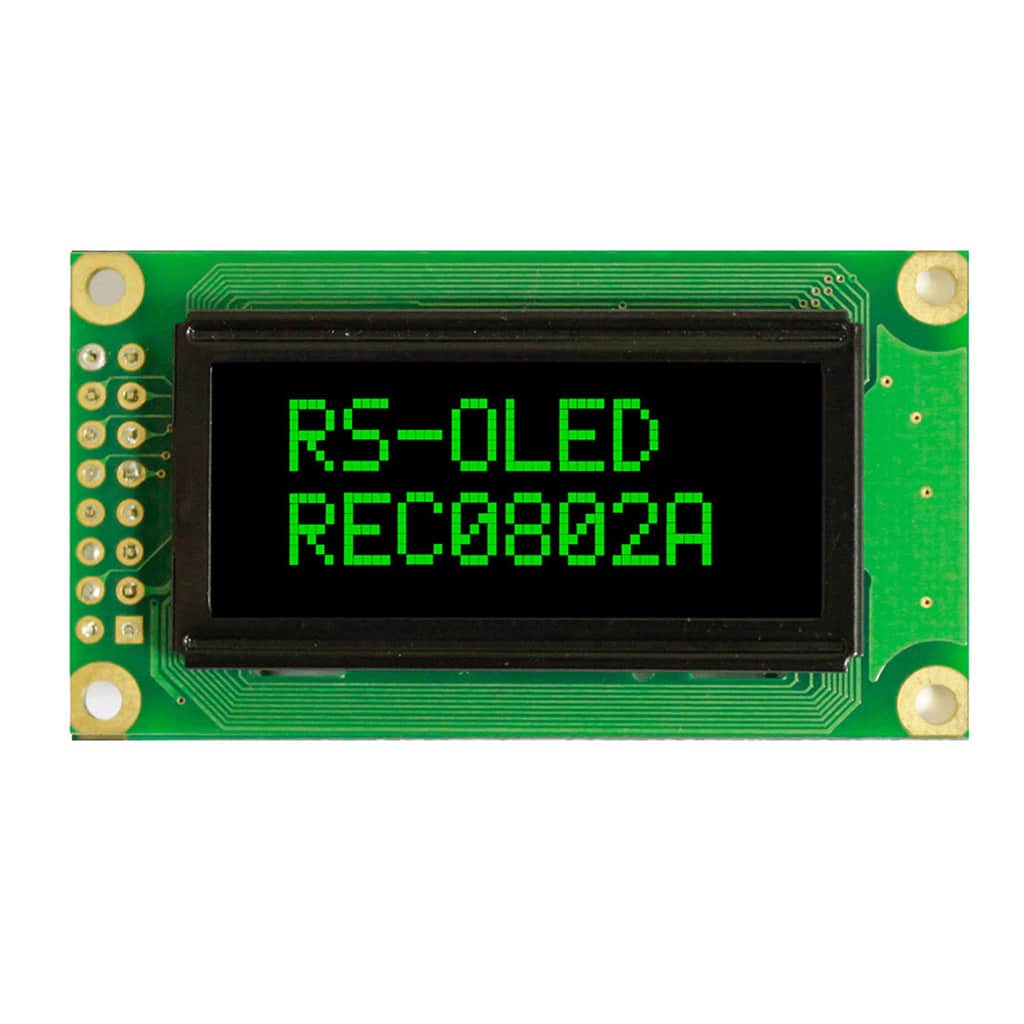

The REC000802A series Chip-On-Board Passive Matrix OLED offers 8×2 characters .With an active area of 28.16mm x 11.86mm within a viewable area of 38.0mm x 16.0mm
Available in a choice of Blue, Green, White or Yellow
The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic
- 8×2 Chip-On-Board OLED
- Dimensions: 58.0mm x 32.0mm
- Viewing Area: 38.0mm x 16.0mm
- Fast Response Times
- High Contrast
- 175° Viewing Angles
- Standard Operating Temperature of -40°C to +80°C
