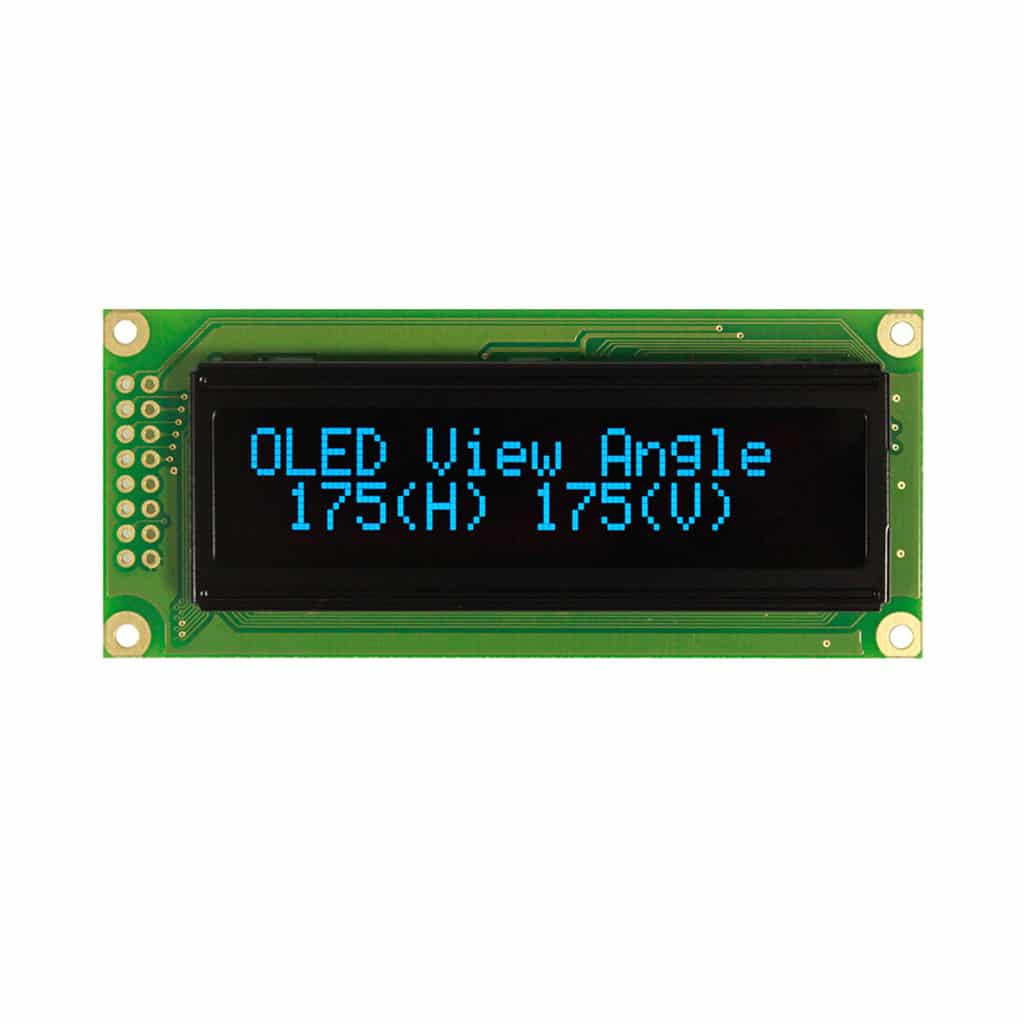

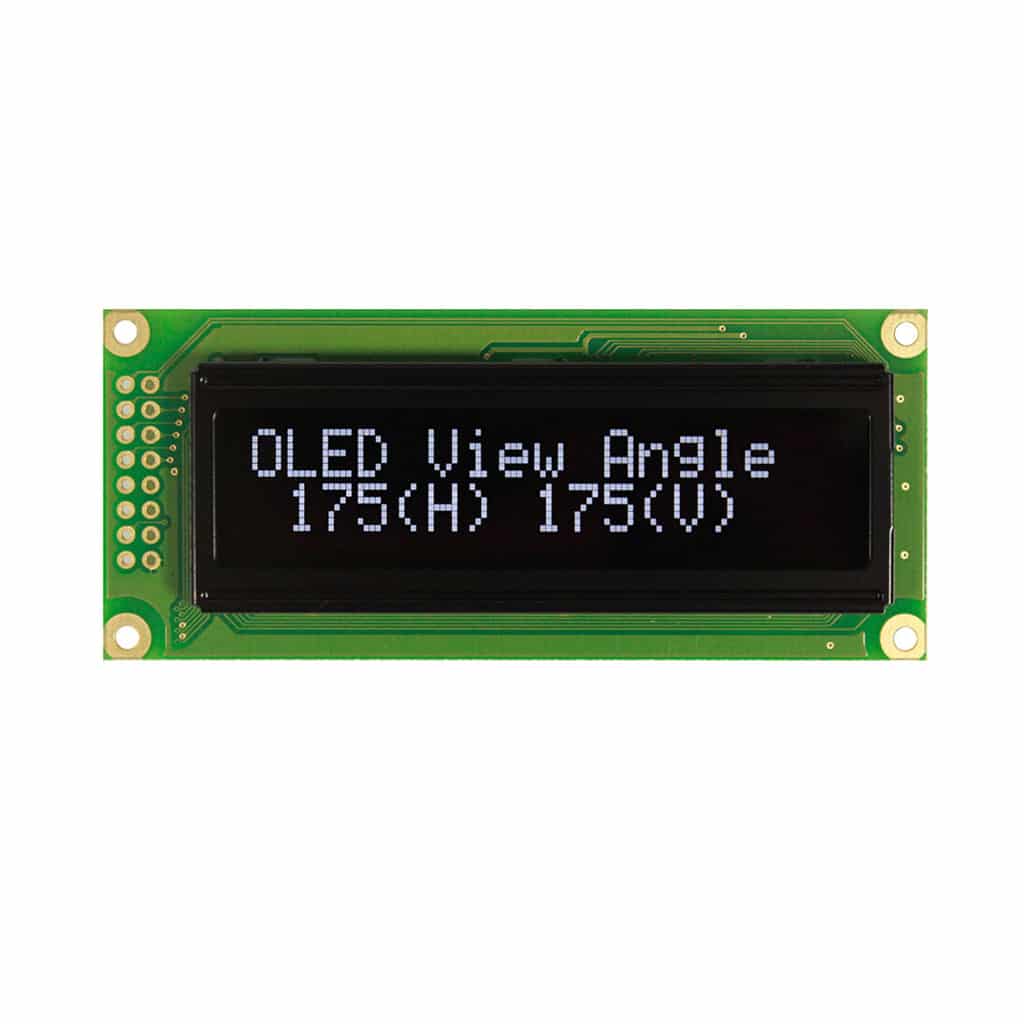

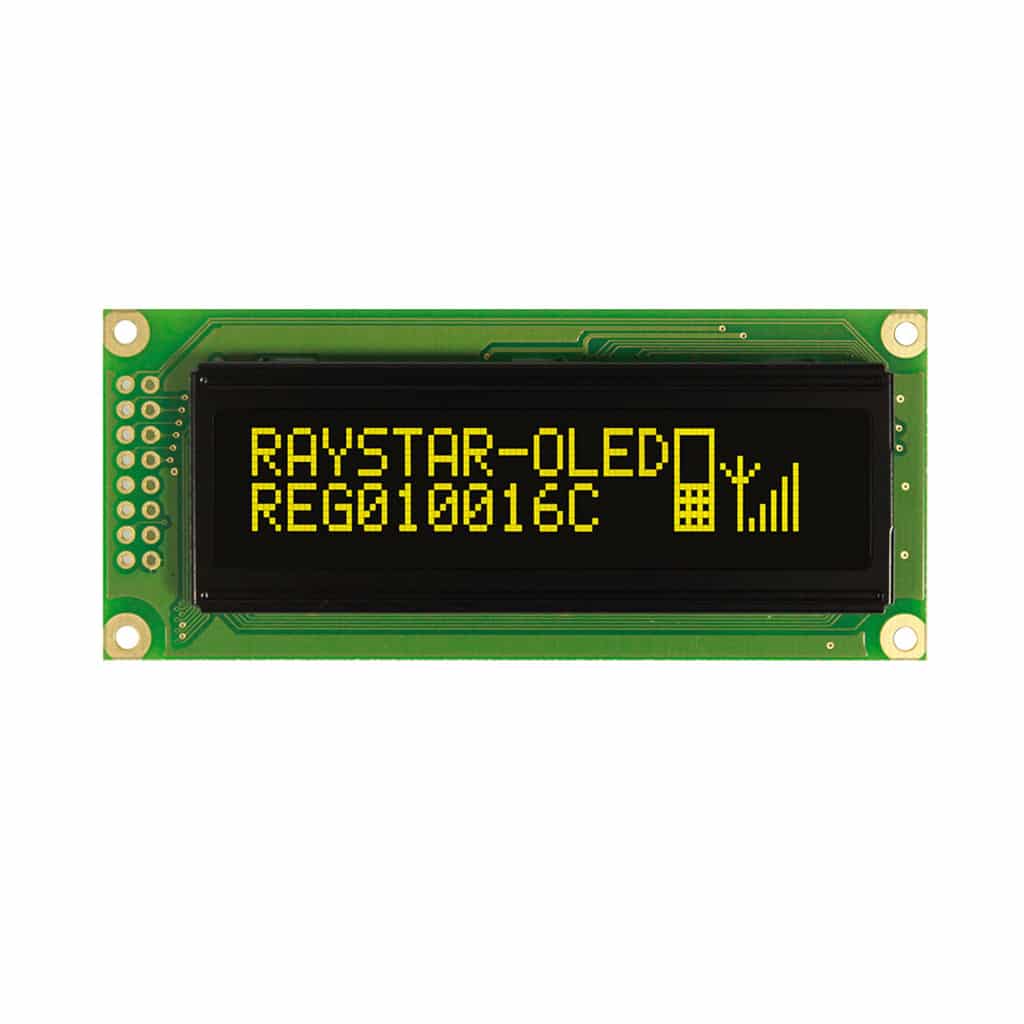

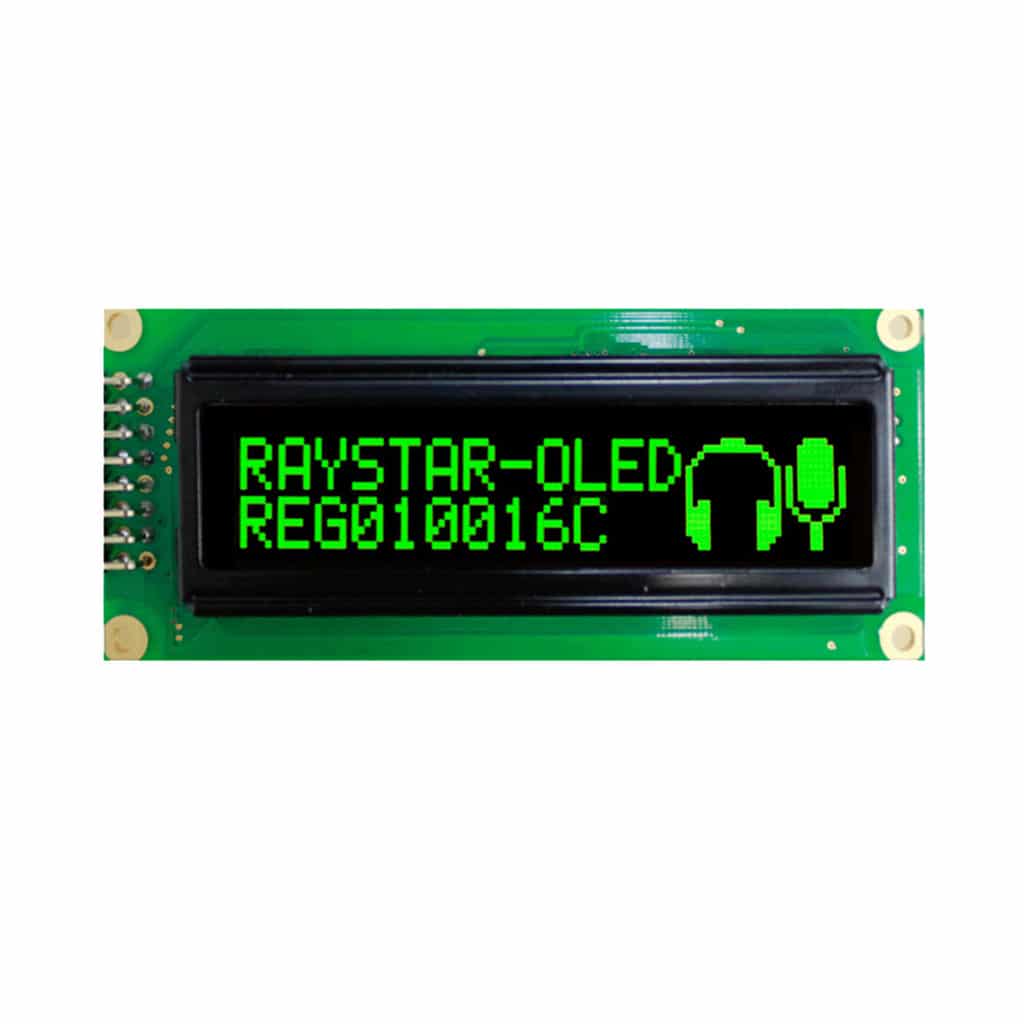

REG010016C series 100×16 COB OLED (85.0mm x 36.0mm)
Product specs
| Dimensions | 85.0 × 36.0 mm |
|---|---|
| Pixels | 100×16 |
| Interface | 6800, 8080, SPI |
| Construction | COB |
Product Description
The REG010016C series is a Chip-On-Board OLED offering 100×16 pixels, with an active area of 59.95mm x 11.15mm within a viewable area of 66.0mm x 16.0mm, it comes with an integrated RS0010 IC, and is available in Blue, Green, White or Yellow
This graphic display has the same footprint as the character based REC001602C series (OLED) and also the RC1602C series (LCD)
- 100×16 Graphic OLED
- Available in Blue, Green, White or Yellow
- Dimensions: 85.0mm x 36.0mm
- Viewing Area: 66.0mm x 16.0mm
- RS0010 IC on-board
- Standard Operating Temperature of -40°C to +80°C
