REG010016F series 100×16 COB OLED (116.0mm x 37.0mm)

SKU: REG010016F Categories: , , Manufacturer:

Product specs

Dimensions 116 × 37 mm



6800, 8080, SPI



Product Description

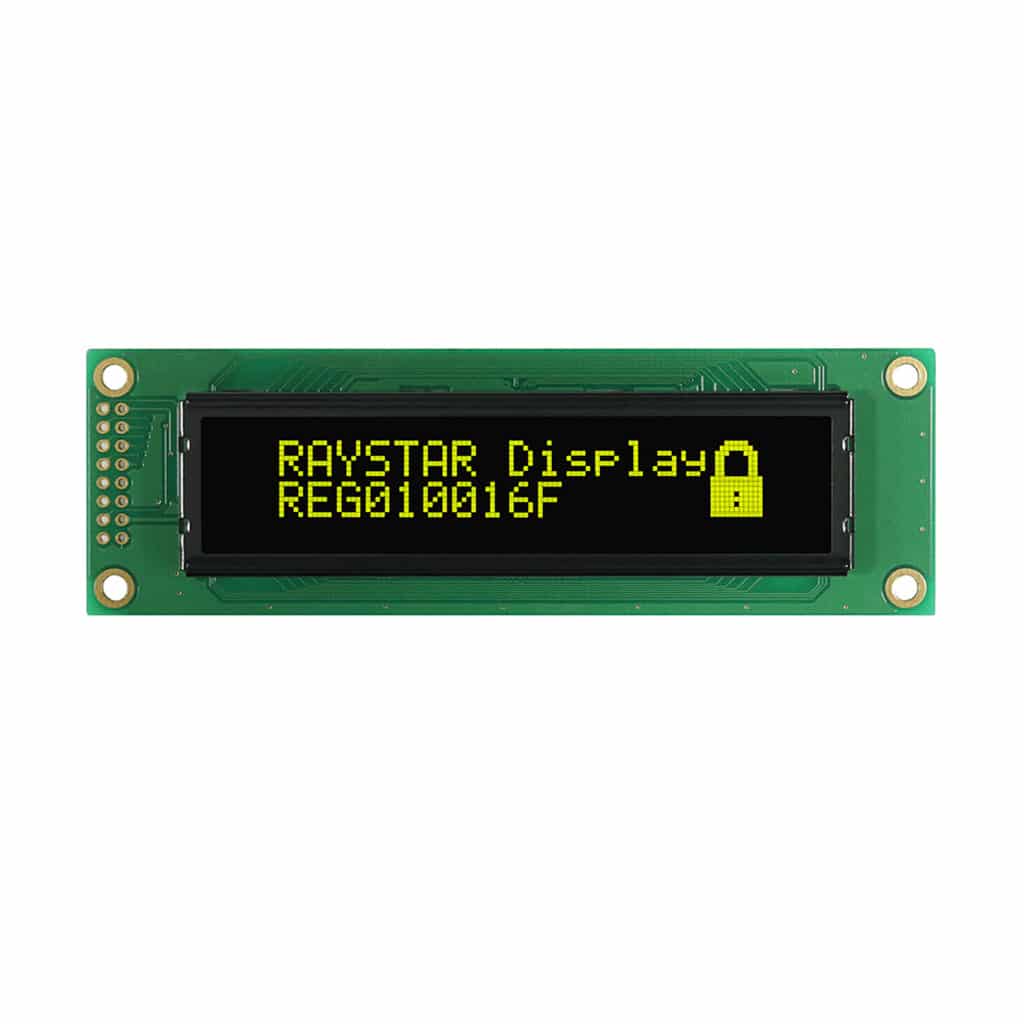

The REG010016F series is a Chip-On-Board OLED offering 100×16 pixels, with an active area of 64.95mm x 11.15mm within a viewable area of 85.0mm x 18.6mm, it comes with an integrated RS0010 IC, and is available in Blue, Green, White or Yellow

This graphic display has the same footprint as the character based REC002002A series (OLED) and also the  RC2002A series (LCD)



  • 100×16 Graphic OLED

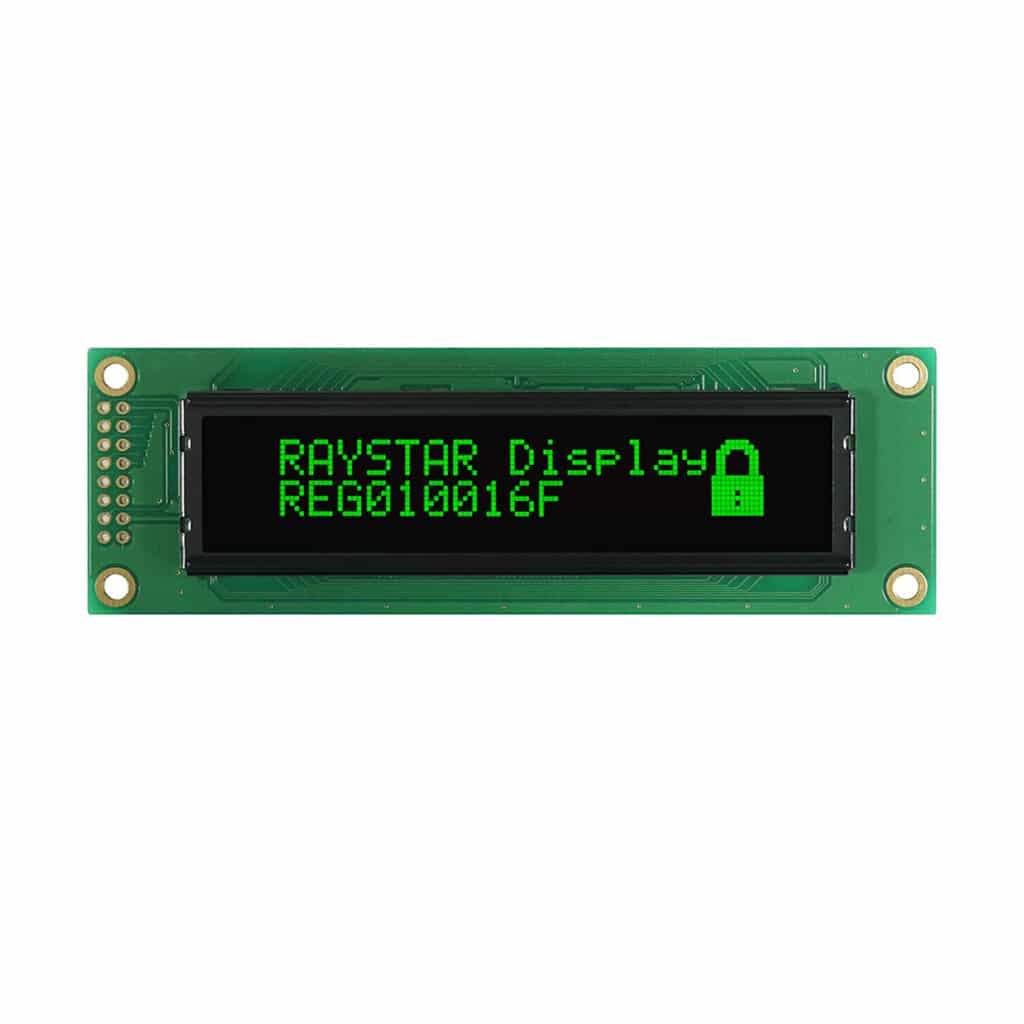

  • Available in Blue, Green, White or Yellow
  • Dimensions: 116.0mm x 37.0mm
  • Viewing Area: 85.0mm x 18.6mm

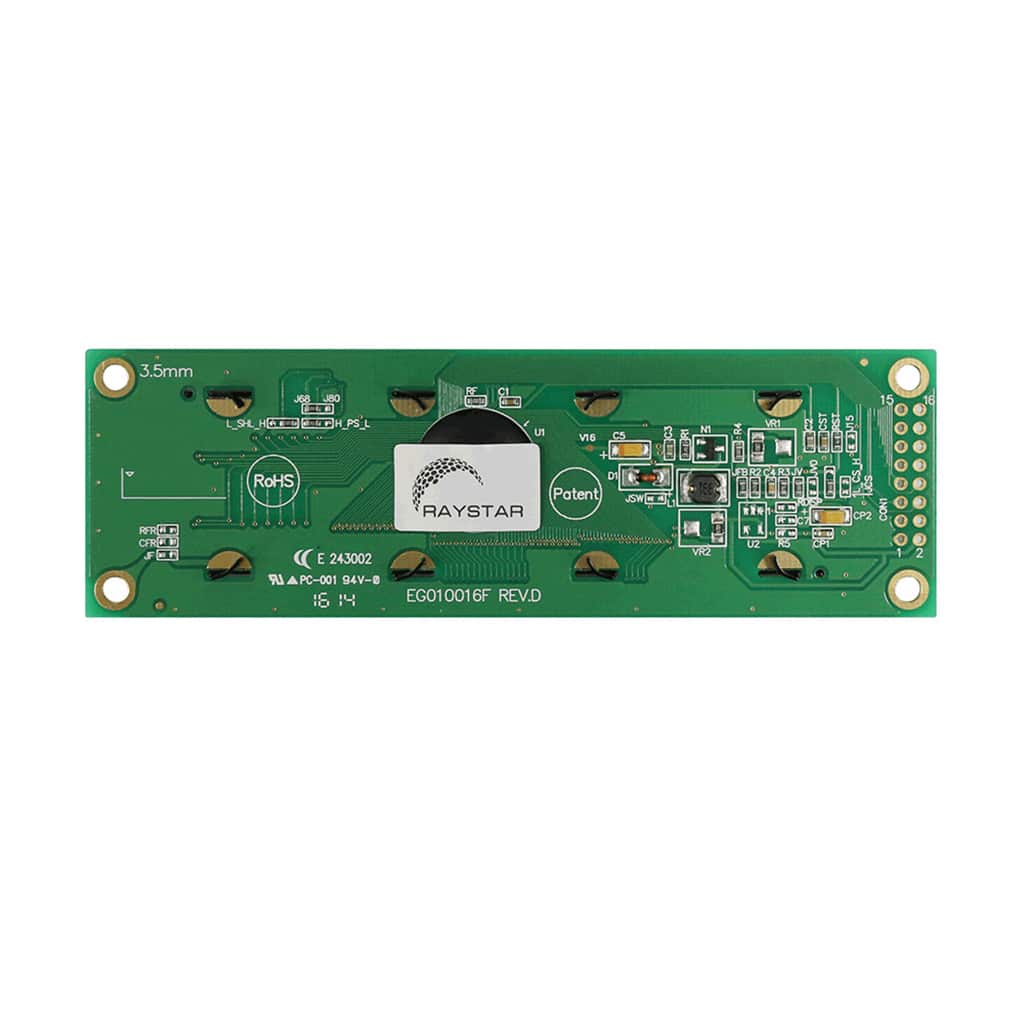

  • RS0010 IC on-board
  • Standard Operating Temperature of -40°C to +80°C
