REG010016J series 100×16 COB OLED (122.0mm x 44.0mm)

SKU: REG010016J Categories: , , Manufacturer:

Product specs

Dimensions 122 × 44 mm



6800, 8080, SPI



Product Description

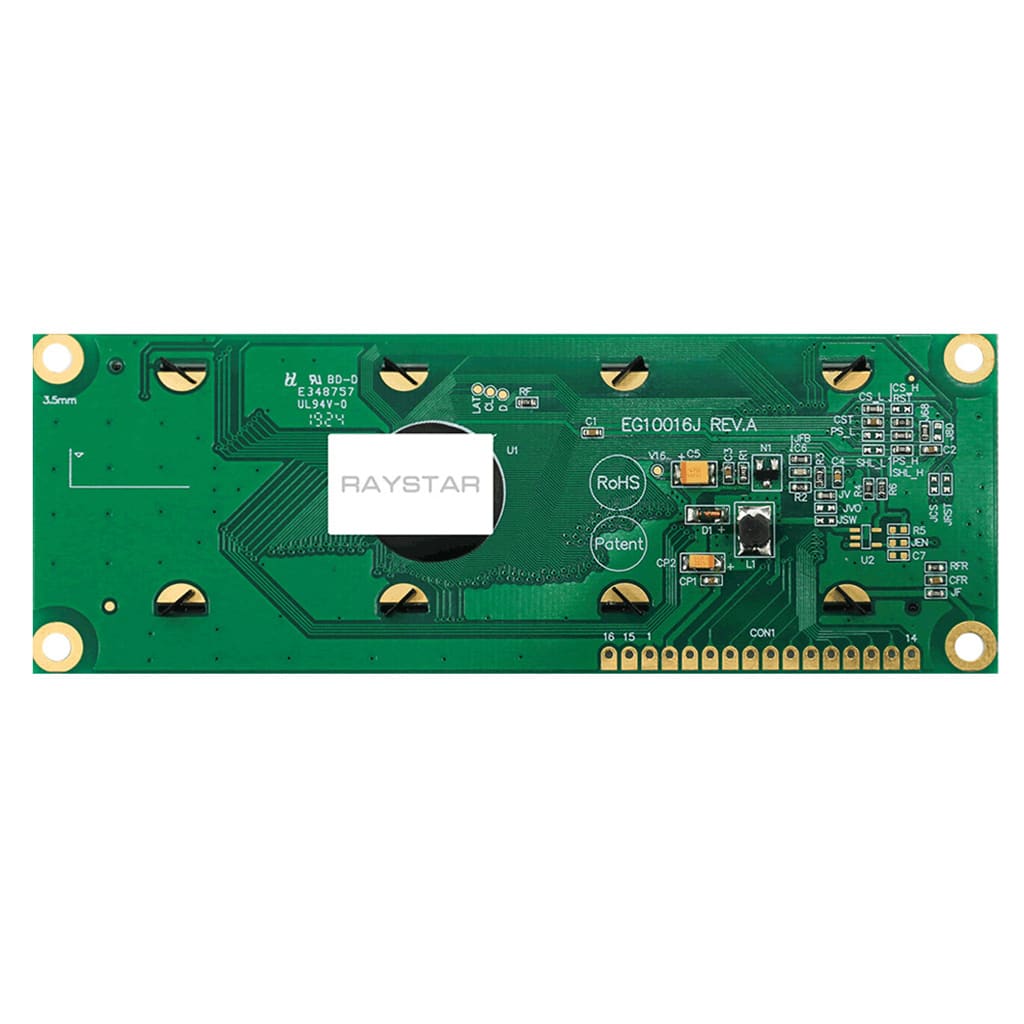

The REG010016J series is a Chip-On-Board OLED offering 100×16 pixels, with an active area of 95.94mm x 17.86mm within a viewable area of 98.0mm x 21.0mm, it comes with an integrated RS0010 IC, and is available in Blue, Green, White or Yellow

This graphic display has the same footprint as the character based REC001602H series (OLED) and also the  RC1602E series (LCD)



  • 100×16 Graphic OLED

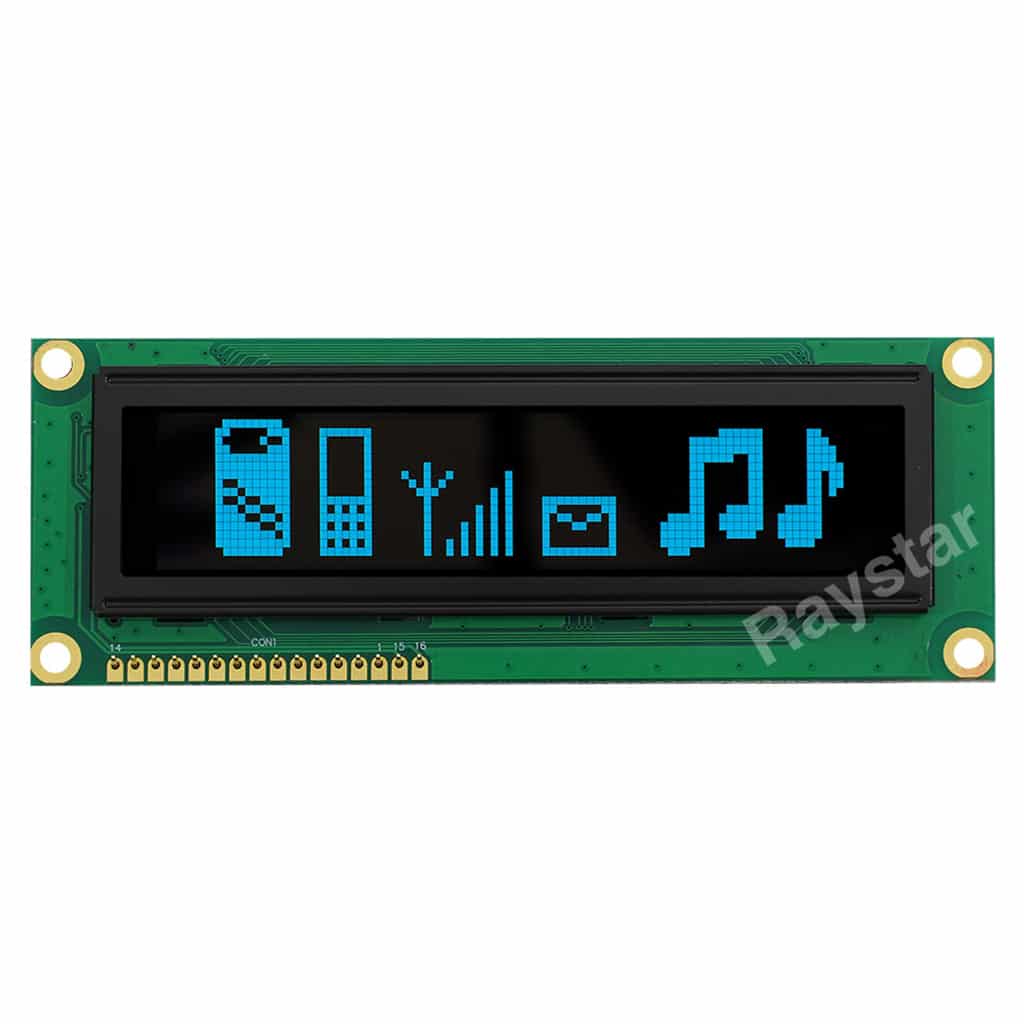

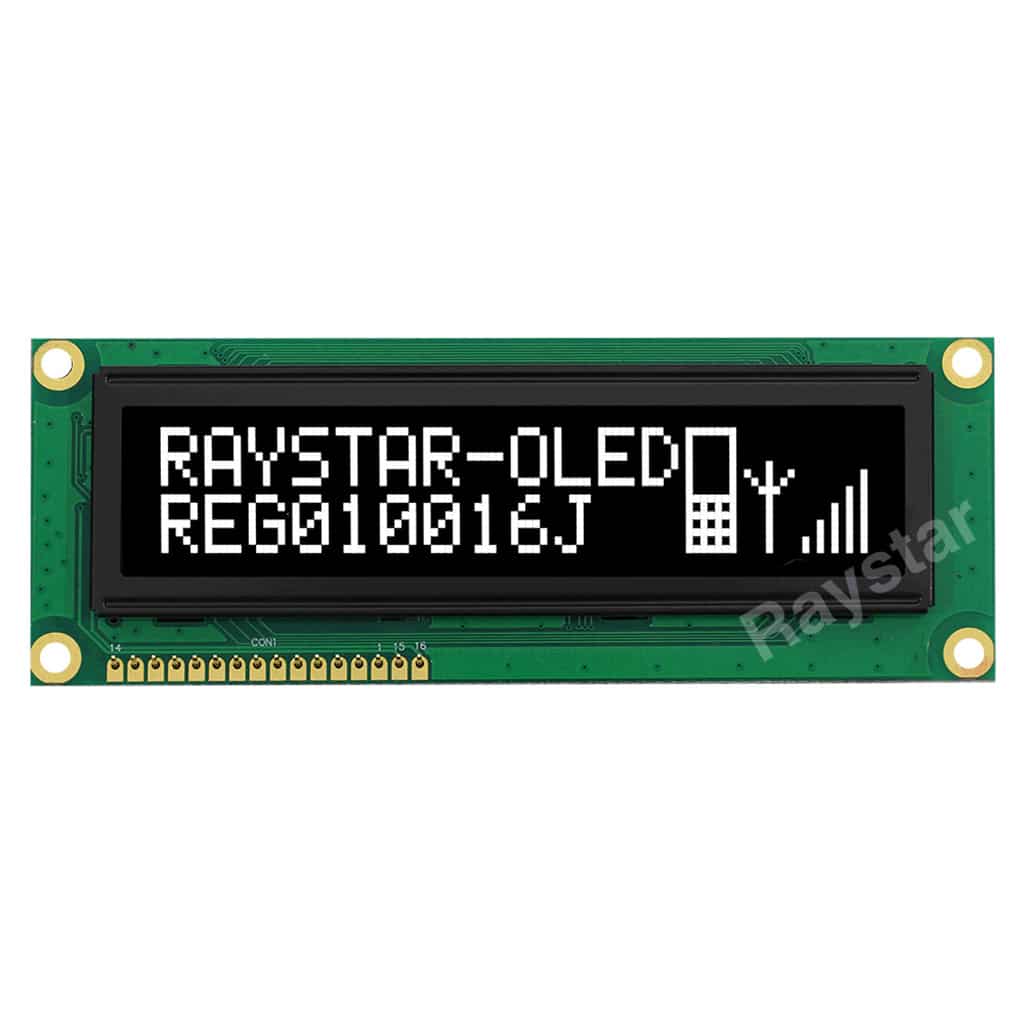

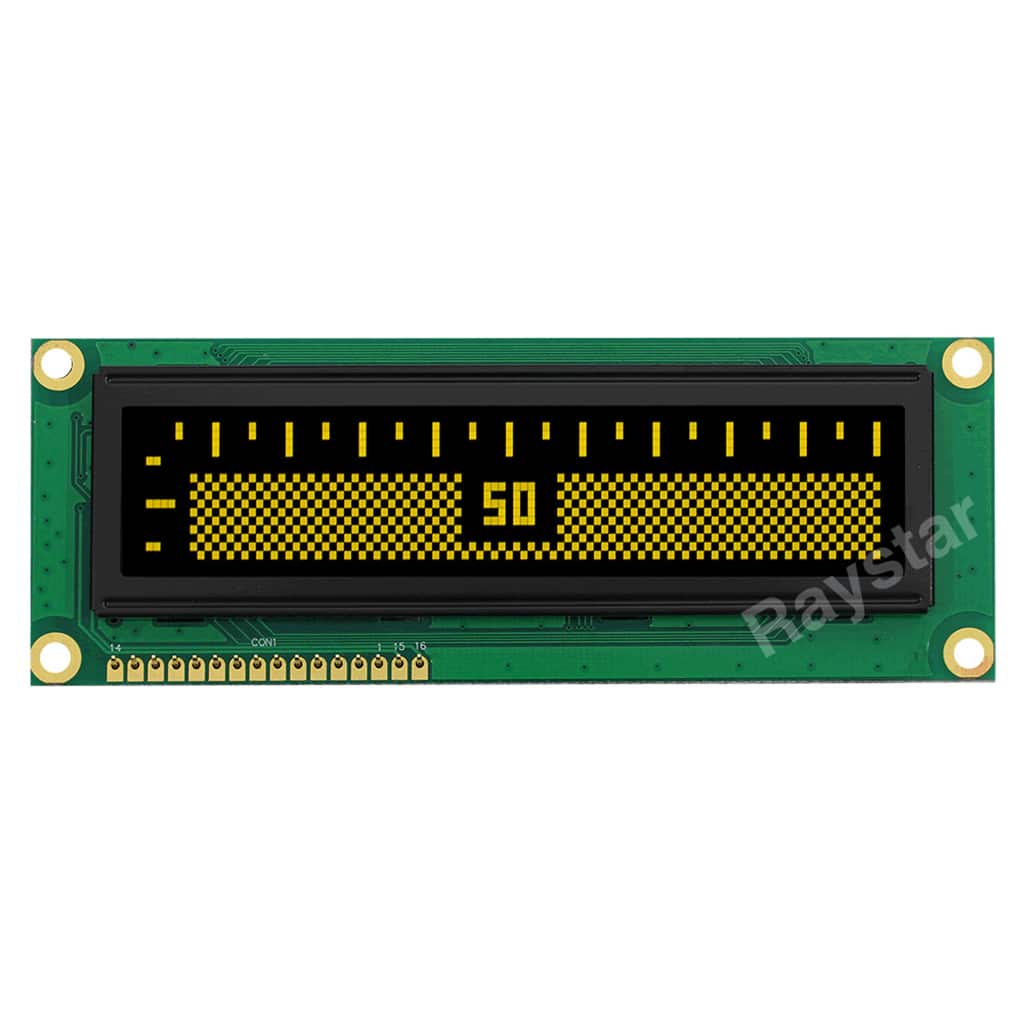

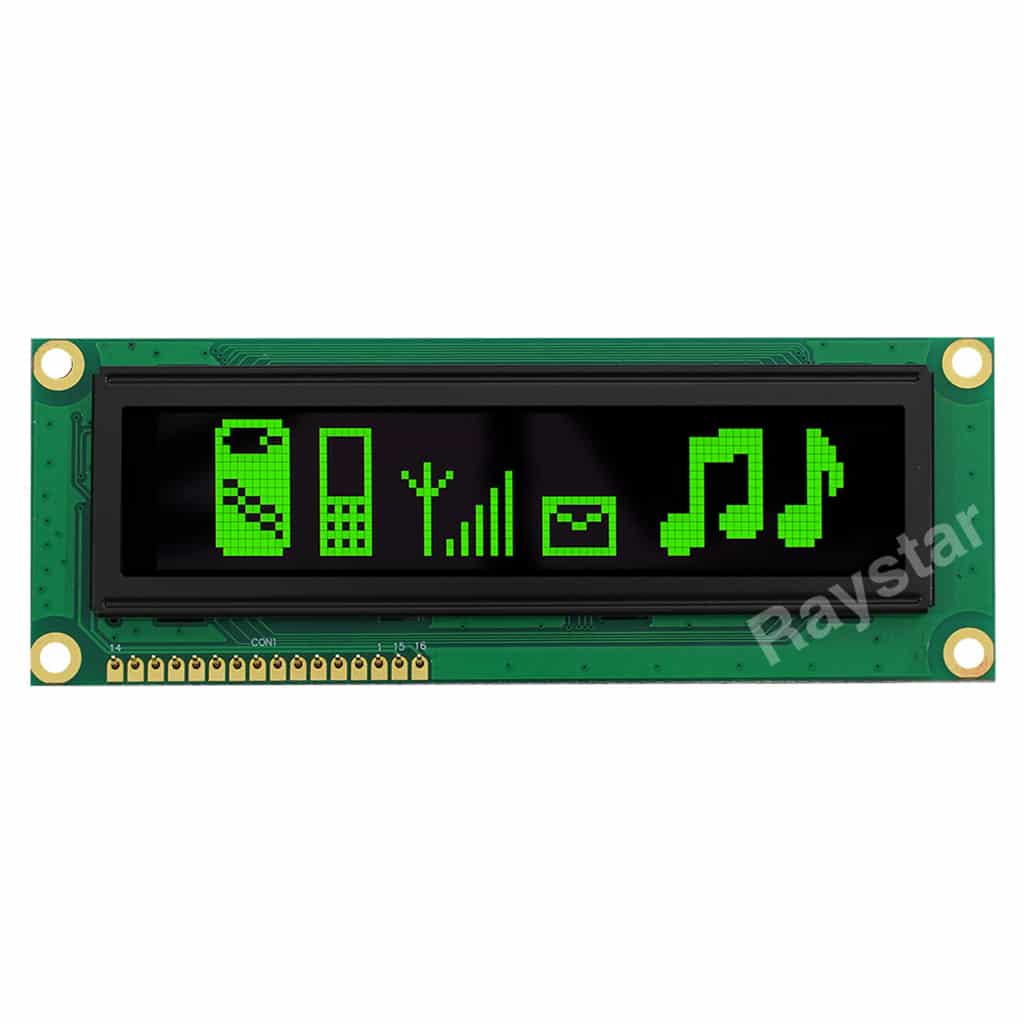

  • Available in Blue, Green, White or Yellow
  • Dimensions: 122.0mm x 44.0mm
  • Viewing Area: 98.0mm x 21.0mm
  • RS0010 IC on-board
  • Standard Operating Temperature of -40°C to +80°C
