REP012832A-CTP series 128×32 COG on PCB OLED (2.23″)

SKU: REP012832A-CTP Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 66.5 × 35 mm
Pixels

128×32
Interface

6800, 8080, I2C, SPI
Construction

COG+FR+PCB

Product Description

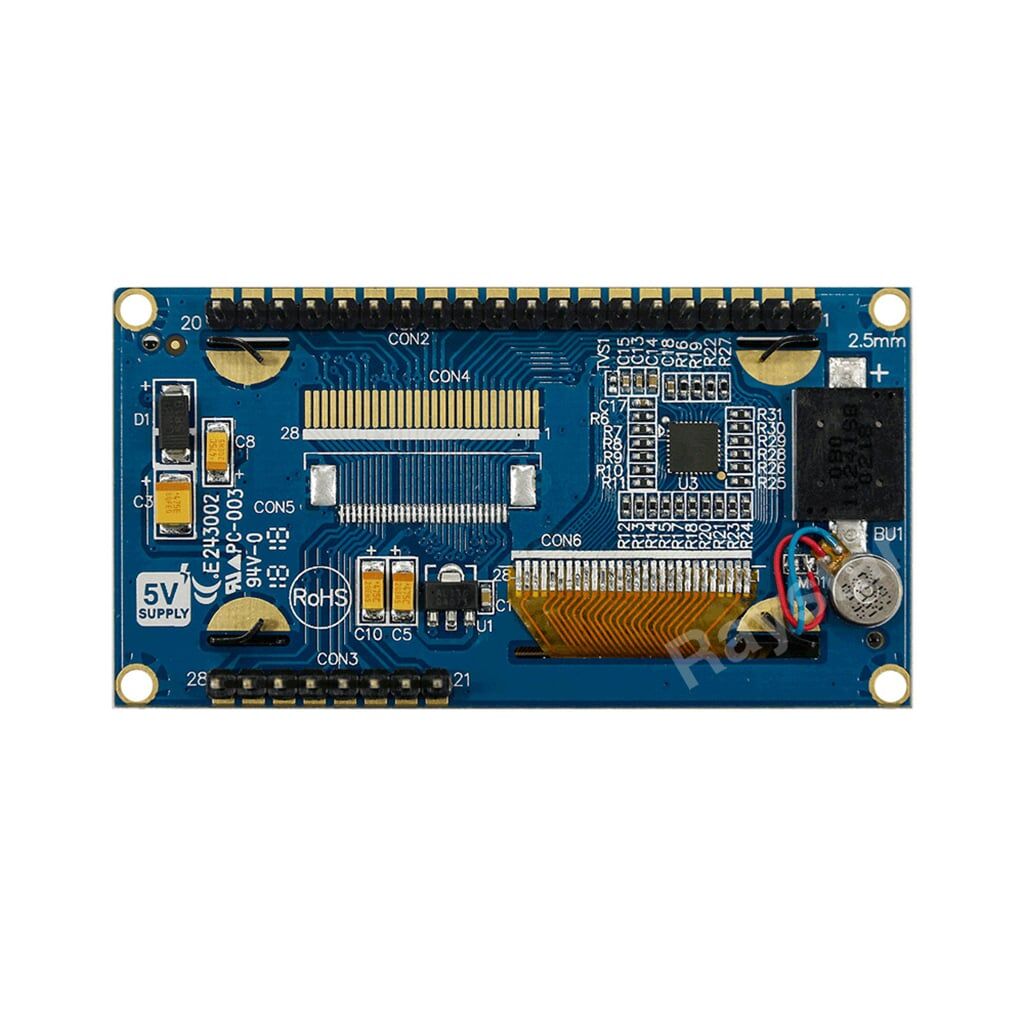

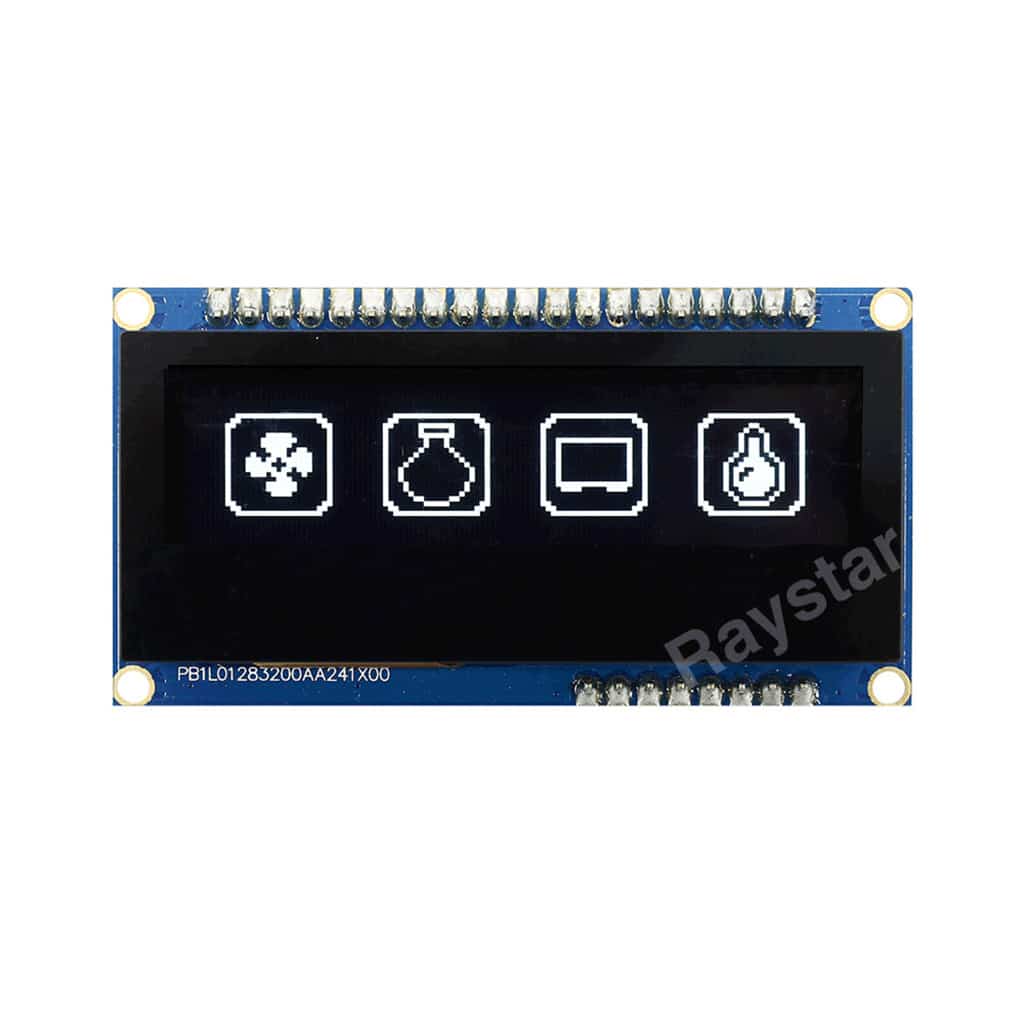

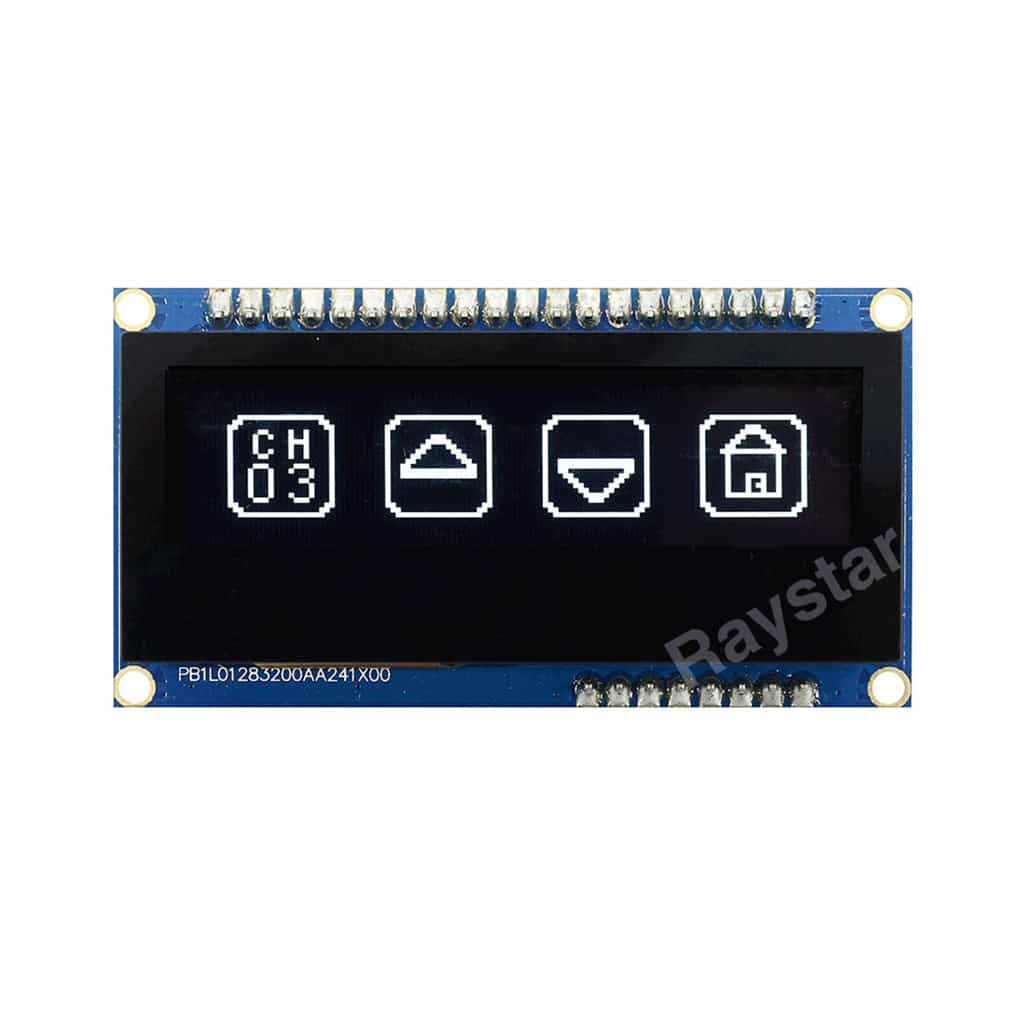

The REP01283A-CTP series is a 2.23″ Chip-On-Glass on PCB OLED with Bezel and Capacitive Touchscreen offering 128×32 pixels, with an active area of 55.018mm x 13.098mm within a viewable area of 59.0mm x 17.1mm,  it comes with an integrated SSD1305 IC  has and offers 6800, 8080, SPI or I2C interface, presently only available in White









  • 128×32 OLED on PCB with Bezel
  • Capacitive Touchscreen
  • 2.23″ OLED
  • Available in White
  • Dimensions: 66.5mm x 35.0mm
  • Viewing Area: 59.0mm x 17.1mm
  • Active Area: 55.018mm x 13.098mm
  • Dot Size: 0.408mm x 0.388mm
  • Dot Pitch: 0.43mm x 0.41mm
  • SSD1305Z IC on-board
  • 6800, 8080, SPI or I2C Interface
  • PCAP Interfae: I2C
  • Power Supply: 3V
  • Standard Operating Temperature of -40°C to +80°C
