RET025664A series 256×64 COF OLED 84.0mm x 25.8mm (2.8″)

SKU: RET025664A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 84.0 × 25.8 mm
Pixels

256×64
Interface

6800, 8080, SPI
Construction

COF

Product Description

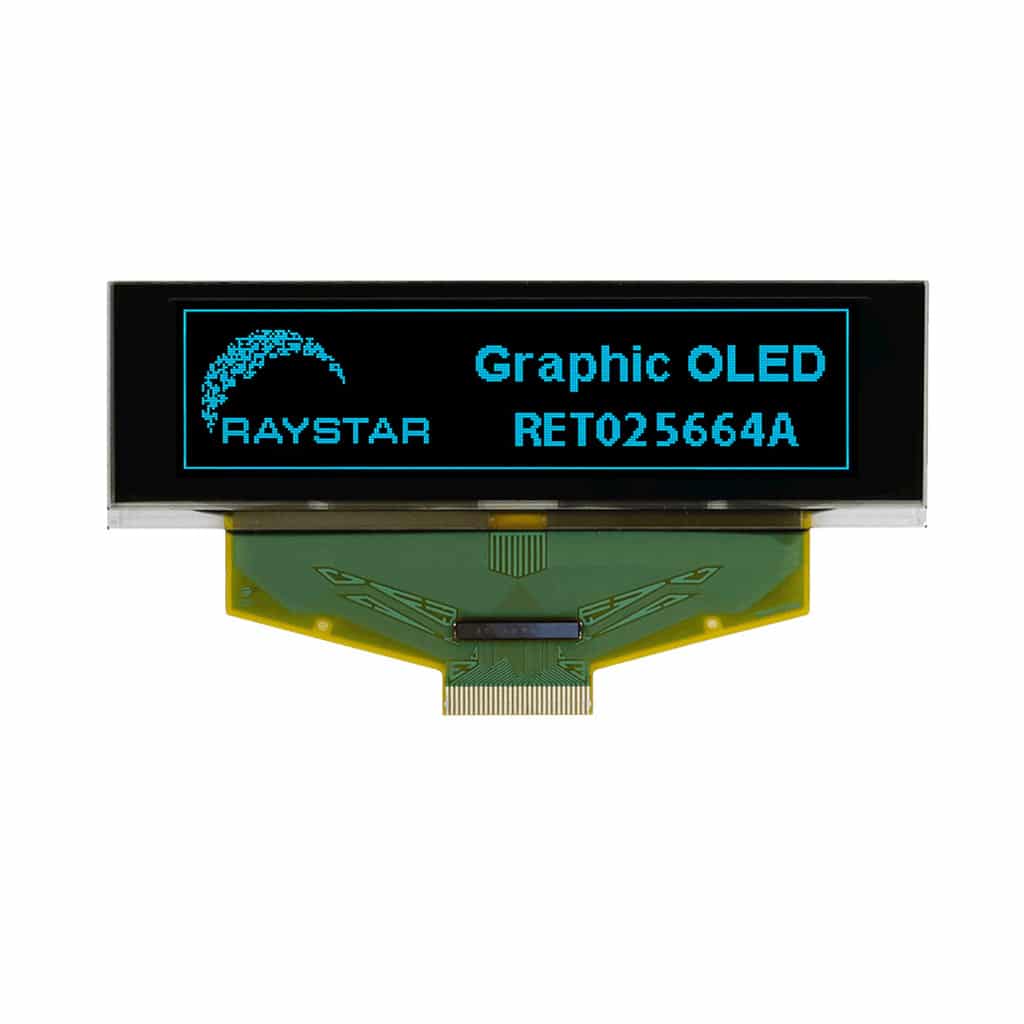

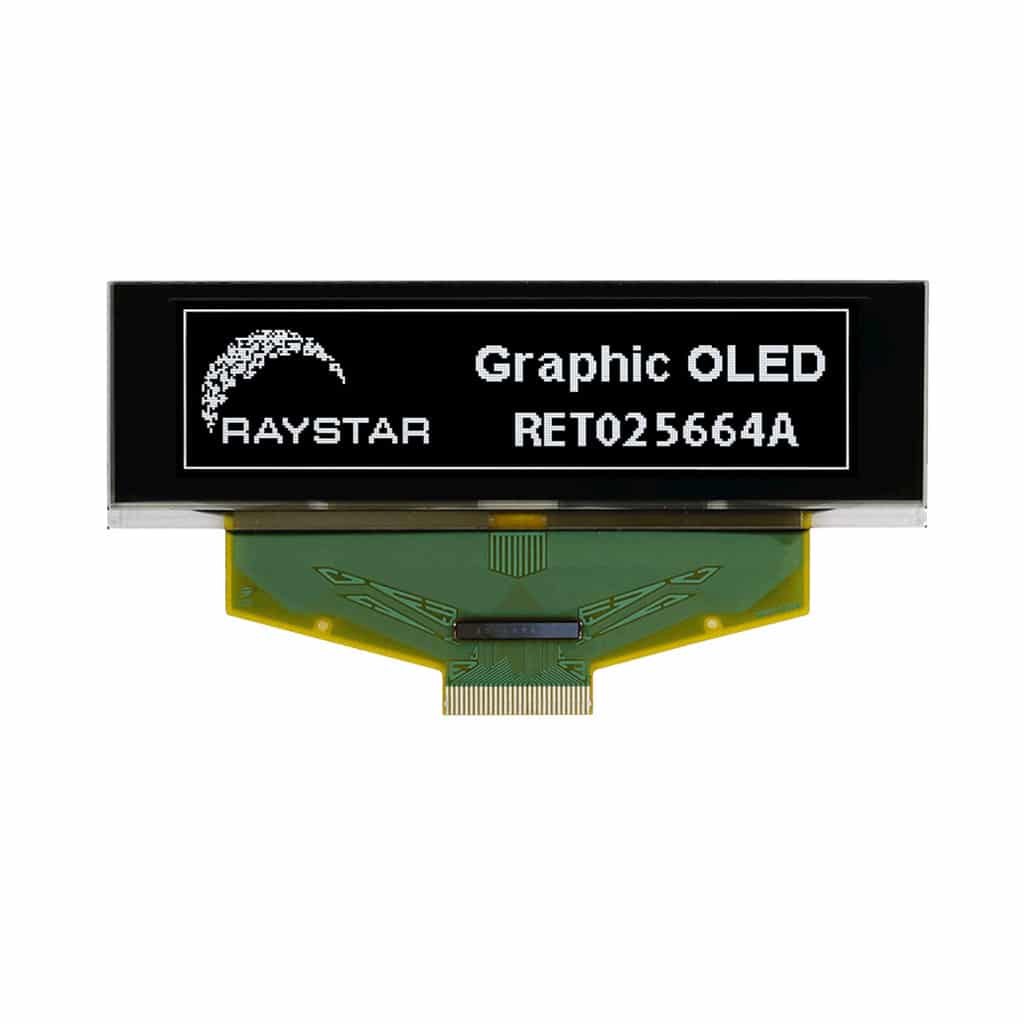

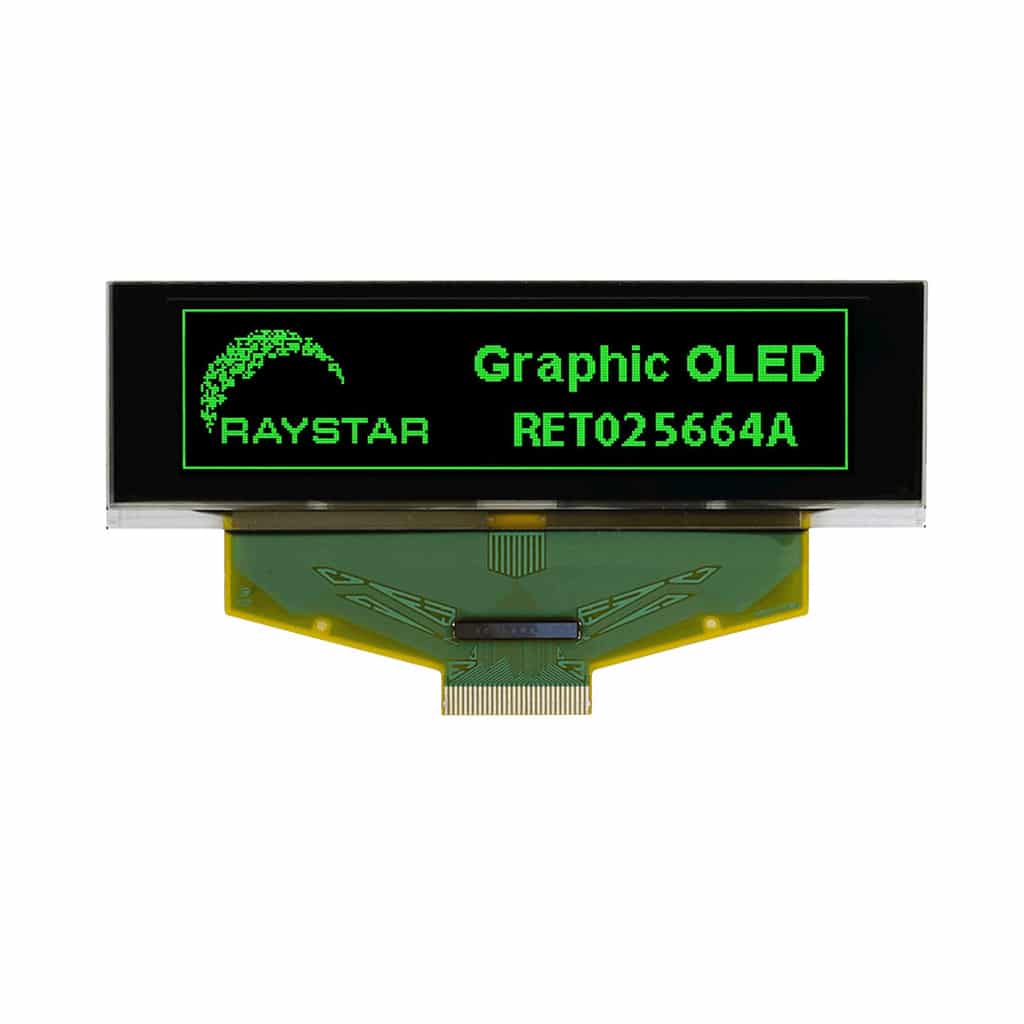

The RET025664A series is a 2.08″ Chip-On-Flex OLED  offering 256×64 pixels within a 71.104mm x 19.264mm viewable area, it comes with an integrated SSD1322UR1 IC that supports greyscaling, and is available in either Blue, Green, White or Yellow.



We also have a 3.12″ version (RET025664B series) and 5.5″ version (RET025664D series)











  • 256×64 Graphic COF OLED
  • Size: 2.8″
  • Available in Blue, Green, White or Yellow
  • Dimensions: 84.0mm x 25.8mm
  • Viewing Area: 71.104mm x 19.264mm
  • Active Area: 69.098mm x 17.258mm
  • Dot Size: 0.248mm x 0.248mm
  • Dot Pitch: 0.27mm x 0.27mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3V
  • IC: SSD1322UR1 which supports greyscaling
  • Standard Operating Temperature of -40°C to +80°C
