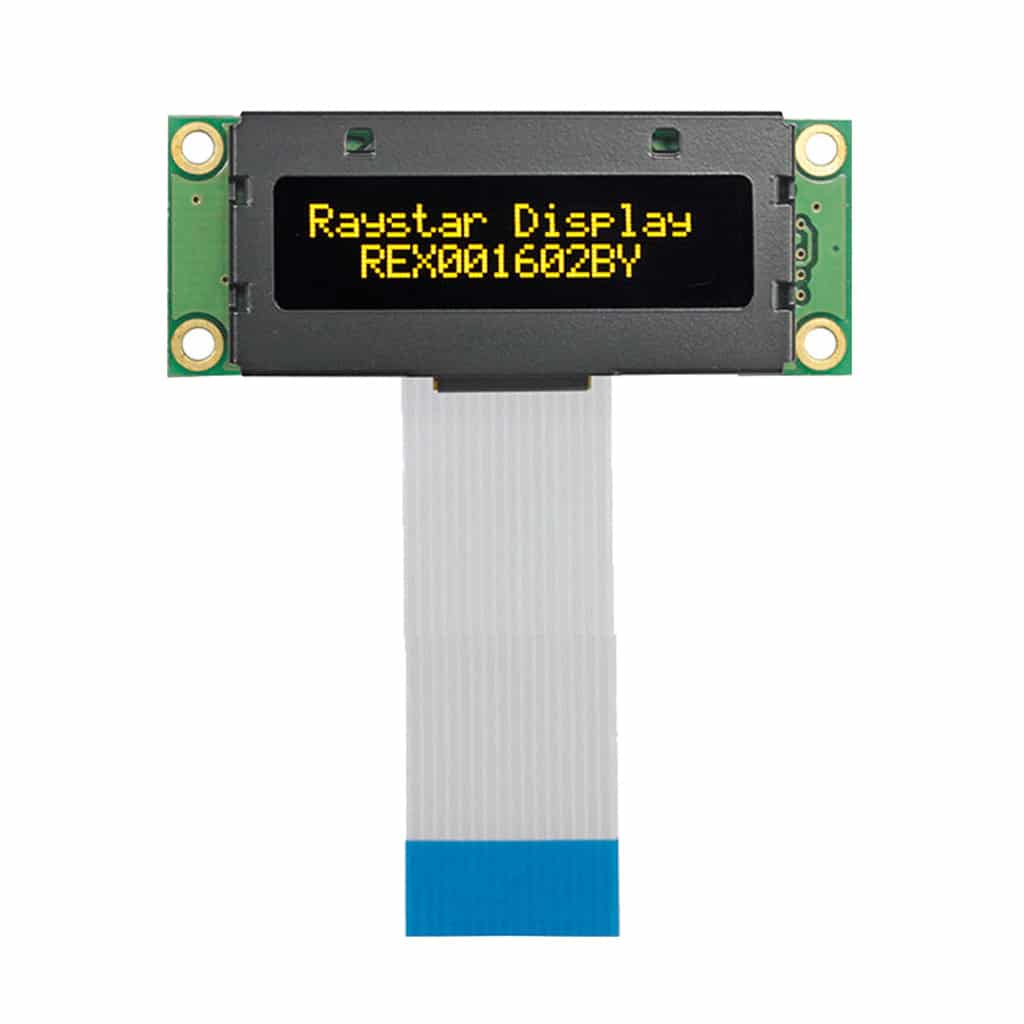

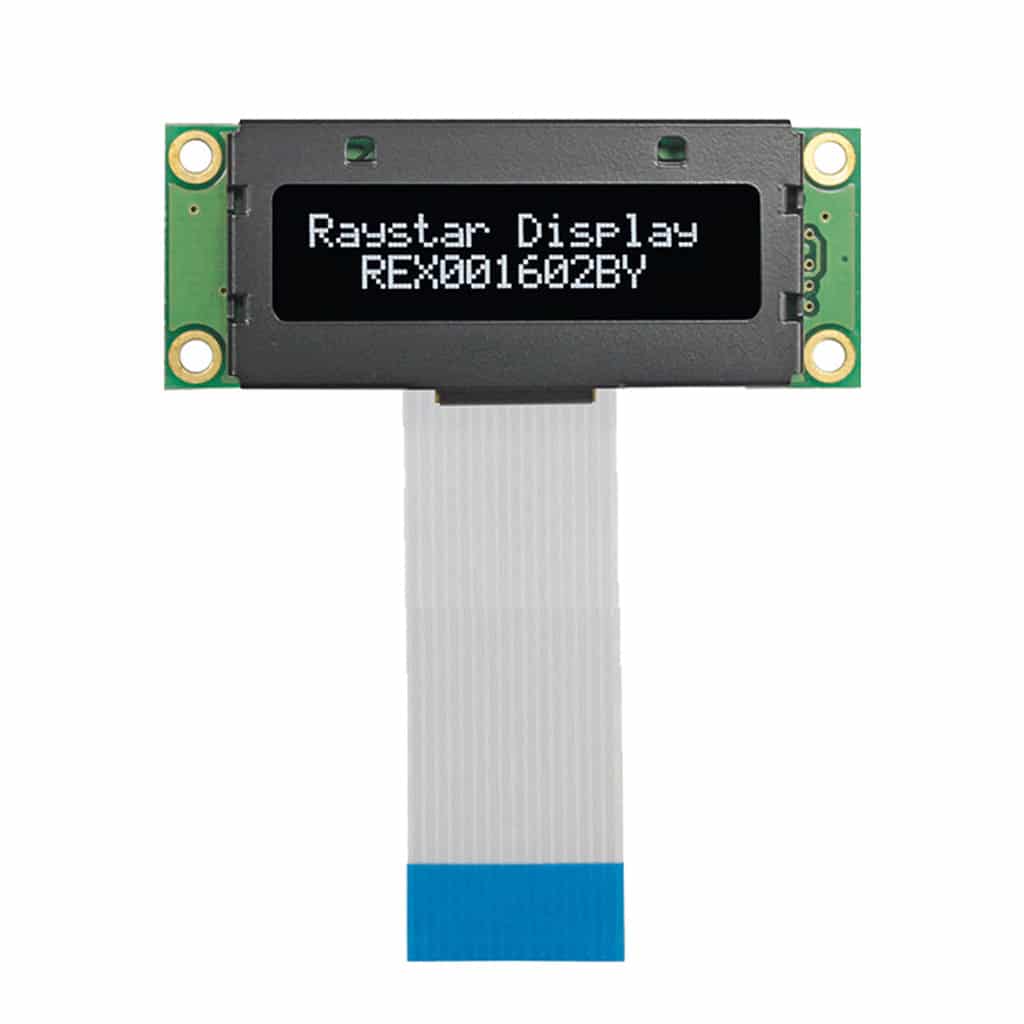

REX001602B series 16×2 Character Chip-On-Glass OLED (53.0mm x 20.0mm)

SKU: REX001602B Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 53 × 20 mm
Characters

16×2
Emitting Colour

White, Yellow
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

The REX001602B series Chip-On-Glass Passive Matrix OLED offers 16×2 characters .With an active area of 30.69mm x 5.94mm within a viewable area of 36.0mm x 10.0mm

Available in a choice of White or Yellow

The onboard RS0020 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic







  • 16×2 Chip-On-Glass OLED
  • Dimensions: 53.0mm x 20.0mm
  • Viewing Area: 36.0mm x 10.0mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: RS0020 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
