REX001602C series 16×2 Character Chip-On-Glass OLED (68.5mm x 17.5mm)

SKU: REX001602C Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 68.5 × 17.5 mm
Characters

16×2
Emitting Colour

Blue, Green, White, Yellow
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

The REX001602C series Chip-On-Glass Passive Matrix OLED offers 16×2 characters .With an active area of 56.22mm x 11.52mm within a viewable area of 58.22mm x 12.52mm

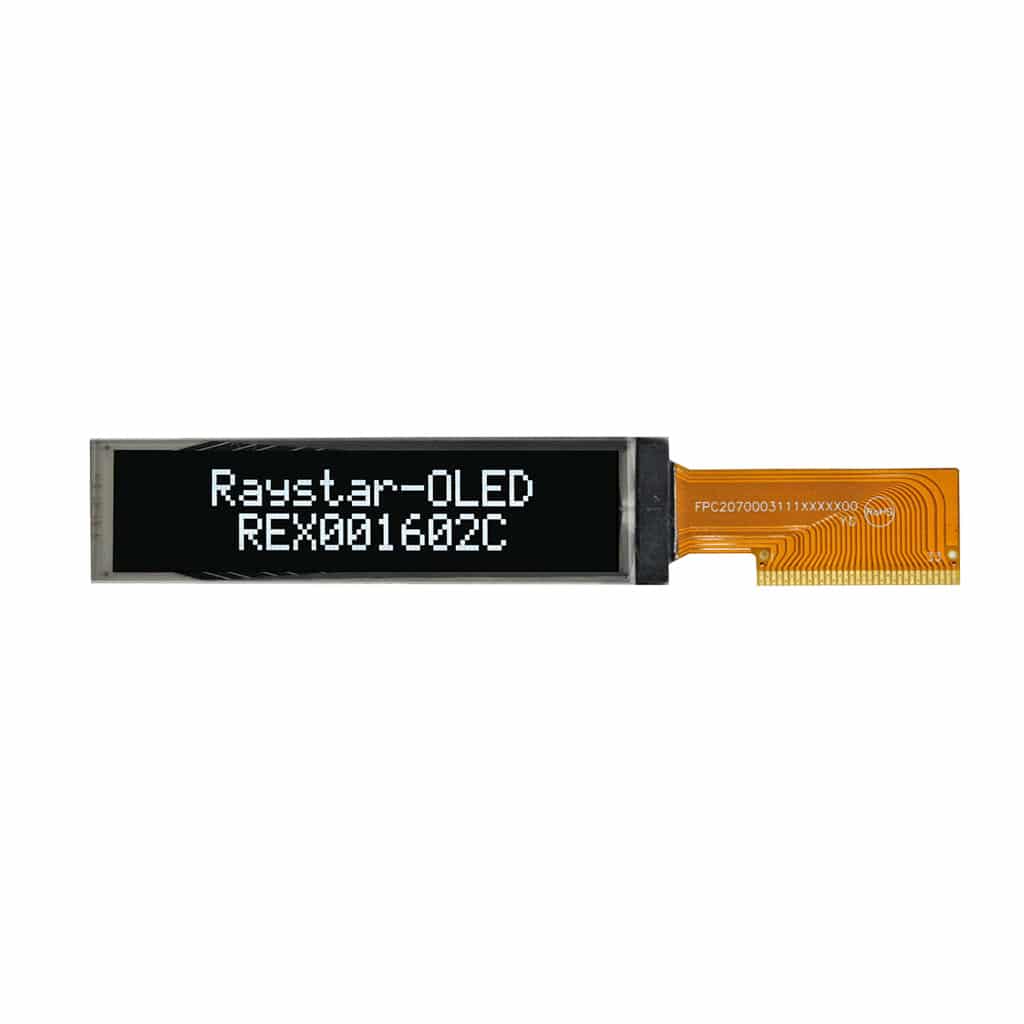

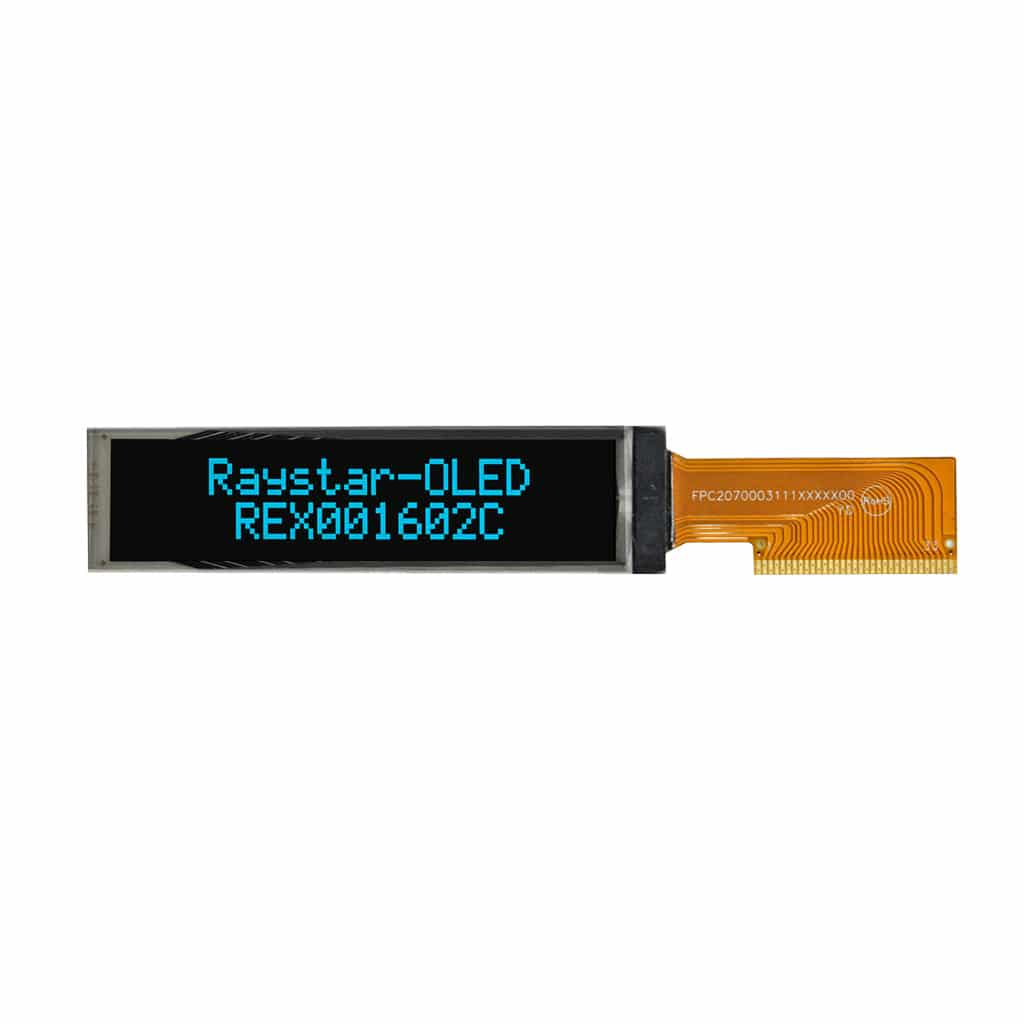

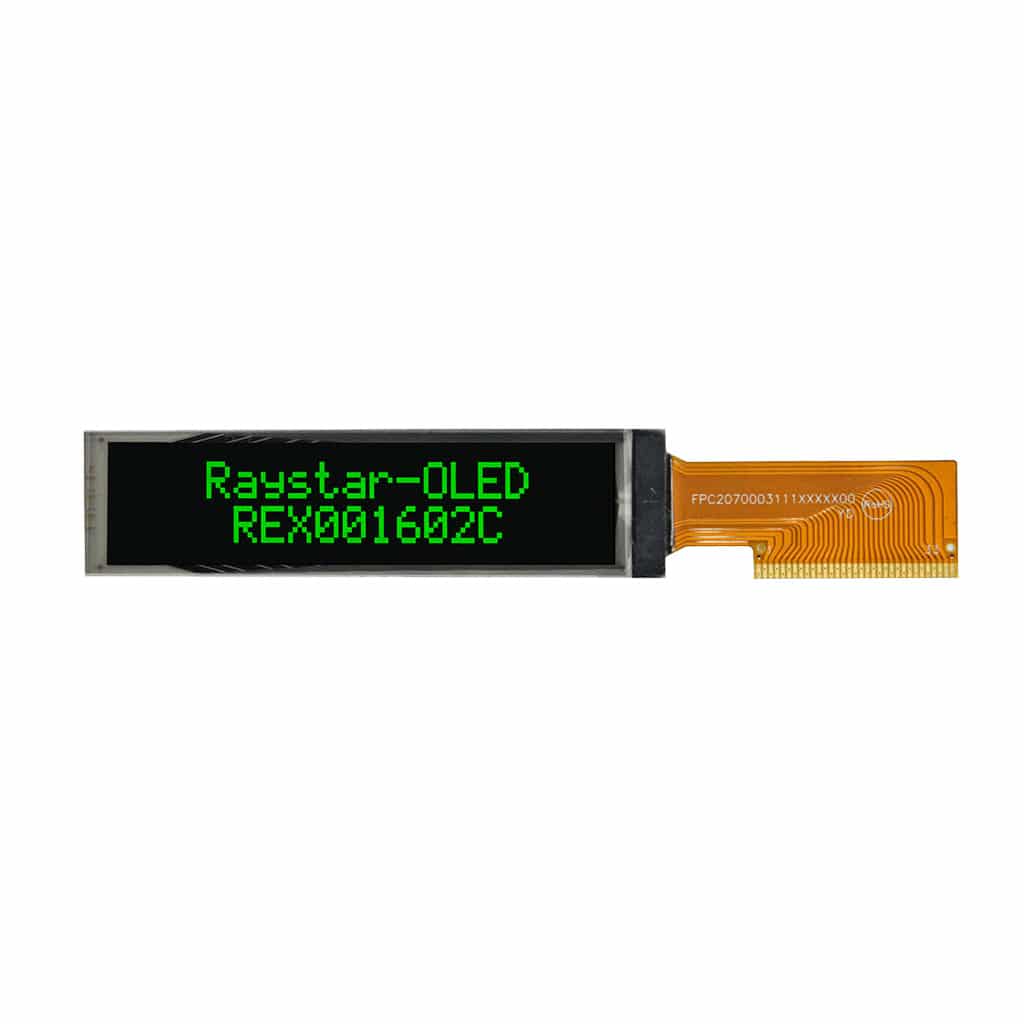

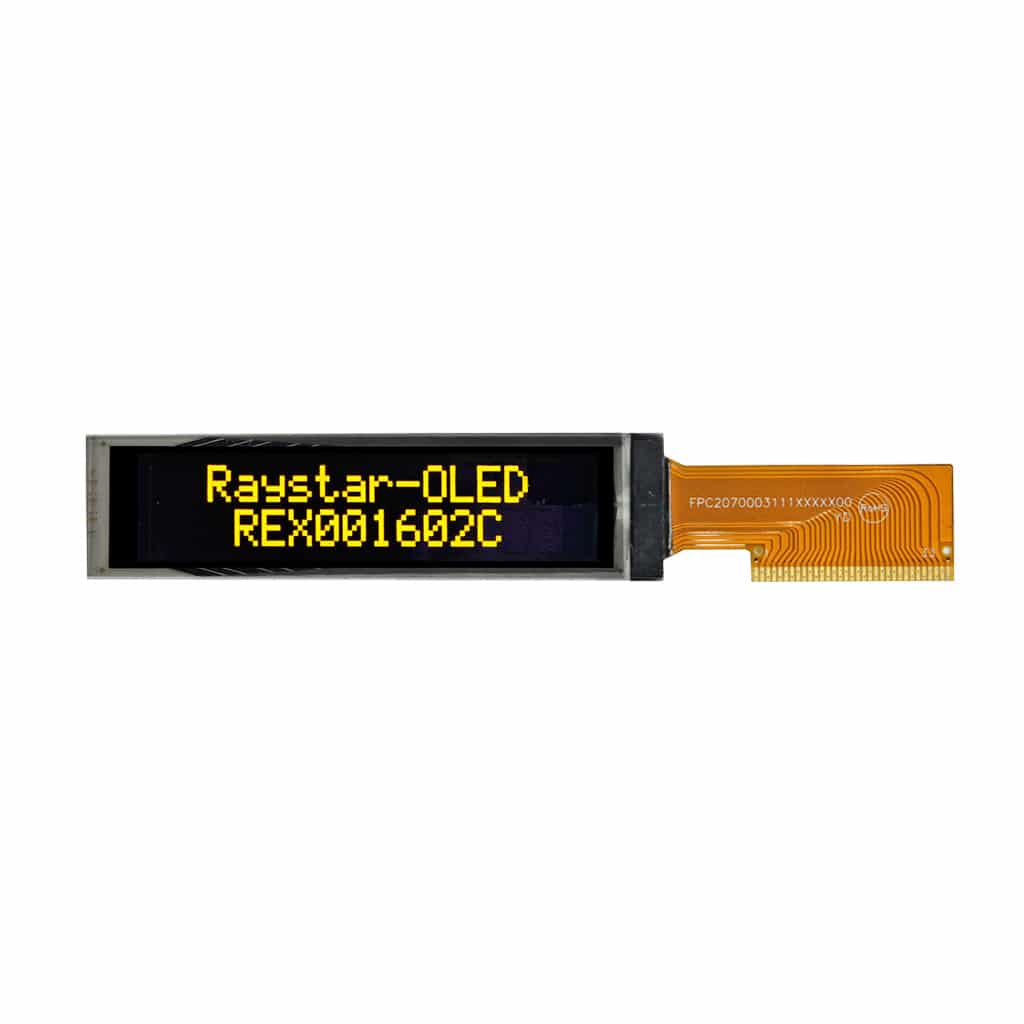

Available in a choice of Blue, Green, White or Yellow

Integrated SSD1311 IC









  • 16×2 Chip-On-Glass OLED
  • Dimensions: 68.5mm x 17.5mm
  • Viewing Area: 58.22mm x 13.52mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: SSD1311
  • Standard Operating Temperature of -40°C to +80°C
